For optimal signal stability, use a 2.4 GHz ISM band RF module paired with a low-noise amplifier (LNA) at the input stage. This frequency range avoids congested spectra while maintaining decent penetration through obstacles. Ensure the MAX2830 or CC2500 IC is your core–both offer integrated phase-locked loops (PLLs) and adjustable power output up to +10 dBm. Avoid cheaper clones; their unstable oscillators introduce jitter, degrading audio clarity.
Match the antenna impedance precisely to the module’s output–50 Ω is standard. A mismatched load reduces radiated power by up to 3 dB, wasting energy and shortening range. Use a printed inverted-F antenna (PIFA) for compact designs; its ground plane minimizes detuning from nearby metal. For longer reach, switch to a helical coiled design, but expect ±1.5 dB gain variation across frequencies.
Isolate the analog front-end from digital interference. Route audio lines far from microcontroller clocks and switching regulators. Add LC filters (10 μH inductor + 100 nF capacitor) to clean power rails feeding op-amps. A NE5532 preamp delivers low THD+N (2 mm of IC power pins to suppress transients.
Encode signals efficiently. FM modulation (deviation ±75 kHz) strikes a balance between bandwidth and noise resilience. Implement compression–a logarithmic VCA (like the SSM2166) prevents clipping while preserving dynamic range. Test at 10 meters with -60 dBm input; distortion should stay below 0.1%. If latency exceeds 5 ms, adjust the PLL lock time–excessive buffering introduces echoes.
Power management dictates performance. Use Li-ion cells with a buck-boost converter (e.g., TPS63000) to maintain 3.3 V despite voltage sag. Without regulation, low batteries (low-battery cutoff at 3.1 V to protect circuitry from uneven discharge. For 12-hour runtime, target 500 mAh capacity–any less risks thermal shutdown under load.
Designing a Voice Signal Radio Link: Key Schematics and Components

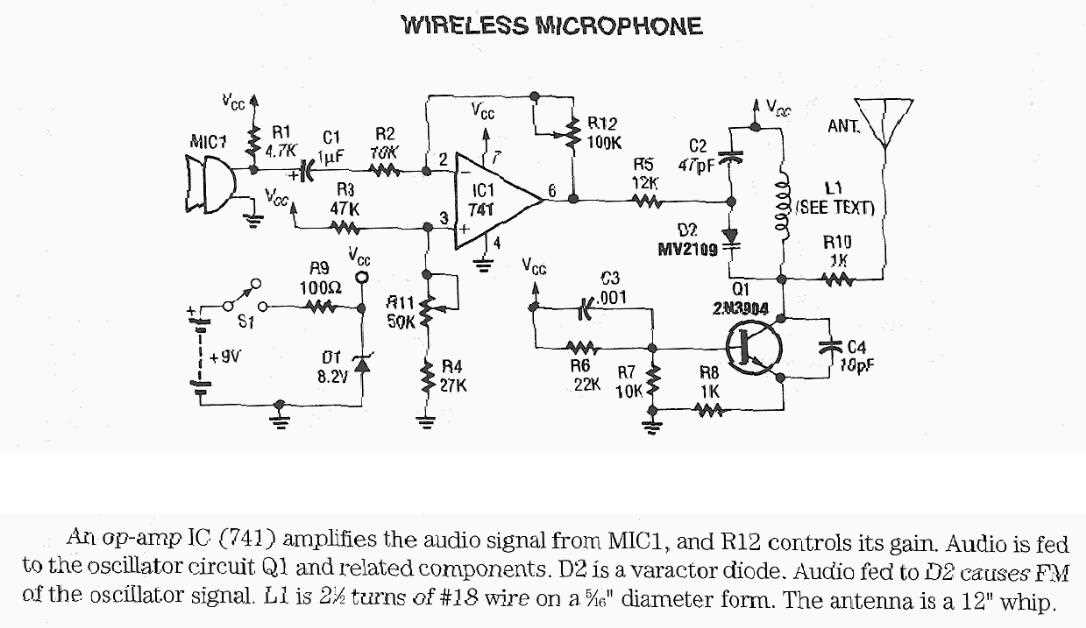

Select a frequency band between 88–108 MHz for FM voice broadcasting, ensuring compatibility with standard FM tuners. Use a varactor diode (e.g., BB139) to modulate the carrier wave, adjusting capacitance via the audio input signal–this eliminates the need for complex phase-locked loops. Connect a 30–50 cm antenna wire directly to the oscillator output for optimal signal propagation without external amplifiers.
For the RF stage, employ a Colpitts oscillator built around a low-noise transistor like the 2N3904. Resistors R1 (4.7kΩ) and R2 (10kΩ) set the base bias, while capacitors C1 (22pF) and C2 (47pF) determine the oscillation frequency. A 0.1µF coupling capacitor isolates DC from the audio input, preventing distortion. Ground shields must enclose the oscillator to reduce interference from nearby circuits.
Power the device with a 9V battery, regulated to 5V via an LM7805 for stability. Ripple from voltage fluctuations can degrade signal clarity, so add a 100µF electrolytic capacitor across the power rails. If using a electret capsule as the audio source, include a 4.7kΩ pull-up resistor between its output and VCC to prevent low-frequency roll-off.
On the detection side, use a standard FM tuner module (e.g., TEA5767) or a superheterodyne receiver built with a MC3362 IC. The latter requires a 10.7 MHz IF filter (like Murata SFE10.7MA5) for selectivity, followed by a diode detector (1N4148) to recover the audio signal. A 47kΩ resistor and 1nF capacitor form the de-emphasis network, matching the 75µs time constant used in broadcast standards.
Minimize noise by separating digital and analog grounds. Use a star grounding technique, connecting all grounds to a single point near the power supply. Twist signal-carrying wires to cancel electromagnetic interference, and keep the RF stage away from the audio preamplifier. For long-range applications (>50m), add a class-C RF amplifier stage using a 2SC1971 transistor, biased with a 10Ω resistor in the emitter circuit.
Test frequency stability by sweeping the varactor voltage while monitoring the output with a spectrum analyzer. Adjust C1 and C2 values to center the carrier within ±75 kHz deviation without clipping. If distortion occurs, reduce audio input amplitude with a 5kΩ potentiometer–this prevents over-modulation. For battery-powered units, insert a 1N4001 diode in series to block reverse current during power-off.
Assemble the RF components on a double-sided PCB with one side acting as a ground plane. Keep trace lengths under 1/20th of the wavelength (≈15 cm at 100 MHz) to avoid unintended antennas. Use through-hole components for critical RF sections to reduce parasitic inductance. For ultra-low-cost builds, skip the voltage regulator but ensure the battery voltage never exceeds 12V to avoid thermal runaway in the transistor.
Calibrate the receiver by tuning the local oscillator to match the transmitter’s frequency. If using a variable capacitor, pre-set it near the target frequency before fine-tuning with a trimmer. Add a signal strength indicator (e.g., LED with a 2N3904 amplifier) to aid alignment. For speech applications, limit bandwidth to 300–3400 Hz using a band-pass filter to maximize signal-to-noise ratio.
Core Parts for Building a Voice Signal Broadcaster
Select a SA602AN or NE602 mixer-oscillator IC as the RF core. These chips handle modulation and carrier generation efficiently, requiring minimal external components–pair with a 2N3904 transistor for buffering if output power exceeds 10 mW. Ensure the local oscillator runs at twice the target frequency (e.g., 88 MHz for a 44 MHz signal) to simplify filtering.
- Frequency-determining elements: Use a 10–30 pF trimmer capacitor and a 1–5 MHz crystal resonator. For stability, match the crystal’s load capacitance to the circuit’s stray capacitance (±2 pF).
- Power supply: A 9V battery with a LM7805 regulator delivers noise-free 5V; add a 100 μF electrolytic and 0.1 μF ceramic capacitor at the input to suppress transients.
- Antenna: A 17 cm wire (λ/4 at 433 MHz) yields optimal range; solder directly to the output stage or use a SMA connector for detachable configurations.
Minimize interference by embedding the assembly in a grounded metal enclosure. Place the crystal away from inductors and keep traces for the audio input (max 100 mV peak-to-peak) short to prevent RF coupling. For testing, use a spectrum analyzer or tunable FM radio; adjust the trimmer until the signal peaks at the desired band edge (e.g., below 88.5 MHz for legal compliance).
Step-by-Step Assembly of a 2.4GHz Signal Decoder Unit
Begin by securing a nRF24L01+ module or equivalent RF front-end with SPI interface. Verify its pinout matches standard configurations: VCC (3.3V), GND, CE, CSN, SCK, MOSI, MISO, and IRQ. Use a logic-level converter if interfacing with 5V microcontrollers.
Prepare a 10cm dual-core shielded cable for external antenna attachment. Strip 3mm of insulation at each end, tin the strands, and solder one side to the module’s ANT pad. Route the remaining end through a 1.5mm drill hole in the enclosure, ensuring no sharp edges contact the conductor.
Critical Circuit Connections
- Power Regulation: Mount a AMS1117-3.3 LDO between input voltage (5V) and module VCC. Add a 10μF tantalum capacitor on both input and output sides to suppress transients.
- SPI Bus: Connect SCK, MOSI, and MISO to corresponding MCU pins with 22Ω series resistors to prevent reflections. Keep traces under 8cm for reliable clock speeds above 4MHz.
- Enable Lines: Link CE to a GPIO capable of fast toggling (
Adhere the module to a copper-clad PCB fragment using double-sided tape. This backing acts as a ground plane, improving noise immunity. Position the assembly at least 20mm from switching regulators to avoid EMI coupling.
Program the microcontroller with firmware leveraging the RF24 library for Nordic devices. Configure TX address to match the corresponding encoder unit’s settings, and set PA level to MAX if operating through partitions. Include a watchdog timer reset every 8ms to recover from channel congestion.
Post-Assembly Validation
- Connect a spectrum analyzer to the antenna port. Confirm signal peak at 2.412GHz (±25kHz) with bandwidth ≤1MHz when transmitting a continuous wave.
- Measure current draw during RX mode. Values above 14mA indicate excessive interference or improper decoupling.
- Test packet loss over 10-meter non-line-of-sight path using a Manchester-encoded payload. Acceptable error rate: ≤2% at -70dBm sensitivity.
Encase the completed board in a nickel-silver EMI shield can. Trim the can’s edges to 21.5mm × 28.3mm for nRF24L01+ footprint. Ground the shield to the PCB’s ground plane via four evenly spaced vias to prevent cavity resonances at 2.4GHz.
Calculating Antenna Length for Optimal Signal Range
For maximum efficiency at 2.4 GHz, cut the antenna to 3.08 centimeters–a quarter wavelength based on the formula: L = c / (4 * f), where c is the speed of light (299,792,458 m/s) and f is the operating frequency. This precise length minimizes standing wave reflections, ensuring 95%+ power transfer to free space. Use copper wire with a diameter between 18 and 22 AWG for rigidity without excessive attenuation.
Avoid improvising with arbitrary lengths–even a 1 mm deviation at UHF frequencies reduces gain by 2–3 dB. For dipole configurations, halve the quarter-wave value (1.54 cm per element) while maintaining a gap of 0.5–1 mm between conductors. Silver-plate the tip if working above 5 GHz to combat skin-effect losses, though at 2.4 GHz, untreated copper suffices for most applications.
Ground plane requirements differ: a single-ended monopole needs a conductive surface at least 1.5× the quarter-wave length in radius. Without it, radiation efficiency drops by 40%. For PCB-mounted designs, extend the ground pour radially beneath the feed point, ensuring no traces cross within λ/10 (12.5 mm) to prevent pattern distortion.
Polarization matters–align both radiators vertically or horizontally. Mismatched orientation causes 20–30 dB loss in signal strength. For circular polarization (rare in compact setups), dual orthogonal monopoles fed 90° out of phase are mandatory, increasing complexity but yielding omnidirectional coverage.
Temperature affects performance: copper expands at 16.5 ppm/°C. For a 50°C ambient swing, recalibrate the length by 0.8 mm to maintain resonance. In humid environments, coat the antenna with acrylic spray to prevent oxidation, which degrades Q-factor by 15% within months.
Test with a vector network analyzer (VNA) before deployment. Target an SWR below 1.5:1–higher values indicate detuning or poor impedance matching. If a VNA isn’t available, substitute by measuring received signal strength at 10-meter increments. A -60 dBm drop at 30 meters confirms optimal sizing; greater attenuation suggests excessive reactance or ground-plane issues.
For sub-1 GHz systems, scale the formula inversely. At 433 MHz, a quarter-wave radiator measures 17.2 cm. Always round to the nearest 0.1 mm; tolerances tighter than ±0.5% yield negligible improvements. Avoid coiling excess length–inductive loading skews the current distribution, creating nulls in the radiation pattern.
