Begin by isolating the microcontroller core–the central processing block that dictates signal routing. Pinpoint voltage regulation circuits early; trace power rails from the main input connector to the MCU’s VDD/VSS pairs. Use a multimeter to verify stabilized 5V or 3.3V outputs before progressing. Ignoring this step risks shortcuts through noise-sensitive analog lines.
Segment the design into three functional zones: power delivery, signal conditioning, and data interfaces. Power delivery segments should include reverse-polarity protection diodes and transient voltage suppressors near the battery input. Label each capacitor by value and tolerance–low-ESR ceramics for high-frequency decoupling (0.1µF typical), bulk electrolytics (10µF+) for low-frequency ripple suppression.
Trace sensor inputs through operational amplifiers or dedicated signal-conditioning ICs. Identify pull-up/pull-down resistors (commonly 2.2K–10K) and verify SPI/I2C bus resistors (often 470–1K) placed close to connector pins. Note that CAN bus lines require 120Ω termination resistors at both ends; omit or misplace these and communications fail silently.
For output drivers–especially ignition coils and fuel injectors–locate the power transistors (frequently MOSFETs or IGBTs). Check for flyback diodes mounted directly across inductive loads; absent or damaged components cause destructive voltage spikes. Calculate maximum current paths using trace width: 1 oz copper tolerates ~1.2A/mm width for 20°C temperature rise.
Annotate each connector pinout with function, voltage, and pin number. Cross-reference with OEM service diagrams to avoid mislabeled grounds; a single floating ground can disrupt multiple subsystems. Document feedback loops–lambda sensors, knock sensor inputs–ensuring they loop back to the microcontroller’s ADC channels with proper scaling.
Key Components of a Vehicle Control Unit Layout
Begin by isolating the microcontroller core as the central processing hub. Select a 32-bit or 64-bit model with DMA channels–NXP S32K or Infineon AURIX are proven choices for balancing throughput and power efficiency. Ensure at least 512 KB flash with ECC for firmware resilience; static wear-leveling algorithms extend lifespan beyond 100,000 write cycles. Separate SRAM into instruction and data banks–128 KB minimum–to prevent pipeline stalls during context switching.
- Clock tree design: Include a primary PLL locked to a 20 MHz crystal, generating 80 MHz CPU clock and adjustable peripheral clocks (1–40 MHz). Use spread-spectrum modulation (±0.5%) to lower EMI peaks by 6 dB without sacrificing timing precision.
- Power rails: Implement a two-stage LDO cascade: 5 V → 3.3 V → 1.2 V, with bulk capacitors (47 µF tantalum) at input and ceramic capacitors (1 µF) near each pin. Add TVS diodes (400 W, 24 V clamp) on all external connector lines.
- Debug interfaces: Route JTAG/SWD traces with controlled impedance (90 Ω differential) and keep stubs shorter than 15 mm to avoid signal reflections. Add a 1 kΩ pull-up resistor on TMS to prevent floating during reset.
Compartmentalize analog front ends using guarded traces. Differential sensor inputs (e.g., crankshaft reluctor) require twisted pair wiring with less than 0.5 pF/cm coupling capacitance. Place anti-aliasing filters (2nd-order Sallen-Key, fc = 5 kHz) directly adjacent to the ADC input pin–keep trace length under 5 mm to minimize noise pickup. Opt for a successive approximation ADC with 12-bit resolution, 1 Msps throughput, and built-in offset/gain calibration registers to compensate for ±1.5 LSB drift over temperature.
Bus matrix optimization:
- Hierarchy: Split high-frequency (CAN FD, 5 Mbps) and low-speed buses (LIN, 19.2 kbps). Use independent DMA channels for each; avoid multiplexing to prevent arbitration delays.
- Termination: Place 120 Ω resistors within 3 cm of far-end CAN transceivers. For SPI, use series resistors (33 Ω) on MOSI/MISO lines to reduce overshoot below 0.4 V at 10 MHz.
- Address mapping: Reserve 0x08000000–0x080FFFFF for bootloader code, then 0x20000000–0x2003FFFF for data stack. Partition code into 64 KB sectors for efficient flash erasure operations.
Secure critical data paths by embedding HW CRC-16 modules on both flash controller and DMA outputs. Real-time OS scheduling demands a watchdog timer with dual-core synchronization–set windowed mode (100–500 ms) and interlock with the main system clock. For fault tolerance, duplicate core registers in shadow RAM and implement parity on all general-purpose registers. Route reset lines through a 2N3904 transistor buffer to ensure clean pulse edges during brown-out recovery.
Core Elements for a Vehicle Control Unit Layout
Begin with a central processing core–the microcontroller or microprocessor–clearly labeled by model and clock speed. Include its memory interfaces (flash, SRAM, EEPROM) with capacities in kilobytes or megabytes, specifying whether they are embedded or external. Mark pin assignments for address/data buses and power rails directly on the connections.
Map power distribution with separate rails for logic (e.g., 3.3V, 5V) and high-current outputs (e.g., 12V, 24V). Indicate voltage regulators, transient protection diodes, and ground planes, ensuring isolation between analog and digital grounds. Label current ratings for each rail to prevent overload in downstream components.
Segment input conditioning blocks by sensor type: analog (thermistors, potentiometers), digital (switches, encoders), and frequency-based (Hall-effect, inductive). Show signal filtering (RC, LC, or active filters) with component values, and isolation methods (optocouplers, transformers) where applicable. Include protection circuits (TVS diodes, fuses) at input stages.
Dedicate a section to actuator drivers, grouping them by function (injectors, solenoids, relays). Specify output stage topologies–H-bridges for bidirectional control, low-side drivers for single-direction loads–and note current limits (e.g., 1A continuous, 3A peak). Add flyback diodes and snubber circuits for inductive loads.

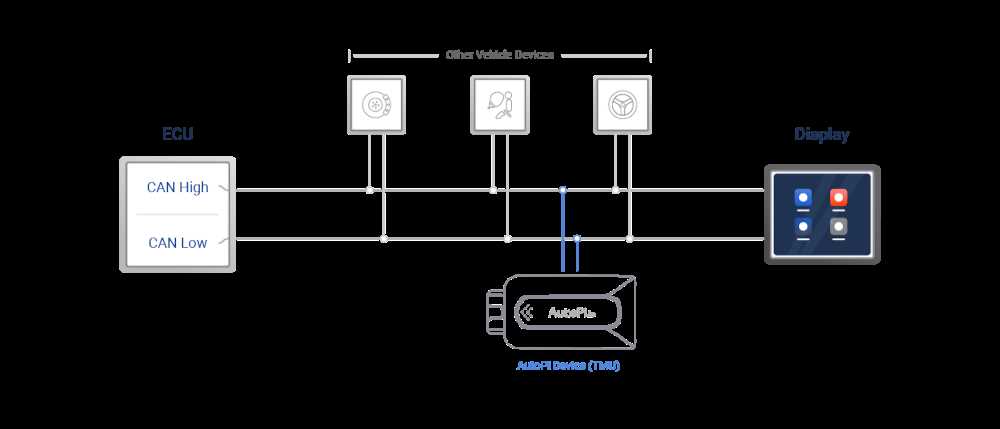

Illustrate communication interfaces (CAN, LIN, Ethernet, FlexRay) with transceiver models, baud rates, and termination resistors. Separate bus lines into physical layers (differential pairs for CAN, twisted pairs for Ethernet) and include connectors (e.g., OBD-II, Deutsch) with pinouts. Denote arbitration priorities if multiple nodes coexist.
Add diagnostic pathways: test points for critical signals, JTAG/SWD interfaces for firmware debugging, and UART connections for serial monitoring. Include built-in self-test (BIST) modules for memory verification and watchdog timers with reset thresholds. Label fail-safe states (e.g., “limp-home mode”) for each subsystem.
Show real-time constraints via annotations: task schedulers (e.g., RTOS priorities), interrupt vectors, and timing budgets for critical loops (e.g., 10ms injection pulse width control). Use color-coding or layered views to distinguish low-latency paths (e.g., ignition timing) from background tasks (e.g., odometer updates).
Integrate thermal management cues: heatsink placements for power semiconductors, thermal sensors (NTC/PTC), and shutdown thresholds. Include airflow directions if forced cooling is used. Label derating curves for components operating near their limits, especially in automotive environments (-40°C to 125°C).
Step-by-Step Guide to Creating a Vehicle Control Unit Wiring Blueprint
Begin by acquiring the exact pinout specifications for the microprocessor and connectors from the manufacturer’s datasheet. Verify each pin’s function–power inputs, ground references, signal outputs, and communication lines (CAN, LIN, SPI). Mislabeling a single pin will cascade into functional failures.
Sketch a preliminary layout on grid paper or using dedicated circuit design software (Altium, KiCad, or OrCAD). Place the central processor at the top-left corner, arranging peripheral components–power regulators, sensors, actuators, and interface modules–in logical groups based on signal flow. Distance-sensitive elements (high-current drivers, sensitive analog inputs) must be isolated from noise-generating sections.
Route power rails first. Use thick traces (minimum 2 mm width for 1A currents) for VCC and ground, avoiding daisy-chaining. Implement star grounding: consolidate all grounds at a single low-impedance point near the power source. Add decoupling capacitors (typically 0.1 µF ceramic) directly across each IC’s power pins to suppress transients.
Draw signal paths next. High-speed lines (CAN, clock signals) require controlled impedance–keep runs short and parallel to reference planes. Analog sensor inputs demand shielding; route them away from PWM outputs or relays. Label every wire with its exact signal designation (e.g., “TPS_Signal_5V”) and color code per industry standards (red = power, black = ground, yellow = CAN_H).
Integrate protection components. Add transient voltage suppression diodes (TVS) on all external connector pins. Fuses (blade or PTC) must be placed as close as possible to the power source for each actuator circuit. Relay drivers require flyback diodes (1N5408) to quench inductive spikes.
Validate the layout against the vehicle’s harness specification. Cross-check each connection against the target platform’s wire gauge requirements: 0.5 mm² for 5A currents, 1.5 mm² for 10A+. Use a multimeter in continuity mode to verify each trace matches the intended connection before finalizing documentation.
Export the finalized blueprint into a vector format (PDF or DXF). Layer critical metadata: component part numbers, revision history, torque specifications for connectors, and connector mating procedures. Include a bill of materials listing every wire gauge, terminal type, and crimping tool required for assembly.
