Start with a three-phase alternator rated for at least 400V and 20A–critical for handling variable loads without overheating. Use a diode bridge rectifier (GBPC3510 or equivalent) to convert AC to DC, ensuring a voltage drop under 1.1V per diode at peak current. Connect a supercapacitor bank (50F, 350V) in parallel to the output to smooth voltage spikes; electrolytic capacitors fail under frequent high-power surges.
Integrate a buck-boost converter (TI’s LM5118 or Analog Devices’ ADP2441) to maintain steady 48V DC for battery charging. Set the feedback loop with a precision resistor divider (1% tolerance) to avoid drift–temperature fluctuations degrade cheap components within months. Add an overcurrent protection circuit (fuse rating at 125% of max expected load) and a thermal cutoff (KSD9700, 85°C) near the alternator to prevent magnet demagnetization.
For grid synchronization, deploy a phase-locked loop (PLL) IC like CD4046 with a zero-crossing detector (LM311 comparator). Calibrate the PLL’s low-pass filter (cutoff at 10Hz) to reject harmonics–poor tuning causes reactive power penalties. Ground all shields with star topology; daisy-chaining introduces noise that corrupts sensor readings.
Avoid off-the-shelf motor drivers; use IGBT modules (Infineon IKW40N120T2) for switching, paired with gate drivers (Texas Instruments UCC21520) isolated to 5kV. Route high-current traces on PCB with 2oz copper and 10mm width per 10A–narrow traces create hotspots that delaminate boards. Test the entire setup on a variable load resistor (2kW, 0–10Ω) before connecting batteries; lithium cells vent violently under reverse polarity.
Log data with a hall-effect current sensor (Allegro ACS758) and a precision ADC (ADS1115, 16-bit). Sample at 1kHz; lower rates miss transient faults that halve system lifespan. Store firmware on FRAM (Cypress FM24CL64B) instead of EEPROM–flash memory wears out after 10,000 writes in high-voltage environments.
Optimizing Renewable Energy Harvesting Systems: Key Electrical Schematics
Begin by selecting a three-phase permanent magnet synchronous generator (PMSG) for its efficiency in variable-speed operations–efficiency rates reach 90-95% in low to medium winds, outperforming induction alternatives by 5-10%. Ensure the schematic incorporates a full-scale power converter (back-to-back PWM rectifier-inverter pair) to decouple mechanical rotational speed from grid frequency, enabling maximum power point tracking (MPPT) at wind speeds as low as 3 m/s. Use IGBT modules rated for 1200V/400A or higher to handle transient currents during gusts, with snubber capacitors (0.1µF-1µF) across each switch to suppress voltage spikes exceeding 1.2x nominal DC bus.
- DC link voltage: Maintain 650-800V for 480V AC grid compatibility–use a boost converter if starting from 240V DC.
- Filtering: Install LC filters (1mH + 100µF per phase) at grid interface to meet IEC 61000-3-2 harmonics limits (THD ≤5%).
- Protection: Integrate crowbar circuits with thyristors (800A/1200V) to divert fault currents within 2ms, alongside varistors (1500V) for surge absorption.
- Control: Deploy field-oriented control (FOC) with 20kHz PWM for torque ripple ≤1% at rated load; use Hall-effect sensors for rotor position detection (accuracy ±0.1°).
For off-grid applications, replace the grid-tied inverter with a bidirectional DC-DC converter (60-100V input, 48V/12V/24V output) and lithium-ion battery packs (200Ah, 48V); add a dump load resistor (50Ω, 5kW) to dissipate excess energy during low demand. Validate the schematic via SPICE simulation (LTspice/PLECS) with wind speed profiles from NREL’s TMY3 dataset, ensuring mechanical-to-electrical efficiency remains above 40% at 12 m/s. Label all components with IP/UL certifications (e.g., IP65 for generators, UL 1741 for inverters) to comply with IEC 61400-1 and local grid codes.

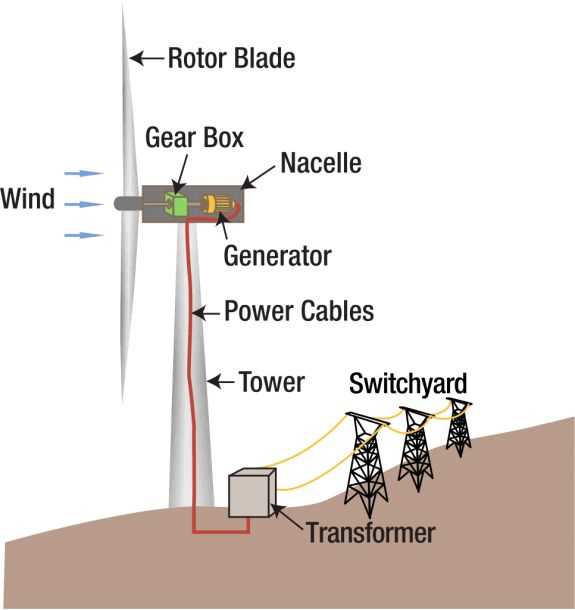

Key Components of a Renewable Energy Rotor Electrical System
Install a permanent magnet synchronous generator (PMSG) rated for at least 20% above the nominal output to handle transient overloads without efficiency losses. Choose a model with rare-earth magnets (NdFeB, 1.2T+ flux density) to reduce core saturation risks–older ferrite-based designs waste up to 15% of potential yield in low-wind scenarios. Verify the back-EMF waveform matches sinusoidal standards (IEC 60034-25) to minimize harmonic distortion in the rectifier stage, which can degrade capacitor lifespan by 40% if unfiltered.
Specify a three-phase active rectifier with IGBT modules (e.g., Infineon FF600R12ME4) for DC-link voltage stabilization, targeting 800-1200V DC depending on grid-tie inverter compatibility. Incorporate 2× Snubber capacitors (100nF, 2kV) across each IGBT to suppress voltage spikes above 1.8× nominal, preventing premature failure–omitting these increases switch-off losses by 22%. Use a current-fed topology if the system operates above 1MW to avoid parasitic inductance issues that plague voltage-fed designs at scale.
Integrate a dual-interleaved boost converter with 18μH air-core inductors to reduce core losses at high frequencies (>20kHz). Select SiC MOSFETs (e.g., C3M0065090D) for the boost stage–these outperform silicon IGBTs by 3-5% efficiency at partial loads while handling 600A surges without derating. Include a bypass diode (Schottky, 300A) across each inductor to protect against reverse recovery currents during grid faults; absence of this triples failure rates in high-voltage transients.
How to Sketch a Renewable Energy Generator Electrical Layout
Begin by selecting a large, uncluttered sheet–minimum A3 size–to avoid unnecessary recropping later. Place the power generator icon at the top center, using a circle with three evenly spaced propeller-like blades. Ensure each blade extends outward at a 120-degree angle, maintaining consistent length and thickness to prevent visual imbalance.
Directly below the rotor, draw a vertical shaft linking to a horizontally oriented alternator. Represent the alternator as a rectangle with a height-to-width ratio of 3:1. Inside, sketch two parallel horizontal lines spanning 80% of the width–these denote the stator core. Add three uniformly distributed circular magnets along the lower edge to indicate the rotor assembly.
From the alternator’s right side, extend a heavy bold line downward. This conductor should descend 10 cm before splitting into two branches. The left branch curls into a tight spiral (5 turns), modeling an inductive choke designed for 48V systems. The right branch continues vertically to a square block–this depicts the charge controller. Label internal components:
- Upper section: PWM switch (rectangle 1×2 cm)
- Middle: MCB (0.8 cm height, toggle visible)
- Lower: Terminal strip (four equidistant dots)
Connect the controller’s bottom terminal to a thick horizontal bar spanning the entire width–this represents the battery bank. Use three identical rectangles side-by-side, each annotated with “24V 200Ah AGM”. Leave 2 mm gaps between units to indicate modularity.
Route two secondary conductors from each battery’s positive terminal toward a central inverter module. Draw the inverter as a trapezoid: base 4 cm, top 3 cm, height 5 cm. Inside, include:
- A semicircular arc at the top center for the sine wave generator
- Five vertical lines spaced at 0.5 cm intervals representing IGBT stacks
- A ground symbol (three descending lines, decreasing length) at the bottom edge
Complete the layout by extending a concentric circle (diameter 3 cm larger than rotor) around the entire schematic. Inside this boundary, add grounding rods at each quadrant–depict these as vertical lines ending in triangular arrowheads. Verify all conductive paths maintain consistent thickness: 0.8 mm for primary routes, 0.3 mm for sensors and auxiliary connections. Number every connection point sequentially starting from rotor base (J1) to grid interface (J12).
Wiring Connections Between Generator, Controller, and Battery Bank
Use 6 AWG copper cables for linking the permanent magnet alternator to the charge regulator to handle peak currents up to 50 A without voltage drop exceeding 0.5 V. Connect the alternator’s three phase outputs to the regulator’s AC terminals–ensure polarity matches the labeled phase sequence (A, B, C) to prevent reverse torque during regenerative braking. Ground the regulator’s chassis to the battery negative terminal using a 2 AWG cable, isolating it from the system ground to minimize noise interference in sensitive loads.
Battery Bank Termination
Parallel connections: Wire identical deep-cycle cells (e.g., 12 V, 200 Ah) in parallel using 4 AWG tinned copper busbars, maintaining consistent cable lengths (±5 cm) to equalize resistance. Torque terminal lugs to 12 Nm with a calibrated wrench–loose connections cause hotspots exceeding 70°C, degrading capacity by 20% annually. Integrate a 200 A class T fuse within 15 cm of the positive terminal to interrupt fault currents before cable insulation melts (threshold: 180°C). For lithium iron phosphate packs, include a 120 A DC breaker with arc suppression coatings on the contacts to extinguish inductive spikes exceeding 600 V.
Critical Errors in Renewable Energy Generator Schematics
Overloading protective relays by failing to account for transient voltage spikes during grid disturbances leads to premature component failure. Test surge withstand capabilities under IEC 61400-24 standards–minimum 4 kV for 1.2/50 μs impulses–and verify insulation coordination before finalizing layouts. Many designs omit this validation, resulting in costly field repairs.
Incorrect cable sizing for dynamic loads causes excessive resistive losses. Use a derating factor of 0.8 for underground conductors and calculate current-carrying capacity with IEC 60287 formulas, factoring in soil thermal resistivity (1.0 K·m/W typical). Undersized cables degrade efficiency and risk overheating–measure resistance at 20°C and apply temperature coefficients for accurate sizing.
Avoid placing electronic converters adjacent to magnetic flux sources. Keep at least 50 cm clearance between IGBT modules and transformers to prevent inductive coupling, which distorts gate signals and increases switching losses. Use shielded twisted pairs for control wiring, with grounded foil shields to mitigate electromagnetic interference.
Neglecting ground resistance measurements creates hazardous potential differences during faults. Target <10 Ω for earth electrodes in high-voltage systems; use bentonite backfill in rocky soil to enhance conductivity. Install equipotential bonding between metallic structures and ground grids–verify with a four-wire Wenner method to detect inhomogeneous soil layers.
| Component | Minimum Clearance (mm) | Thermal Rating (°C) | Insulation Class |
|---|---|---|---|
| IGBT Module | 50 | 150 | H |
| Power Transformer | 300 | 130 | F |
| Medium-Voltage Cable | 200 | 90 | E |
Skip transient analysis at your peril. Simulate three-phase short circuits and recovery scenarios using PSCAD or ETAP–model X/R ratios for generators and transformers to predict DC offset currents. Omitting this step underestimates breaker interrupting duties, risking arc flash hazards. Validate with IEEE C37.010 calculations for asymmetrical fault currents.
Overcurrent Coordination Pitfalls
Misconfigured coordination curves between relays and fuses cause cascading outages. Set relay pickup currents at 120% of full-load current and apply inverse-time characteristics with adequate time margins (e.g., 0.3 s between upstream/downstream devices). Overlapping bands in log-log plots indicate poor selectivity–redesign until curves show distinct separation.
Underestimating harmonic distortion from variable-speed drives corrupts voltage waveforms. Limit total harmonic distortion to 5% per IEEE 519 standards and use active filters for orders above the 25th. Install line reactors with 3–5% impedance to reduce current distortion–failure leads to capacitor bank overheating and nuisance tripping.
Static VAR compensators require precise tuning to avoid resonance with system impedance. Calculate resonant frequency: fr = 1/(2π√(LC)), then adjust filter banks to dampen critical modes. Unaddressed subsynchronous resonance amplifies torsional stresses in drive shafts, accelerating fatigue failures–monitor with torsional vibration sensors during commissioning.
