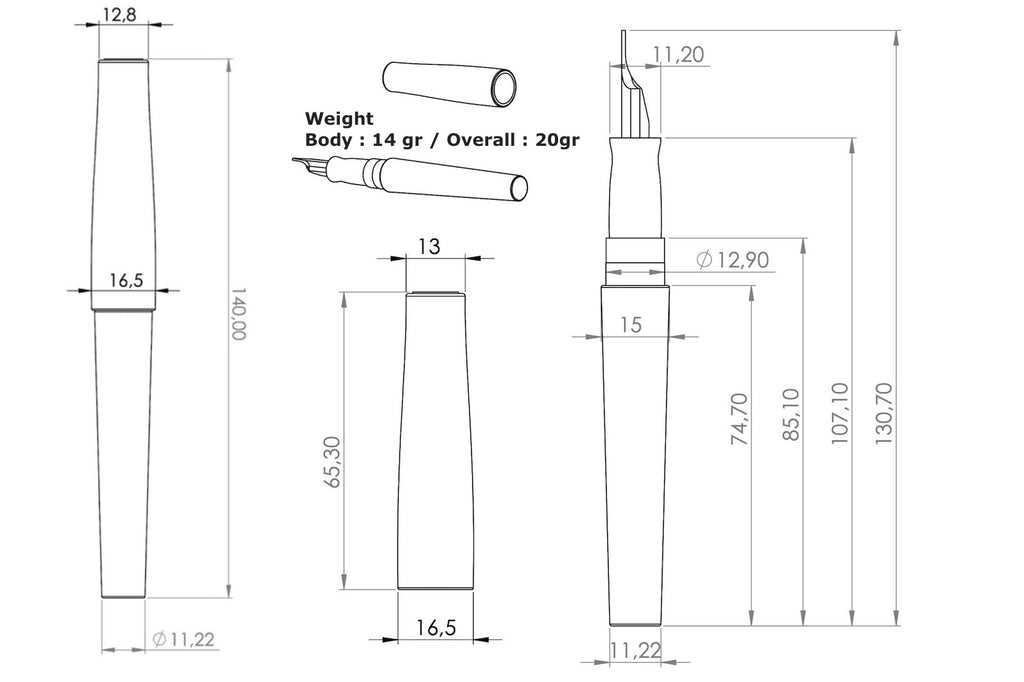

Select a cross-sectional illustration displaying at least three key zones: ink reservoir, feed mechanism, and nib assembly. Prioritize annotated blueprints showing internal pathways–capillary channels wider than 0.3mm reduce clogging. For reliable reference, use only documents stamped with the manufacturer’s engineering revision mark; generic sketches distort critical tolerances that dictate flow consistency.
Critical components to highlight: the breather tube (if present) must align precisely with the converter interface–misalignment triggers ink starvation. The collector’s fin geometry demands laser-cut precision; irregular edges disrupt surface tension balance. Verify the vent hole diameter (typically 0.4mm–0.6mm) on high-resolution scans, as undersized apertures cause drag while oversized ones risk feathering.

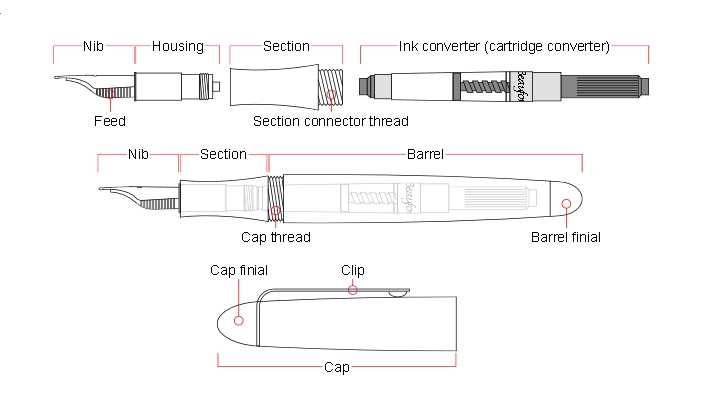

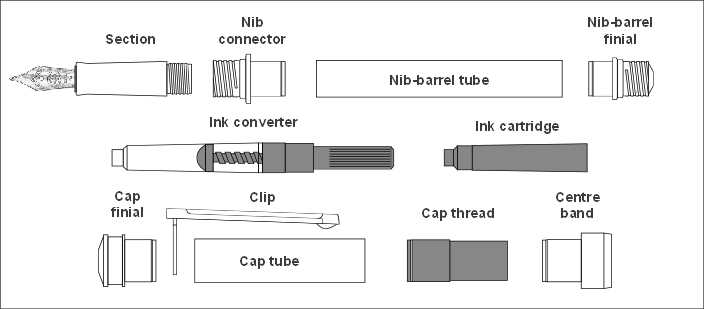

Use color-coding on exploded views: red for pressurized zones, blue for passive pathways, black for structural elements. This method clarifies the interaction between the feed’s fins and the gripping section–where minor mold variances (less than 0.1mm) create friction variance in mid-grade instruments. For vintage models, cross-reference thread pitch between the section and barrel; even a 0.2mm deviation compromises sealing.
Archive annotated files in lossless vector format (SVG). Rasterized JPGs degrade when zooming to inspect micro-serrations on nib shoulders, which directly affect ink spread during upstrokes. Label each part with material specifications: resin composites for feed mechanisms trigger allergic reactions in 2% of users, whereas ebonite remains the neutral baseline.
Technical Blueprint of a Writing Instrument

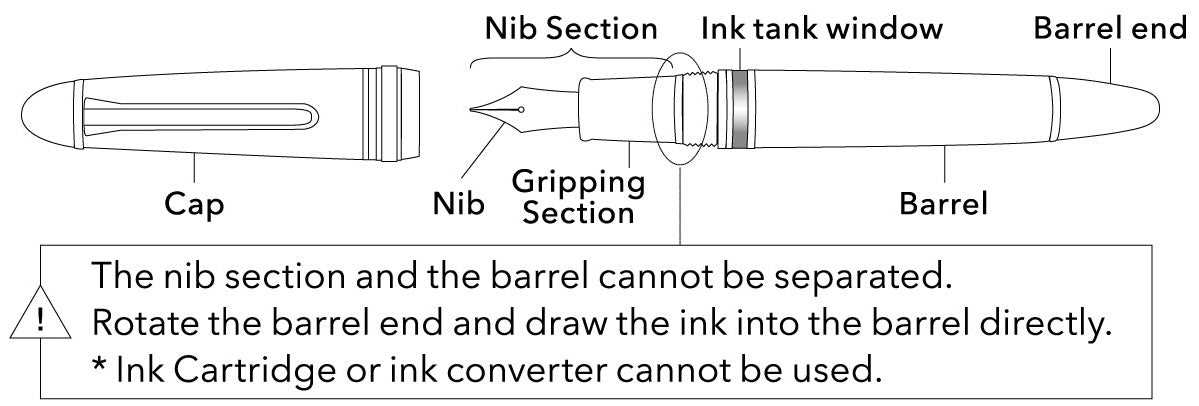

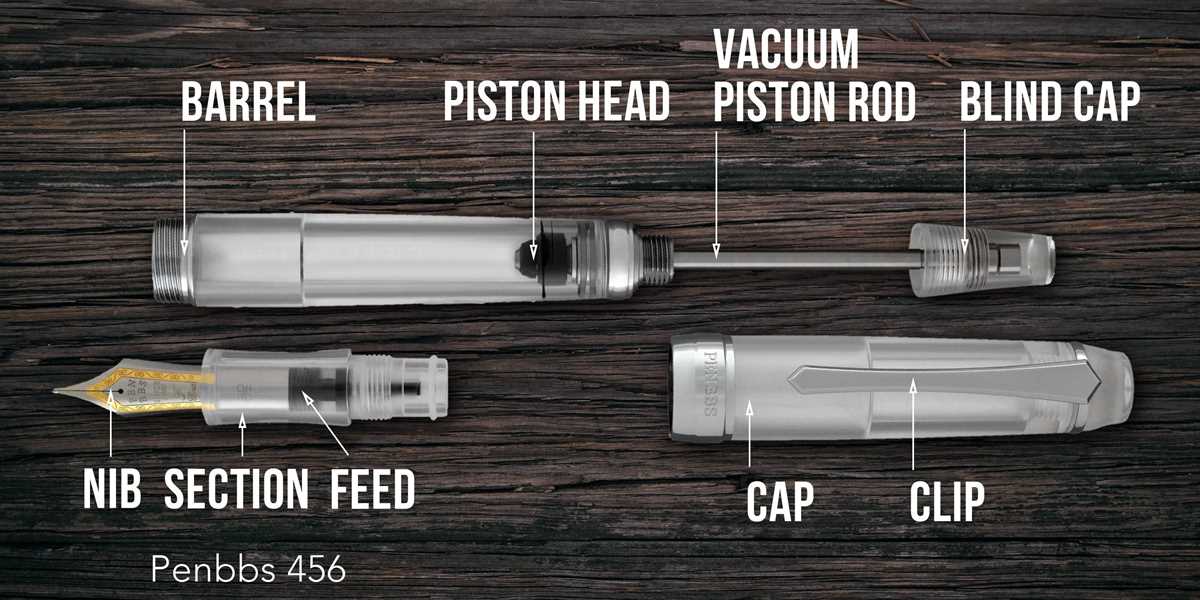

Start by locating the ink reservoir–typically a slender, elongated chamber beneath the grip section. Most modern designs use a piston-fill or cartridge-converter system, where liquid storage varies from 0.8 to 2.5 milliliters. For piston-fill variants, the mechanism relies on a threaded screw inside the barrel that, when turned, retracts a plunger and draws ink through a breather tube. Cartridge-based models simplify this with pre-filled plastic inserts, though converters offer greater capacity (up to 1.2 ml) and flexibility with bottled ink. Ensure the feed–positioned directly below the nib–has three tines: two outer channels for ink flow and a central slit for controlled release. Microfractures in these tines can disrupt capillary action, leading to inconsistent ink delivery.
Examine the feed-and-nib assembly as a unified pressure regulator. The feed’s fins, usually made of ebonite or ABS plastic, manage air and liquid equilibrium via microscopic vents (0.05–0.2 mm in diameter). Higher-end models incorporate ink traps–small recesses behind the feed–to prevent backflow during rapid writing. Check the nib’s material composition: iridium-tipped gold (14–18K) resists corrosion and provides slight flexibility, while steel variants offer durability at the cost of feedback. For optimal flow, the gap between the tines should measure 0.1–0.4 mm; wider gaps accommodate wetter inks but risk feathering on porous paper. Use a jeweler’s loupe to inspect for misalignment–even a 0.02 mm deviation can cause skipping.
Disassemble the section (the grip area) to access the converter or piston mechanism. Threaded sections should turn smoothly without lateral play; excessive looseness indicates worn brass inserts. Lubricate the piston seal with silicone grease (Dow Corning 111 or equivalent) every 50 refills to maintain suction–petroleum-based lubes degrade latex seals. For cartridge users, purge air bubbles by tapping the barrel lightly while vertical; piston-driven systems require full extension and retraction to clear obstructions. Store disassembled parts on a lint-free cloth to avoid fiber contamination in ink pathways. Replace feeds with visible cracks, as even hairline fractures disrupt capillary action.
Key Components in a Writing Instrument Cross-Section
Focus on the nib first–its iridium tip determines ink flow consistency. A well-tuned tipping material resists wear while maintaining smooth contact with paper. Replaceable nibs with finer points (EF/F) suit precise work, while broader options (B/M) handle bold strokes. Look for manufacturers that laser-etch feed channels to regulate capillary action; this prevents blotching and skipping. Avoid gold-plated nibs under $50–durability suffers.
Ink Delivery System Breakdown
- Feed: Positioned directly behind the nib, its fins stabilize ink flow via surface tension. Polymer feeds outperform ebonite in humidity resistance but may warp under heat.
- Converter/Ink Cartridge: Convertible models use piston mechanisms (screw or plunger) to draw ink from bottles–ideal for long-term cost savings. Pre-filled cartridges offer convenience but limit color choices.
- Section: The grip area should feature ergonomic indentations. Twist-seal designs prevent leaks; push-fit seals require exact alignment.
Prioritize barrel construction based on usage: resin balances weight and strength for daily carry, while metal alloys (aluminum, brass) add heft for control but risk temperature transfer, cooling ink too quickly. Test capped vs. uncapped ink evaporation rates–acrylic resins outperform celluloid by 30% in dry climates. For left-handed writers, oblique cut nibs reduce smudging but require specialized grinding.
How to Identify the Feed and Nib Alignment in Illustrations
Locate the slotted component directly beneath the writing tip–this is the ink channel. Examine its orientation relative to the tip’s split: the grooves should align centrally with the slit, not angled or offset. Modern designs often use molded plastic with visible vent holes; count these to verify symmetry. Asymmetrical vents indicate misalignment, while evenly spaced pairs suggest correct positioning.
| Feature | Correct Alignment | Faulty Indicator |
|---|---|---|
| Slit-to-Channel | Parallel edges | Visible gap/widening |
| Vent Holes | Paired, mirrored | Odd counts, uneven |
| Fin Edges | Sharp, equidistant | Ragged or crooked |
Trace the fins from the tip downward–their tapered edges must converge smoothly into the breather hole. Discoloration or irregularities here reveal past misadjustments. For older models, inspect the underlaying support: brass or ebonite units show wear patterns where metal contacts plastic. Replace if grooves appear widened or corroded.
Rotate the section slowly under light. Watch for reflections: consistent sheen across both tines confirms uniform gap clearance, while uneven light indicates bending. Test with thin paper–drag perpendicular to the slit; if one tine catches, recenter before use.
Step-by-Step Assembly Order from Blueprint to Writing Instrument
Start with the nib unit. Verify alignment between the tip and feed slot before attaching to the section. Misalignment here causes skipping or hard starts. Apply minimal pressure when inserting–excess force distorts the feeder channels. Test fit on paper: ink should flow smoothly without blotches.
Secure the feed into the gripping section using the designated slot. Ensure the ink channel grooves face upward, matching the nib’s underside. A slight rotation may be needed for precise alignment–avoid twisting past the natural resistance. This prevents air gaps that disrupt capillary action.
Intermediate Components
Attach the reservoir to the barrel. Most clear models require a clockwise turn until a faint click confirms sealing. For piston mechanisms, engage the knob fully before filling–partial deployment risks ink leakage mid-use. Metal threading often requires less torque than plastic; over-tightening strips delicate internal baffles.
Thread the section into the barrel. Verify the nib’s orientation relative to the clip position–some designs mandate specific alignment for ergonomic comfort. Test the assembly by gently pressing the tip onto blotting paper: ink should emerge within 2-3 seconds. Delayed flow indicates a feed blockage or improper seating.
Insert converter or cartridge. Push the converter’s piston rod upward until resistance is met–this primes the system. For cartridges, tap the body sharply to dislodge trapped air bubbles before puncturing. Listen for a soft hiss as the internal seal breaks; absence signals a faulty seal or incorrect insertion angle.
Final Checks
Penetrate the paper with the tip angled at 40-50 degrees. Roll the instrument slightly between fingers to confirm consistent ink release. Skipping at this stage demands disassembly and cleaning of the feed–solvents like diluted ammonia restore clogged microchannels. Reassemble only after drying components thoroughly.
Cap the unit loosely during test strokes to prevent evaporation. Observe drying rates across different scripts: rapid drying indicates excessive air exposure, while slow drying suggests capillary gaps. Adjust the cap’s seating depth until equilibrium is achieved–some caps require partial engagement for optimal airflow.
Common Leak Points in Writing Instrument Cross-Sections
Start by inspecting the feed-cap joint, where misaligned threading or worn seals frequently create capillary gaps. A 0.1mm mismatch–barely visible to the naked eye–can draw ink through improper contact pressure, especially in models with hard plastic vs. ebonite feeds. Apply a micro-dot of silicone grease (2-3mm streak) to the threads before reassembly, focusing on the upper two turns where compression is highest. Avoid over-tightening; ¾ turn past hand-tight is optimal for most converters.
Check these critical failure zones in exploded views:
- Section-barrel interface: Look for hairline cracks along the grip area, common in cellulose acetate bodies after 3-5 years of thermal cycling. Replace cracked sections immediately–epoxy repairs last 2-3 months before failing.
- Converter piston: Inspect the rubber seal lip for compression set (hardening) or scoring. Silicone O-rings lose 7% elasticity per year; replace every 18-24 months regardless of usage.
- Nib-unit gasket: Peel back the feed if ink bleeds around the breather hole. Residual adhesive from poor factory assembly retains ink in a 0.3mm gap at the collar edge–clean with 91% isopropyl and re-secure using 1mm overlap.
- Cap liner contact: Misaligned snap-fit caps create a vacuum effect pulling ink toward vents. Ensure the liner compresses fully at 3mm depth; adjust with 400-grit sandpaper in circular strokes.
For piston-fill mechanisms, test seal integrity by retracting the plunger 90% with water, holding 60 seconds–visible leaks indicate worn leather gaskets (replace with PTFE for lifetime durability). Modern demonstrators reveal airflow blockages where ink pools in the blind feed channel–drill a 0.5mm vent 2mm behind the collector fin if persistent pooling occurs.
Pressure-Triggered Failures
Identify altitude-related leaks by pressurizing the barrel to 1.2 atmospheres (submerge in 2m water 5 mins):
- Ink seeping at the twist knob = failed piston seal.
- Bubbles at the grip-section joint = stress fracture.
- Capillary action at nib shoulders = improper feed cut alignment (requires 0.2mm file adjustment).
Store horizontal at 15-22°C to prevent air expansion forcing ink past seals–vertical storage doubles evaporation rate through vents, creating crusting that blocks flow within 48 hours.
