Begin by identifying the rotor assembly as the core element–blades, hub, and pitch system must integrate seamlessly. Blades should measure between 40 to 90 meters for optimal energy capture, with aerodynamic profiles tested for turbulence resistance. Use carbon fiber or fiberglass composites to reduce weight while maintaining structural integrity under 25 m/s gusts. The hub connects blades to the main shaft, requiring reinforced steel or titanium alloys to withstand rotational forces up to 18 rpm.

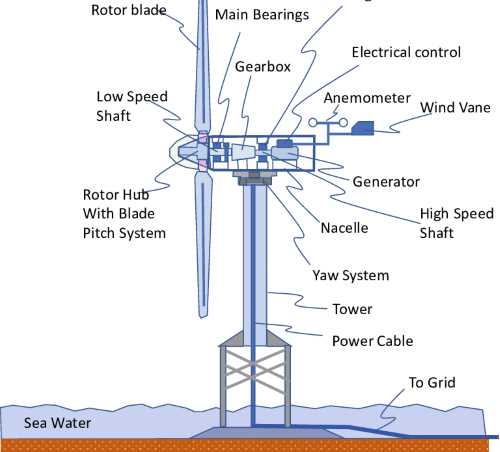

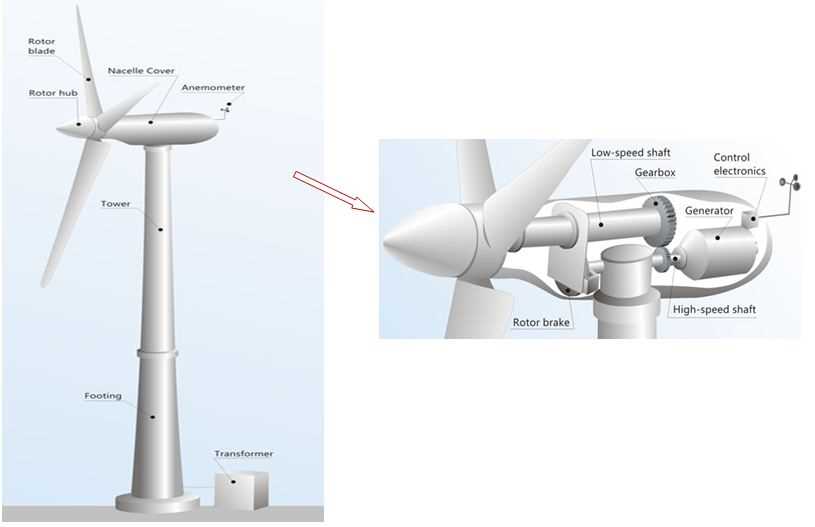

Position the nacelle housing critical mechanical and electrical systems. Gearboxes, if used, must be rated for 3 MW+ output with a 1:100 gear ratio to synchronize low rotor speeds with generator requirements. Direct-drive systems bypass gears entirely, demanding larger generators (5+ meters in diameter) with permanent magnets containing neodymium or dysprosium. Cooling systems–liquid or forced-air–are non-negotiable for generators exceeding 200°C operating temperatures.

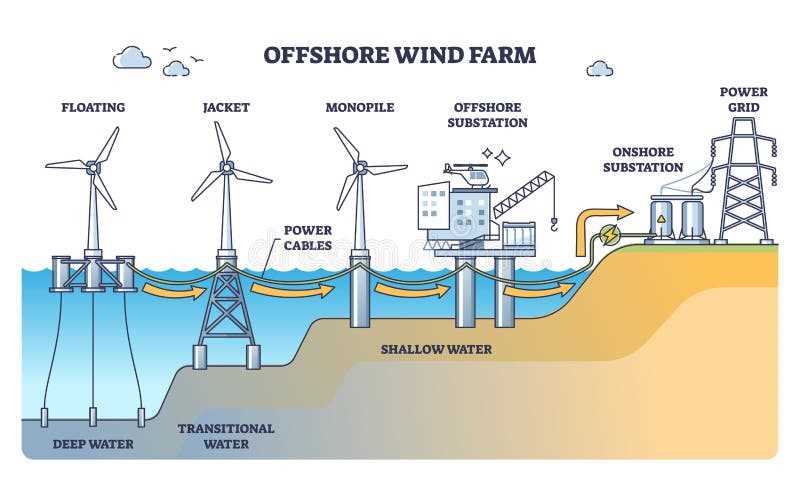

Prioritize the tower’s foundation design based on terrain. Onshore installations require concrete monopiles extending 20 meters underground for stability, while offshore units use jacket or tripod structures anchored to the seabed. Tower heights should match rotor diameter (tall towers = 120m+, short towers = 60–80m) to exploit higher-altitude wind speeds, which increase by 0.1–0.2 m/s per 10 meters elevation. Corrosion-resistant coatings (zinc-rich epoxy) extend lifespan beyond 20 years in coastal environments.
Include supervisory control and data acquisition (SCADA) in every blueprint. Sensors must monitor blade pitch, torque, temperature, and vibration at 1 kHz sampling rates to preempt failures. Grid integration requires bidirectional power converters capable of handling 690V outputs, with transformers stepping up to 20–35 kV for transmission. Black-start capabilities and LVRT (Low Voltage Ride Through) compliance are mandatory for modern installations to prevent grid destabilization.
Document safety overrides explicitly. Hydraulic or electric braking systems must engage within 3 seconds of overspeed detection (cut-out limit: 25 m/s). Lightning protection involves receptor points on blade tips connected to grounding down-conductors with ≤10 Ω resistance. Emergency stops should isolate mechanical and electrical components independently to prevent cascading failures during faults.
Key Components of a Renewable Energy Turbine Blueprint
Position the nacelle at least 80 meters above ground level for optimal airflow capture, as average wind speeds increase by 0.1-0.2 m/s per 10-meter elevation gain. Include a three-blade rotor configuration with a diameter between 90-120 meters for utility-scale installations–this maximizes energy yield while minimizing mechanical stress compared to two-blade designs. Ensure the tower base connects to a reinforced concrete foundation extending 15-20 meters underground, dimensioned to withstand 50-year gust loads (typically 70 m/s for IEC Class II turbines). Specify a direct-drive permanent magnet generator or a doubly-fed induction generator, noting that the former eliminates gearbox maintenance but requires larger diameter bearings.
Electrical and Control System Specifications
Integrate a back-to-back power converter with IGBT modules rated for 1.1× the generator’s nominal voltage to handle transient voltage spikes during grid faults. Use XLPE-insulated cables (66 kV or 132 kV) for offshore installations, with conductor cross-sections sized for ≤2% voltage drop over distances exceeding 50 km. The supervisory control system must include a SCADA interface monitoring blade pitch angles (±0.1° accuracy), nacelle yaw (±0.5° accuracy), and gearbox oil temperature (alarm at 85°C, shutdown at 90°C). Program the turbine to automatically feather blades at 25 m/s wind speeds and reengage only after 10-minute lulls below 20 m/s to prevent cyclic fatigue.
For grid compliance, incorporate a static synchronous compensator (STATCOM) with ±0.4 pu reactive power capacity to meet grid codes requiring power factor control between 0.95 lagging and 0.95 leading. Site the meteorological mast 2–3 rotor diameters upwind of the turbine, equipped with Class 1 anemometers at 30%, 60%, and 100% of hub height. Calibrate sensors biannually to maintain IEC 61400-12-1 accuracy standards (±1.5% for wind speed, ±2° for wind direction). Include a lightning protection system with down-conductors connecting each blade tip receptor to ground rods with
Key Components of a Turbine Electrical System
Prioritize a robust generator with rare-earth magnets–neodymium-iron-boron (NdFeB) increases efficiency by 15–20% compared to conventional doubly-fed induction types. Direct-drive models eliminate gearbox losses, cutting maintenance by 30% over 20-year lifecycles, though initial costs rise by 12%. Select converters with insulated-gate bipolar transistors (IGBTs) rated for 690V+ DC bus voltages to handle transient spikes exceeding 2x nominal ratings during grid faults.
Grid Integration Hardware
Install static synchronous compensators (STATCOMs) at the point of interconnection; these correct voltage dips below 0.9 pu within 40ms, preventing turbine tripping during 3-phase faults. Use step-up transformers with 400MVA capacity and 18% impedance to limit short-circuit currents to 63kA–critical for offshore units where cable lengths exceed 50km. Ensure supervisory control and data acquisition (SCADA) systems monitor harmonic distortion; total demand distortion (TDD) must stay under 5% per IEEE 519 to avoid capacitor bank failures.
Opt for pivoting slip rings with silver-graphite brushes for pitch systems–these reduce micro-arcing and extend service intervals to 8,000 hours. Integrate lithium iron phosphate (LiFePO4) batteries for backup; 250kWh banks sustain critical loads for 30 minutes during grid outages, enabling safe emergency stops without mechanical braking. Equip nacelle climate systems with 48V DC chillers to maintain generator winding temperatures below 120°C–every 10°C reduction doubles insulation lifespan.
Step-by-Step Assembly of Renewable Energy Farm Grid Integration
Begin by securing permits for high-voltage infrastructure alignment–verify local regulations on clearance distances (minimum 3m from vegetation, 5m from structures) and soil resistivity tests (target <100 Ω·m) before trenching. Position transformers (e.g., 690V/34.5kV step-up units) adjacent to turbines (within 20m) to minimize cable losses (use XLPE 185mm² for <1% loss per km). Install switchgear with SF₆-free alternatives like vacuum circuit breakers, ensuring interrupting ratings exceed 25kA. Ground each component with 70mm² copper conductors buried 0.8m deep in a radial grid pattern, connecting to a central electrode array (resistance <5Ω). Deploy fiber-optic cables alongside power lines for SCADA redundancy; terminate at a substation with dual redundant RTUs running IEC 61850 protocols. Test dielectric strength of cables at 2.5U₀ for 15 minutes prior to energization.
- Excavate trenches (0.8m deep × 0.5m wide) following turbine footprints; embed warning tape 30cm above cables. Use directional drilling for road crossings to avoid pavement cuts.
- Assemble substation grounding grid: drive 3m copper-clad rods at 6m intervals, interconnect with exothermic welds (minimum 250mm² cross-section).
- Mount metering cabinets (class 0.2S accuracy) upstream of main breakers; configure dual CTs for export/import measurement.
- Commission protection relays (ANSI 87 for differential, 51V for voltage-controlled overcurrent) with trip settings coordinated with utility reclosers (adjust delay curves by +200ms for selectivity).
- Validate synchronization: adjust governor response (droop 4–5%) and AVR settings (PF mode at 0.95 lagging) to match grid code requirements.
- Perform hot-line checks: use infrared thermography to verify connector temperatures <70°C; measure phase imbalances (<2%) with a power analyzer.
Key Graphical Symbols in Renewable Energy Facility Blueprints
Turbine generators are depicted as a circular shape with three radial blades–often simplified to a fan-like icon in technical drawings. Standard IEC 60617 and ANSI Y32.9-1972 mandate a diameter-to-blade ratio of 1:0.35 for clarity; deviations risk misinterpretation in cross-border projects. For pitch-controlled units, add a small rectangular actuator near the hub; stall-regulated models omit this detail entirely.
Substation transformers follow a core symbol: two concentric circles (primary and secondary windings) with connecting lines indicating phase terminals. Use L1, L2, L3 labels for three-phase systems; single-phase variants substitute L and N. Ground symbols–a vertical line with descending diagonal strokes–must terminate adjacent to neutral points to comply with IEEE Std 315-1975. Omitting grounding risks electrical fault misdiagnosis during maintenance.
Transmission lines appear as parallel straight lines, spaced 5mm apart in A3 layouts. Overhead conductors require an additional small arc above the lines to denote sag; underground cables replace the arc with dashed lines. Fiber-optic links–critical for SCADA integration–are drawn as a single jagged line, distinct from copper conductors.
Control circuits utilize rectangles with standardized IEC labels: M (motor), K (relay), S (switch). For inverter symbolization, combine a triangle (pointing right) with an AC output line; DC input connectors extend from the triangle’s base. Avoid color-coding in initial drafts–rely on shape and text annotations for durability across monochrome prints.
