Begin with color-coded wire identifiers on page 3 of the official service manual. Pinpoint the main fuse block beneath the seat–label each cable as you trace it to avoid misconnections during reassembly. The ignition relay sits adjacent to the starter solenoid; verify continuity before replacing modules.
Use a multimeter set to 200 ohms to test all ground splices. Focus on the connectors behind the instrument cluster–corrosion here disrupts turn signal functionality. Disconnect the battery before probing sensor wires to prevent sensor burnout. The ECU’s pinout diagram is critical for throttle position sensor calibration.
The left handlebar switch cluster carries separate harness branches for high/low beam relays. Reference the terminal layout in section 6-12 of the OEM documentation–cross-check each wire against the physical harness before splicing repairs. Backlighting wires require 0.5 mm² gauge; deviations cause dimming failures.
For ABS diagnostics, locate the wheel speed sensor wiring at the rear caliper bracket. Probe each wire at 0.2V AC with the wheel spinning to confirm signal integrity. Engine coolant temperature sensor circuits need a stable 5V reference; irregular readings point to frayed leads near the exhaust manifold.
Final checks include the sub-harness behind the right fairing–this routes power to radiator fans and fuel injectors. Use heat-shrink tubing on all splices to prevent moisture ingress. Keep spare 10A fuses on hand when bench-testing ignition coils; improper connections risk frying the CDI unit.
Mastering the Fireblade’s Electrical Schematic: Step-by-Step Troubleshooting
Locate the main fuse box under the left side fairing panel–clip removal requires a 4mm Allen key. Label each connector before disconnecting: the ignition system’s 12-pin harness (white/red stripe) mates with the ECU via a locking clip, while the alternator’s 3-phase outputs (yellow wires) terminate in a round 5-pin plug secured by a T25 Torx bolt. Mishandling these risks shearing the retaining tabs.
Verify ground continuity between the frame and engine block using a multimeter set to 200Ω. Target points: the rear subframe mount (10mm bolt) and the starter solenoid bracket. Resistance above 0.5Ω indicates corrosion–clean contact surfaces with 400-grit sandpaper and apply dielectric grease. The fuel pump relay, identifiable by its black/blue wire, sits adjacent to the rear shock reservoir; bypassing requires jumping terminals 85 and 86 briefly to test functionality.
The instrument cluster harness splits into two sub-circuits: speedometer/tachometer (green/black) and warning light array (orange/white). If the tachometer fluctuates erratically, inspect the exciter coil’s single yellow wire for nicks–the signal wire must maintain at least 2mm clearance from the ignition coils. For ABS faults, trace the brake pressure sensor’s 4-wire harness (pinout: red, black, violet, white) to the modulator unit beneath the fuel tank.
Headlight failures often stem from the H4 bulb’s high-beam filament burning out–the socket’s retaining spring loses tension over time. Replace with an OEM-spec bulb (OSRAM 64150) to avoid voltage drops. The turn signal flasher unit, housed behind the right inner fairing, employs a thermal relay with a 750ms duty cycle; if flashes accelerate, swap the unit before attempting LED upgrades, as non-resistorized bulbs trigger hyper-flash.
For ECU reflashing, connect a K-Line adapter to the diagnostic port (2-pin white connector near the battery). Use Hondata’s K-Pro software version 4.2.3 to avoid bricking–the ROM checksum changes between gear ratios, demanding precise throttle position sensor calibration (volts at idle: 0.50–0.55V). Never power the bike without the main relay engaged–even momentary 12V surges corrupt EEPROM data.
Finding Primary Electrical Bundle Junctions on the Fireblade’s Sports Model
Begin beneath the fuel tank cover–three 25-pin connectors cluster behind the steering-head bracket, identifiable by molded tabs labeled ECU, FUEL, and IGN. Each tab aligns with a matching notch; depress the central lock clip while pulling the halves apart horizontally to avoid bending terminal pins. A four-wire injectors plug sits directly below, often obscured by the throttle body bracket.
Under the rider’s seat, flip the plastic inner tray upward to reveal the main vehicle-side harness bundle. A 16-way black junction (labeled BODY) and a separate 12-way orange ignition switch plug are secured by snap-fit brackets. Rotate the ignition cylinder 45° counterclockwise to slide the orange plug free without breaking the retaining ears; the black plug requires a small flat-blade tool to release its secondary lock.
Inspect the sub-frame rearward: a pair of 10-pin connectors (HIGH and LOW lighting circuits) attach along the tail-section spine. The HIGH circuit plug carries thicker gauge wires and sits above; both connectors can be disconnected by squeezing the side clips inward while gently rocking the housing. Verify socket cleanliness under direct light–corrosion or bent pins mandate immediate terminal straightening with precision needle-nose pliers.
Decoding Wire Colors and Purposes in the Fireblade Electrical Network
Begin tracing circuits at the main fuse box beneath the seat: the 10A ignition feed appears as solid green (G). This conductor powers critical ECM sensors–MAP, TPS, and IAT–before branching into the alternator regulator. Verify continuity against ground using a multimeter (2-5 ohms) to confirm integrity before assuming fault elsewhere.
- Black/Yellow (B/Y): Ignition-switched +12V–supplies fuel pump, injectors, and coil packs. Corrosion at the 20-pin connector (white housing) near the ECU mimics failed relays.
- Yellow/Red (Y/R): Generator output (14V AC)–connects to rectifier-regulator via 3mm cable; discoloration indicates overheating.
- Brown/White (Br/W): ECU ground–shared with crank/cam sensors; a 0.3V drop here causes erratic idle.
- Light Green/Red (Lg/R): Throttle position sensor signal–adjust potentiometer until voltage reads 0.5V at closed throttle.
- Blue/Yellow (Bu/Y): Front brake light switch–shorted circuits drain battery within 8 hours.
Isolate signal wires by back-probing connectors with T-pins–avoid piercing insulation. On ABS models, the orange/black (Or/Bl) wire carries wheel-speed pulses; noise here triggers false ABS faults. For O₂ sensor (white, 4-pin), the grey/black (Gr/Bl) wire delivers heater ground–test with a 1A fuse jumper to battery if sensor reads lean above 3000 RPM.

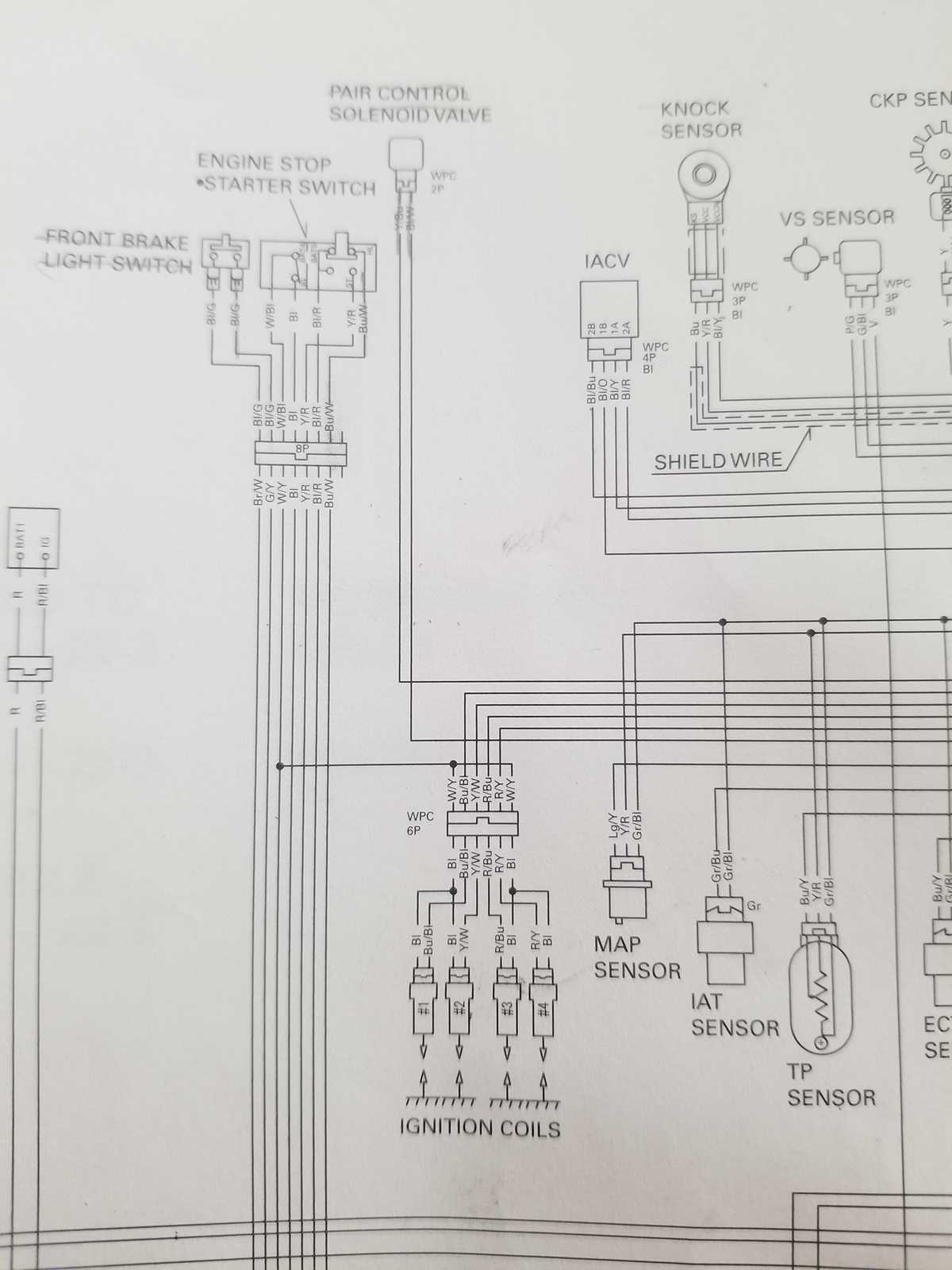

Step-by-Step Guide to Interpreting Ignition and Fuel Delivery Electrical Schematics
Locate the ignition control module (ICM) connector on the electrical layout. Pin assignments for a typical 6-pin connector follow this sequence: Pin 1 is the ground, Pin 2 carries the trigger signal from the crankshaft position sensor, Pin 3 is the ignition power feed (usually marked as IGN), Pins 4 and 5 are coil outputs for pairs of spark plugs, and Pin 6 is an optional diagnostic link. Verify voltage at Pin 3 with a multimeter–expect 12V with the key in the ON position. If voltage is absent, trace the IGN line back to the main relay or fuse box, checking for corrosion or loose connections at splice points.
Identify the fuel injectors on the schematic–each injector is paired with a dedicated color-coded lead (typically two wires: one power, one signal). The power line originates from the ignition-switched circuit, while the signal wire connects to the engine control unit (ECU). Use a noid light to confirm injector pulse: remove the injector connector, insert the noid light, and crank the engine. A flashing light indicates proper ECU signaling; if solid or dark, inspect the signal wire continuity back to the ECU. Resistance across injector terminals should read 10-16 ohms–values outside this range suggest a faulty unit or wiring short.
Examine the throttle position sensor (TPS) circuit. The TPS typically has three wires: a 5V reference from the ECU, a ground, and a variable output signal. Backprobe the signal wire with the ignition ON and measure voltage as the throttle moves from closed to wide open. Expect readings from ~0.5V (closed) to ~4.5V (open)–deviations indicate a misadjusted or failing TPS. If voltage is erratic, check for damaged insulation on the signal wire, especially near the throttle body where heat and vibration are highest.
Map the sensor ground circuit–a single shared ground often serves the crankshaft, camshaft, and TPS sensors. Corrosion or a loose connection here can cause erratic sensor readings and fuel mixture issues. Follow the ground wire from the sensors to its termination point, usually a chassis ground or ECU ground. Scrape paint or oxidation from the grounding surface and ensure a secure, tight connection. If issues persist, run a separate 14-gauge ground wire directly from the sensor cluster to a clean chassis point to isolate the problem.
Troubleshooting Common Electrical Issues Using the Circuit Blueprint
Locate the main fuse block beneath the seat–remove the cover to expose fuses F1 (30A) and F2 (10A). Use a multimeter to verify continuity; replace any blown fuse with the exact amperage rating to prevent downstream failures. If the issue persists, trace the red voltage line from the battery terminal to the fuse block (pin 1) on the schematic, checking for frayed insulation or corroded connectors.
Test the ignition relay by swapping it with the fuel pump relay–both share an identical part number. If the problem migrates, replace the relay. For intermittent stalls, probe the yellow/red wire (ECU power input) at connector C40 with the key ON; voltage should read 12V±0.5V. Deviations indicate a failed ignition switch or broken wire between the switch and ECU.
Key Sensor Checks
| Sensor | Wire Color | Connector Pin | Expected Voltage |
|---|---|---|---|
| Throttle Position | Green/Red | C23-1 | 0.5V–4.5V (closed to wide open) |
| Camshaft Angle | Blue | C31-2 | Pulsing 0V–5V square wave |
| Coolant Temp | Orange/Yellow | C11-1 | 0.3V–4.8V (cold to hot) |
Isolate the kill switch circuit by disconnecting the switch and jumpering the brown/white and black wires. If the bike starts, the switch or its wiring is faulty. For non-starting conditions, back-probe the starter solenoid’s white/red wire during cranking–voltage must match battery voltage; lower readings suggest a weak starter relay or corroded cable terminal.
Inspect ground points G1 and G2 behind the instrument cluster–clean any oxidation using a brass brush. A high-resistance ground (above 0.2 ohms) often mimics battery drain or erratic instrument readings. For ABS faults, verify power at the black/yellow wire (ABS actuator pin 1) with the key ON; 12V confirms proper ECM-to-actuator communication.
Measure alternator output at the yellow wire (rectifier regulator plug)–engine running at 4,000 RPM should yield 13.5–14.5V AC. Substandard readings necessitate stator or rectifier replacement. For turn signal failures, check the flasher unit’s pink wire (12V input); if absent, trace the circuit from fuse F8 (10A) through the handlebar switch.
Reset the ECM if fuel trims are skewed–disconnect the battery for 10 minutes while turning the key ON to drain residual capacitance. Reconnect and start the engine; idle should stabilize within 30 seconds. If the tachometer remains inoperative, test the green/white wire (instrument cluster pin 12) for a 5V pulse signal from the ECM during cranking.
Charging System Voltage Drop Test
| Test Point | Voltage Key OFF | Voltage Key ON | Voltage 4K RPM |
|---|---|---|---|
| Battery Terminals | 12.6V | 12.3V | 13.8–14.5V |
| Rectifier Output | 0V | 0V | 13.5–14.2V |
| Fuse Block Input | 12.5V | 12.2V | >13.4V |
For headlight dimming, splice into the yellow/green wire (headlight relay coil) and verify 12V with the switch activated. If missing, inspect the relay socket terminals for burn marks or heat damage. Replace the relay and socket assembly if either contact shows pitting. When LED dash lights flicker, test the brown wire (instrument ground) for continuity to chassis; high resistance (>0.5 ohms) necessitates soldering a new ground strap.
