Start by selecting two resistors (R) of equal value and a pair of capacitors (C) matched within 1% tolerance to eliminate phase errors. The output signal’s period (T) follows the equation T = 2πRC, where R is measured in ohms and C in farads. For example, pairing 10 kΩ resistors with 10 nF capacitors yields a 1.59 kHz sine wave–ideal for audio-band testing. Swap the capacitors for 100 pF units to shift the peak to 159 kHz, covering RF pre-amplifier alignment needs.
Lowering R to 1 kΩ while keeping C at 10 nF compresses the cycle to 6.28 µs, pushing the tone above 150 kHz–useful for ultrasonic proximity sensors. Conversely, doubling R to 20 kΩ and halving C to 5 nF keeps the time constant identical, demonstrating how component scaling preserves frequency while adjusting amplitude stability. Always verify phase shifts with an oscilloscope: at the target repetition rate, the two signal nodes must cross zero simultaneously within ±5° to prevent distortion.

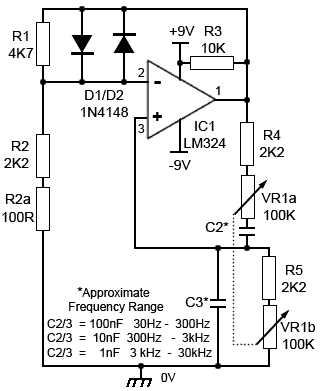

To fine-tune the band, insert a dual-gang potentiometer in place of the fixed resistors. A 20 kΩ logarithmic taper pot lets you sweep from 78 Hz (with 100 nF caps) up to 20 kHz (with 470 pF caps) in a single turn. Ensure the wiper tracks less than 5% of total resistance change per degree to avoid abrupt jumps in cycle timing. For discrete steps, implement a rotary switch with 1% tolerance silver-mica capacitors; a 6-position switch spanning 100 pF to 100 nF provides decade increments between 16 Hz and 160 kHz.
Temperature drift remains a critical factor: polypropylene capacitors exhibit
Determining Signal Generator Tuning Limits

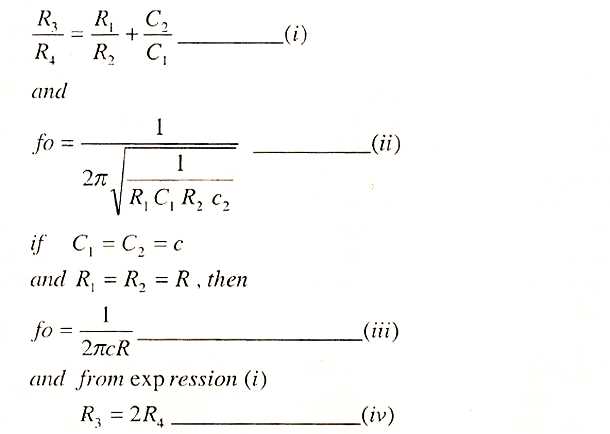

To find the output waveform span, use the formula f = 1 / (2πRC). For standard resistor-capacitor pairs, values like R = 10 kΩ and C = 10 nF yield approximately 1.59 kHz. Swap components to shift the band: doubling capacitance halves the span, while halving resistance doubles it. Test with precision parts (1% tolerance resistors, NP0 capacitors) to minimize drift.
Key Adjustment Methods
- Select dual-gang potentiometers (e.g.,
100 kΩ linear) for simultaneous resistor tuning. - Use decade boxes for rapid prototyping – adjust in 1-10-100 increments to isolate ideal component ratios.
- Add a trimmer capacitor (
5-50 pF) parallel to fixed capacitors for fine corrections below 5%. - For extended bands (e.g.,
0.1 Hz–1 MHz), combine switched resistor banks with multiplier capacitors.
Measure spans with a 1 GHz counter, averaging 10 cycles to reduce error. Log amplitude variations; peaks within ±0.5 dB confirm stable generation. For sub-audio bands, increase capacitance to 1 µF or higher, but expect longer settling times (up to 5 seconds at 0.1 Hz). Document each configuration’s phase response – ideal outputs show <±2° deviation at lower limits and <±10° at upper bands.
Core Elements of a Tunable Sinusoidal Feedback Network
Select a matched pair of non-polarized capacitors–typically metal-film or polypropylene–with values between 10 pF and 10 μF. Precision here directly governs output stability; even minor mismatches (±1%) introduce harmonic distortion above 0.02%. Pair each capacitor with a temperature-stable resistor, preferably thin-film types (TC ≤ 25 ppm/°C), sized to span your target spectral band. The resistor-capacitor product sets the nominal oscillation period: adjust R from 1 kΩ to 1 MΩ and C from 1 nF to 100 nF for decade-wide tunability without sacrificing waveform purity.
Integrate a precision dual-gang potentiometer or digitally controlled rheostat at least 10-turn resolution) across both RC legs. This element trims phase balance; a 0.1° misalignment at 10 kHz can shift amplitude by 3 dB. Position the wiper mid-value for initial alignment, then fine-tune until the closed-loop gain hovers at 1.000±0.005. Keep lead lengths under 3 mm to avoid parasitic reactance–every centimeter adds ≈1 pF stray capacitance, skewing upper-band (
Active gain block demands a low-noise op-amp (e.g., OP27, THD ≤ 0.0003%) or discrete BJT differential pair biased for >80 dB open-loop gain. Supply decoupling is non-negotiable: place 100 nF X7R ceramics within 2 mm of each power pin, paralleled by a 10 μF tantalum bulk cap. Thermal drift compensation requires a matched complementary pair; bond both dice on a common copper slug or use a monolithic IC like the LT1028 with internal thermal tracking.
Include a thermistor (≈10 kΩ NTC) or light-dependent resistor in the feedback path to compensate ambient drift. Calibrate resistance so its tempco cancels the op-amp’s input offset drift–typically -2 μV/°C. For dynamic ranges exceeding 60 dB, add a JFET-based automatic gain control loop; set drain-source voltage below 0.5 V to minimize intermodulation (
Precise Signal Generation Bandwidth Derivation

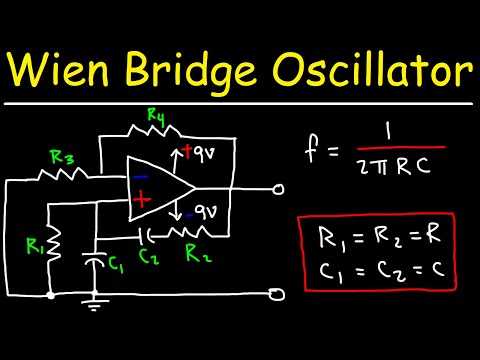

To determine the operational bandwidth of your feedback network, apply the formula f = 1 / (2πRC), where R represents the resistive component in ohms and C the capacitive value in farads. For dual-element configurations, ensure both resistors and capacitors are matched–mismatches exceeding 1% will skew the output stability. Begin by selecting standard values: common resistor pairs include 10kΩ and 47kΩ, while capacitors often range from 10nF to 1µF, yielding ranges from 3 Hz to 1.6 MHz.
For fine-tuning, use a decade substitution method: replace one resistor or capacitor at a time while monitoring the output waveform on an oscilloscope. A 10x change in either component will shift the midpoint by a decade. Example: swapping a 10kΩ resistor for 100kΩ with a fixed 10nF capacitor reduces the center point from 1.59 kHz to 159 Hz. Always prioritze non-polarized capacitors rated for at least twice the expected peak voltage to prevent signal distortion.
Adjustments for temperature drift require selecting components with low thermal coefficients–metal-film resistors (±50 ppm/°C) and NP0 ceramic capacitors (±30 ppm/°C) are optimal. If precision below 1 Hz is needed, substitute film capacitors with polystyrene types (≤ ±20 ppm/°C) despite their larger physical size. Verify calculations experimentally: a 1% deviation in component tolerance can shift the actual center by ±0.5%.
Extend the lower bound below 1 Hz by cascading two stages with synchronized RC pairs, using the same formula for each stage. The combined output will hold phase coherence only if the time constants align within 0.1%. Alternatively, amplify the output using a non-inverting Op-Amp with a gain of 3 ± 0.05V/V to sustain oscillation without clipping. Record all deviations: a 0.2% gain error introduces harmonic distortion above -40 dB at 1 kHz.
Selecting Resistor and Capacitor Values for Target Signal Rates
Begin with a stable base configuration of 10 kΩ resistors and 10 nF capacitors for mid-band generation around 1.59 kHz. This pairing offers a balanced compromise between thermal drift resistance and component availability. For lower signals, increase capacitance while maintaining resistor values: doubling capacitance halves the output pulses, while reducing it doubles them. Always prioritize low-tolerance parts (±1% or better) to ensure predictable behavior.
Use the following reference table to map component pairs to common signal rates:
| Signal Rate (Hz) | Resistor (Ω) | Capacitor (F) |
|---|---|---|
| 100 | 160 k | 10 n |
| 1 k | 16 k | 10 n |
| 10 k | 1.6 k | 10 n |
| 100 k | 160 | 10 n |
For rates below 100 Hz, film capacitors (polypropylene or polyester) outperform ceramic types due to lower dielectric absorption. At higher rates (above 50 kHz), ceramic capacitors with X7R dielectric become viable but require careful layout to minimize parasitic inductance. Avoid electrolytic capacitors entirely due to their polarization and leakage currents.
Resistor Selection Guidelines
Metal film resistors offer the best stability across temperature variations. For critical applications, use 0.1% tolerance parts to maintain signal purity. Wirewound resistors provide excellent power handling but introduce inductance that affects high-rate performance. Match resistor pairs precisely (within 0.1%) to ensure symmetrical waveform generation.
When scaling resistor values, maintain ratios between series components to preserve gain margins. A 1:2 ratio (e.g., 10 kΩ and 20 kΩ) provides optimal feedback control for most configurations. For wide-range adjustable systems, incorporate a multi-turn potentiometer with a value equal to or slightly higher than the fixed resistors to fine-tune rates without destabilizing the feedback loop.
Always verify component values with an LCR meter before assembly, particularly when working with surface-mount parts where marking codes may be ambiguous. For prototypes, use through-hole components to simplify testing and adjustment. When transitioning to production, ensure the final layout accommodates the selected package sizes while maintaining consistent trace lengths between matched components.
Adjusting the Feedback Ratio for Stable Signal Generation
Set the positive feedback resistor divider to maintain a gain of exactly 3 for consistent output. A deviation as small as ±0.1% introduces amplitude instability, causing either clipping at 1.2× the supply voltage or complete signal dropout. Use precision resistors–tolerance 0.1% or better–paired with a thermally stable operational amplifier (e.g., LT1028) to minimize drift. The negative feedback path must include an adjustable component (thermistor, JFET, or diode network) to dynamically compensate for temperature-induced variations, ensuring the loop gain remains unity.
For a 10 kΩ positive feedback resistor, pair it with a 20 kΩ negative feedback resistor to achieve the required 3× amplification. If the signal amplitude deviates, insert a 100 Ω trimming potentiometer in series with the negative feedback resistor to fine-tune the ratio. Avoid exceeding a 3.2× gain margin–even a 0.5× increase leads to rapid amplitude growth and eventual saturation. Test stability by measuring the output amplitude with a calibrated oscilloscope; a 1% overshoot indicates borderline instability requiring immediate adjustment.
When designing for variable output swing, replace fixed resistors with a voltage-controlled resistor (VCR) circuit, such as a JFET (e.g., 2N5457) operating in its ohmic region. Bias the JFET at 50% of its pinch-off voltage to maintain linearity–deviations beyond 60% introduce harmonic distortion exceeding 0.05%. For temperature-sensitive applications, use a negative temperature coefficient (NTC) thermistor in parallel with the feedback resistor to counteract gain shifts; a 10 kΩ NTC rated at 3950 K compensates for ±10°C variations without requiring manual recalibration.
High-frequency applications demand attention to phase shifts in the feedback network. Parasitic capacitance across resistors–even 5 pF–can disrupt the 180° phase relationship required for oscillation. Compensate by placing a small capacitor (10–50 pF) in parallel with the negative feedback resistor, fine-tuning its value to nullify phase error at the target waveform frequency. Failure to address this results in erratic signal integrity, particularly above 50 kHz, where even a 2° phase shift distorts the waveform into a quasi-square shape.
For long-term stability, integrate an automatic gain control (AGC) loop using a peak detector (Schottky diode and RC network) and a proportional-integral (PI) controller. Set the AGC time constant to 10× the waveform period to avoid modulating the output amplitude; faster response risks introducing low-frequency ripples. Verify performance by monitoring the output envelope–jitter exceeding 0.5% peak-to-peak indicates insufficient feedback damping and necessitates recalibration of the AGC components.
