For reliable power delivery in North American homes, begin with a 12/2 or 14/2 NM-B cable–copper conductors rated for 15A or 20A circuits. Strip the outer jacket 6–8 inches from the end, exposing the bare grounding wire, hot conductor (typically black), and neutral (white). Verify polarity before termination: hot connects to brass screw, neutral to silver, and ground to green.
Use quick-connect backstabs only for temporary setups–screw terminals ensure durability under load. For outlets feeding high-draw devices (e.g., space heaters, microwaves), upgrade to 12-gauge wire to prevent overheating. Always secure the outlet box to a stud when surface-mounted, ensuring stability for frequent plug cycles.
Test connections with a non-contact voltage detector before energizing. If resistance exceeds 1 ohm on the grounding path, reterminate and inspect for loose strands or corrosion. For split-circuit outlets (top/bottom on separate feeds), isolate tabs between terminals–failure risks overloading neutral.
Avoid daisy-chaining more than four outlets on a single 15A circuit to maintain voltage stability. In kitchens or workshops, dedicate circuits for appliances drawing over 500W. Label each breaker in the panel with its connected device group for future troubleshooting.
For outdoor or damp locations, use GFCI-protected receptacles (test monthly) and liquid-tight conduit couplings. Replace cracked or discolored outlet faces immediately–arcing faults often start at compromised plastic housings. Store spare parts (receptacles, wire nuts, straps) in a dry, labeled bin for quick repairs.
How to Connect a Standard U.S. Outlet Safely

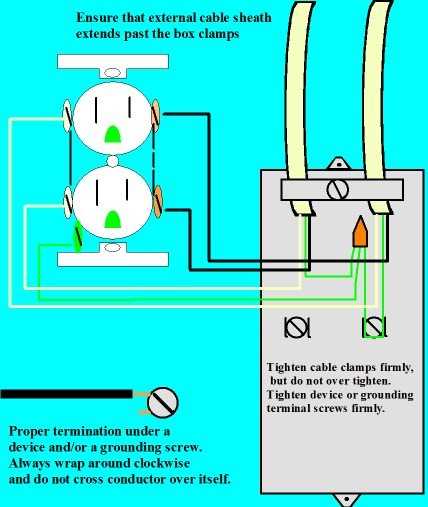

Strip the conductor ends to expose 5/8 inch of bare copper–this ensures full contact without straying strands. The hot (brass screw) and neutral (silver screw) wires must never touch; cross-connection trips breakers instantly. Ground (green screw) connects last and stays separate; a loose ground invites shocks if insulation fails.
Match wire colors strictly: black to brass, white to silver, bare/green to green. Twist stranded wires clockwise before screwing down to prevent loosening under vibration; tug each connection to confirm grip. Standard receptacles handle 15 A at 20 A feed, but derate 20% for continuous loads–max 12 A sustained per circuit.
Testing Before Energizing
Verify connections with a non-contact voltage tester–probe each terminal while the breaker stays off. If the tester beeps at any screw, recheck stripping length or screw torque (12 lb-in). Set multimeter to 200 Ω; measure across hot-neutral (should show ~0 Ω) and hot-ground (infinite Ω). Resistance between neutral and ground above 1 Ω indicates hidden corrosion.
After securing the faceplate, energize the breaker and measure voltage at the slots: live slot to neutral slot = 117–122 VAC, live slot to ground = same range, neutral to ground
Recognizing Live, Return, and Safety Conductors in Household Outlets

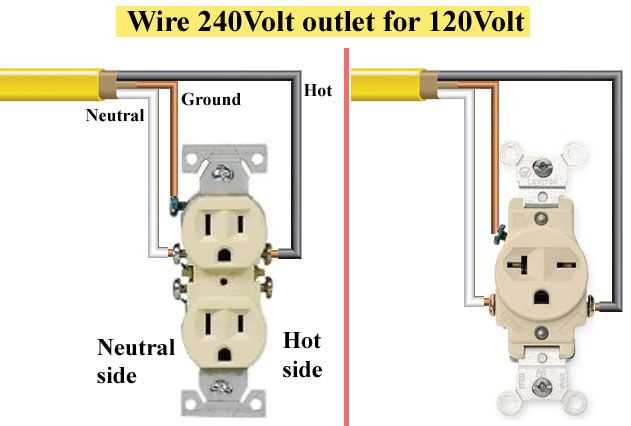

Locate the brass-colored screw within the receptacle–this connects to the live conductor carrying the electrical potential. In standard configurations, it sits on the right side when viewing the socket face, though verify with a non-contact voltage tester before handling. The wire insulation is typically black or red, but color alone isn’t reliable; always confirm with a meter, especially in older installations where codes may differ.
Identify the return path by its silver-colored terminal, positioned opposite the live side. This conductor completes the circuit and should have white or gray insulation, though retrofitted setups might use other colors. Ensure it measures near zero volts relative to the safety conductor to confirm proper function and avoid reversed polarity, which creates shock hazards even in unpowered devices.
Trace the bare or green-insulated conductor to its connection point, often a green screw or direct attachment to the outlet’s metal frame. This safety path diverts fault currents, preventing dangerous voltage on accessible surfaces. Test continuity between this point and the service panel’s grounding bus–any reading above 1 ohm suggests corrosion or loose connections requiring immediate repair.
Verify all connections with a multimeter set to AC voltage: live to return should read ~115–125V, live to ground ~115–125V, and return to ground less than 3V. Discrepancies indicate miswiring, degraded insulation, or neutral-ground faults, each demanding isolation and correction before energizing the circuit. Label wires at both ends for future reference, using colored tape or markers to prevent confusion during maintenance.
Step-by-Step Assembly for a Standard NEMA 5-15 Outlet Connector
Begin by securing the cable with a strain relief clamp to prevent tension on the conductors. Strip ¾ inch of outer insulation from the end of a 14 AWG or 12 AWG copper cord, exposing the inner wires–typically one green (ground), one white (neutral), and one black or red (hot). Use wire strippers calibrated for the gauge to avoid nicking the conductors, which weakens structural integrity.
| Conductor | Terminal Screw Color | Torque Specification (lb-in) |
|---|---|---|
| Green (ground) | Green (hexagonal) | 12 |
| White (neutral) | Silver | 10 |
| Black/Red (hot) | Brass | 10 |
Bend each wire into a clockwise loop around its corresponding terminal screw using needle-nose pliers, ensuring the loop diameter matches the screw shaft. Tighten screws incrementally in the sequence: ground first, then neutral, followed by hot. Verify torque with a calibrated screwdriver–under-tightening risks arcing, while over-tightening can strip threads or fracture the terminal housing.
Reassemble the connector shell, aligning the internal ribs with the cable groove to maintain polarity. Snap the shell halves together until the locking tabs audibly engage, then test continuity with a multimeter between each conductor and its intended terminal–readings should be near 0 ohms. If resistance exceeds 0.5 ohms, disassemble and recheck all connections for stray strands or misaligned loops.
Solving Frequent Errors in Standard Household Socket Installations
Verify the hot and neutral conductors first–reversed polarity creates a hazardous condition where the socket shell remains live even when switched off. Use a non-contact voltage tester to confirm the neutral wire is connected to the wider slot (silver screw) and the hot wire to the brass terminal. If readings show voltage on the neutral, immediately disconnect power and correct the connections. Ignoring this can lead to shock risks when plugging or unplugging devices.
Loose terminal screws are a primary cause of intermittent power failures or overheating. Secure each conductor by bending it into a U-shape around the screw, tightening until the wire slightly deforms under pressure. For back-wired outlets (push-in connections), strip exactly 5/8 inch of insulation–excess wire reduces contact pressure, while insufficient length prevents proper engagement. Check connections with a torque screwdriver to meet NEC’s 12 inch-pound requirement.
Common Overlooked Issues
- Grounding errors: A missing or broken ground wire renders surge protectors ineffective. Test continuity between the ground screw and bare wire; if none exists, replace the outlet with a GFCI if rewiring isn’t feasible.
- Overloaded circuits: A single 15-amp circuit should support no more than 10 outlets. Exceeding this draws excessive current, tripping breakers or melting insulation. Calculate load by totaling device wattage on the circuit–divide by 125 to estimate amperage.
- Improper insulation: Nicks or cuts in wire jackets during installation can cause short circuits. Use a cable ripper to strip wires, then inspect for damage. Wrap connections with electrical tape or use wire nuts rated for the gauge.
Flickering lights or outlets that trip breakers often indicate a poor neutral connection in a multi-wire branch circuit. Shut off power, remove the neutral wire from the outlet, and inspect the splice in the junction box. Twist wires together with a ratcheting crimper, then secure with a properly sized wire nut. Loose neutrals create voltage fluctuations that damage electronics.
For outlets near moisture (kitchens, bathrooms), ensure GFCI protection extends to downstream devices. Press the “Test” button monthly; if the outlet doesn’t trip, the protection is compromised. Replace faulty units immediately–ground faults in damp environments can cause lethal shocks at currents as low as 6 milliamps. Always attach the “Line” wires to the input terminals and “Load” wires to the output side.
Quick Diagnostic Steps
- Turn off power at the breaker–never rely on a switch.
- Remove the outlet cover and gently pull the device from the box, keeping wires intact.
- Test each wire with a multimeter (neutral to ground should read ~0V, hot to ground ~115–125V).
- Check for charred terminals, melted plastic, or discolored wires–indicators of overheating.
- Reattach wires, ensuring no bare conductor extends beyond the terminal.
- Secure the outlet with long screws into the box’s mounting tabs to prevent future loosening.
Color Coding and Safe Stripping of Wire Insulation
Use a labeled gauge chart when stripping conductors to prevent nicks–remove insulation only to the length specified by the device’s installation manual, typically 0.5–0.75 inches for residential terminations. Match the gauge of the stripping tool to the conductor size: AWG 14 requires a 14-gauge notch, AWG 12 a 12-gauge notch, and AWG 10 a 10-gauge notch. Apply even pressure; twisting the tool can score copper and weaken the strand.
- Black or red sheathing: always live (phase) lead, never strip near grounded metal boxes.
- White sheathing: neutral lead, strip only inside outlet enclosures with captive screws.
- Green or bare copper: earth lead, strip within the grounding terminal only after verifying absence of voltage.
- Blue or yellow sheathing: reserved for multi-way circuits; consult local code tables before exposing metal.
Discard razor blades after every three conductors to avoid slippage that can slice through individual strands. Store blades in a dedicated sheath between cuts. Maintain consistent grip pressure: 10–15 lbs on pliers handles ensures clean cuts without crushing insulation back onto the copper. Verify stripped length against the terminal screw depth using a brass gauge; excessive exposure increases arcing risk inside device cavities.
- Slide stripped conductor into terminal slot.
- Tighten screw until 2–3 threads remain visible above the terminal plate.
- Pull conductor firmly; resistance confirms secure clamp.
- Fold excess insulated length over terminal block face, not under, to prevent pinch points.
