To begin, locate the R (power), W (heat), G (fan), and Y (cooling) terminals on the backplate. These are the critical junctions for standard HVAC systems. For most setups, connect the R wire to the transformer’s 24V supply–this ensures the control unit receives power. If your system lacks a dedicated C (common) terminal, use the transformer’s second lead for grounding.
For heating-only configurations, link the W terminal to the furnace relay. If cooling is included, attach the Y terminal to the air conditioner compressor. The G terminal should connect to the blower fan relay only if your system requires manual fan control–otherwise, leave it disconnected for automatic operation.
For systems with a heat pump, an additional O/B terminal may be present. This should be wired to the reversing valve to switch between heating and cooling modes. Verify the manufacturer’s specs: some heat pumps use O for cooling and B for heating, while others reverse this order.
If the device includes a battery backup, ensure the jumpers between R and RC are removed. This prevents power conflicts between the transformer and battery. Finally, label all wires before disconnecting old units–mixing terminals risks short circuits or HVAC failure.
Understanding the 1F78 Control Unit Connection Guide
Always verify power is disconnected before handling any connection points on your HVAC control module. The 1F78 model features five terminal screws labeled R, W, Y, G, and C (or RC/RC), each serving a distinct function in climate regulation. Confirm system voltage–most residential setups operate at 24V, but commercial variants may differ.
Attach the red wire to the R or RC terminal, supplying power from the heating or cooling source transformer. If your setup includes separate transformers for heating and cooling (dual-fuel systems), connect a jumper between RC and RH terminals to bridge the circuits. This prevents system conflicts during simultaneous heating and cooling cycles.
The W terminal accepts the white wire, triggering heating mode when energized. Ensure proper gauge–18 AWG is standard, but thicker wiring (16 AWG) may be necessary for runs exceeding 50 feet to prevent voltage drop. For heat pump configurations, consult the outdoor unit’s defrost board; some require reversing valve control via the O/B terminal instead.
For cooling activation, the Y terminal links to the yellow wire, signaling the compressor to engage. In two-stage cooling systems, a second Y (Y2) terminal will be present–match it to the corresponding stage wire, typically labeled with a suffix like “Y1” (first stage) or “Y2” (second stage). Verify compatibility with your condensing unit’s tonnage rating before wiring.
The G terminal connects to the green wire, powering the indoor blower fan independently of heating or cooling demands. Some installations split this function–fan-only modes rely on G, while automatic fan operation during heating/cooling cycles may require jumpering G to R. Check the air handler’s label for specific blower relay requirements.
For models supporting a common (C) wire, attach it to the C terminal to provide continuous power for smart features like backlighting or Wi-Fi modules. Older installations lacking a C wire can repurpose unused wires (e.g., brown or blue) or install a 24V adapter tapped into the transformer. Avoid splicing into high-voltage lines, as this violates safety codes and voids equipment warranties.
After securing all connections, power up the system and test each mode sequentially–heat, cool, and fan. Use a multimeter to confirm voltage between R and C (24V), and observe thermostat behavior. If the display fails to power on, recheck the C wire or consult the manufacturer’s troubleshooting flowchart for common error codes (e.g., “No R Power”).

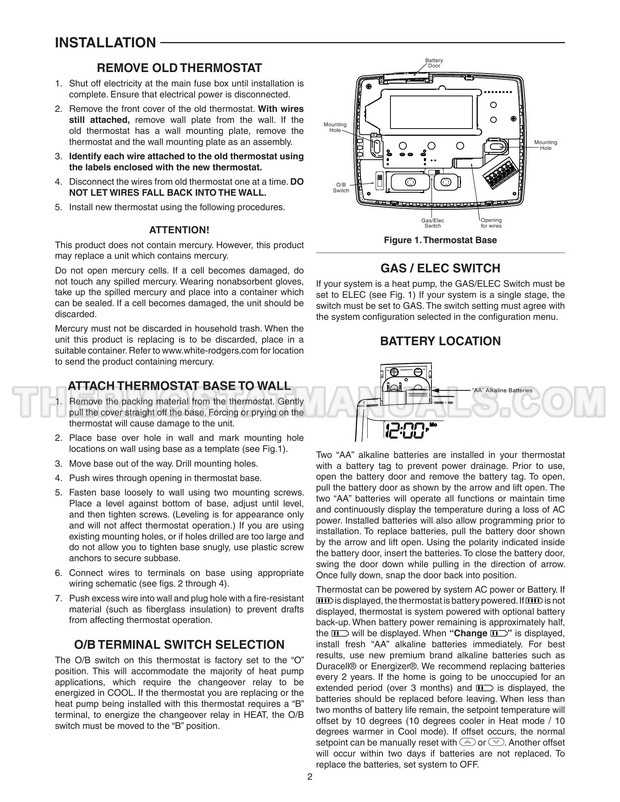

Identifying Terminal Labels on the 1F78 Control Unit Base
Locate the R (Power) terminal first–it supplies 24V AC from the system’s transformer and connects directly to the furnace or air handler’s control board. If your setup includes optional cooling, look for the Rc terminal, typically bridged with R on single-transformer configurations. Remove the jumper only if separate transformers power heating and cooling.
The W terminal activates the heating cycle by completing the circuit to the furnace’s gas valve or heat pump relay. For multistage heating, W2 engages the second stage when additional output is needed. Verify compatibility with your heating equipment–some older systems use Y instead of W2 for auxiliary heat.
For cooling operation, the Y terminal signals the compressor and outdoor condenser unit. On heat pump models, this terminal doubles for both cooling and auxiliary heating. The G terminal controls the indoor blower fan–energize it for continuous airflow during manual operation or when auxiliary heat strips are active. Avoid jumpering G directly to R unless bypassing the control for testing.
Heat pump configurations add an O/B terminal to switch between heating (O) and cooling (B) modes via the reversing valve. Check system documentation–some models default to O for cooling, others to B. Incorrect wiring here risks cycling the compressor without temperature changes, damaging the unit.
Low-voltage systems often include a C (Common) terminal for 24V return, required for smart controls needing a neutral reference. If absent, splice into the transformer’s secondary side or use the equipment’s C terminal. Older installations may label this X or B–confirm with a multimeter between R and C at 24V AC.
Final checks: Label wires before disconnecting to prevent misplacement. Use color-coded markers matching the terminal labels (e.g., red for R, white for W). If terminals appear corroded, clean with fine sandpaper–oxide buildup causes intermittent failures. Always power down the circuit at the breaker before servicing.
Step-by-Step Wire Connection Guide for Heating and Cooling Systems
Begin by labeling each terminal on your control unit with masking tape to match the system’s schematic. For a standard split-system setup, connect the red conductor to the R (power) terminal–this supplies 24VAC. Attach the green wire to G to energize the fan relay; confirm airflow direction before securing. For cooling, route the yellow lead to Y to engage the compressor contactor. If using a heat pump, splice the orange wire to O/B (reversing valve) depending on manufacturer specifications–polarity reversal during heating cycles is critical. Strip 3/8 inch of insulation per lead and crimp spade terminals for reliable contact; avoid twisting wires around screws.
- Verify system type (gas/electric/furnace) before connecting auxiliary circuits: blue (
W) for primary heat, white (AUX) for emergency heat on dual-fuel setups. - Test voltage at
RtoC(common) with a multimeter–must read 24-28VAC; discrepancies indicate transformer failure. - For zoned systems, map thermistor inputs to corresponding
Rc/Rhjumpers; omit jumpers only if separate heating/cooling transformers are present. - Tighten terminal screws to 8-10 in-lbs torque; overtightening strips threads.
- Override automatic settings by shorting
RtoGfor fan-only operation–diagnostic step for airflow issues.
Common Installation Errors and Preventative Measures
Mislabeling terminal connections leads to immediate system failure. Verify each wire against the control module’s schematic before securing screws. Use a multimeter set to continuity mode to confirm the correct path from the power source to the terminal. Incorrect polarity on the R and C terminals can damage internal relays; ensure red wire connects to R, blue or black to C. Cross-check colors with the manufacturer’s guide–some aftermarket cables use non-standard hues.
Skipping the system shutdown step risks short circuits. Disconnect the circuit breaker before handling any conductor. Apply a non-contact voltage tester to the stripped ends to confirm zero current. Heat-shrink tubing or electrical tape prevents exposed copper from contacting adjacent wires; apply immediately after securing terminals. Loose connections cause intermittent heating cycles–tighten screws with a torque screwdriver (1.2–1.5 Nm).
Grounding Oversights
- Leave grounding wire floating–attach it to the furnace’s chassis or a dedicated grounding screw.
- Ignore stray voltage paths; use a ground loop isolator if multiple devices share a ground point.
- Assume metal conduit provides sufficient grounding–verify continuity between conduit and transformer ground.
Overheating occurs if power cables contact low-voltage thermocouple wires. Maintain a 6-inch separation in junction boxes. Label every wire with heat-resistant tags during initial installation to prevent misrouting during future maintenance. For dual-fuel systems, confirm the changeover relay’s compatibility with the voltage selector switch (120V vs. 240V). Replace the fuse with an identical rating–never substitute a higher-amperage fuse.
Reverse-cycle heat pumps require precise defrost relay wiring. Position the defrost sensor on the coil’s midpoint, securing it with thermal epoxy. Incorrect sensor placement triggers false defrost cycles, reducing efficiency by 22%. Calibrate the anticipator resistor to 0.5Ω for 24V systems or 0.3Ω for 120V. Verify thermistor resistance at 77°F: 10kΩ (±1%).
Troubleshooting Power Issues Using the Schematic
Check for 24VAC between the R (power) and C (common) terminals with a multimeter before proceeding. A reading below 22VAC indicates a transformer fault, loose wire connection at the furnace, or an open fuse on the control board. Inspect the low-voltage wires for nicks or corrosion–especially at terminal screws–since intermittent power drops often stem from compromised conductors.
If the meter shows no voltage, trace the R wire back to its source, verifying continuity at each splice point. Common failure points include:
| Component | Potential Issue | Verification Method |
|---|---|---|
| Transformer secondary coil | Shorted or open winding | Measure resistance across coil terminals (should read 10-50 ohms) |
| Terminal block screws | Uneven torque or stripped threads | Retighten to 5-7 in-lbs; replace if threads are damaged |
| Door interlock switch | Misaligned plunger | Press switch by hand–listen for click; adjust bracket position |
When voltage is present but the control panel remains unresponsive, bypass the R wire connection by jumpering it directly to the control module’s input while monitoring current draw. A surge above 0.5A suggests an internal short; isolate individual components (e.g., display, relay driver circuit) by disconnecting them one at a time until the fault clears.
