Start by selecting components with exact tolerances for your target application. A 0.1% precision resistor (e.g., RN60 series) outperforms generic 5% variants in signal stability, especially in analog filters or sensor interfaces where drift introduces errors. Use SPICE simulation prior to prototyping–LTspice or KiCad’s built-in tools let you preemptively identify voltage drops, thermal hotspots, or unintended feedback loops in amplifier stages.
Trace width and layer stack choices directly affect performance. For high-current paths (e.g., 3A+ buck converters), maintain a minimum of 2.5 mm width per ampere on standard 1 oz copper, or switch to 2 oz for tighter layouts. Ground planes should remain unbroken–split planes create return-path issues that manifest as EMI or erratic ADC readings. For mixed-signal designs, separate analog and digital grounds at the power-entry connector, then join them with a single star-point near the MCU.
Decoupling capacitor placement demands rigor. Ceramic X7R/X5R types (0402 or 0603 case sizes) must sit directly between IC power pins and ground, with vias spaced ≤0.1 mm to minimize inductance. A 10 μF bulk cap and 0.1 μF bypass cap per VCC pin is non-negotiable; omitting either risks sub-100 MHz ringing in switching regulators. For high-speed clocks (SPI/I2C), add 100 pF caps to quiet aggressor traces and prevent data corruption.
Test points should never be an afterthought. Assign at least one per critical node (e.g., Vref, GPIO, feedback loops) and label them on the silkscreen for quick debugging. Use a four-wire Kelvin connection for resistance-critical paths–measuring a 1 mΩ shunt resistor with standard probes skews results by 5–10%. If space allows, include adjacent pairs of ground vias near each test point to provide stable oscilloscope grounds.
Reverse-engineering failed prototypes wastes time. Before ordering PCBs, verify footprints against datasheets–an incorrectly sized SMD inductor can destroy a boost converter in seconds. Export Gerber files to a viewer like Gerbv to catch misaligned solder masks, missing thermal reliefs, or orphaned pads. For complex boards, generate a netlist comparison between schematic and layout in KiCad to ensure no nets are accidentally merged.

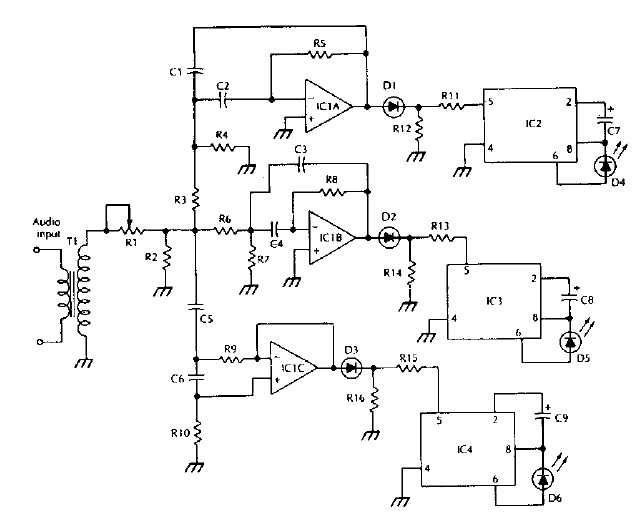

Building Schematics for Hardware Builds
Start with a clear 1:1 scale schematic using Fritzing or KiCad to avoid layout errors. Label every component with exact values–resistors (e.g., 220Ω, 10kΩ), capacitors (e.g., 100nF, 47µF), and ICs (e.g., ATmega328P, LM35)–to prevent mismatches during soldering. Use net labels for complex connections like power rails or data buses instead of cluttering the layout with lines. Save files in both `.fzz` (Fritzing) and `.kicad_pcb` (KiCad) formats to ensure cross-compatibility.
- Color-code traces: red for VCC, black for GND, blue for signal lines.
- Add test points for multimeter probes near critical nodes (e.g., MCU pins, sensor outputs).
- Include a bill of materials (BOM) with supplier part numbers (e.g., Mouser, Digikey) to streamline procurement.
- Validate the design with a continuity tester before powering up to catch shorts or open circuits.
- Use through-hole components for prototypes to simplify rework; switch to SMD for final versions to reduce board size.
- Annotate the schematic with operating conditions (e.g., input voltage range, current limits) to guide debugging.

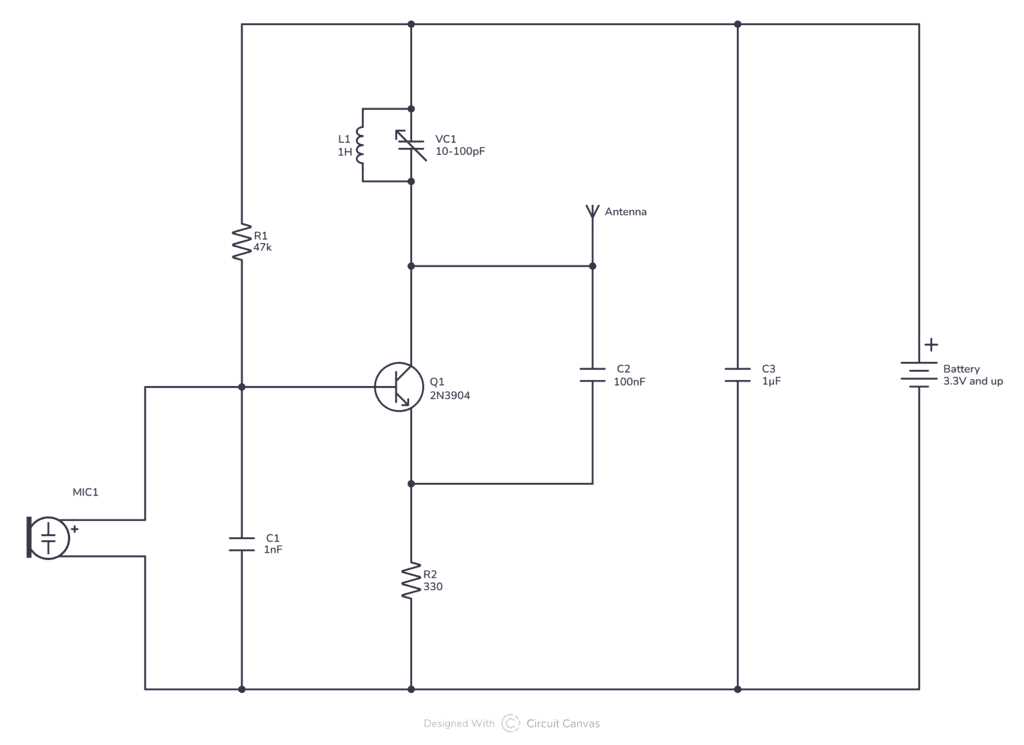

How to Read and Interpret a Schematic for Beginners
Begin by locating the power source–typically a battery symbol marked with + and -. Note the voltage value next to it, as mismatches can damage components. Trace the lines extending from the source; these represent conductive paths where current flows. Solid lines indicate direct connections, while dashed or dotted lines often denote control signals or optional routes. If a line splits into multiple branches, each fork carries the same voltage unless resistors or other elements modify it.
Identify resistors first–they’re labeled with an R followed by a number (e.g., R1) and their resistance value in ohms (Ω), kilohms (kΩ), or megohms (MΩ). A zigzag line or rectangle depending on the standard, confirms their presence. Use Ohm’s Law (V = I × R) to calculate expected voltage drops across them. For capacitors, look for two parallel lines (||) or curved plates; their value appears in farads (F), picofarads (pF), or microfarads (µF). Polarized capacitors include a + sign–connecting them backward can cause failures.
Transistors appear as three-terminal devices–common symbols include NPN (arrow out) or PNP (arrow in). The terminals are emitter (E), base (B), and collector (C). Check datasheets for pinouts, as symbols vary between manufacturers. Integrated circuits feature rectangular blocks with numbered pins; pin 1 is usually marked by a dot, notch, or angled corner. Ground symbols (⏚ or ⏜) act as reference points–all paths terminating here share zero volts.
Switches and relays interrupt or redirect paths. A basic switch shows two terminals; when closed, the line between them connects. Relays add a coil symbol (a rectangle with diagonal line) to indicate electromagnetic actuation. Diodes–symbolized by a triangle pointing to a line–allow current in one direction only. The striped end on a physical diode corresponds to the line on the symbol. LEDs replace the line with an arrow radiating outward and require current-limiting resistors to prevent burnout.
Annotate the schematic by highlighting loops–closed paths where current flows in a complete circle. Verify each loop contains at least one power source and a return to ground. Cross-reference component values with a multimeter during assembly. Missing or swapped components often cause silent failures. Digital logic gates (AND, OR) appear as shapes with curved or straight inputs/outputs; their outputs depend on input states as per Boolean algebra. Keep a reference guide for uncommon symbols, as standards differ across industries.
Step-by-Step Guide to Sketching Your Initial Schematic
Begin with a clear grid paper or a dedicated software tool like KiCad, Fritzing, or Proteus. Position the power source–typically a battery or voltage regulator–at the top-left corner, aligning it vertically for consistency. Use standardized symbols: a straight line for conductors, a short perpendicular line for resistors, and a zigzag for variable resistors. Label each component immediately (e.g., “R1 220Ω”) to avoid confusion later. For ICs, draw a rectangle with numbered pins; for transistors, follow the NPN/PNP symbol conventions. Keep traces straight or at 45° angles–never diagonal–to improve readability. If manual drawing, use a 0.5mm black pen for clarity.
Refining Connections and Verification
Trace each path from the power source through components to ground, ensuring no unintended breaks. Cross wires only at right angles with a small semicircle (bridging) to denote no electrical contact. Add test points (empty circles) at critical junctions for debugging. Once complete, verify the design by simulating it in software or building a prototype. Use a multimeter to check continuity–each node should match the intended voltage. If errors persist, simplify the layout by isolating subsystems (e.g., power, inputs, outputs) and retest incrementally.
Frequent Errors in Schematic Drawings and Ways to Correct Them
Label every component with consistent naming conventions. ICs should use their standard part numbers (e.g., 74HC14, not “Hex Inverter”), resistors should follow R1, R2, capacitors C1, C2, and so on. Avoid adding identifiers like “input” or “filter” directly into the symbol name–use separate text annotations if context is needed. Inconsistent labeling leads to confusion when cross-referencing between the layout and the bill of materials.
Misaligning power rails creates hidden bugs. Always draw positive and negative supplies as straight, parallel lines across the entire drawing. Use net labels like VCC, GND, or V+, V- instead of relying on junction dots alone. A single missing connection point between a component and its power source can render an entire board non-functional without visible errors in the software compiler.
Avoid overlapping net junctions–use a single T-junction or cross with an explicit dot to indicate a merge. Many design tools default to treating unmarked crosses as no connection, causing silent open circuits. Verify each merge point by selecting the net in the editor and ensuring it highlights the entire intended route without snapping to unrelated traces.
Overcomplicating hierarchical sheets:
- Keep blocks small–limit to 5–7 major components per sheet.
- Use off-page connectors with clear labels (
ADC_IN_3, notP1). - Color-code connector types: red for power nets, blue for digital signals, green for analog.
- Add a single legend sheet listing all colors, symbols, and net abbreviations.
Missing decoupling capacitors next to IC power pins is a leading cause of unpredictable behavior. Place 0.1 µF ceramic caps within 2 mm of each supply pin pair, directly on the same net. For higher-current devices, add a 10 µF bulk cap shared between multiple ICs. Simulate the power integrity in the schematic editor before routing to catch impedance peaks.
Forgetting thermal considerations during schematic entry invites rework. Tag high-power components with a note “max 3W, needs 2 oz copper” directly on the symbol. Use power symbols (+5VA, +5VB) to differentiate rails feeding linear regulators versus direct battery lines. Attach thermal vias or heatsink callouts to the power symbol for future PCB layout reference.
Neglecting to define net classes leads to signal integrity issues. Create classes within the schematic editor:
- Digital fast rise: 50 Ω controlled impedance, 0.254 mm min trace width.
- Analog differential: 90 Ω twisted pair, no vias within 5 mm of termination.
- Power low-noise: 2 mm wide, 4 mm clearance from analog grounds.
Assign each net to its class during entry rather than post-layout.
Omitting design rules checks (DRC) at the schematic level hides errors until fabrication. Enable:
- Pin number mismatch: flags components with swapped pins (e.g., MOSI ↔ MISO).
- Unconnected pins: warns of floating gates or grounds.
- Duplicate net names: catches typos between
VCCandVCC1. - ERC violations: highlights illegal logic states like outputs shorted together.
Run checks after every major block rather than waiting until completion.
