If your spin-cycle thermal unit fails, start by inspecting the thermal fuse–a 30-amp component typically mounted near the blower housing. Locate the high-limit thermostat (rated at 190°F) on the heater assembly and verify continuity with a multimeter. A broken circuit here mirrors symptoms of a dead motor, but the fix requires scoping the main control board’s relay connections before replacing parts.
Trace the red and black 10-gauge wires from the heating coil terminals back to the main power inlet. Disconnect the machine from its 240V supply before probing–these leads carry lethal current even when idle. Check the cycling thermostat (135°F) mounted on the heater duct; if readings fluctuate beyond ±5°F, the thermistor may need calibration or replacement. Note that some models integrate a moisture sensor in tandem with the thermal circuit–consult the service manual’s component matrix to isolate which module governs drying cycles.
For units with three-wire 220V configurations, confirm the neutral leg (white wire) remains uninterrupted. Loose crimps at the terminal block mimic a failed element–tighten with a torque screwdriver to 20 in-lbs. If the control panel exhibits erratic behavior (flashing LEDs), focus on the door switch bypass path: a misaligned striker plate can cause false thermal cutoffs despite normal resistance readings across the coil.
Replace burnt connectors with butt splices rated for 20 amps; avoid wire nuts as thermal expansion compromises their grip. Reassemble the front bulkhead only after verifying the safety thermostat’s one-shot fuse hasn’t tripped–resetting requires a full power cycle. Test operation in timer-knob diagnostic mode by rotating the dial to “Air Fluff” and monitoring heater draw with a clamp meter (expected: 12-15 amps steady).
Understanding Thermal Cut-Off and High-Limit Thermostat Connections in Laundry Appliances

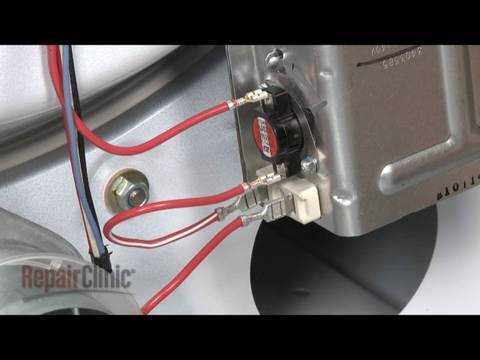

Locate the thermal cut-off (TCO) and high-limit thermostat on the heating element housing–both are critical safety devices. The TCO is a one-time fuse (typically rated at 196°C/385°F) that disconnects power if the unit overheats, while the high-limit thermostat (usually 82°C–93°C/180°F–200°F) resets automatically. Verify continuity across these components using a multimeter: zero ohms indicates functionality; infinite resistance signals failure. Replace both if either is defective–never bypass them, as this creates a fire hazard.
| Component | Function | Test Reading (Ohms) | Failure Action |
|---|---|---|---|
| Thermal Cut-Off (TCO) | Interrupts circuit at 196°C/385°F | 0 (intact) / ∞ (blown) | Replace entire assembly |
| High-Limit Thermostat | Opens at 82–93°C/180–200°F, resets | 0 (closed) / ∞ (open) | Replace if stuck open |
| Heating Coil | Generates 240V heat (3.5–5.5kW) | 20–40 (normal) / ∞ (broken) | Replace coil or housing |
Always disconnect the power cord and discharge the capacitor before testing. Label wires before disconnection–mislabeled connections risk short circuits or damage to the control board. Use heat-resistant silicone wire (14–12 AWG) for replacements, ensuring terminals are crimped with insulated connectors and secured with dielectric grease to prevent corrosion.
Finding the Precise Electrical Layout for Your Appliance Variant
Access the official support portal using your model number–typically printed on a metal plate inside the door frame or on the rear panel. Enter the full identifier (e.g., WED85HEDW0) into the search field on the manufacturer’s resource center; this filters results to display only verified documents for your specific unit. If the label is damaged, cross-reference the production year from the serial code (first two digits after the first letter) with archived series lists available in technical bulletins.
Alternative Verification Methods
Download the service manual PDF from third-party repositories only after confirming checksums against the original release–corrupted files may omit critical high-resistance paths or mislabel thermal cutoff points. For obsolete variants (pre-2005), request legacy schematics via email from certified repair networks; include the cabinet type (stackable, front-load) and any visible modifications like aftermarket fuses or reversed polarity switches, as these dictate which revision applies.
Understanding Key Components in the Appliance Thermal Unit Circuit
Locate the thermal cutoff switch immediately–it’s often labeled as “TCO” or “thermal fuse” on the layout and must be wired in series with the heating element. This safety device trips at temperatures exceeding 185°C (365°F) to prevent fires. Verify its continuity with a multimeter before testing higher voltage paths; a failed switch demands replacement with an identical model rated for the same current (typically 16A).
The heating coil assembly consists of resistance wire wound on a mica or ceramic insulator, with resistance values between 20Ω and 70Ω depending on wattage–check the service manual for your model’s exact specification. A lower-than-normal reading suggests a shorted coil, while an open circuit indicates a break. Clean coil terminals with fine-grit sandpaper to remove oxidation; ensure connections are torqued to 8–12 in-lbs to prevent arcing.
Examine the centrifugal start switch if the circuit includes a motor-driven blower. This switch disengages the heater when the motor fails to reach operating speed (typically 2800 RPM). Misalignment or worn contacts can cause intermittent heating–test continuity across its terminals with the motor running. Replace if resistance fluctuates above 0.5Ω during operation.
Relay boards in modern units control power delivery through a solid-state or electromechanical switch, triggered by a 24VAC signal from the control board. Inspect the relay for signs of overheating (discoloration or melted plastic) and confirm input voltage matches the coil rating (usually 24V). A clicking relay that doesn’t close may require reflowing solder joints or replacing the module entirely.
Thermistors or RTDs (resistance temperature detectors) monitor air temperature at the exhaust. A 10kΩ NTC thermistor should read ~25kΩ at 25°C and drop to 1kΩ at 150°C. Inconsistent readings skew heating cycles–check sensor placement and secure connections with heat-resistant silicone insulators. Replace sensors that deviate by more than 10% from expected values.
High-limit switches, distinct from thermal cutoffs, shut off the heater at ~135°C (275°F) to protect internal components. These are normally closed and must reset manually after cooling. Test with a continuity meter; a failed switch often correlates with clogged venting systems–clean ducting to 75% unobstructed cross-section before assuming electrical failure.
Bimetallic switches in older models provide overheat protection but degrade over time. A properly functioning switch should “snap” audibly when heated–failure to do so indicates fatigue. Replace with a bimetallic unit matching the original’s trip temperature (±5°F tolerance) and current rating (usually 10–20A). Avoid bypassing this safety feature; temporary fixes risk component damage.
Ground the frame connections explicitly, even if the circuit doesn’t show an explicit grounding path. Green/yellow wires must terminate at unpainted metal surfaces; verify resistance below 0.1Ω between heater housing and ground terminal. Ungrounded units can develop hazardous leakage currents–use a megohmmeter to confirm insulation resistance exceeds 1MΩ at 500V DC before powering the assembly.
Step-by-Step Guide to Tracing Thermal Element Conductors in the Circuit Blueprint
Locate the primary power inlet terminals marked L1 and L2 on the left edge of the layout–these connect directly to the heating assembly via thick red or black leads, often labeled with resistance values (e.g., 10–15 Ω for 240V models). Trace the first conductor from L1 through the thermal cutoff switch, then into the high-limit thermostat; verify continuity here before proceeding, as an open circuit here halts all current flow. Follow the same path from L2, ensuring both lines converge at the heating coil’s dual spade terminals–common failure points include corroded connections or brittle insulation near bend radii.
- Use a multimeter in continuity mode: probe the coil’s terminals–expected resistance should match the specified range (e.g., 7–12 Ω ±10%).
- Check for voltage drop between L1/L2 and the coil: 220–240V AC confirms proper feed; lower readings indicate loose terminals or undersized conductors.
- Inspect the centrifugal relay or timer contacts feeding the coil–pitted contacts create intermittent heating.
- Label each wire segment with masking tape during disassembly to prevent incorrect reassembly.

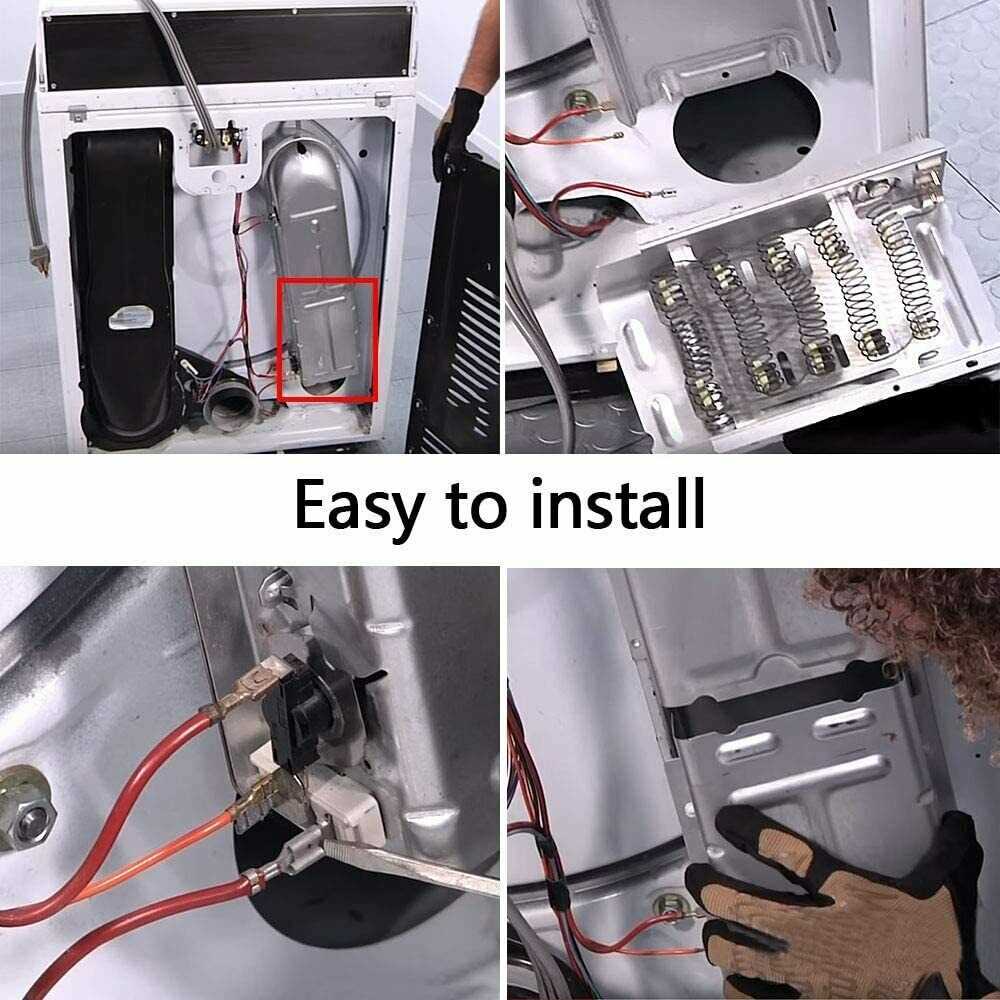

- Disconnect power, then isolate the thermal assembly by removing the rear panel–secure wiring harnesses with zip ties to avoid strain on soldered joints.
- Test each safety device (thermal fuse, thermostats) individually: they should read near 0 Ω when closed.
- Replace any component with infinite resistance or visible damage (e.g., cracked housing, discolored contacts).
Typical Faults Highlighted by Thermal Unit Circuit Layouts
Check the high-limit thermostat first if the assembly fails to generate warmth. This component, often located along the heating coil harness, acts as a safety cutoff when temperatures exceed 155°C. Replace it if resistance readings deviate from the 0–1Ω range, as faulty units prevent current flow entirely.
Fuse blowouts frequently stem from clogged lint pathways, not electrical defects. A 20-amp fuse will rupture instantly when airflow drops below 70 CFM, mimicking circuit failure. Before testing continuity, disassemble the exhaust duct and scrub the thermal housing with a wire brush–restricted vents force prolonged on-cycles, overheating the element.
Thermal cutoff sensors wired in series with the coil degrade unpredictably. Symptoms include intermittent heat or total loss after 3–5 minutes. Probe the sensor leads with a multimeter; a 0L reading indicates failure. Verify the reset button isn’t tripped–some models require manual engagement after thermal events.
Misrouted wires near the coil’s ceramic holder cause short circuits. Inspect the harness for melted insulation where it contacts metal edges; reroute cables with fiberglass sleeving. Crimped spade terminals also loosen over time–crimp new connectors with a ratcheting tool to prevent voltage drops.
Coil burnout appears as darkened segments or broken nichrome loops. Test resistance across the element’s terminals–values above 15Ω signal internal breaks. Replace the heating module if pitted tubes or corroded mounting screws are visible; these compromise thermal conduction.
Incorrect voltage at the terminal block often traces back to a faulty power cord or main breaker contactor. Measure incoming voltage at the machine’s inlet board; 208–240VAC must register within ±5% tolerance. Swap the power cord if the neutral shows higher than 3VAC leakage.
Ground faults manifest as flickering LEDs or tripped GFCI outlets. Inspect the thermal unit’s grounding strap; corroded screws or frayed braided wire create hazardous leakage paths. Secure the strap to the chassis with a star washer–loose connections lead to erratic current surges.
Control board relays responsible for heater activation weld shut from arcing. Tap the relay casing lightly; a faint click confirms responsiveness. If silent, desolder the relay and replace it–a stuck contactor delivers continuous voltage, risking coil burnout or fire.
