Begin by locating the power management IC (PMIC) on the main logic board–it’s typically near the battery connector, marked with identifiers like U__PWR or Tristar. This chip regulates voltage distribution across critical components, including the CPU, baseband, and display circuits. Use a multimeter in diode mode to verify connections between the PMIC and nearby capacitors. A reading below 0.2V suggests a short, often caused by liquid damage or failed solder joints.
Next, trace the NAND flash lines, labeled AP_TO_NAND or MLB_NAND. These pathways carry data between the processor and storage, and disruptions here manifest as boot loops or corrupted firmware. Check for continuity between the NAND and the application processor; resistance above 10Ω indicates a broken trace. Reballing the NAND may be necessary if solder bridges are visible under a microscope.
Examine the audio codec (often labeled CE1930 or Madigascar), which handles speaker, microphone, and headphone signals. Test the I2S bus lines (clock, data, and strobe) with an oscilloscope–clean square waves at 1.8V confirm signal integrity. If waveforms appear distorted, replace decoupling capacitors near the codec, as they’re prone to failure under thermal stress.
The RF transceiver (marked PMB____ or Hydra) manages cellular and Wi-Fi connectivity. Probe the RX/TX lines leading to the antenna switch–voltage should match the band’s specifications (1.2V for LTE Band 4). If signal drops occur, inspect the SAW filters; corrosion here from moisture exposure is a common culprit. Replacement requires precision soldering to avoid damaging adjacent filters.
For backlight issues, focus on the boost converter (labelled LP8558 or TI3H). Measure output voltage at the inductor–it should reach 25V under load. If voltage is low, replace the switch-mode regulator or check the feedback resistor network for shorts. Cold solder joints on the flex connector to the display can cause flickering; reflowing the connector often resolves this.
Lastly, cross-reference your findings with a high-resolution schematic from a trusted repair manual database. Avoid generic diagrams–Apple’s board revisions (820-XXXX) differ in component placement. Mark absent or mislabeled components on your copy to prevent misdiagnosis. Prioritize testing under load, as some faults only appear during operation.
Understanding Internal Schematics of Modern Smartphones
Start by identifying power management blocks in build layouts–critical ICs like the PMIC (e.g., Texas Instruments TPS65950 on older models or Apple APL1098 chips) distribute voltage across key subsystems. Locate these near the battery connector with bypass capacitors (typically 0402 ceramic, 1μF–10μF) to stabilize supply lines. Probe test points labeled PP_VCC_MAIN or similar to verify regulated outputs before proceeding.
RF front-end modules demand isolation from digital noise–shielding cans (e.g., Murata shields with EMI-absorbing gaskets) encase transmit/receive ICs (Skyworks 77356, Avago AFEM-8050). Trace antenna switch signals through stripline paths; mismatched impedance (target 50Ω) degrades signal integrity. Use a spectrum analyzer to check harmonic distortion at frequencies like 1.92 GHz (LTE Band 2) or 3.5 GHz (sub-6 GHz 5G).
The baseband processor communicates with memory via ultra-fine pitch BGA (
| Component | Signal Path | Test Method | Common Failure |
|---|---|---|---|
| NAND Flash | MIPI-DSI to CPU | Oscilloscope (100MHz+) | Data corruption on boot |
| Ambient Light Sensor | I2C (400kHz) | Multimeter continuity | Faulty backlight dimming |
| Taptic Engine | Custom PWM (2kHz) | Signal generator | Weak vibration feedback |
Flex cables linking sub-assemblies (e.g., display, battery, fingerprint sensor) use anisotropic conductive film (ACF). Inspect for micro-cracks or delamination under magnification (40x); reflow at 240°C with flux to restore connections. ESD damage often manifests as intermittent faults–replace components handling sensitive data paths (touchscreen controllers, camera modules) if resistance readings deviate from expected values (e.g., 15–30Ω on data lines).
Thermal management relies on graphite sheets or copper heat spreaders bonded to critical ICs. Measure thermistor readings (e.g., NTC 10kΩ) at CPU/GPU areas; temperatures exceeding 85°C trigger throttling. Apply thermal paste sparsely–excess builds up causes hotspots. For cooling analysis, use a FLIR camera to identify heat flux bottlenecks near voltage regulators.
Audio codec ICs (e.g., Cirrus Logic 338S00345) process signals through differential pairs; DC offset in ADC channels (target
Debugging Peripheral Interfaces
Lightning/USB-C ports use high-speed Mux ICs (e.g., TI HD3SS215) to switch between data and power roles. Probe CC lines (USB-C) with a 5.1kΩ resistor for proper negotiation; lack of 5V/20V output suggests failed Mux or PD controller. NFC coils (13.56 MHz) require precise tuning–use a vector network analyzer to adjust matching capacitors if read range drops below 3cm.

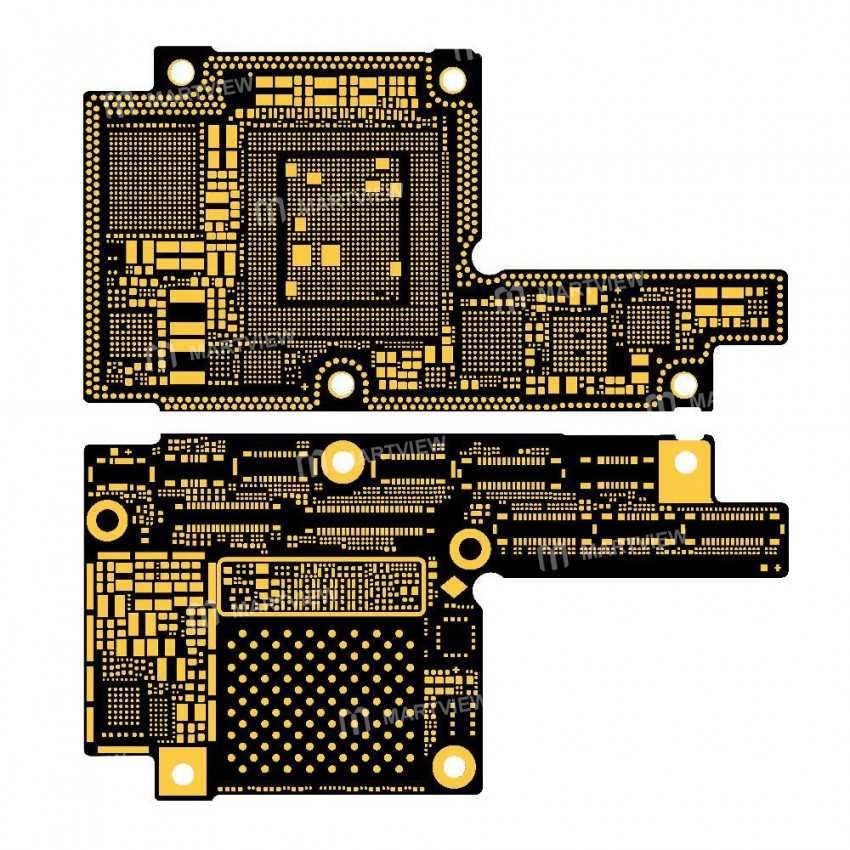

How to Pinpoint Critical Parts on a Mobile Device’s Main Logic Assembly
Begin by identifying the central processing core near the battery connector–older models position it to the left, while recent variants place it adjacent to the SIM tray aperture. Use a 10x magnifier to trace power delivery components: the charging IC sits between the battery connector and the lower sub-board, often marked with a square or rectangular metallic shield. Look for clusters of tiny resistors and capacitors around it–they regulate voltage for the baseband and Wi-Fi modules. A multimeter set to continuity mode helps verify ground connections; the largest exposed copper pad usually serves as the primary grounding point for the entire board.
Locate the NAND flash storage beneath the rear camera connector; it’s soldered directly to the PCB with minimal surrounding components. The front-facing sensor array (proximity/ambient light) connects via a flex cable routed along the upper edge, linking to a small IC near the earpiece speaker terminals. For models with ultrasonic fingerprint detection, the sensor circuit occupies the lower third of the board, distinguishable by a dense grid of micro-resistors and a single larger chip labeled “Secure Enclave” adjacent to the haptic feedback motor pads. Use a thermal camera or freezer spray to detect cold-start components–the CPU/GPU complex typically registers 5–10°C cooler than surrounding areas during brief power-on tests.
Trace the antenna lines from their coaxial connectors–primary cellular radios terminate near the Wi-Fi module (upper left), while GPS and Bluetooth feeds snake toward the center. The audio codec sits above the charging port, recognizable by its rectangular shield and pair of small electrolytic capacitors. For power rails, probe the edges of inductors marked “L” followed by numbers; the main system voltage (usually 3.8V) stabilizes across three or four adjacent coils. Cross-reference component layouts with board revisions (e.g., “J300” for A2296)–earlier designs scatter the NFC module near the SIM tray, while newer ones consolidate it beneath the rear camera flex.
Step-by-Step Guide to Mapping Power Pathways in Apple Mobile Schematics
Locate the battery connector first–typically marked as “BATT_CONN” or “VBAT” in the layout. Verify its pinout using a multimeter in continuity mode; the main power pin should register ~0 ohms to ground when the device is off. Cross-reference this with the corresponding net label in the PCB layout software to confirm no hidden vias or series resistors exist between the connector and the main power rail.
Follow the primary power rail from the battery connector to the PMIC (power management IC). Identify input capacitors (usually 10µF–22µF) near the PMIC’s power pins–these stabilize voltage during transients. Use a thermal camera or touch-test after power-up to ensure components aren’t overheating, which indicates excessive resistance or short circuits in the pathway.
Trace secondary power lines from the PMIC to peripherals like the application processor, flash memory, and display driver. Each rail will have distinct net labels (e.g., “VCC_MAIN,” “VREG_LDO”). Measure voltage at test points or via exposed pads with an oscilloscope; expect stable output within ±5% of the nominal value (e.g., 3.8V for lithium-ion). Voltage drops >100mV suggest faulty components or corroded traces.
Inspect inductor-based buck converters if present–they step down voltage for low-power components. Identify the input/output capacitors and feedback resistors (marked “FB” or “VFB”). A damaged inductor will cause whining noises or excessive heat; replace it if ESR exceeds 0.3 ohms. Check the enable pin (often labeled “EN”) with a logic analyzer–it should toggle high within 20ms of power-on.
Examine the ground plane for anomalies. Use ground pours as reference points for measurements; a noisy ground can disrupt power delivery. Probe the return paths of high-current components (e.g., charging IC) to ensure they merge cleanly into the main ground. Resistance >0.1 ohms between ground points indicates insufficient copper fill or broken stitching vias.
Document each traced pathway with high-resolution photos and annotated notes. Label test points with measured voltages and net names. For recurring issues, create a reference sheet listing common failure points: blown fuses (marked “FUSE” or “eFUSE”), degraded flex cables, or PMIC failures. Use a USB-C power meter to verify input/output power levels match specifications (±50mA of expected current).
