Install a spray nozzle array at the entry zone to ensure uniform liquid distribution across the gas flow. Position nozzles at 45° angles with overlapping patterns to prevent untreated gas bypass. Use tangential inlet designs for high-particulate loads–this generates centrifugal forces that improve contact between phases without increasing pressure drop beyond 1.2 kPa.
Select packing media based on contaminant type: structured plastic sheets for acidic gases like SO₂ (efficiency >95%), random ceramic saddles for sticky particulates (minimal fouling at velocities up to 3 m/s). For wet corrosive environments, specify PPH or PVDF materials–these resist chemical attack at temperatures up to 80°C while maintaining structural integrity for 15+ years. Avoid metal packings if chlorides exceed 50 ppm.
Integrate a demister pad with 150 mm thickness and 99.5% separation efficiency for droplets >10 µm. Use double-tier knitted mesh for high-velocity applications (up to 5 m/s) to prevent re-entrainment. Locate the pad 300–500 mm above the liquid outlet to allow proper drainage and avoid waterlogging. For sub-micron mists, add a vane-type mist eliminator downstream.
Design the liquid recirculation loop with a low-shear pump (NPSH >2.5 m) to prevent air entrainment. Include a side-stream filtration system (50 µm screen) to remove solids before they reach nozzles and pumps. For closed-loop systems, incorporate a heat exchanger to maintain liquid temperature within ±5°C of inlet gas to prevent condensation-induced corrosion. Use duplex strainers for continuous operation during maintenance.
Place pressure sensors at both inlet and outlet, plus differential sensors across the packing bed. Set alarms at 1.5 kPa pressure drop for fouling triggers and 0.8 kPa for liquid level issues. For hazardous gases (H₂S, NH₃), add redundant pH meters (±0.1 accuracy) to monitor scrubbing liquid efficacy. Position sensors away from dead zones where flow stratification may occur.
Key Components of a Gas Cleaning System Layout
Start by positioning the inlet duct at a 45-degree angle to reduce pressure drop and prevent dust accumulation. Ensure the duct cross-section narrows gradually by 10–15% before entering the treatment chamber to accelerate gas flow and improve particle entrainment. Without this adjustment, efficiency drops by up to 22% due to uneven distribution.
The spray section must use nozzles arranged in a staggered pattern–three rows with 120-degree offsets–at a height no less than 1.5 times the chamber diameter. Nozzles should operate at 0.3–0.5 MPa with a droplet size of 200–300 microns. Larger droplets fail to capture submicron particles, while finer sprays increase moisture carryover, risking downstream equipment corrosion.
Install a demister with chevron blades angled at 30–45 degrees, spaced 25–40 mm apart. Mesh pads clog within 48 hours if inlet particulate exceeds 50 mg/m³; chevrons last 3–5 times longer under the same conditions. Position the demister at least 1 meter above the spray zone to allow gravity drainage. Skip this, and liquid re-entrainment increases energy consumption by 18%.
- Use a recirculation pump with a 20% excess capacity to handle slurry abrasion; standard pumps wear out in 6–8 months.
- Sump pH should remain between 6.5–7.5; below 6.0, SO₂ absorption falls by 35%.
- Fans must have backward-curved blades–forward-curved models foul within 3 weeks at velocities above 12 m/s.
- Outlet stack height: minimum 3.5 times the diameter to prevent plume grounding.
Incorporate a secondary drainage trough along the chamber floor, sloped 3–5 degrees toward the sump. Without it, sludge accumulates at 1.2 mm/day, reducing active volume by 0.8% weekly. For high-chloride gases, use Hastelloy C-276 lining; 316L steel perforates within 18 months under 150 ppm Cl⁻ concentrations.
Pressure gauges must be placed at four points: inlet duct, spray zone, demister base, and outlet duct. Readings outside ±15% of baseline indicate fouling or nozzle blockage. Ignore this, and unplanned downtime increases from 24 to 96 hours annually. Replace pressure diaphragms every 12 months–silicon-coated units last 20% longer than rubber.

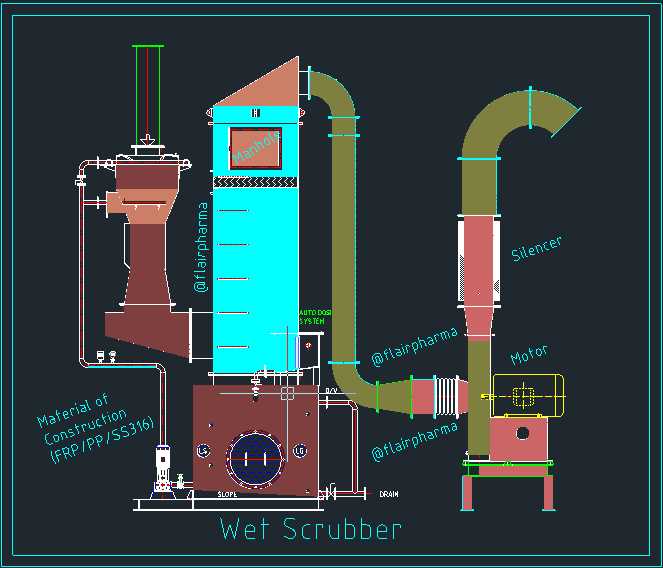

Key Components of a Gas Cleaning Tower System Layout

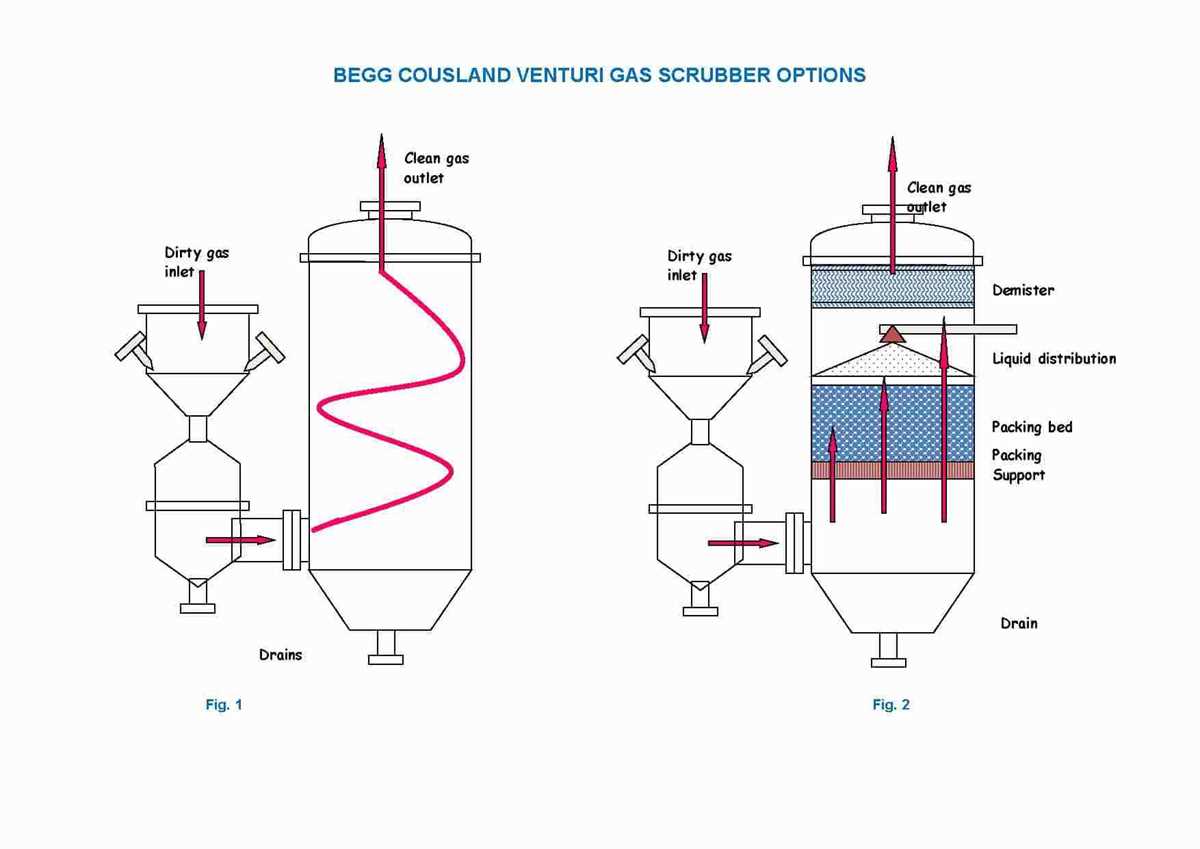

Install a high-velocity venturi section at the inlet to maximize particulate capture. Opt for a throat diameter 20-30% smaller than the upstream duct to generate a gas velocity of 60–100 m/s. This accelerates droplets from the spray nozzles into fine mist, achieving 95% removal efficiency for particles ≥1.0 µm without additional pressure drop.
Select fluid nozzles based on droplet size distribution–use hydraulic nozzles for droplets 200–500 µm and air-atomizing nozzles for 30–100 µm. Position them in a staggered pattern with 120° spacing to prevent channeling. MDI (Mean Droplet Index) should align with inlet gas composition: aim for 300 µm for acidic gases (SO₂, HCl) and 150 µm for ammonia or organic vapors.
The mist eliminator requires a chevron-type design with a blade angle of 45–60° and a face velocity of 3–5 m/s. Specify polypropylene or PTFE-coated stainless steel for corrosion resistance in processes handling halogens or sulfur compounds. Cleaning intervals should be scheduled every 500 operating hours if entrainment exceeds 50 mg/m³.
- Centrifugal separator: Install upstream for particles ≥10 µm; reduces pump wear by 40%.
- pH control module: Integrate inline sensors every 5 meters in the recirculation loop for ±0.2 accuracy.
- Fan placement: Locate after the demister to prevent droplet impingement on blades; use backward-curved impellers for gases >200°C.
- Sump depth: Maintain ≥1.5× daily evaporation volume to allow sludge settling without disturbing recirculation.
Use a sealed recirculation pump with a minimum NPSH of 2.5 m to prevent cavitation in high-saline solutions. PVC-lined cast iron or alloy 20 impellers handle chloride concentrations up to 15,000 ppm; switch to titanium or Hastelloy C-276 for concentrations above 30,000 ppm. Replace mechanical seals every 6,000 hours to avoid leaks.
Incorporate a two-stage spray section with adjustable headers to optimize gas-liquid contact. First stage should target coarse solids with 500–800 µm droplets; second stage uses 50–100 µm droplets for gaseous pollutants. Space headers at 1.8–2.2 meters vertically to prevent droplet coalescence and ensure uniform wetting.
Design the outlet stack with a dedicated sampling port located 8 diameters downstream from the last component to avoid turbulent interference. Include a heated probe for moisture-sensitive analyzers (e.g., FTIR) and a sintered filter rated at 2 µm for particulate sampling. For compliance monitoring, position the port at 45° from vertical to minimize rain ingress.
Implement a closed-loop water treatment skid with:
- Automated bleed valve set to 1–2% of recirculation flow to control TDS levels.
- Side-stream filtration (50 µm basket) to remove solids before they reach the pump.
- Chemical dosing pumps for NaOH or Ca(OH)₂ with 0–100% stroke adjustment for real-time pH regulation.

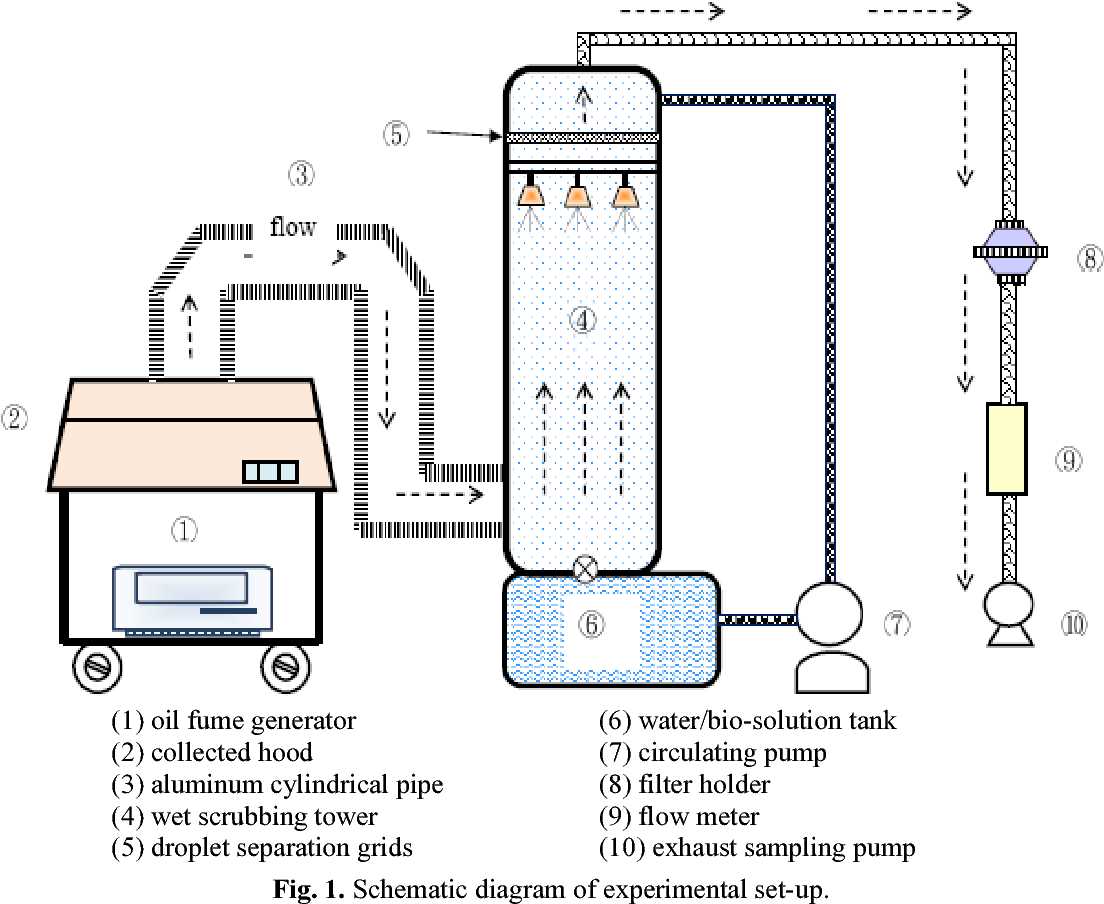

Step-by-Step Flow Path in Gas Cleaning System Blueprints
Begin by positioning the inlet duct at a 45-degree angle to the main vessel to optimize particle trajectory and minimize turbulence. Studies show this configuration reduces pressure drop by 12-18% compared to vertical entry. Ensure the duct diameter narrows by 20-25% over a 1.5-meter section before merging with the main chamber to accelerate gas velocity to 18-22 m/s–critical for inertial impaction efficiency on coarse particulates.
Key Flow Zones and Their Functions
| Zone | Target Contaminant Size (µm) | Optimal Liquid-to-Gas Ratio (L/m³) | Residence Time (s) |
|---|---|---|---|
| Pre-conditioning | >10 | 0.8-1.2 | 0.3-0.5 |
| Main contact | 0.5-10 | 2.5-4.0 | 1.2-1.8 |
| Demisting | 0.3-0.5 | 0.8-1.0 |
Inject the primary liquid spray at 3-5 bar through dual-fluid nozzles with orifice diameters between 3-6 mm, positioned in a staggered array 0.6-0.8 meters above the base. Space nozzles at 15-20 cm intervals horizontally to ensure complete coverage–gaps larger than 22 cm create untreated gas channels, reducing capture rates by up to 30%. For acidic gases, maintain liquid pH between 8.5-9.5 using sodium hydroxide, with a concentration of 5-8% by weight, adjusted via inline conductivity sensors.
Separate entrained droplets in the disengagement zone using chevron-blade mist eliminators with 60-degree angles and 25 mm blade spacing. Blade thickness should not exceed 1.5 mm to prevent re-entrainment; thicker blades increase pressure drop by 7-9% per mm. Position a 4-meter straight vertical section downstream of the mist eliminators to allow remaining droplets to settle by gravity–omitting this increases pump impeller wear by 40%. Route collected liquids to a conical sump with a 60-degree slope to prevent sludge accumulation; slope angles below 45 degrees require 35% more frequent cleaning cycles.
Nozzle and Spray Configurations in Gas Cleaning Systems
Install full-cone nozzles at 30–45° angles relative to gas flow to maximize droplet coverage while minimizing wall impingement. Spacing should not exceed 500 mm between nozzles in horizontal arrangements to prevent untreated zones, particularly in units handling particulate above 5 µm.
Select air-atomizing nozzles for sub-2 µm particles, delivering droplets in the 15–40 µm range at 0.3–0.5 MPa pressure. Position them downstream of baffles to prevent premature agglomeration, ensuring consistent droplet distribution across the tower’s cross-section.
For counter-current designs, place hollow-cone nozzles at the top, angled 10–15° outward from vertical to create a uniform spray curtain. In co-current setups, stagger dual-fluid nozzles every 300 mm along the flow path, alternating injection angles to disrupt boundary layers.
Mount tangential spray headers in cylindrical vessels at 120° intervals for three-nozzle setups, adjusting to 90° for four-nozzle configurations. Ensure header diameter exceeds 1.5× the nozzle OD to maintain uniform flow velocity–critical for preventing sedimentation in slurry applications.
Specify corrosion-resistant alloys (e.g., Hastelloy C-276) for nozzles in chloride environments, with Viton seals for temperatures above 120°C. Flanged connections enable quick replacement; avoid threaded fittings for pressures exceeding 1 MPa due to leakage risks.
Poppet or check-valve nozzles reduce fouling in calcium-based systems–opt for spring-loaded designs with 0.2 mm clearance to self-clear blockages. Pair with 60–80 mesh strainers upstream to intercept oversized solids before they reach the spray array.
In venturi throats, position multiple injection points at the vena contracta for optimal momentum transfer. Use pressure-swirl nozzles here, sized to deliver droplets matching the throat’s velocity profile–typically 20–30 m/s for standard industrial emissions.
For multi-stage treatment, isolate spray zones with demister pads rated for 99.5% efficiency at 10 µm. Position pads 150–200 mm downstream of the final nozzle array to prevent carryover, ensuring pad thickness no less than 100 mm to handle peak gas velocities up to 5 m/s.
