To accurately interpret the electrical layout of a wound-field rotating apparatus, begin by identifying the stator windings–typically arranged in a three-phase configuration around the outer frame. The key lies in tracing the connections between these coils and the terminal block, where external power is applied. Mark phase sequences (A, B, C) distinctly; mislabeling here leads to incorrect rotational direction or startup failures. Note that excitation voltage is supplied separately via slip rings or a brushless exciter, a detail often omitted in simplified renders.
Examine the rotor’s magnetic poles next. Salient-pole designs feature protruding cores with concentrated windings, while cylindrical rotors distribute flux evenly through embedded conductors. The number of poles directly impacts operational speed–calculate synchronous velocity using Ns = 120 × f / P, where f is the supply frequency (Hz) and P the pole count. Ensure the diagram reflects this ratio; deviations suggest errors in design scaling.
Integrate protection elements explicitly. Depict damper windings (amortisseur bars) on the rotor–these are critical for damping oscillations during transient conditions like load changes or sudden voltage dips. Highlight the neutral grounding scheme for the stator; isolated neutrals require surge arresters, while solidly grounded systems need coordinated relay settings. Overlooking these components in the visual guide risks undetected faults progressing to catastrophic failure.
Validate the layout against real-world constraints. Measure the air-gap symmetry: uneven gaps (typically 0.5–2 mm for small units) cause unbalanced magnetic pull, leading to vibration. Check insulation thickness between windings–thin layers (<0.2 mm) compromise dielectric strength under high switching frequencies. Use a vector group reference (e.g., Dyn11 or Yd1) for transformer-like coupling if present; incorrect groupings introduce phase shifts that disrupt synchronization.
Annotate all control and monitoring circuits. Include voltage regulators, speed sensors (if variable-frequency drives are used), and current transformers for overload detection. Specify wire gauges for excitation circuits–undersized conductors (<2 mm²/A) overheat during prolonged starting cycles. Document startup procedures directly on the diagram: indicate whether the machine uses an auxiliary drive, reduced-voltage method, or capacitor discharge for initial acceleration.
Visual Representation of a Constant-Speed Electrical Machine

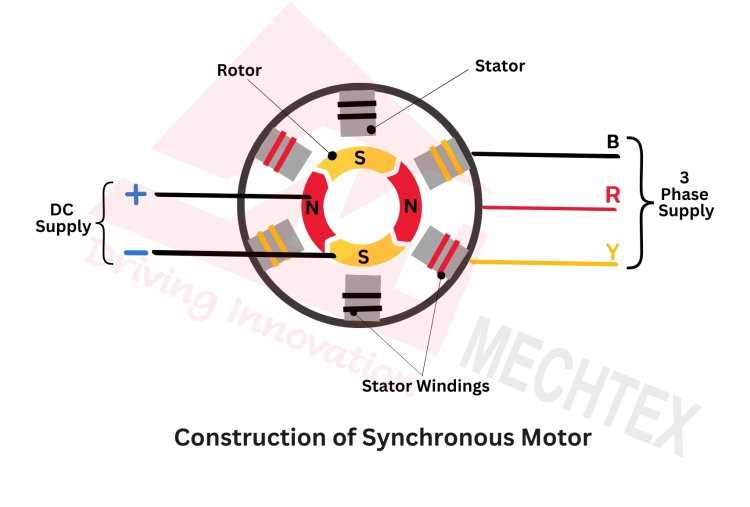

Ensure the stator windings in your circuit layout are arranged in a three-phase star or delta configuration, typically spaced 120 electrical degrees apart. Label each winding with its phase designation (U, V, W) and include the precise number of poles–common values range from 2 to 32 poles, depending on rotational speed requirements (e.g., 3000 RPM for 2-pole, 1500 RPM for 4-pole). Indicate the excitation source separately, either via slip rings for external DC supply or a brushless exciter with rotating diodes, and mark the field winding on the rotor with its voltage rating (frequently 100–300V DC).
Key Components to Depict
Add the damper bars as dashed lines around the rotor circumference, showing their connection to shorting rings if applicable–these suppress transient oscillations during load changes. Include a small capacitor symbol across the exciter terminals to represent suppression for voltage surges, typically 0.1–1μF. For clarity, use distinct line weights: thick lines for power circuits, medium for control signals, and thin dotted lines for auxiliary components like temperature sensors or vibration monitors. Specify voltage levels at critical nodes, such as the 400–690V AC supply for the stator and the 6–10V AC tertiary winding output used in some designs for power factor correction.
Critical Components in a Rotating Field Machine Blueprint
Ensure the stator winding connections follow a balanced three-phase configuration, typically arranged in either star (Y) or delta (Δ) patterns–star for higher voltage applications (e.g., 400V line-to-line) and delta for lower voltage, higher current setups. Use copper conductors with a minimum cross-section of 2.5 mm² per ampere for industrial-grade machines to minimize resistive losses. Insulation materials like Class F (155°C) or Class H (180°C) epoxy resins are mandatory for windings exposed to frequent start-stop cycles or harmonic distortions.
Core and Excitation Essentials
- Laminated silicon steel cores (0.35–0.5 mm thickness) reduce eddy current losses by up to 30% compared to solid cores. Specify M4 or higher-grade steel for frequencies above 50 Hz.
- Rotor excitation requires a DC supply via slip rings or a brushless exciter. For brushless designs, embed a rotating rectifier within the rotor shaft–opt for fast-recovery diodes (trr
- Pole shoes must use materials with high magnetic permeability (e.g., cobalt-iron alloys) if saliency ratios exceed 1.2 to ensure stable torque under variable loads.
Integrate a damping cage (amortisseur winding) around the rotor poles using copper or aluminum bars with brazed end rings. This mitigates hunting oscillations–critical for precision speed control in applications like textile spindles or paper mills. For VFD-driven systems, add a sine-wave filter between the inverter and stator terminals to suppress PWM-induced voltage spikes (dv/dt > 1000 V/μs), which degrade winding insulation over time.
- For high-inertia loads (e.g., compressors), include a soft-start module with current-limiting resistors or a thyristor-based reduced-voltage starter to avoid 6–8x inrush currents during synchronization.
- Temperature monitoring is non-negotiable: embed PT100 sensors in stator slots and bearings, with alarm triggers set at 80% of the insulation class thermal limit.
- Grounding connections must use stranded copper conductors (minimum 16 mm²) bonded directly to the machine frame to prevent circulating bearing currents–common in PWM-fed designs.

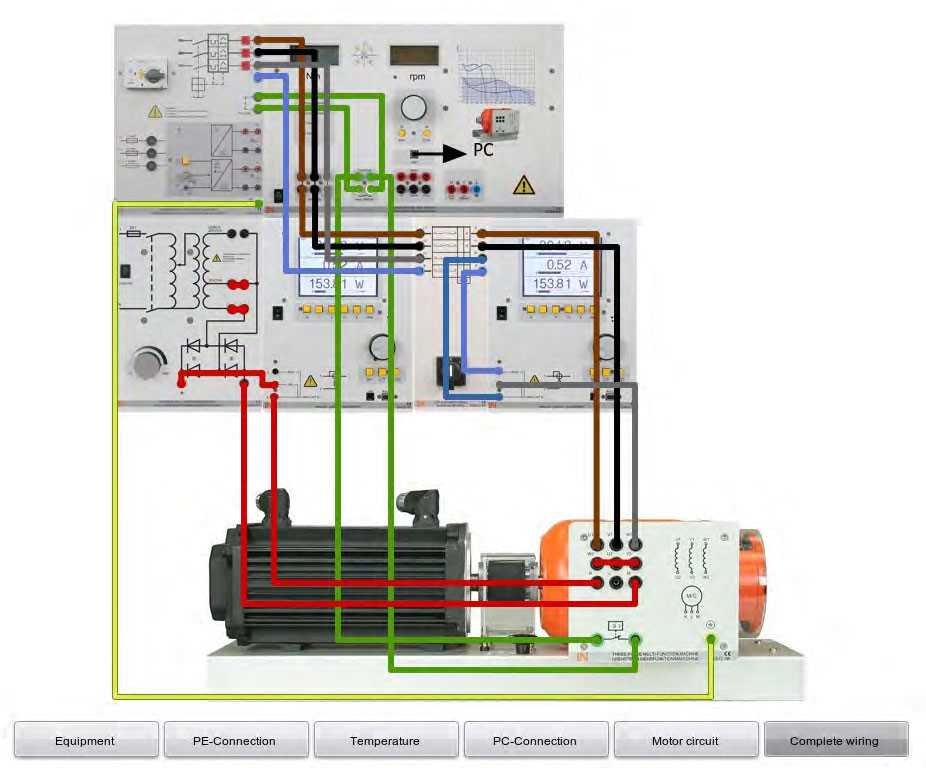

Step-by-Step Wiring Connections for Stator and Rotor
Begin by identifying the stator’s three-phase terminals–label them U, V, and W–and verify their sequence matches the power supply. Connect each terminal to the corresponding line conductor (L1, L2, L3) using 6 AWG copper wire for machines rated up to 20 HP; for higher ratings, scale up to 2 AWG to prevent voltage drop. Secure connections with crimped ring terminals and apply dielectric grease to terminals exposed to moisture. For delta configuration, bridge U and W after connecting V to L2; for star (wye), link the three ends (U2, V2, W2) at a common neutral point. Measure insulation resistance between phases and ground–values below 1 MΩ indicate compromised winding integrity requiring immediate rework.
- Position the rotor with its slip rings facing the excitation source. Locate the positive (usually marked red) and negative (black or unmarked) brush terminals on the rotor assembly.
- Attach the DC excitation leads–10 AWG minimum–to the slip rings, ensuring polarity aligns with the field winding’s schematic; reverse polarity damages the winding.
- Set the excitation voltage to 60–70% of the rated field voltage (e.g., 120 V DC for a 200 V field) during start-up to limit inrush current.
- Engage the starter and monitor field current; adjust rheostat until rotor speed stabilizes at synchronous speed (e.g., 1800 RPM for a 4-pole machine at 60 Hz).
- Verify phase sequence by observing rotation direction–swap any two stator leads if rotation opposes the load’s requirement.
- After full voltage application, confirm excitation current aligns with the nameplate (typically 2–5 A for 10 HP units) and check slip rings for uniform wear; uneven wear indicates misaligned brushes.
Depicting the Field Supply Circuit in Illustrations
Use a separate sub-circuit prominently placed near the rotor’s winding symbols. Denote the field winding with a distinct rectangular shape filled with diagonal hatching to immediately distinguish it from stator coils. Place the excitation source–typically a DC generator or static rectifier–on the left side of this sub-circuit, connected via thick solid lines to indicate high-current paths.
Label each component with unambiguous identification codes: mark the DC source as Ef, the field winding resistance as Rf, and connecting conductors as L1, L2. Include a rheostat symbol in series to show adjustable excitation current, positioned between the source and the field winding.
Voltage Regulation Path
Add a voltage regulator symbol–a small rectangle with internal label VR–connected in parallel to the excitation source. Draw dotted lines from this regulator to the DC source to represent control signals. Include a sensing path: dashed lines from stator output terminals to the regulator’s input, ensuring the feedback loop is visually traceable.
Indicate the brushless excitation arrangement by replacing the DC generator with a rotating diode assembly symbol–three diodes mounted on a circular base–positioned directly on the rotor shaft. Connect the diodes to the field winding with bold solid lines； show slip rings and brushes only if using a conventional setup with physical contacts.
Grounding and Protection
Place a ground symbol at the negative terminal of the excitation source, using a short thick line branching into three downward arrows. Include protective devices: fuse symbol (a zigzag inside a rectangle) in series with the positive excitation conductor, and a varistor symbol (a diode with bidirectional arrows) connected in parallel to the field winding to clamp transients.
Mark polarity on all DC components: positive terminals with a “+” sign inside a circle, negative terminals with a “–” sign inside a square. Distinguish excitation conductors from power conductors by color-coding: red for excitation, blue for stator circuits, black for neutral or ground paths in printed form, or consistent dashed lines for schematics rendered in monochrome.
