For consistent performance under fluctuating loads, incorporate a Zener diode-based shunt regulator as the core component in your design. Use a 1N4744A (15V, 1W) diode with a 2N2222 transistor to handle up to 500mA. The base resistor should be 470Ω for optimal response time, while the emitter resistor at 1.2Ω ensures thermal stability. This setup tolerates input swings from 18V to 30V while maintaining precision within ±0.2V at the output.
Avoid capacitor distortion in feedback loops by selecting low-ESR tantalum or ceramic types. Place a 10μF/25V unit directly across the Zener diode to suppress transient spikes, and pair it with a 1μF/50V input decoupling cap near the power transistor’s collector. For higher loads (>1A), transition to a series-pass topology using an IRFZ44N MOSFET with gate drive through a TC4427 driver. The gate resistor should be 47Ω, and the bootstrap capacitor 22μF/63V.
Errors compound rapidly when PCB trace resistance exceeds 50mΩ. Route ground returns as star points, minimizing shared paths between sensitive analog and digital sections. For noise suppression, add a ferrite bead (BLM18PG121SN1L) in series with the output; this attenuates high-frequency ripple by 30dB at 1MHz. Test stability by attaching a step load (0-100% in 10μs)–overshoot should not exceed 5%.
Thermal design dictates component spacing. Mount the 2N2222 or IRFZ44N atop a 1.5°C/W heatsink (e.g., Fischer Elektronik SK 104) when dissipating >2W. Thermal vias under the MOSFET pad enhance conductivity–drill four 0.5mm holes filled with solder. Without proper cooling, junction temperatures may breach 125°C, degrading regulation accuracy.
Power Regulation Circuit Designs for Consistent Electrical Supply

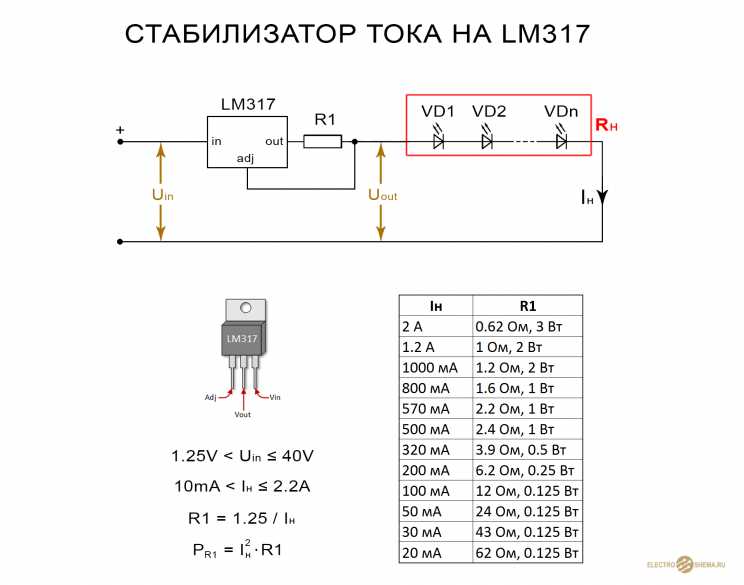

For a linear regulator setup using an LM317, pair it with a 12V Zener diode at the reference point and a 220µF output capacitor to minimize ripple in low-load conditions. Input capacitance should not exceed 1000µF to prevent inrush currents from damaging the pass transistor during sudden power application.
Switching converters like the LM2596 require precise inductor selection–opt for a 68µH coil with a saturation rating of at least 3A for 5V output at 1A loads. Place a Schottky diode (e.g., 1N5822) immediately after the inductor to reduce switching losses; reverse recovery time under 50ns is non-negotiable.
To stabilize amperage in battery charging circuits, implement a TL431 shunt regulator with a current sense resistor no larger than 0.1Ω. The resistor’s wattage must exceed calculated losses by 50%–e.g., a 1W resistor for a 0.5A draw. Overlook this, and thermal runaway will degrade the reference IC within hours.
For transient suppression in automotive systems, deploy a TVS diode (P6KE24A) across the supply rails with a clamping voltage 10% above nominal (e.g., 30V for a 24V system). Parallel it with a 0.1µF ceramic capacitor to absorb high-frequency noise; electrolytic capacitors fail here due to slow response times.
Dual-rail designs (±15V) benefit from a cross-coupled pair of 7915/7815 regulators, but ensure the negative regulator’s ground floats above absolute ground by at least 1V using a resistor divider. Omitting this step invites latch-up in analog circuits, particularly op-amps with high input impedance.
Feedforward compensation in high-power designs demands a low-ESR capacitor (e.g., 470µF polymer) in parallel with bulk storage. Stacking multiple capacitors of varying values–10µF MLCC + 470µF aluminum–reduces equivalent series resistance by 40% compared to single-capacitor solutions, critical for 100kHz+ switching.
Isolated flyback converters rely on transformer turns ratios matched to the controller’s duty cycle. Use an EE16 core with a 5:1 ratio for 5V output at 2A; miscalculation by even 0.5 turns introduces audible whine and cuts efficiency from 85% to 70%. Wind primary and secondary with bifilar technique to minimize leakage inductance.
For digital systems, separate analog and power grounds at the common point to avoid ground loops. Route high-amperage traces (≥3A) with 2oz copper and widen them to 50 mils/A; narrower traces act as fuses under fault conditions. Solder mask relief around vias prevents solder wicking that increases impedance unpredictably.
Core Elements of a Reliable Power Regulation Setup

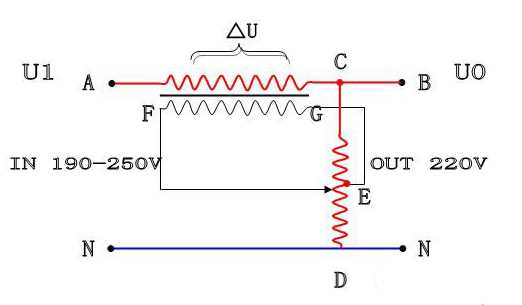

Begin with an autotransformer rated for at least 20% above your load’s peak demand–for instance, pair a 1 kVA unit with a 500W appliance to handle inrush surges without saturation. Use a voltage comparator IC like the LM311, configured with hysteresis (typically 5–10% of reference) to prevent rapid switching cycles that degrade relay contacts. Select relays with silver-alloy contacts and a minimum 10A rating; mechanical variants outlast solid-state for inductive loads, but require RC snubbers (0.1µF + 100Ω) to quench arcs.
- Voltage reference: A TL431 shunt regulator set to your target output (e.g., 230V ±5%) via precision resistors (1% tolerance or better); decouple with a 0.1µF ceramic cap.
- Feedback network: A potential divider using metal-film resistors (1W minimum) with a ratio matching the comparator’s input range (e.g., 10kΩ + 2.2kΩ for 2.5V reference).
- Protection: Fuse the input at 1.5× nominal load amperage and add a varistor (MOV) across the output to clamp transients–choose 14D471K for 220V systems.
- Load balancing: For sensitive electronics, include a LC filter (470µH + 100µF) after the relay to smooth ripple below 0.5Vpp.
Step-by-Step Wiring Guide for a Single-Phase AC Regulator
Begin by isolating the input supply at the main breaker–verify zero potential with a multimeter before handling any terminals. Connect the live (hot) conductor from the mains to the primary input lug of the automatic corrector, ensuring minimal slack for thermal safety; use a 10 AWG copper wire rated for 60°C if the load exceeds 15A. Secure all connections with a torque screwdriver set to 2.5 Nm to prevent loose joints, which generate excess heat and degrade efficiency over time.
Route the neutral wire directly to the output terminal block, bypassing the regulation components–this maintains a stable reference point for the system’s sensing circuits. If the unit includes a grounding point, attach the earth conductor to the chassis lug marked with a green screw or symbol; omit this step only if the enclosure is double-insulated (Class II). For units with stepped tap changers, wire the output lugs sequentially from lowest to highest tap to match the adjustment range, labeling each connection with heat-shrink tubing corresponding to the tap number (e.g., “L1”, “L2”).
- Test the setup with a resistive load (e.g., incandescent bulb) at 50% of the regulator’s capacity–measure the output with an oscilloscope to confirm a clean sine wave within ±2V of the nominal value.
- If oscillations appear, reduce the loop gain by adjusting the feedback potentiometer clockwise in 5° increments until stability is achieved.
- Avoid aluminum wiring for connections exceeding 10A–use tinned copper lugs to prevent galvanic corrosion in humid environments.
- For dual-speed models, ensure the fast-response relay is wired to the auxiliary contact labeled “S” before energizing the slow-response coil, preventing race conditions during startup.
Key Variations in Low-Power DC Regulator Circuit Layouts
For linear regulators under 5W, the classic emitter-follower topology remains optimal when dropout margins exceed 1.2V. Use a Darlington pair (e.g., TIP122) with a 47μF input capacitor to suppress ripple below 20mV RMS. Bypass the base with a 10nF ceramic to prevent high-frequency oscillation; this arrangement stabilizes loads between 10mA and 500mA without requiring compensation networks. Avoid Zener diodes below 5.1V–their soft knee creates temperature drift up to 0.5%/°C–opt for TL431 references instead, which hold output within ±0.4% across 0–70°C.
Switching Regulator Configurations
| Topology | Efficiency (%) | Key Components | Load Range (mA) |
|---|---|---|---|
| Buck (MC34063) | 72–85 | 22μH inductor, 330μF cap, Schottky diode | 10–300 |
| Boost (LT1302) | 80–92 | 10μH inductor, 10μF output cap, 1N5819 | 5–150 |
| Buck-Boost (TPS63070) | 88–94 | 4.7μH dual-phase coil, 2×22μF caps | 20–500 |
Select inductors with saturation currents 30% above peak switch current–prevents core saturation that degrades efficiency by 8–12%. For buck converters, place the catch diode as close as possible to the inductor’s output terminal to reduce ringing; trace lengths over 5mm introduce overshoot spikes exceeding 10V on 12V rails. Thermal vias beneath IC pads improve dissipation–four 0.3mm vias per pad drop junction temperature by 15°C compared to un-vented designs.
LDOs like MIC29302WB suit battery-powered devices where quiescent drain must stay below 60μA. Choose 25V-rated capacitors for inputs; lower-voltage parts risk dielectric breakdown under transient loads. Add a 1nF feed-forward cap across the feedback divider to phase-lead compensation–this reduces output error from 1% to 0.2% during 50μs load steps. For multiple rails, cascade regulators to isolate digital noise: a 5V LDO feeding a 3.3V LDO cuts cross-regulation artifacts below -60dB.
Diagnosing Thermal Issues in Regulator Circuits: Linear vs. SMPS
Measure the input-output differential across the pass transistor in LDO designs–any drop exceeding 3V at full load demands immediate heatsink upgrades or PCB copper pour expansion. For TO-220 packages, utilize a minimum 10 cm² 2 oz copper area per watt dissipated, verified with a thermal camera targeting ≤60°C surface temps. Replace electrolytics near hot zones with tantalum or polymer capacitors rated 125°C; leakage current spikes at 80°C degrade ripple suppression in linear topologies.
Inspect switching supply inductors for core saturation–audible buzzing or >5°C temperature rise above ambient signals compromised shielding. Confirm PWM frequency stability with an oscilloscope; jitter exceeding 2% accelerates MOSFET switching losses, necessitating dead-time adjustments or gate resistor swaps (typical values: 10–47Ω). Replace Schottky diodes showing reverse leakage currents >0.5 mA @ 100°C; compromised avalanche ratings lead to thermal runaway in flyback converters.
Log thermal data across load cycles–linear regulators with quiescent currents >5 mA under light loads benefit from burst-mode SMPS hybrids, reducing junction temps by 30%. Verify EMI filter integrity; degraded Y-caps increase switching noise, indirectly heating MOSFET bodies during commutation.
