Use color-coded wires for clarity: red for power input, black for ground, and a third color (blue or yellow) for accessory outputs. Crimp connectors must match wire gauge–18 AWG handles up to 10A, 16 AWG supports 15A at peak loads. Solder joints should form a smooth bead without gaps; apply heat-shrink tubing immediately after to prevent corrosion.
Position the control mechanism within 12 inches of the power source to minimize voltage drop–longer runs require thicker wire (refer to AWG charts for exact specs). Secure loose strands with terminal blocks rated for 20A or higher; avoid twist-on splices, as they fail under vibration. Test continuity with a multimeter before final connection to confirm no shorts exist between contacts.
Polarity matters at every junction: accidental reversal can damage relays, LEDs, or attached devices. Use a diode (1N4007) across inductive loads like motors to suppress back EMF spikes–omit this step only if the manual explicitly states compatibility. For momentary applications, a single-pole, double-throw model lets you configure latching or momentary behavior by wiring to either throw terminal.
Mount panel cutouts to 16mm diameter for standard knobs; oversized holes cause rattling, while undersized ones crack plastic housings. Waterproof variants (IP67) need sealed connectors–use dielectric grease on contacts to prevent oxidation. For high-current setups (above 5A), combine with a relay; directly coupling to the source risks melting switch internals.
Connecting a Mechanically-Actuated Power Control for 12V Systems
Begin by identifying the load’s positive feed–locate the crimson or vivid orange conductor exiting the battery or distribution block. Splice an inline fuse holder immediately downstream, selecting a fuse rating slightly above the anticipated steady-state current: 5A for small lamps or relays, 15A for motors drawing under 10A continuous.
Route the fused conductor to the central terminal of the selector–a single-throw, momentary, or maintained rocker type–ensuring the contact rating exceeds the maximum inrush by 30 %. The common return path terminates at the load’s negative terminal or a dedicated bus bar; never ground through the chassis unless the circuit explicitly tolerates floating potential differences.
For polarity-sensitive devices–LED strips, ECUs–introduce a flyback diode directly across the coil to absorb inductive spikes; a 1N4007 suffices for currents below 1A, while a Schottky 1N5819 reduces forward voltage drop for higher transient loads. Keep all splices under 75 mm from any heat source, crimp with insulated terminals, and seal butt joints with adhesive-lined shrink tubing.
Verify continuity with a multimeter set to ohms: probe the closed contacts; resistance should read <0.2 Ω. Energize progressively, monitoring temperature rise at each terminal–anything above 60 °C signals loose connections or undersized conductors.
Mastering 12V Control Device Terminals for Reliable Power Handling

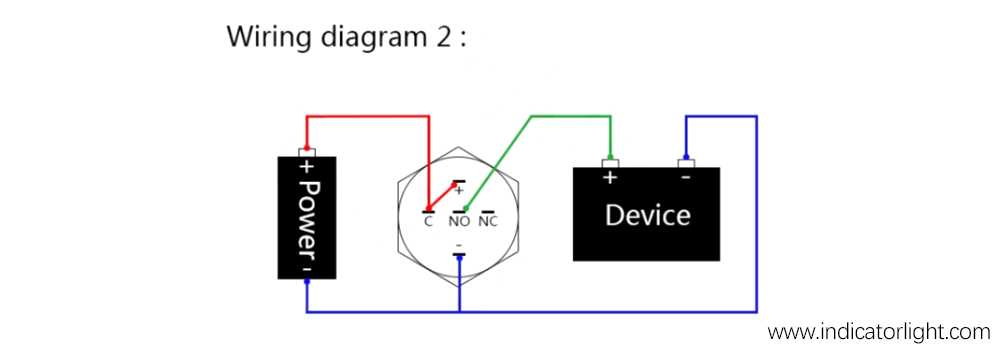

Connect the common (COM) terminal to the power source–this is non-negotiable for SPST, SPDT, and DPDT configurations. A brass or copper post marked “COM” ensures minimal resistance during current flow; mismatching it with input/output terminals introduces voltage drops, especially under loads exceeding 5A. Always verify terminal labeling with a multimeter; mislabeled products exist, particularly in generic Asian-manufactured units.
For single-pole setups, wire the NO (normally open) post directly to the load. Use 18AWG stranded copper wire for currents below 10A and upgrade to 14AWG for 10-15A applications. Solder connections only after crimping with insulated ring terminals–solder alone creates brittle joints prone to failure under vibration (common in automotive/marine environments). Heat-shrink tubing must cover all joints; electrical tape degrades within months in high-moisture conditions.

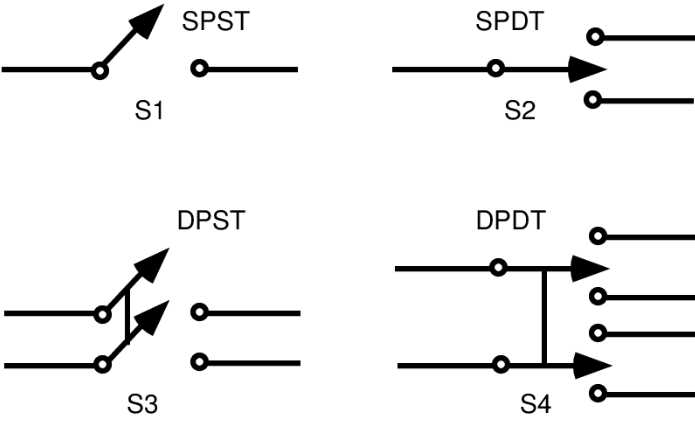

Terminal Functions Across Common Device Types
| Device Type | Terminals | Function | Typical Load Capacity |
|---|---|---|---|
| SPST | COM, NO | Single circuit breaker | 10-20A |
| SPDT | COM, NO, NC | Two-way circuit selection | 5-15A |
| DPDT | COM (x2), NO (x2), NC (x2) | Dual independent circuits or reversing polarity | 3-10A |

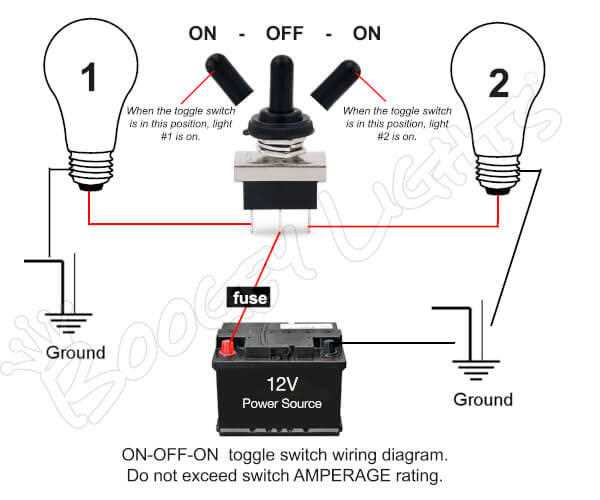

| Momentary (ON)-OFF-(ON) | COM, NO, NC (x2) | Spring-return to center off position | 2-8A |
DPDT devices require attention to terminal pairing. Connect the pairs diagonally across the actuator: top-left COM to bottom-right NO, and vice versa. This layout maintains consistent polarity reversal when toggled, critical for DC motor control. Reverse connections cause erratic operation–test with a continuity meter before applying power. For latching configurations, wire the NC terminal to auxiliary relays if maintaining state during power loss is required.
Illuminated variants add complexity with dedicated anode (+) and cathode (-) terminals. The anode must connect to the system’s positive rail through a dropping resistor (typically 1kΩ for 12V LEDs). Never connect the cathode directly to ground; instead, pair it with the COM terminal for proper illumination during activation. Calculate resistor values using Ohm’s Law: R = (Vs – Vf)/If, where Vs is supply voltage, Vf is LED forward voltage (usually 1.8-3.3V), and If is desired current (5-20mA). Most factory-prewired units already include this component, but always verify.
Ratings matter more than aesthetics. A device labeled “20A” on the casing often handles only 15A continuously–check the datasheet for derating curves. For inductive loads (solenoids, motors), add a flyback diode (1N4007) across the load terminals to quench voltage spikes. Capacitive loads (LED strips, digital circuits) benefit from a 0.1μF ceramic capacitor placed close to the input terminals to suppress high-frequency noise. Ignore these steps and risk premature contact pitting, especially in marine or dusty environments where contaminant buildup accelerates degradation.
Color-code your conductors: red for positive, black for negative, and yellow/blue for switched outputs. Document connections with labels resistant to solvents (polyimide tape survives acetone). Missteps in complex setups (e.g., auxiliaries with multiple feeds) become impossible to troubleshoot without proper identification. For LV systems powering sensitive electronics, use a separate ground plane–never daisy-chain grounds through multiple actuators, as this creates ground loops and unpredictable behavior.
Configuring a Single-Position Lever Mechanism: Practical Guide
Start by disconnecting the power source to prevent accidental shorts. For a 12-ampere direct current circuit, use 16-gauge stranded copper cable rated for at least 20 amperes to ensure heat dissipation won’t degrade connections over time. Strip 6 millimeters of insulation from each wire end, twist strands tightly, and apply resin-core solder for strain relief before crimping terminals.
Identify the input and output terminals on the lever–most models mark them with “+” or “IN” for supply and “OUT” or a load symbol for the device side. Attach the positive supply lead to the input terminal, securing it with a 10-millimeter nylon locking washer beneath the nut. Snug the connection with a torque setting of 1.5 Newton-meters to avoid overtightening.
Load-Side Connection and Safety Measures
Route the output lead through a fuse holder, selecting a fuse value 20% above the circuit’s continuous current draw–common values range from 5 to 15 amperes for auxiliary circuits. Snap the fuse into place before attaching the wire to the output terminal, repeating the torque specification. Verify continuity with a multimeter set to 200 ohms; infinite resistance indicates a faulty joint requiring rework.
For inductive loads (motors, relays), add a flyback diode across the output terminals, cathode to positive. Position the diode within 3 centimeters of the load to suppress voltage spikes exceeding 40 volts. Use a 1N4007 diode for currents up to 1 ampere or a 1N4739A for 3-amperes loads. Confirm polarity with a diode tester before energizing.
Ground the mechanism’s metal body to the chassis if the circuit includes a neutral or chassis return path. Use a ring terminal crimped to a 14-gauge green-yellow wire, star-washed to a bare metal surface cleaned with emery cloth. Tighten the mounting screw to 2.5 Newton-meters. Avoid daisy-chaining ground paths to prevent voltage drops under load.
Reconnect the power source and energize the circuit while monitoring the lever’s operation. Listen for arcing (audible buzzing) and check for heat buildup at terminals after 30 seconds of operation. If temperatures exceed 45°C, reassess the connection torque or gauge adequacy. Label both input and output wires with heat-shrink sleeves marked “PWR IN” and “LOAD” for future troubleshooting.
How to Connect a Two-Position Double-Throw Lever for Parallel Path Management
Start by identifying the four main terminals on the mechanism: two input contacts (common) and two corresponding output contacts. Label them clearly with masking tape–mark the commons as “IN-1” and “IN-2,” and the outputs as “OUT-1” and “OUT-2.” Use a multimeter in continuity mode to verify which pairs remain connected in each position; this prevents misalignment during installation.
Strip 6–8mm of insulation from the ends of 14 AWG stranded copper wire–thicker gauge reduces voltage drop over longer runs. Crimp on insulated female spade connectors for secure mating with the terminals; soldering is optional but adds durability. For dual-path control, run separate feeds from a fused distribution block–each path should have its own 10A fuse to isolate faults without affecting the second circuit.
- Attach the first common (IN-1) to the positive supply line from the battery or power source.
- Connect OUT-1 to the first load (e.g., auxiliary lights).
- Link the second common (IN-2) to the same supply line, ensuring both commons share the same potential.
- Route OUT-2 to the second load (e.g., cooling fan).
Ground each load directly to the chassis using 12 AWG wire–avoid daisy-chaining grounds as this can introduce resistance and interference. If the loads draw more than 5A combined, consider a relay to prevent overheating the lever’s internal contacts; the relay coil can still be controlled by the lever’s low-current side.
Test each position individually with a load-rated test light or multimeter before finalizing. Flip the lever to confirm both circuits activate simultaneously in one position and deactivate in the other. For systems with inductive loads (motors, solenoids), install flyback diodes across the terminals to suppress voltage spikes that could damage nearby electronics.
Secure all connections with adhesive-lined heat shrink tubing–this prevents corrosion in high-vibration environments like vehicles or machinery. Route cables away from sharp edges and moving parts, using cable ties spaced every 15cm to maintain tension control. Document the setup with a simple schematic; include wire colors, fuse ratings, and load details for future troubleshooting.
