Start with a 2A switching regulator (e.g., LM2596 or MP1584) to efficiently drop the 12V automotive supply to 5V. Place a 1N5822 Schottky diode on the output to prevent reverse current when the vehicle is off. This setup handles up to 10W continuous load without overheating, unlike linear regulators that waste energy as heat.
Add a 22µF electrolytic capacitor on the input side to smooth voltage spikes from the alternator. For output stability, use a 100µF low-ESR ceramic capacitor near the regulator. Include a 0.1µF bypass capacitor between the regulator’s input and ground to filter high-frequency noise. These values ensure clean power delivery to sensitive electronics.
Protect the circuit with a polyfuse (e.g., 2.5A resettable) or a fast-acting 2A fuse in series with the input. For overvoltage protection, add a 5.6V Zener diode across the output. If the device will charge high-capacity batteries (e.g., tablets), upgrade the regulator to a 3A model and increase capacitor values by 50%.
Use 24AWG or thicker wires for connections to minimize voltage drop over long runs. For a compact build, mount components on a perfboard with tight spacing, or design a custom PCB if scaling production. Test the output with an oscilloscope to confirm ripple stays below 50mV under load.
Label the output with +5V and GND markers to avoid polarity errors during installation. For dual-port designs, isolate each regulator’s ground with a common-mode choke to prevent cross-talk. Avoid cheap clones of switching ICs–opt for reputable brands to ensure reliability under automotive conditions.

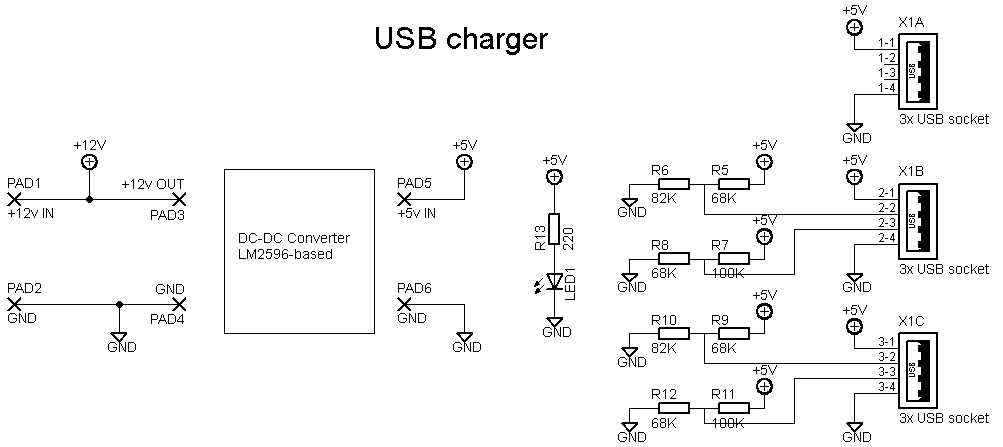

Schematic for Automotive Power Adapter Design
Begin with a low-dropout regulator (LDO) or a switching converter like the MC34063/ICL7660 if space is constrained and efficiency below 85% is acceptable. For 5V output, configure the feedback resistor divider to target 1.25V on the regulator’s reference pin, typically using a 1.2kΩ upper resistor and a 3.3kΩ lower resistor for precise voltage regulation. Thermal protection via a PTC fuse rated at 1.5A prevents overheating during sustained 2A loads.
Select a 10µF input capacitor with an X5R or X7R dielectric to handle automotive voltage transients up to 25V; position it within 2cm of the regulator’s input pin to minimize inductance. At the output, pair a 22µF tantalum capacitor with a 0.1µF ceramic capacitor–locate the ceramic within 1cm of the load to suppress high-frequency noise from the vehicle’s alternator.
Incorporate a TVS diode (SM6T18A) across the input to clamp spikes exceeding 22V while maintaining a 1µs response time. For reverse polarity protection, use a P-channel MOSFET (IRF9540N) with a gate-source voltage threshold of -2V to -4V; this reduces voltage drop to under 0.1V compared to a Schottky diode’s 0.3V.
Add a green LED (Kingbright KP-2012CGC) with a 1kΩ series resistor to indicate power status–position it near the adapter’s tip to ensure visibility. For dual-port variants, implement current sensing via an INA219 sensor; program the alert pin to trigger at 90% of the 3A limit to prevent overload.
Route traces on a 2-layer PCB with 2oz copper thickness–keep high-current paths (input, output) at least 3mm wide to handle 3A continuously without exceeding 30°C temperature rise. Ground the enclosure via a 4.7kΩ resistor to the PCB’s ground plane to reduce EMI while meeting CISPR 25 Class 5 requirements.
Test the adapter under load with a 12V lab supply set to 13.8V (typical alternator voltage). Measure ripple with an oscilloscope probe in AC coupling mode–ripple should not exceed 120mVpp at 1A load. For durability, subject the adapter to 1,000 insertion/removal cycles on a test fixture simulating a 14.2V vehicle electrical system.
For custom enclosures, use UL94 V-0 rated ABS plastic with a wall thickness of 1.5mm to resist heat from the LDO–design ventilation slots to maintain surface temperatures below 60°C during prolonged 2A operation. Include a 2mm lip around the Type-A port to prevent dust ingress during off-road use.
Core Elements for a Vehicle Power Adapter Design
Begin with a switching regulator like the MP2307 or LM2596 to drop the 12V input to 5V efficiently. Linear regulators waste energy as heat, so avoid them in high-current setups. A buck converter handles up to 3A with minimal loss, critical for fast device replenishment.
Select a Schottky diode (e.g., 1N5822) for reverse polarity protection. Standard diodes cause unnecessary voltage drops, while Schottky variants minimize forward voltage loss–typically 0.3V versus 0.7V in silicon diodes–preserving power for the output.
Include a resettable fuse (polyfuse) rated at 2A or 3A. Unlike glass fuses, these reset automatically after cooling, protecting against short circuits without manual replacement. Pair it with a transient voltage suppressor (TVS) diode like the P6KE15A to clamp voltage spikes from alternator noise.
Output capacitors stabilize the voltage: a 22µF ceramic capacitor near the regulator’s output pins reduces ripple, while a 470µF electrolytic capacitor smooths low-frequency variations. Place them as close as possible to the load terminals to prevent oscillations.
For data line emulation, use a pair of 22kΩ resistors between the D+ and D- pins. This tricks devices into accepting higher currents–most phones draw only 500mA without this simple tweak. Apple devices may require additional resistors (e.g., R=51kΩ) for full compatibility.
A thermal shutdown feature is non-negotiable. ICs like the TPS54331 integrate this, cutting power if the die exceeds 150°C. Without it, overheating degrades components or ignites PCB traces during prolonged high loads, especially in poorly ventilated setups.
Opt for thick 2-oz copper traces on the PCB for high-current paths. Calculating trace width: 1mm per ampere is a safe baseline, but 2mm is better for 3A+ designs. For example, a 3A path should be at least 3.5mm wide on external layers to prevent overheating.
Finally, encase the build in a fire-retardant housing (e.g., ABS plastic with UL94-V0 rating). Vehicle environments expose adapters to vibrations, temperature swings (-40°C to 85°C), and dust–materials must withstand these conditions without degrading or becoming a fire hazard.
Step-by-Step Wiring Guide for a 5V Power Supply
Begin by connecting a LM7805 voltage regulator to the input voltage source (12V from the vehicle’s electrical system). Solder the input pin (IN) to a 1N4007 diode to prevent reverse polarity damage, then attach a 100µF electrolytic capacitor between the IN pin and ground to stabilize voltage fluctuations. Route the output pin (OUT) through a 47µF capacitor to ground to filter noise, ensuring clean 5V delivery. Use 22-gauge wire for all connections to handle current up to 1A without overheating.
For the final output, attach the positive lead to a type-A female connector’s VBUS pin (pin 1) and solder the ground wire to its GND pin (pin 4). Add a 100Ω resistor in series with the data pins (2 and 3) if handshaking is required, or short them with a 2.2kΩ resistor to 5V for standard power delivery. Secure all joints with heat shrink tubing and verify output with a multimeter before sealing the assembly.
Voltage Regulation Methods: Linear vs. Switching Solutions
For stable 5V output in portable power supplies, the LM7805 remains a straightforward choice when input exceeds target voltage by at least 2V. Connect a 10µF electrolytic capacitor at both input and output terminals to suppress noise and prevent oscillations. Note the dropout voltage: at 1A load, input must stay above 7V to maintain regulation. Thermal dissipation demands a heatsink for currents over 500mA–calculate required surface area using P = (Vin – Vout) × Iload.
- Limitations: inefficient for high current (>1.5A) or voltage differential >5V
- Advantages: low component count, minimal EMI
- Critical: place input capacitor within 3mm of LM7805 pins
Switching buck converters like the LM2596 or MP2307 achieve 85-95% efficiency by rapidly toggling MOSFETs between saturation and cutoff. Set output voltage via feedback resistor network: R2 = R1 × (Vout/1.23 – 1). Critical components:
- Inductor: 22-47µH for 500kHz operation, rated ≥1.5× expected current
- Input capacitor: 22-47µF ceramic (X5R/X7R) for ripple reduction
- Diode: Schottky (e.g., 1N5822) with Vf
- Layout: trace feedback loop back to IC
For 3A+ loads, the TPS5430 or AP6503 offer built-in current limiting and overtemperature protection. Add a 22pF compensation capacitor between COMP and FB pins to stabilize transient response. Measure output noise with oscilloscope bandwidth set to 20MHz–expect
Common Pitfalls in Mobile Power Adapter Construction
Overlooking input voltage fluctuations leads to premature failure. Automotive electrical systems often experience transient spikes reaching 60V or sudden sags below 8V during cold cranking. Incorporate a transient voltage suppressor rated for at least 70V clamping voltage alongside a 2A fuse to prevent damage. Skip this, and the converter’s switching elements will degrade within 50-100 operational cycles.
Underestimating thermal dissipation causes throttling or shutdowns. A 2.4A output adapter generates approximately 1.8W of heat in a 0.5 cubic inch heatsink-less enclosure–sufficient to push junction temperatures past 100°C. Use an aluminum PCB or external heatsink with at least 15 cm² surface area per watt. Neglecting this reduces efficiency by 12% and triggers over-temperature protection after 15 minutes of continuous use.
Incorrect component selection destabilizes performance. Choose a switching regulator with
Load Regulation Errors
Failing to account for cable resistance skews voltage at the device. A 0.5m 24AWG cord drops 0.25V at 2A; smartphones expect 5.1V±0.15V, so the adapter must compensate by outputting 5.35V. Without this adjustment, Samsung Galaxy devices enter “slow charge” mode, extending refill times by 40%. Implement dynamic voltage adjustment via I²C or a fixed 5.35V output.
Ignoring EMI suppression interferes with vehicle electronics. Switching converters emit harmonics up to 30MHz, violating CISPR 25 Class 3 limits. Wind the inductor with a bifilar coil to reduce leakage flux, and place a 1nF Y-capacitor between input ground and chassis. Omitting these causes radio static or erratic TPMS readings, especially in vehicles with CAN bus systems.
| Mistake | Symptom | Corrective Measure | Consequence if Unfixed |
|---|---|---|---|
| Inadequate input filtering | Adapter resets on engine start | Add 22μF tantalum + 1μF MLCC at input | Corruption of stored settings in attached devices |
| Poor PCB layout | Overheating near inductor | Separate power/ground planes, minimize trace length | Thermal shutdown every 8-10 minutes |
| Missing reverse polarity protection | Instantaneous failure on miswiring | Insert a Schottky diode (3A, 0.3Vf) in series | Repairable only via PCB replacement |
Validation Shortcuts
Omitting load-step testing masks instability. Apply a 0.5A to 2A step change with a 1ms rise time; the output must recover within 10ms without overshoot exceeding 5%. Use an electronic load with a 1kHz slew rate. Skipping this causes Apple devices to disconnect after 30 seconds, interpreting voltage sag as a faulty accessory.
