To troubleshoot or modify the electrical system of this model year compact sedan, start by locating circuit map F501 in the repair manual. This section covers the main power distribution, including the fuse block under the dashboard (left side, near the kick panel) and the under-hood relay center. Key connections to verify first: the BCM (Body Control Module) harness (pins 3, 8, and 14) and the IPM (Integrated Power Module) interface.
For headlight issues, trace the wiring from the headlamp switch connector C2 to the multifunction switch and onward to the front park/turn signal lamps. Wire colors are critical: light blue (high beam), dark green/white stripe (low beam), and yellow/black stripe (turn signal feed). Replace any corroded terminals at the bulb sockets–common failure points in this series.
The audio system schematic is labeled Section R102. Focus on the radio antenna amplifier (GY/O wire) and the speaker wiring (front doors: PN/Y and BK/PN; rear deck: DB/Y and GY/BK). If audio cuts out, check the 10A fuse (F52) in the interior fuse box and the ground point G301 near the glove compartment.
For instrument cluster malfunctions, refer to diagram I200. The cluster communicates via the CAN bus (O wire for high-speed, BK/Y for low-speed). Test voltage at the cluster connector C1 (pins 1 and 9)–expected 12V with ignition on. If gauges are erratic, inspect the ground ring G402 behind the cluster.

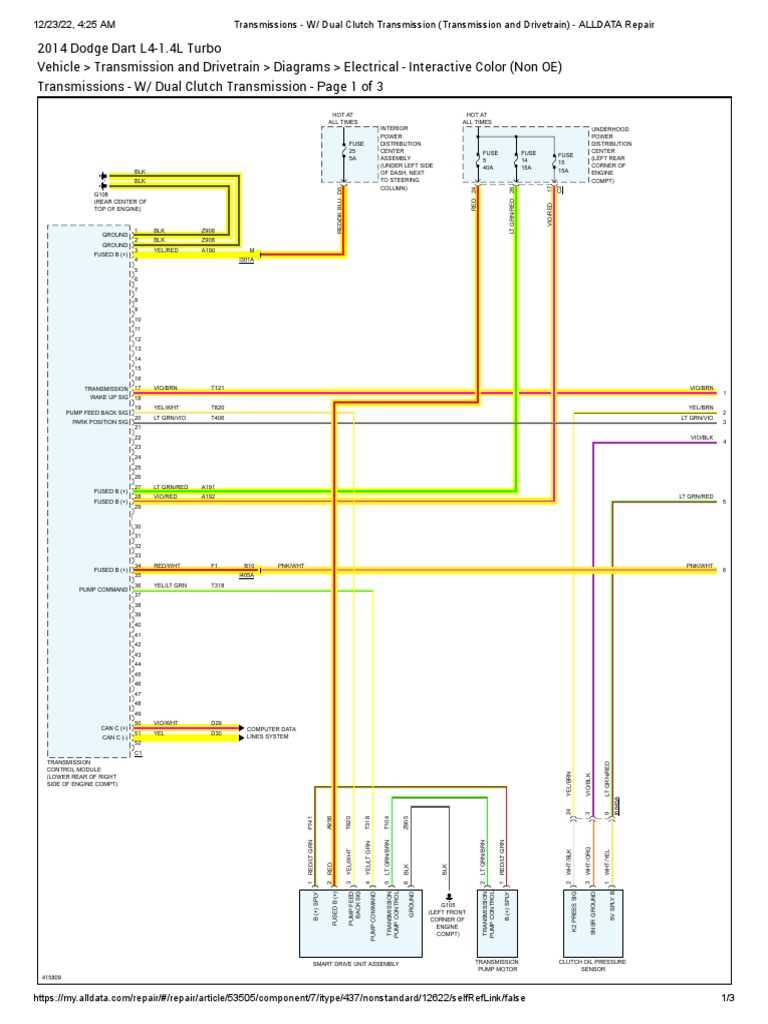

Transmission wiring is detailed in schematic T401. The TCM (Transmission Control Module) connects via a 68-pin connector (C1). Critical wires include white/red stripe (vehicle speed sensor) and dark blue/white stripe (pressure control solenoid). For harsh shifts, test resistance on the shift solenoid circuits–target 20-30 ohms.
Electrical Schematics for the 2014 Compact Sedan Model
Locate the fuse box under the dashboard on the driver’s side to begin tracing circuits for troubleshooting. The left-side panel houses primary relays and mini-fuses rated between 5A and 30A, mapped to specific systems: headlights (F20), ignition (F22), and powertrain control (F41). Refer to the legend printed inside the cover for quick cross-reference–values may vary slightly between trim levels, especially Sport and Limited editions.
Ground distribution points cluster near the front strut towers and rear light assemblies. Clean these connections with a wire brush if corrosion is visible, then apply dielectric grease to prevent oxidation. For the 1.4L turbocharged engine, the ground strap connects the transmission to chassis G103, critical for stable sensor readings.
| Circuit | Color Code | Connector Pin | System |
|---|---|---|---|
| BRN/YEL | C100 | 12 | Fuel Pump |
| GRY/RED | C202 | 8 | Throttle Position |
| WHT/BLK | C305 | 3 | Ignition Coil |

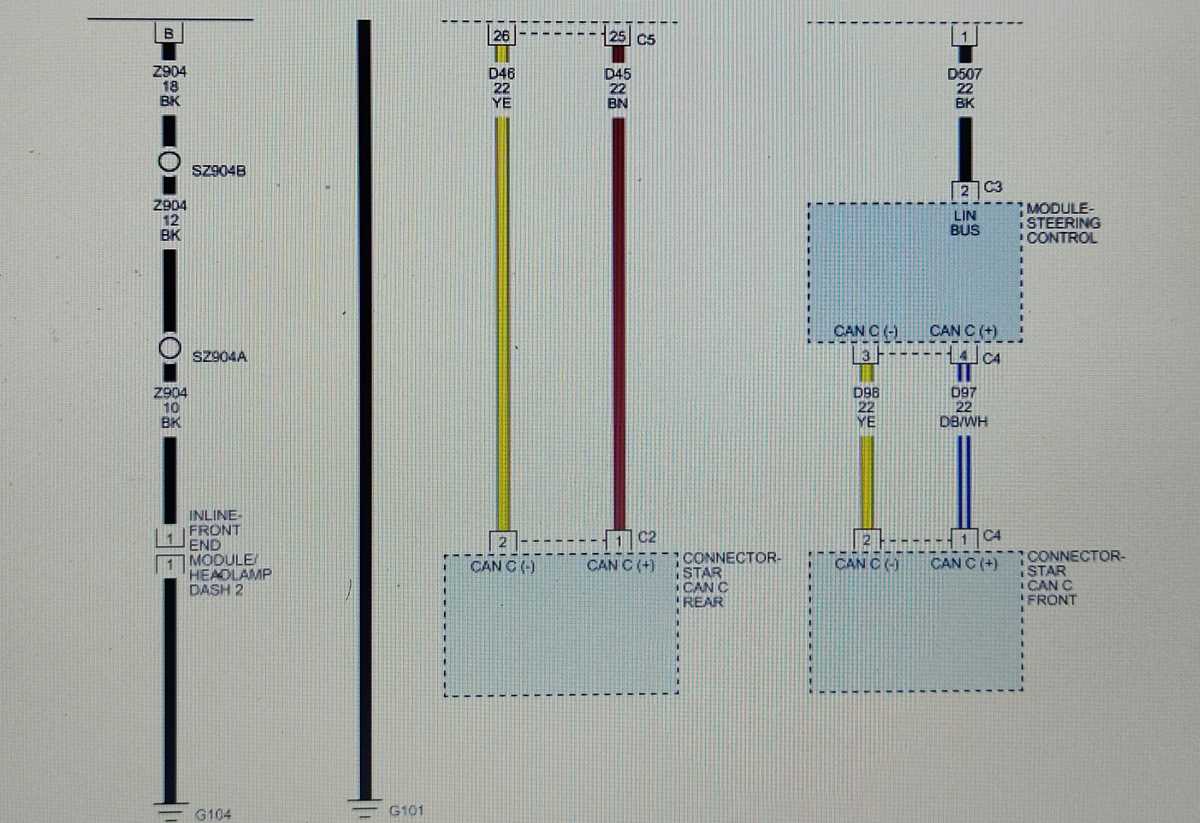

Disconnect the battery negative terminal before probing circuits with a multimeter. Set the meter to DC 20V for voltage checks and 200Ω for continuity tests. The BCM (Body Control Module) interacts with 47 circuits–pinpoint communication errors by checking the CAN bus (pins 6 and 14 on C1) for consistent 2.5V voltage. Fluctuations above 0.3V indicate wiring faults or module miscommunication.
For lighting circuits, inspect the tail lamp bulbs by measuring resistance across socket terminals. Standard filament bulbs should read 2–5Ω; LED clusters (on Rallye trims) require less than 0.5Ω. If a bulb fails, replace the entire assembly–individual LEDs cannot be serviced. Headlight alignment adjusters use a stepper motor controlled via the SAM (Steering Angle Module), requiring recalibration after replacement.
Harness routing differs between manual and automatic transmissions. The transmission range sensor (TRS) harness splits near the firewall–manual models have a single 8-pin connector, while automatics use a 12-pin plug with additional wiring for the torque converter lockup solenoid. Misrouted wires here can trigger false PRNDL display errors. Verify correct insertion by ensuring the locking tab clicks securely.
Upgrade the factory alarm module by tapping into the horn relay circuit (pin 87 on relay R12). Use a 14-gauge wire to extend the trigger signal to an aftermarket siren without overloading the circuit. Avoid splicing into the OEM wiring directly–use Scotchlok connectors or solder joints wrapped in heat-shrink tubing for durability. Test the installation by triggering the alarm and confirming all doors, trunk, and hood switches register in the security log.
Finding the Primary Fuse Panel and Earth Points in Your Compact Sedan
Start by opening the driver-side door and locating the kick panel beneath the dashboard. Remove the snap-on cover–no tools required–to expose the main fuse block. This panel houses critical relays and fuses for the engine management system, lighting circuits, and accessory power distribution. Label positions are molded into the plastic; cross-reference with your owner’s manual for precise functionality.
The secondary power distribution center sits under the hood, near the front driver-side strut tower. Release the clip-on lid to reveal high-amperage fuses for cooling fans, ABS, and ignition systems. Note the color-coded bus bars: red for constant power, yellow for switched circuits. Use a multimeter to verify voltage at the bus bar before servicing–to avoid shorting the system–with the key in the “ON” position.
Ground connections cluster in three key areas:
- Engine bay: A thick braided strap bolts to the chassis near the battery tray. Corrosion buildup here disrupts starter motor operation.
- Passenger compartment: Behind the glove box, a single-point ground serves the instrument cluster and infotainment module. Inspect for frayed strands when diagnosing “no display” issues.
- Rear chassis: Two ground points flank the spare tire well, supporting tail lights and fuel pump functionality. Loose bolts often cause intermittent brake light warnings.
To clean corroded earth points, dismount the fastener using a 10mm socket. Scrub contact surfaces with a wire brush, then apply dielectric grease before reassembly. Torque specifications: 12-15 Nm for chassis grounds, 8-10 Nm for interior connections. Over-tightening risks thread stripping.
For fuse replacement, use only identical amperage ratings. Common failures include:
- 15A: Windshield wipers
- 20A: Cigarette lighter/power outlets
- 30A: Heated seats (if equipped)
- 40A: HVAC blower motor
Replace blown fuses with copper-core units–avoid cheaper aluminum types prone to premature failure. If the new fuse blows immediately, trace the circuit path using a tone generator to isolate shorts.
Relay identification is simplified by their physical shape–square for micro-relays, rectangular for mini-relays–and numbered terminals. Swap suspected faulty relays with known-good units of the same type (e.g., horn relay for fog light relay) to confirm failure. Never substitute relays with different pin configurations; damage to the BCM may result.
The battery negative terminal doubles as a primary ground point. Ensure the cable clamp is free of oxidation–clean with baking soda paste if necessary–and torqued to 15 Nm. Weak grounding here manifests as slow cranking, dim headlights, or erratic gauge readings. For aftermarket electrical additions, always tap into existing ground points rather than chassis drilling to prevent water ingress.
Safety precautions during servicing:
- Disconnect the negative battery cable first, followed by the positive cable when working on high-current circuits.
- Wear insulated gloves when testing live circuits.
- Cap all disconnected terminals to prevent accidental shorts.
- Recheck torque values after 100 miles of driving, as vibration can loosen fasteners.
Step-by-Step Guide to Tracing the Powertrain Control Unit Connection Path
Locate the vehicle’s primary fuse box, typically positioned near the driver-side dash or under the hood. Remove the cover to expose the relay and fuse layout, referencing the printed schematic inside or attached to the panel. Identify the ECM relay–often labeled as “PCM” or “Engine Control”–and note its terminals. Use a multimeter set to continuity mode to test each terminal against the harness connector pins, ensuring no breaks or shorts exist between the relay and the module’s input leads.
Identifying Critical Signal Paths
Disconnect the battery negative terminal before handling any connectors to prevent accidental shorts. Trace the main harness from the ECM to the engine bay, focusing on the three primary bundles: power, ground, and sensor feeds. The power lead is usually a thick red or orange cable terminating at the ignition relay or fuse #32 (10A). Ground straps (black or brown) attach to the chassis or engine block–verify corrosion-free connections with a resistance test (target <0.5 ohms). Sensor circuits (TPS, MAP, O2) appear as twisted pairs or shielded cables; label each using masking tape before disconnecting to avoid signal misrouting.
Inspect the harness routing for abrasions, especially near sharp edges (strut towers, exhaust manifolds) where insulation damage is common. Re-route any compromised sections using split loom tubing or electrical tape, but avoid wrapping entire segments–this traps moisture. For intermittent faults, wiggle test each connector while monitoring sensor readings on a scan tool. Replace any connectors with bent pins or greenish corrosion (use dielectric grease on reconnection). If voltage drops exceed 0.2V between the ECM and sensor, clean terminals with contact cleaner or replace the affected segment entirely.
