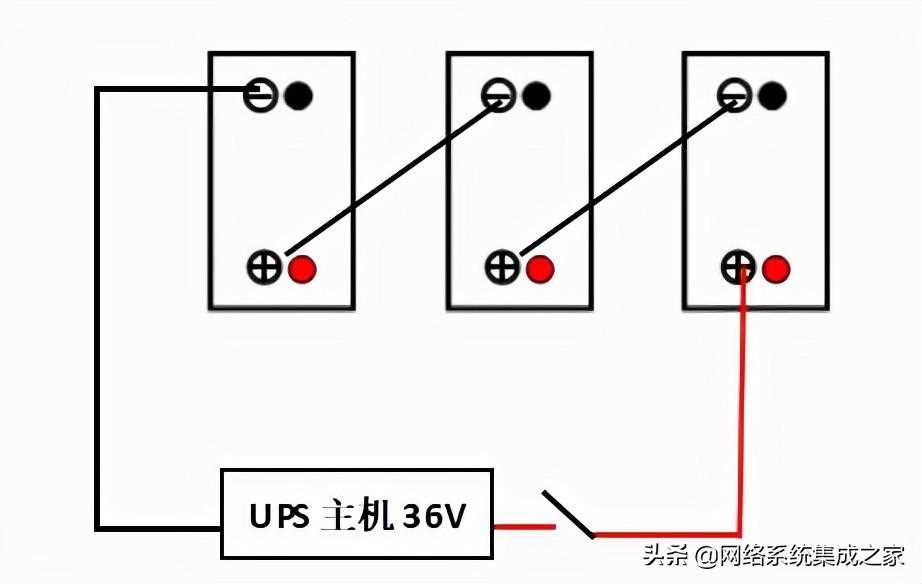

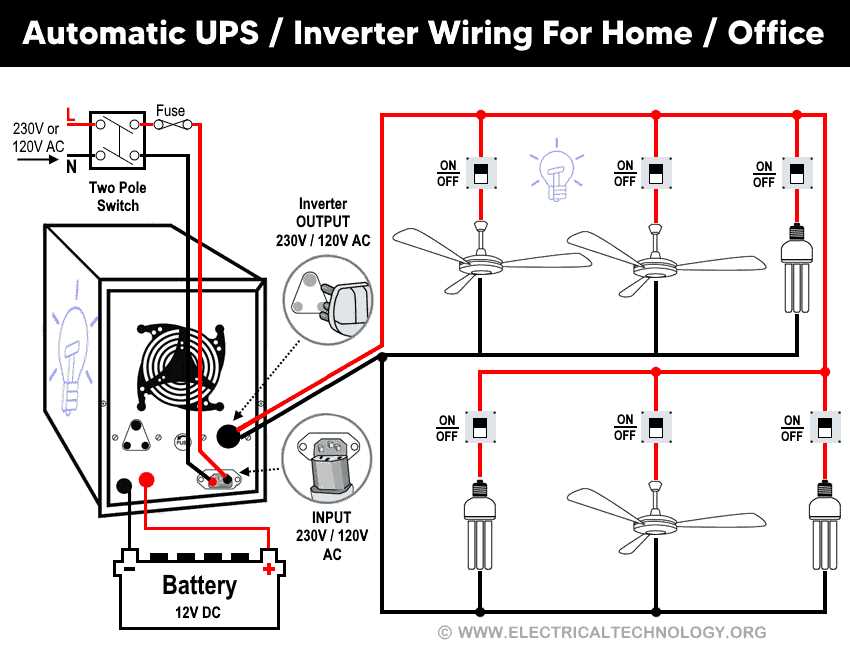

Start by identifying the input voltage range of your inverter–220V, 120V, or 48V–and match it to your battery bank configuration. A mismatched setup will cause inefficiencies or damage. For a 48V system, connect four 12V batteries in series. Verify battery capacity in amp-hours (Ah) to ensure runtime meets load demands. A 200Ah bank with a 500W load provides roughly 1.9 hours of backup at 50% depth of discharge.
Use 6 AWG or thicker copper cables for high-current paths, such as between batteries and the inverter. Thinner wires overheat and increase resistance, wasting energy. Label each connection–positive, negative, and ground–to avoid short circuits. Install a 100A fuse between the battery bank and inverter to prevent overloads.
Position the charge controller close to the solar panels (if used) to minimize voltage drop. For MPPT controllers, wire panels in series to maintain higher voltage (e.g., 36V) while keeping current low. A 20A controller handles up to 260W of 12V solar input efficiently.
Ground all metal components to a single point using an 8 AWG wire. Avoid daisy-chaining grounds, as it creates noise and safety risks. Test continuity with a multimeter–resistance should read below 0.1 ohms between the inverter chassis and grounding rod.
For automatic transfer switches (ATS), ensure the generator’s output matches the inverter’s voltage and phase (single or three-phase). A 3,000W ATS requires a minimum 3,500W generator to account for transient spikes. Connect neutral and ground wires separately to prevent ground loops.
After assembly, measure DC bus voltage under load–it should remain stable (±1V). Fluctuations indicate loose connections or insufficient battery capacity. Log measurements to track performance degradation over time.

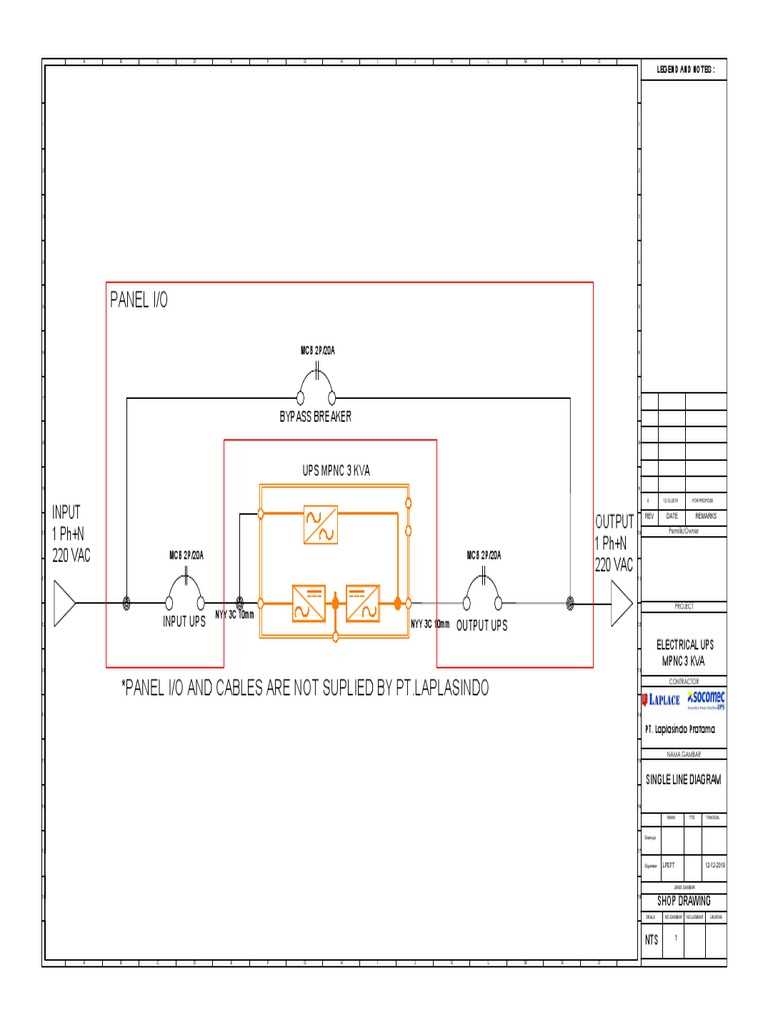

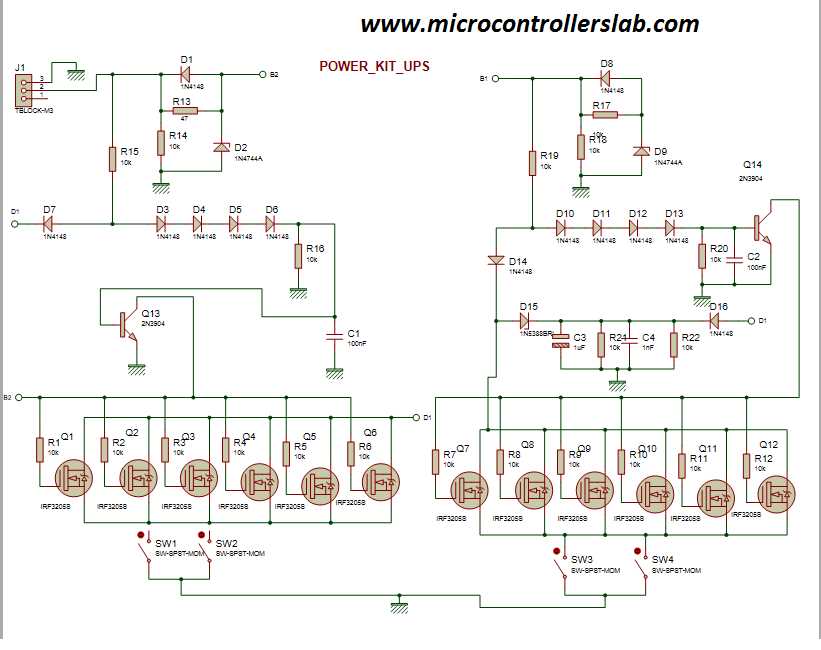

Schematic Layout for Uninterruptible Power Supply Connections
Begin by mapping input terminals–label incoming mains L, N, and G clearly on your draft. Verify the AC voltage rating (typically 120V or 230V) matches the source; misalignment risks immediate equipment failure.
Route battery cables using minimum 8 AWG wire for 1kVA models, scaling to 4 AWG for 10kVA units–thinner gauges overheat under load. Connect positive (+) to the designated battery terminal first, then negative (-); reverse order risks sparking.
Static bypass switches require parallel wiring–draw a dashed line on your sketch to denote separate circuits. Ensure switch contacts handle 125% of total load current; undersized contacts arc and weld under high demand.
Grounding rods demand #6 bare copper buried 8 feet deep with direct coupling to the chassis–avoid daisy-chaining. Soil resistivity above 100 Ω·m necessitates chemical grounding rods or backfill.
Inverter Outputs: Use twisted pair for control signals (RS-232/RS-485) to reject noise. Terminate shield at one end only, typically the battery side; grounding both ends creates ground loops.
Load Distribution Guidelines
Critical circuits require dedicated branches with individual fusing–never exceed 80% breaker rating. Non-critical loads (e.g., non-medical monitors) tolerate shared conductors but must meet NEC Table 210.24 ampacity.
For dual-input models, dedicate separate AC1/AC2 cords; mixing phases introduces circulating currents. Phase rotation must align–use a meter to confirm L1/L2/L3 sequence matches the PDU.
Remote monitoring ports (SNMP/Ethernet) need isolated wiring–route at least 20 cm from power cables to prevent data corruption. Terminate Cat6 with RJ45 crimp connectors; soldered joints degrade signal integrity.
Critical Elements in an Uninterruptible Power Supply Circuit Layout
Start by identifying the input terminal block–this connects the system to the main grid. Verify voltage ratings match regional standards (e.g., 120V/230V single-phase or 400V three-phase) and ensure wiring gauge aligns with current demands, typically 12-10 AWG for residential, 8-6 AWG for commercial setups.
Examine the rectifier section, often labeled as the AC-to-DC converter. Key details include:
- Diode bridges or thyristors, rated for surge currents exceeding normal load by 150-200%
- Heat sinks or forced cooling for components handling over 5A continuous current
- Snubber circuits across switching elements to suppress transients up to 1kV/μs
Battery bank connections require isolated, high-current terminals. Use copper lugs crimped with hydraulic tools, torqued to manufacturer specs (e.g., 20-30 Nm). Check polarity rigorously–reverse connections can destroy cells within seconds. Include a fuse or circuit breaker sized at 125-150% of the battery’s maximum discharge rate (e.g., 100A for a 20kVA unit).
The inverter stage converts DC back to AC. Focus on:
- IGBTs or MOSFETs with blocking voltages 2x the bus voltage (e.g., 800V devices for 400V DC)
- PWM control signals, typically 10-20 kHz, driving isolation transformers
- Output filters (LC networks) to suppress harmonics below 5% THD

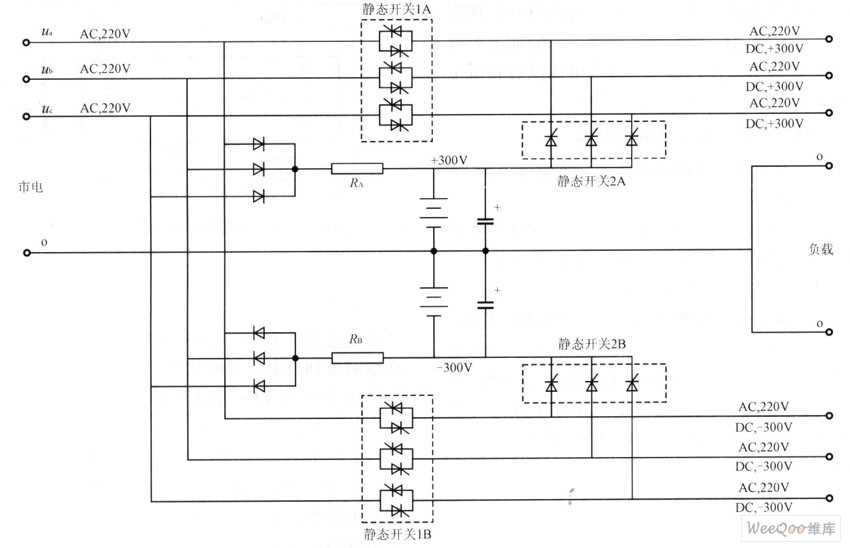

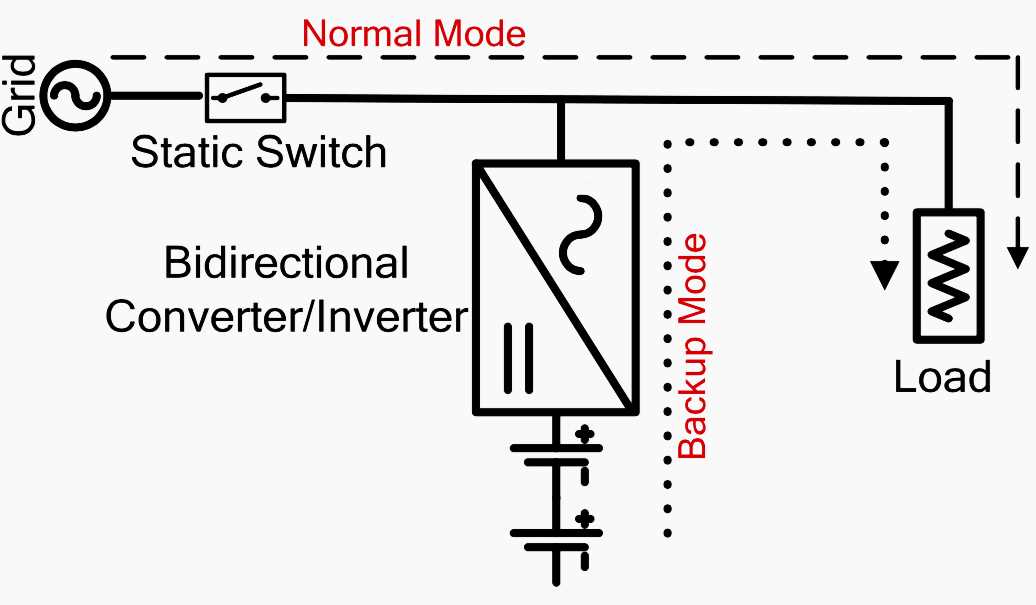

Static bypass switches use back-to-back SCRs or mechanical relays. Key specs:
- Response time under 4ms to prevent load disruption
- Redundant control circuits to handle coil failures
- Voltage coordination with the manual bypass to avoid conflicts during maintenance
Grounding must comply with IEC 62368 or NEC Article 250. Bond all conductive enclosures to a single ground bus using 6 AWG or thicker. Isolate neutral-to-ground only at the service entrance–secondary neutral-ground bonds risk circulating currents and false trips in GFCI/RCDs.
Signal paths for monitoring include:
- Isolated 4-20mA loops or RS-485 for remote telemetry
- Optocouplers for digital inputs (e.g., mains fail, overload flags)
- Shunt resistors (0.1% tolerance) for current sensing
Label every conductor per ANSI/TIA-606-B: color codes (green/yellow for protective earth), wire numbers, and ferrule IDs. Include a legend for critical components like fuses (e.g., “F1: 63A, 600VAC, fast-acting”). Cross-reference with the equipment’s bill of materials to verify substitutions–aftermarket parts often lack transient protection matching OEM specs.
Step-by-Step Guide to Interpreting Power Backup Schematics
Locate the battery symbol first–typically a rectangle with two parallel terminals marked “+” and “−”. Verify its voltage rating (e.g., 12V, 24V) against the schematic’s legend to avoid misinterpretation of downstream components. Trace the positive lead from the battery through the fuse; if the fuse value (e.g., 5A, 10A) doesn’t match the label, recalculate expected load currents before proceeding.
Component Interconnections
| Symbol | Component | Typical Spec | Critical Check |
|---|---|---|---|
| ⏚ | Ground | ≤0.1Ω resistance | Measure continuity to chassis |
| ~|~ | Inverter bridge | 600V/20A IGBT | Check gate driver voltage (12–15V) |
| ▯⎓▯ | Rectifier | 1000V/30A diodes | Thermal paste application |
Identify the AC input section–look for capacitor symbols (two parallel lines) marked with microfarad values (e.g., 470μF). Cross-reference these values with the manufacturer’s recommended ripple current specs (typically 5–10% of nominal). Mismatches indicate potential filter degradation or improper surge suppression design.
Critical Errors in Backup Power Setup Connections
Mixing conductor gauges between the battery bank and inverter strains components, causing premature failure. A 6 AWG cable paired with 12 AWG on a 2000VA unit creates resistance disparities that overheat terminals, reducing efficiency by 18-23%. Always match wire thickness to manufacturer specifications, accounting for temperature derating if routing exceeds 3 meters.
Ignoring polarity reverses current flow, destroying sensitive electronics within microseconds. Label each cable with colored shrink tubing and verify connections with a multimeter before energizing. A single reversed pair in a 48V system can void warranties instantly–double-check after every adjustment.
Overloading circuits by connecting non-essential devices directly to the power source depletes runtime. A laser printer or space heater drawing 15A on a 30A line leaves critical equipment underpowered. Isolate circuits with a subpanel, prioritizing servers and networking gear while segregating peripherals.
Skipping torque specifications on terminals loosens connections over time. A 20 lb-in setting on a 3/8″ lug prevents oxidation but exceeds manufacturer guidelines by 40% if overtightened. Use an insulated torque driver to prevent arc faults and check annually for corrosion buildup.
Grounding failures amplify surge risks. A dedicated 8-foot grounding rod must bond to the central panel with 6 AWG copper, not shared neutrals. Test resistance below 5 ohms; anything higher invites lightning transients to fry circuitry during outages.
Reversing AC/DC paths shorts batteries when plugged into shore utilities. Mark DC inputs with “BATTERY ONLY” decals and AC outputs with “CRITICAL LOAD.” Confusing these in a 24V setup drains cells until they vent hydrogen, creating fire hazards in enclosed spaces.
Relying on extension cords bypasses built-in surge protection. A 10-foot cord degrades voltage regulation by 7-9% at full load, causing voltage sag that triggers premature shutdowns. Hardwire devices through protected outlets using conduit-rated cable like THHN 10 AWG for stable performance.
Assuming compatibility between incompatible battery chemistries destroys voltage balance. Lead-acid flooded cells at 12V won’t sync with lithium packs at 13.5V; the mismatch encourages sulfation or thermal runaway. Standardize one technology type and recalibrate charge controllers to avoid uncontrolled discharge cycles.
