Before handling any electrical components, cut power at the circuit breaker. Use a non-contact voltage tester to confirm the absence of current in the junction box. Working with live wires increases the risk of shock or short circuits–never skip this step.
Identify the black (hot), white (neutral), and green or bare copper (ground) conductors. If the existing setup lacks a ground wire, connect the metal mounting bracket to the grounding screw inside the box instead. For installations with a fixture featuring a metal body, attach the ground wire directly to it.
For basic connections, twist the corresponding wires together–hot to hot, neutral to neutral, and ground to ground–using wire nuts rated for the gauge of your cables. Secure each nut by pulling gently on the wires to ensure no loose strands remain. If the new unit includes a push-in connector, insert the stripped ends fully until the mechanism locks them in place.
In older buildings, neutral wires may appear in unusual colors (e.g., gray or beige instead of white). Check the sheathing of the cable for labeling or verify continuity with a multimeter if uncertain. Some upgrades require an adaptor plate to bridge mismatched box sizes–ensure it’s rated for the maximum wattage of the bulb type you plan to use.
After securing all wires, fold them neatly into the junction box and attach the mounting strap with the provided screws. Avoid overtightening, which can strip threads or crack plastic housings. Align the decorative cover carefully–misalignment risks visible gaps or uneven light distribution.
Restore power and test the switch operation. If the unit flickers or fails to illuminate, recheck connections for loose ends or reversed polarity (hot and neutral swapped). For dimmable models, verify compatibility with the switch type–some solid-state dimmers require specific bulb technologies to function properly.

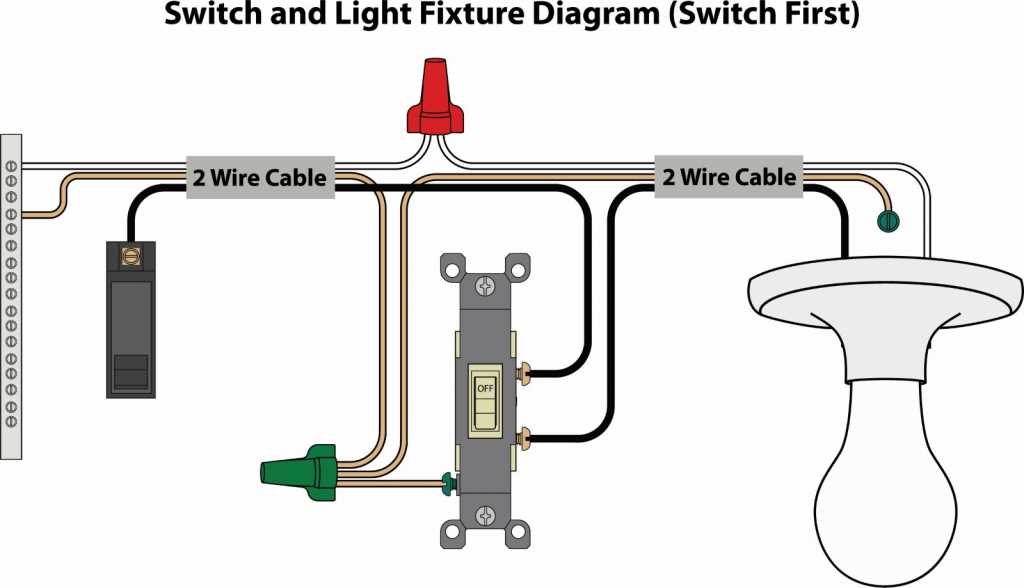

Visual Guide to Connecting an Illumination Unit
Always verify circuit integrity before making connections. Use a non-contact voltage tester to confirm power is off at the junction box–probing each conductor individually reduces risk of false negatives. For standard installations, match color-coded leads:
- Black (hot) to brass terminal
- White (neutral) to silver terminal
- Green or bare copper (ground) to green grounding screw or designated ground terminal
Twist conductors clockwise before securing with wire nuts; tug-test each joint to ensure mechanical stability. For solid-core copper, use crimp connectors instead of nuts to prevent loosening over time.
Handling Non-Standard Configurations
For multi-way switches, identify the common terminal (typically black) on the switch–label it with tape to avoid miswiring. Use 12-gauge wire for circuits exceeding 10 amps; 14-gauge suffices below this threshold. Aluminum conductors require antioxidant paste at junctions and CO/ALR-rated devices to prevent oxidation.
- Strip 5/8″ of insulation from each end
- Cross wires at 90° angles before twisting
- Trim excess to ½” beyond nut for heat dissipation
- Wrap joints with electrical tape for secondary protection
Install dimmable units only with compatible transformers–check manufacturer specifications for minimum load requirements (typically 40W). For recessed installations, use push-in connectors instead of nuts to accommodate limited box depth. Always wrap exposed terminals with liquid electrical tape after testing to seal connections against moisture.
Essential Gear for Installing Illumination Components
Begin by equipping yourself with insulated screwdrivers (flathead and Phillips, #2 size) rated for at least 600V. Non-conductive handles are non-negotiable–verify certification like IEC 60900 or ASTM F1505. Avoid multi-bit drivers; dedicated tools prevent slippage during terminal tightening. Include a voltage tester (non-contact type preferred) with a sensitivity range of 50-1000V to confirm circuit de-energization before handling conductors.
Select stripping pliers with adjustable jaws for 14-10 AWG conductors. Look for models with wire gauge markings etched into the blades to eliminate guesswork. For older installations, a cable ripper is indispensable for safely slicing through insulation on NM-B cables without nicking copper strands. Pair these with lineman’s pliers (9-inch, serrated jaws) for cutting, twisting, and securing loop connections–bolt-cutters are ineffective for clean bends.
- Wire nuts: Choose size-matched connectors (e.g., yellow for 3x 14 AWG, red for 2x 12 AWG). Verify UL listing; counterfeit nuts may melt under load. Twist conductors clockwise before application to prevent unraveling.
- Crimping tool: Required for grounding pigtails. Use insulated crimp terminals (blue for 16-14 AWG) with a heat-shrink tubing kit for environmental sealing.
- Fish tape: 25-foot steel or fiberglass variant for pulling conductors through conduits. Avoid vinyl-coated tapes–they stick in tight bends. Lubricate with silicone spray, not soap-based solutions.
- Torque screwdriver: Adjustable (10-50 in-lbs) for securing terminal screws to manufacturer specs (typically 12-15 in-lbs for residential circuits). Under-tightening causes arcing; over-tightening strips threads.
Add a headlamp with adjustable beam (100+ lumens) and red-light mode to preserve night vision. Mount magnetically for hands-free use in junction boxes. Keep a utility knife (replaceable blades, 18mm width) for scoring drywall or cable jackets–retractable models lack precision. Store all tools in a hard-shell case with foam cutouts to prevent conductor damage from rattling screws. Label compartments by tool type for rapid access during emergencies.
Step-by-Step Process to Safely Disable Power Before Installation
Locate the circuit breaker panel in the utility room or garage–labelled switches identify the area controlled. Flip the switch corresponding to the room’s electrical setup to the off position, then verify absence of current using a non-contact voltage tester. Hold the tester’s tip within 1 cm of the wires; a silent device confirms power is cut. If the tester beeps, revisit the panel and re-test until no signal remains.
For fuse boxes, unscrew the fuse completely–storing it in a secure location prevents accidental re-activation. Secondary switches or subpanels require identical treatment; neglecting them risks residual voltage. Keep a flashlight nearby; ambient lighting often relies on the same circuit.
Identifying and Connecting Conductors in a Common Illumination Assembly
Locate the neutral conductor first–it is invariably white or gray, and sometimes marked with ridges or stripes. Confirm its role by tracing it back to the circuit breaker, where it connects to the neutral bus bar. This lead carries no voltage under normal conditions and completes the circuit path. If the installation lacks color coding, use a non-contact voltage tester to verify its status before handling.
Examine the hot conductor next–typically black, red, or occasionally blue. This line carries the current from the power source to the fixture and must be treated with caution. When switching mechanisms are involved, multiple hot leads may exist: one for the constant power supply (black) and another for the switched path (red or another color). Label each variant immediately to prevent misconnections that could lead to short circuits or component damage.
Ground leads, usually bare copper or green, serve as a safety measure, routing fault current away from users. Ensure this conductor connects to the grounding screw in the junction box or the metal frame of the mounting hardware. If the setup lacks a dedicated ground, verify that the box itself is grounded via a metal conduit or bonding wire. Do not omit this step–grounding failures increase shock risks and may violate electrical codes.
| Conductor Type | Color Identifier | Primary Function | Critical Notes |
|---|---|---|---|
| Neutral | White/Gray | Completes circuit return path | Must connect to neutral bus bar; never fuse or switch |
| Hot (Supply) | Black/Red/Blue | Delivers current from source | Always test with voltage detector before handling |
| Ground | Bare/Green | Diverts fault current | Essential for safety; bond to metal components if no dedicated path exists |
Twist matching conductors together using pliers, then secure with a wire nut rated for the gauge and number of strands. For 14-gauge copper, a yellow nut accommodates three leads; for 12-gauge, a red nut is standard. Tug each connection lightly to confirm mechanical integrity–loose junctions generate heat and pose fire hazards. Wrap electrical tape around the nut base for additional strain relief, especially in high-vibration environments.
Mounting brackets often include a captive screw for grounding. If the bracket is plastic, route the ground lead directly to the box’s grounding terminal. For metal enclosures, the bracket may serve as a grounding path–verify continuity with a multimeter. Ensure all fasteners are tight: a loose mounting strap can compromise connections when the fixture is later serviced.
Wire splices inside junction boxes must remain accessible–never bury them behind drywall or insulation. If the box is recessed, use an extendable cover plate to maintain compliance with code requirements. For fixtures weighing over 50 pounds, secure the mounting bracket to a structural support with toggle bolts or heavy-gauge screws. Standard drywall anchors are insufficient for load-bearing applications.
Testing and Final Inspection
Restore power at the circuit breaker, then use a voltage tester to confirm correct operation. The neutral-to-ground reading should measure near zero volts; hot-to-neutral should match the supply voltage (120V or 240V). If the fixture fails to illuminate, recheck all connections, focusing on the switched hot lead’s path. Flickering often indicates a loose neutral–disconnect power and retighten all junctions. Never dismiss intermittent faults: they decompose over time into permanent failures or hazards.
