Begin with a clear schematic showing two main sections: the rectifier-charger and the inverter-output. Use a full-bridge configuration for the first stage, pairing it with a high-frequency transformer to minimize size while ensuring 92-95% efficiency under full load. Specify components with these ratings: IRF3205 MOSFETs for switching, MBR20200CT diodes for reverse voltage protection, and 470μF 450V capacitors for input smoothing. Include a UC3843 PWM controller set at 50kHz to regulate voltage conversion.
For battery integration, select a sealed lead-acid 12V 7Ah array wired in series-parallel to match system voltage. Add a LM317 adjustable regulator with 1kΩ potentiometer to fine-tune float charging at 13.8V ±0.2V. Insert a 5A fuse on the positive rail directly from the battery bank to prevent overcurrent scenarios. Label all connections–positive, negative, and ground–with distinct colors (red, black, green) to avoid miswiring.
Incorporate surge protection by placing 1.5KE200CA TVS diodes across each MOSFET and IGBT. Use ferrite beads on input and output lines to suppress EMI, especially critical if the system powers sensitive loads like servers or medical devices. Calculate wire gauge based on current draw: 10 AWG for ≤20A, 6 AWG for 20-50A, and 2 AWG for >50A. Verify thermal dissipation by attaching 120mm 12V fans to heatsinks, targeting a maximum junction temperature of 85°C.
Test the completed design with an oscilloscope to confirm waveforms. Check for 5% voltage ripple at the output and 10% THD for sine wave inverters. Document every trace width–0.5oz copper for ≤3A, 2oz for 3-10A–to ensure PCB reliability. Annotate the diagram with part numbers, test points, and polarity markers to simplify future troubleshooting.
Analyzing Power Backup System Blueprints
Begin by isolating the battery charger segment in the schematic–verify it includes a dedicated transformer with 220V AC primary and 12-24V DC secondary, fused at 3-5A. Check for a bridge rectifier (e.g., GBU4J) with minimum 400V/4A rating to handle inrush current during switchover. Ensure the charger has current-limiting resistors (typically 1Ω/5W wirewound) to prevent thermal runaway. If absent, add 2.2kΩ gate resistors on MOSFET drivers to stabilize triggering. For lithium-based setups, incorporate a BMS (Battery Management System) with undervoltage cutoff at 3.0V/cell and overvoltage protection at 4.2V/cell to prevent deep discharge.
Critical Component Pairings
- Inverter stage: Match IGBTs (e.g., IRG4PC40UD) with fast-recovery diodes (UF4007) to handle 600V/20A transients. Use snubber capacitors (0.1µF/250V) across collector-emitter junctions to suppress voltage spikes during inductive load switching.
- Control logic: Replace generic 555 timers with STM32F103 or PIC16F877A microcontrollers for precise PWM (20kHz) to reduce audible noise. Add an optoisolator (PC817) between logic and power stages for galvanic isolation.
- Output filtering: Combine 470µF/400V electrolytic capacitors with 0.1µF film capacitors on AC output to flatten ripple to . Include common-mode chokes (3mH) to block EMI from switching transients.
- Protection: Integrate MOVs (14D471K) across input/output lines to clamp surges. For short-circuit protection, use resettable PTC fuses (e.g., RXEF075) rated for 72V/1.1A hold current.
Measure static drain-source resistance (RDS(on)) of switching transistors–values above 0.1Ω indicate degradation requiring replacement. For offline designs, ensure creepage distance of ≥8mm between primary and secondary transformer windings to comply with IEC 60950. Test transfer time by simulating brownouts: is acceptable for servers, for medical/industrial loads.
Critical Elements and Notation in Resilient Power Supply Schematics
Begin by identifying the rectifier section–marked typically with a bridge configuration of diodes or a dedicated module symbol. This component converts incoming AC to DC, ensuring stable voltage for subsequent stages. Verify the presence of smoothing capacitors, depicted as parallel lines with one curved side, as they minimize ripple by storing charge. Insufficient capacitance here leads to voltage fluctuations, risking downstream failures, so cross-check values against manufacturer specifications for consistency.
Locate the inverter stage next, often represented by pairs of transistors or MOSFET symbols arranged in an H-bridge layout. This block reconverts DC back to AC for output, with pulse-width modulation (PWM) signals dictating waveform quality. Ensure the control ICs–drawn as rectangles with pin labels–match the system’s intended frequency (e.g., 50Hz/60Hz). Misaligned parameters here distort output, damaging sensitive loads, so confirm compatibility with the connected equipment’s power requirements.
Examine the battery bank symbol, illustrated as a series of parallel plates or a labeled rectangle with voltage notation. Lithium-ion variants show thermal sensors; lead-acid units include temperature-compensated charge controllers. The cutoff relay, shown as an electromagnetic coil with contacts, isolates batteries during faults–validate its rating exceeds maximum surge currents by 20% to prevent arcing. For redundant systems, trace dual feeds to critical paths, ensuring no single point of failure interrupts energy flow.
Cross-reference all protective devices: fuses (zigzag lines), circuit breakers (rectangles with a switch), and surge suppressors (varistor symbols). Place varistors near the input and output terminals to clamp transient spikes. Label each component with its actual part number and electrical rating–omissions here cascade into undetected overloads. Use industry-standard symbols from IEC 60617 or ANSI Y32.2 for clarity; non-standard notation confuses technicians during maintenance or upgrades.

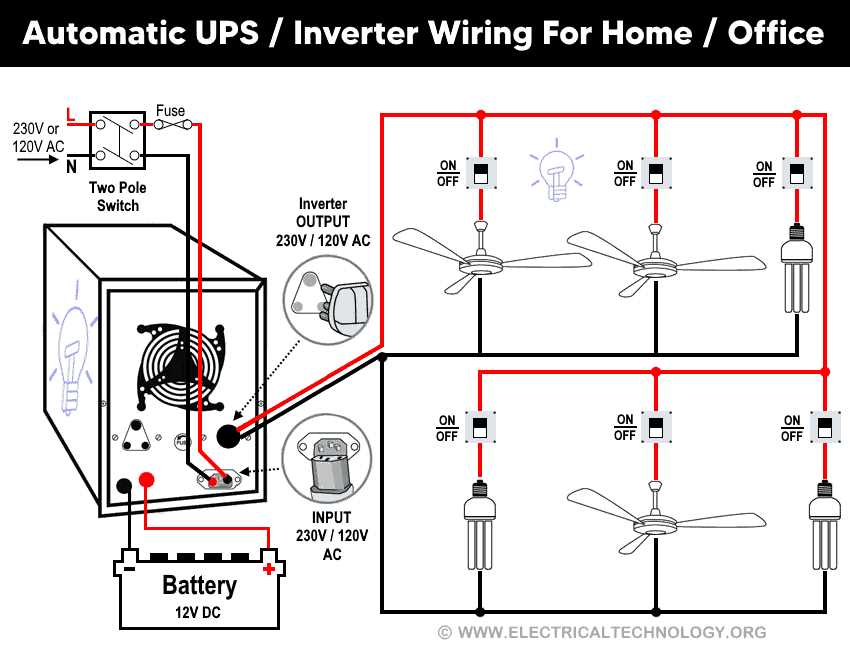

Step-by-Step Wiring of a Basic Standby Power Backup System
Begin by selecting a 12V sealed lead-acid battery with a capacity of at least 7Ah for small-scale applications. Larger setups may require 20Ah or higher. Verify the battery’s terminal orientation–most follow the standard of positive (red) on the right when facing the front label. If terminals are reversed, mark them clearly to avoid incorrect connections.
Connect the battery to the inverter using 6–10 AWG copper cables, depending on the current draw. For a 200W inverter, 10 AWG suffices; for 600W or above, upgrade to 6 AWG. Strip 10mm of insulation from each cable end, then crimp with ring terminals sized for the battery posts (typically M6 or M8). Secure the connections with a torque wrench set to 12–15 Nm to prevent overheating or voltage drop.
Assembling the Transfer Switch Mechanism
Install a double-pole, double-throw (DPDT) relay with a coil voltage matching your inverter’s output (typically 12V or 24V). Wire the relay’s common terminals (COM) to the load–these will toggle between mains and backup power. Connect the normally closed (NC) contacts to the utility supply via a 10A circuit breaker, and the normally open (NO) contacts to the inverter output. Use spade terminals for relay connections to ensure vibration resistance.
- Locate the relay’s coil terminals and connect one to the inverter’s built-in charger output (usually labeled “Battery +” or “Sense”).
- Attach the second coil terminal to the battery’s negative post (not ground) to complete the activation circuit.
- Test the relay manually by simulating a power failure–it should switch within 10–20ms when mains voltage drops below 85% of nominal.
Integrate a 20A fuse or DC-rated circuit breaker between the battery’s positive terminal and the inverter input. For inverters above 500W, use a slow-blow fuse to accommodate inrush current. Ground the inverter’s chassis to a dedicated earth rod with 6 AWG bare copper wire, driven at least 2.4m into moist soil. Verify all connections with a multimeter–expected readings: 12.6–13.8V at battery terminals,
Final Safety and Performance Checks
Enclose all exposed terminals in non-conductive plastic covers or use heat-shrink tubing rated for 150°C. Label cables at both ends with their function (e.g., “Battery +,” “Inverter Output”) using UV-resistant tags. Before powering the system, perform a dry run without load:
- Disconnect the mains supply–relay should switch to backup mode instantly.
- Reconnect mains–the relay should revert to utility power within one cycle (20ms).
- Monitor battery voltage during a 30-minute load test. A drop exceeding 0.5V indicates insufficient cable gauge or poor connections.
Calibrate the low-voltage cutoff on the inverter to 10.5V to prevent deep discharge. For lead-acid batteries, this prolongs lifespan by avoiding sulfation. If the inverter lacks adjustable settings, wire a 12V DC relay as a secondary cutoff, triggered by a voltage comparator circuit (e.g., LM393) set to 10.5V. Ensure the relay’s contacts interrupt the battery-to-inverter cable, not the ground path, to avoid false triggers.

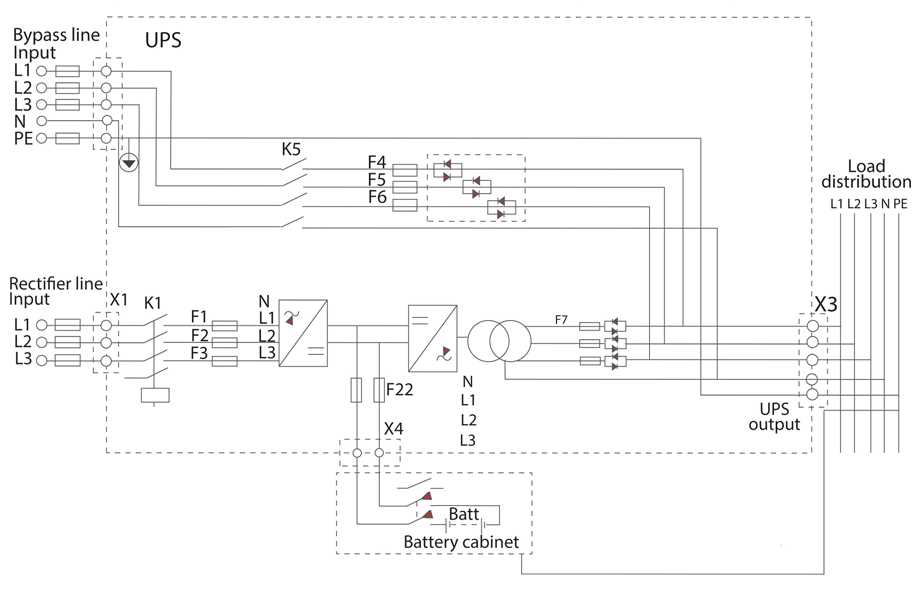

Spot Key Power Routes in Line-Interactive Backup Systems
Trace the primary AC input directly to the automatic voltage regulator (AVR) before it reaches the inverter. Most line-interactive models route incoming current through a multi-tap transformer first–check taps rated at ±15%, ±10%, and ±5% of nominal voltage. Use a multimeter to verify voltage levels at each tap during sag/surge simulations; discrepancies above 3% indicate faulty windings or loose connections.
Monitor the bypass path, typically a relay-switched route activated during overloads or faults. Test relay response times with a scope–delays exceeding 4ms risk downstream equipment damage. For thermal bypass designs, confirm the heatsink’s thermal resistance (
| Component | Critical Checkpoint | Tolerance Range |
|---|---|---|
| Input MOV | Clamping voltage at 120% nominal | ±5V |
| DC bus capacitors | ESR measurement at 1kHz | |
| Inverter transistors | Gate-source voltage during switching | 4.5V–5.5V |
| Output filter inductors | Inductance at full load | ±10% of spec |
Examine the battery charger’s current path: follow the rectifier output to the charging IC, then to the battery terminals. Verify charging IC output voltage (13.8V±0.2V for 12V lead-acid) and ensure no-parallel diode drops exceed 0.7V. For lithium battery configurations, confirm BMS balancing triggers at 3.6V per cell–overcharging risks thermal runaway.
Test all protective circuits: measure earth-leakage thresholds (≤30mA), transient suppression trigger times (
Critical Failure Points in Power Routing
Inspect solder joints on high-current paths (e.g., inverter DC link) for cold-solder defects–reflow joints exceeding 0.5mm diameter. Trace PCB copper weights: 2oz for currents over 10A, 3oz for 20A+. Probe contact resistance at screw terminals (≤5mΩ); overheating here (>60°C) often precedes catastrophic connector failure. For modular designs, check blind-mate connectors’ alignment–misalignment by >0.2mm causes arcing at 25A loads.
