Begin by locating the terminal block on the rear panel–this is where the power supply connects to the machine. Most models use a 240-volt, three-wire or four-wire setup, with color-coded conductors: typically red and black for hot leads, white for neutral, and green or bare for ground. Verify the voltage rating on the manufacturer’s label before proceeding; mismatched power can damage components or create safety risks. Use a multimeter to confirm live voltage at the terminal block–readings should be 120V between each hot lead and neutral and 240V between the two hot leads. If readings deviate, inspect the household breaker or outlet first.
The thermal fuse, motor relay, and heating element are critical points in the current path. The thermal fuse (often a single-use safety device) is usually mounted on the blower housing or heating chamber; if blown, it interrupts power to prevent overheating. Trace the wiring from the element coil back to the timer and cycling thermostat–these regulate heat output. A common failure point is the high-limit thermostat, which cuts power if temperatures exceed safe limits. Check continuity with a multimeter; infinite resistance indicates failure, while near-zero resistance suggests normal operation.
For models with a door switch, ensure it’s functional–this safety feature halts drum rotation when the door is open. Probe the switch’s terminals with the door closed; continuity should break when opened. The start switch or push-to-start button initiates the drying cycle; if unresponsive, test for voltage drop at its terminals when activated. If voltage is present but the drum doesn’t spin, the issue may lie in the drive motor or capacitor. The motor’s windings should show uniform resistance across all leads; variations suggest internal damage.
Always disconnect power before handling internal components. Label wires during disassembly to simplify reassembly–photographing the original layout prevents misconnections. For four-wire configurations, the neutral wire is often bonded to the ground screw on the chassis; ensure this connection is secure to avoid electrical noise or interference. Replace any damaged wires with 10-gauge copper conductors–undersized wires can overheat under load. If the appliance cycles intermittently, inspect the lint screen housing and exhaust vent for blockages; restricted airflow overworks heating elements, leading to premature failure.
Understanding the Internal Circuit Schematic for Residential Laundry Appliances
Start by locating the terminal block at the rear of the unit–this is where the main power feed connects. Most models feature a three-wire or four-wire configuration, identified by color-coded leads: red (hot), black (hot), white (neutral), and green or bare (ground). Verify the voltage rating matches your household supply (typically 240V for dual-hot setups). If upgrading from an older three-wire system, replace the neutral-ground link with a dedicated ground wire to comply with current safety standards.

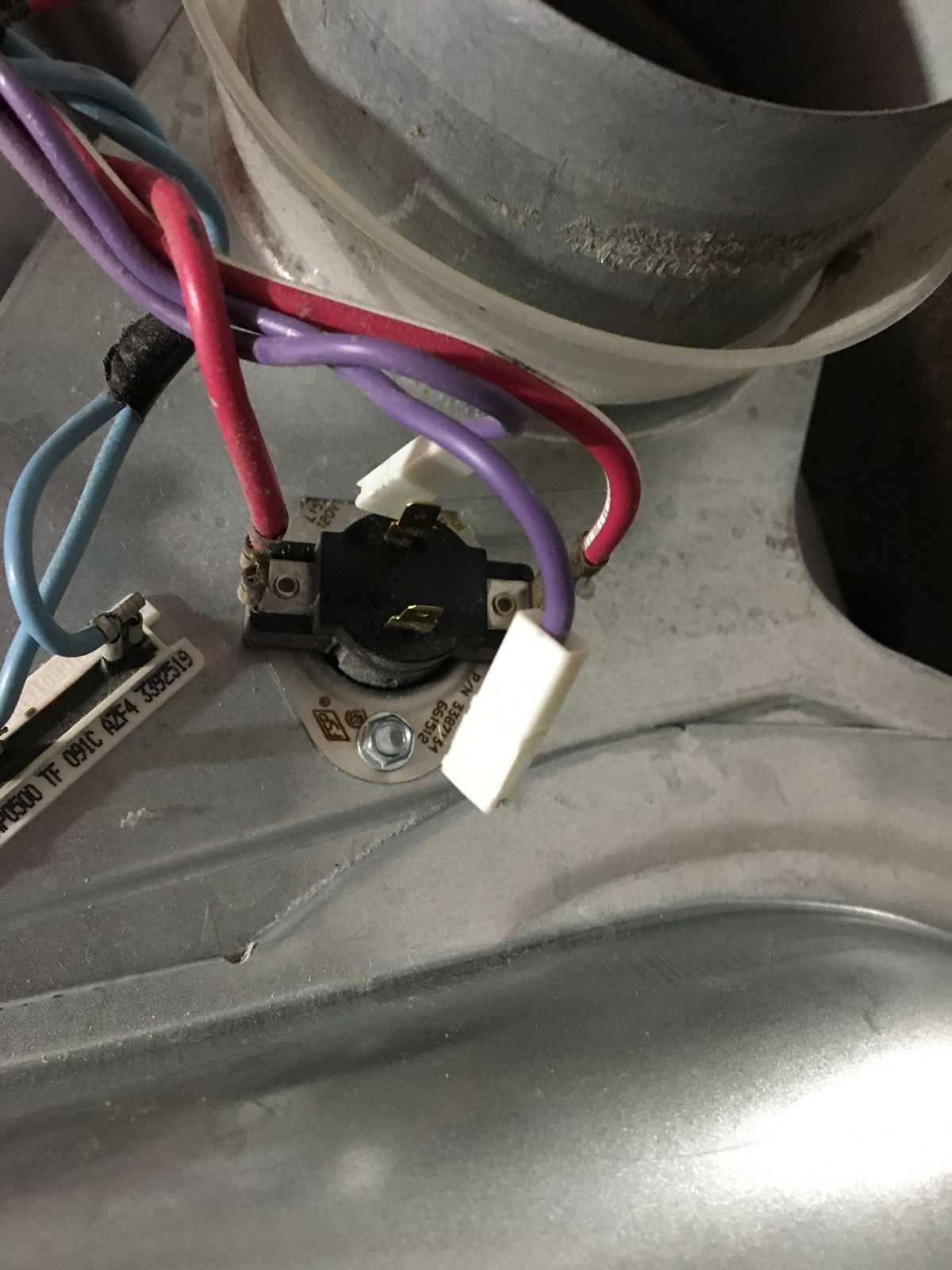

Trace the power path from the terminal block to the thermal fuse, a critical safety device mounted on the blower housing. This one-time fuse blows if airflow is restricted, cutting power to the heating element. Use a multimeter to test continuity–zero ohms indicates a functional fuse; infinite resistance means replacement is required. Avoid bypassing this component, as it prevents overheating hazards.
The motor assembly relies on a centrifugal switch to disengage the start winding once operational speed is reached. If the drum fails to rotate, inspect the drive belt for wear (replace if frayed or stretched beyond ¼ inch slack) and confirm the motor’s thermal protector hasn’t tripped. For direct-drive variants, check the rotor-stator gap for debris–clearances exceeding 0.03 inches reduce torque efficiency.
Heating Element and Control Board Troubleshooting
Access the heating coil by removing the rear panel–most units position it above or beside the blower wheel. Disconnect power before testing: measure resistance across the coil terminals (expect 7–30 ohms for 240V elements). Higher readings suggest partial failure; replace if readings approach infinity. Observe the high-limit thermostat adjoining the coil–it should reset automatically after tripping but may require manual intervention if faulty.
Modern digital control panels interface with the main board via ribbon cables; corrosion or bent pins disrupt display signals. For mechanical timers, advance the dial manually while listening for solenoid clicks–absence of sound indicates a failed switch. Use a schematic to identify diode resistor networks governing cycle timing; failed diodes often manifest as erratic behavior during drying phases.
Grounding integrity is non-negotiable–ensure the green/bare wire terminates at the chassis and not the neutral terminal. For installations with metal conduit, verify the conduit itself isn’t serving as ground unless professionally bonded. Replace any damaged strain relief clips at the power cord entry to prevent wire chafing against sharp edges, a common ignition source in older units.
When rewiring, label each connection with tape or markers before disassembly. Cross-reference terminals against a model-specific blueprint (not all schematics are interchangeable–revisions exist even within year groups). If the schematic isn’t printed inside the cabinet, obtain a digital copy from the manufacturer’s technical portal using the model number stamped on the chassis frame. Miswiring the L1/L2 reversal on split-phase motors can destroy windings in under 30 seconds.
Locating Your Appliance’s Model Number for Accurate Electrical Schematics
Check the interior edge of the door frame–most manufacturers stamp the identifying code here. Look for a metallic or plastic plate; the sequence typically begins with letters followed by numbers (e.g., MEDC465HW). If absent, examine the rear panel near the motor housing or beneath the lint trap. Avoid relying on serial numbers alone–electrical layouts correspond only to model variants.
- Front-load variants: door jamb or kickplate
- Top-load styles: back left corner inside drum
- Stacked units: underneath the upper section
Cross-reference the code with the manufacturer’s official parts catalog. A single digit difference can alter voltage requirements or terminal block configurations. For instance, models with a “W” suffix often include a moisture sensor module, while “E” variants lack this feature–both demand distinct circuitry paths. If manuals are unavailable, extract the plate and search database archives using exact markings.
Three critical elements determine schematic compatibility:
- Heating element wattage (240V vs. dual-voltage)
- Control board revision (analog vs. digital)
- Motor type (direct-drive vs. belt-driven)
Mismatched connections risk tripping breakers or damaging components. Photograph the original setup before disassembly–color-coded wires rarely match universal standards.
For units produced after 2010, verify firmware compatibility if upgrading controls. Older models (pre-2005) frequently use mechanical timers; newer iterations integrate touchpad interfaces requiring separate power supplies. When in doubt, detach the terminal block and use a multimeter to confirm live circuits before proceeding.
Finding and Decoding the Internal Circuit Guide on Your Appliance

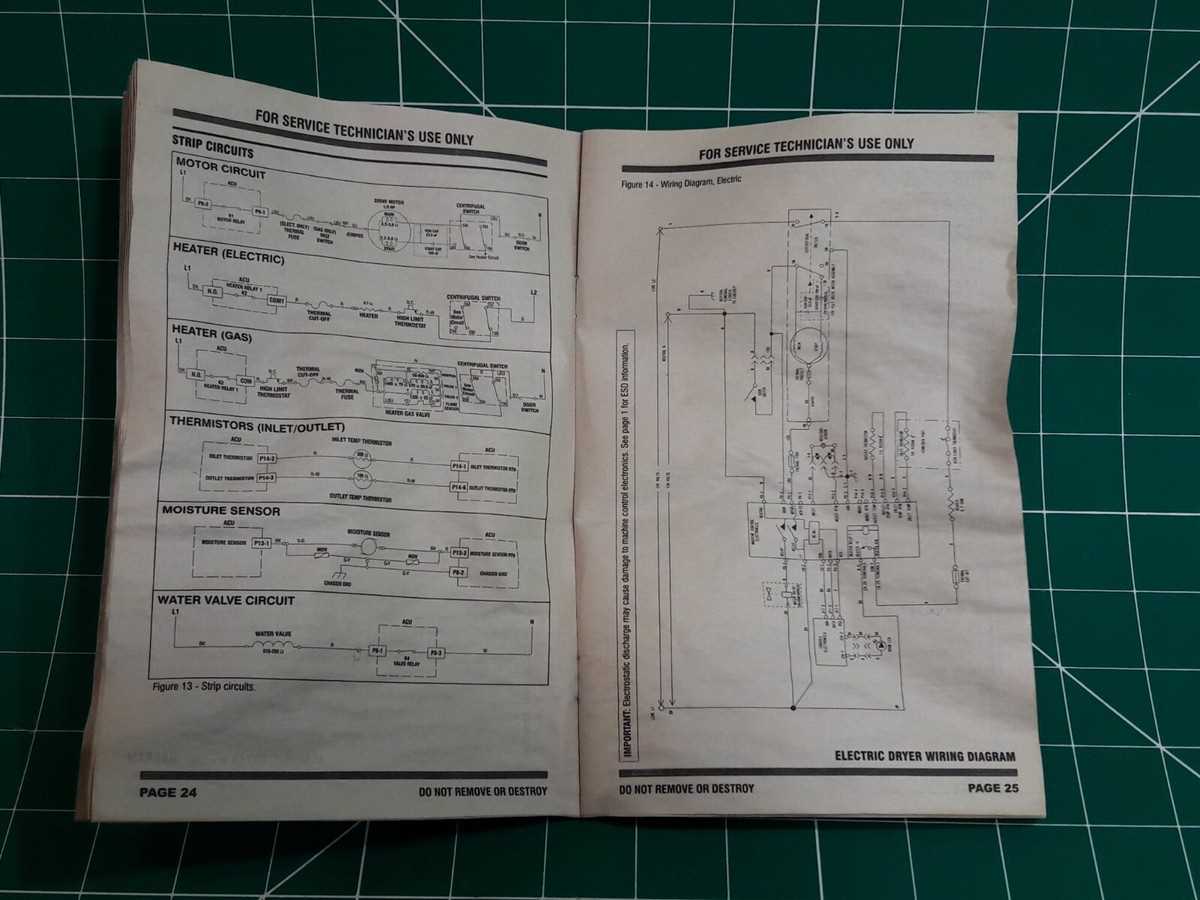

Begin by checking the rear panel or inside the door frame–most models store a decal or metal plate with the schematics. Look for a small, often white or silver label with thin lines, symbols, and color codes. If absent, consult the technical manual under “service details” or “parts breakdown” sections.
Identify the main components: heating element, thermal fuse, motor, and timer are typically labeled with abbreviations (e.g., “HE” for heater, “TF” for thermal cut-off). Trace the solid and dashed lines connecting these parts–solid lines indicate direct connections, while dashed or dotted paths show secondary or safety circuits.
Color-coding follows standard conventions: red for power leads, black or blue for neutral, green or bare copper for grounding, and yellow or white for switches. Verify these against the legend on the decal; mismatches signal potential errors in installation or component failure.
Pay attention to terminal blocks–marked with numbers or letters (e.g., “L1,” “N,” “T1”). These correlate to wires on the control board or terminal strip. Cross-reference each connection point with the schematic to confirm correct attachment, especially after repairs or replacements.
Thermistors, door switches, and solenoids often have dedicated symbols–usually rectangles with diagonal lines or arrows. Check resistance values (ohms) if troubleshooting; deviations from the schematic’s listed ranges indicate faulty parts needing replacement.
For digital displays, locate the microchip diagram sub-section. It outlines power input pins (VCC, GND) and signal pathways between sensors and the main board. Use a multimeter to test continuity on these traces if the appliance fails to start or cycles incorrectly.
Step-by-Step Guide to Reconnecting Loose Components Inside Your Appliance
Unplug the machine from the power source before beginning any internal inspection. Failing to do so risks electrical shock or damage to sensitive circuits. Locate the access panel–typically secured by screws along the back or side–and remove it using a screwdriver matched to the fastener type (Phillips or flathead). Set screws aside in a small container to avoid misplacement.
Identify dislodged connectors by visually tracing the internal harness paths. Terminals often detach due to vibration or improper assembly. Check for loose spade clips, bullet connectors, or crimped wires near the motor, heating element housing, or control board. If a wire appears frayed or melted, trim the damaged section with wire strippers and re-crimp a new terminal using a crimping tool–never twist or tape exposed copper.
Use a multimeter set to continuity mode to verify connections before reattaching. Touch probes to the wire’s end and its corresponding terminal–if the meter emits a tone, the circuit is intact. If no signal registers, inspect for hidden breaks or corroded contacts. Clean oxidized terminals with fine-grit sandpaper or a wire brush, then apply dielectric grease to prevent future corrosion.
| Connector Type | Common Failure Points | Reattachment Method |
|---|---|---|
| Spade (female) | Motor/heater junctions | Push firmly until a click is heard |
| Bullet (male/female) | Sensor leads, door switches | Align slots, press until flush |
| Screw terminal | Control board, thermal fuse | Insert wire, tighten 0.5 Nm torque |
Re-secure any detached ground wires immediately. These are usually bare copper or green-insulated leads attached to the chassis with a screw or clip. Loose grounds can cause erratic operation or create a shock hazard. Ensure the screw is tightened sufficiently–use a torque driver if possible to avoid stripping the threading.
For components with locking tabs (e.g., thermostat connectors), press the tab release while gently pulling the connector off. Reattach by aligning the tabs with the socket grooves and pressing until fully seated. Damaged tabs should be replaced–clipping them risks recurrent disconnections.
After reconnecting all components, reassemble the access panel in reverse order. Tighten screws evenly to prevent warping. Plug the unit back in and run a short cycle to test functionality. Monitor for unusual noises, error codes, or failure to start–these indicate a missed connection or faulty part needing replacement.
Critical Safety Checks
Never bypass a thermal fuse or safety switch. If either fails continuity tests, replace it rather than attempting a repair. Verify the drum rotates freely by hand after reassembly–obstruction can cause overheating. For models with a belt drive, ensure the belt sits properly in the pulley groove without slack. Misalignment may cause premature wear or motor strain.
If the appliance still malfunctions after reconnection, consult the technical manual for symptom-specific troubleshooting. Some faults (e.g., broken drive motors) require professional service due to complexity or high-voltage risks. Retain removed parts in labeled bags if further diagnosis is needed.
