Begin by locating the low-noise preamplifier stage on the schematic–typically the first pair of transistors connected to the input terminals. Verify the biasing resistors (often 10kΩ–47kΩ) between the base and emitter to ensure proper thermal stability. Incorrect values here will distort signal linearity, especially at frequencies below 50Hz. Measure the DC offset at the output; it should not exceed ±20mV at idle. If readings exceed this, recalibrate the feedback loop by adjusting the 100kΩ resistor connected to pin 7.
Power supply decoupling is non-negotiable: place a 100nF ceramic capacitor as close as physically possible to the chip’s VCC and GND pins. Skip this, and high-frequency oscillations (200kHz–1MHz) will corrupt the audio path. Test with an oscilloscope–any ringing above 50mV peak-to-peak indicates inadequate decoupling. Swap the capacitor with a 1μF tantalum if noise persists.
For the protection relay driver, isolate the mute pin (pin 8) with a 1N4148 diode to prevent backflow during power-down. The relay coil should draw no more than 50mA–use a 1kΩ series resistor if current exceeds this. Confirm the delay circuit (47μF + 2.2kΩ RC network) holds the relay closed for 2–4 seconds after power-up to avoid speaker pops. Shorten the delay by reducing capacitance if the relay chatters.
Trace the output stage’s bootstrap capacitor (typically 10μF–47μF) to pin 1–its role is to maintain constant current through the output transistors. If distortion appears at high volumes (above 5W RMS), increase this capacitor’s value incrementally until the waveform flattens on an audio analyzer. Avoid values over 100μF, as they’ll slow down transient response.
Solder the input filter components–470pF capacitor and 1kΩ resistor–directly to the input jack, not the board. This prevents RF interference (especially from GSM bands) from reaching the preamp. Omit these, and AM radio stations may bleed into the signal path at levels as low as –60dBV. Ground the filter’s return path to the chassis ground, not the signal ground, to avoid ground loops.
Building a Protection Module: Step-by-Step Wiring
Begin by connecting pin 8 to a 5V regulated supply via a 10kΩ resistor to ensure stable threshold detection. Pin 7 should tie to ground through a 0.1µF ceramic capacitor–this filters noise and prevents false triggering during transient spikes. For input sensing, attach a 10µF electrolytic capacitor between pin 1 and ground to smooth voltage fluctuations, but avoid exceeding 15V at this node or risk permanent IC damage.
Route the output (pin 4) to a relay driver transistor like the PN2222, pairing it with a flyback diode (1N4007) across the coil terminals. Keep relay coil current under 100mA to match the IC’s sink capability. If monitoring AC, use a precision rectifier on the input side–two 1N4148 diodes and a 1kΩ resistor will suffice for signal conditioning without distorting thresholds.
Adjust sensitivity by modifying the resistor network at pin 2. A 47kΩ resistor here sets a typical threshold of ~0.7V; lower values (22kΩ) increase responsiveness but may introduce instability with noisy sources. For battery-powered designs, add a 100nF bypass capacitor across VCC and ground (pins 8 and 5) to suppress ripple from switching loads.
Test continuity by applying a variable voltage to pin 1 while observing pin 4’s state. Transition should occur sharply at ~0.65V–slow toggling indicates incorrect decoupling or insufficient input filtering. For debugging, probe pin 3 with an oscilloscope; it should mirror the input waveform within 500mV of ground during normal operation.
Pin Configuration and Signal Descriptions for the Protection Controller
Begin layout verification by confirming Pin 1 (VCC) operates within a 4.5V to 15V range–exceeding 16V risks permanent latch-up due to internal clamping failure. Bypass this input with a 10µF tantalum capacitor placed within 2mm of the package to suppress high-frequency transients, especially if the supply line exceeds 10cm in trace length.
Pin 4 (Sense) requires a direct Kelvin connection to the load’s return path, avoiding shared ground planes with inductive components like relays or motors. A 1kΩ pull-down resistor here prevents false triggers during power-up sequencing; omit it only if the system uses a dedicated RC delay network (10kΩ + 1µF) to enforce a 10ms quiet period before operation.
Critical Signal Timing Constraints
For Pin 7 (Fault Output), use an open-collector topology with a 4.7kΩ pull-up resistor tied to the logic rail–standard push-pull outputs will fail under short-circuit conditions due to current hogging. This pin asserts low when detecting >200mV across Pin 3 (Output) and Pin 5 (Ground), with a propagation delay of 5µs typical; account for this lag in firmware watchdog routines.
Route Pin 8 (Enable) traces narrower than 0.25mm to reduce capacitive coupling–this input draws less than 50µA, rendering ESD protection diodes unnecessary, but a 100nF ceramic capacitor to ground at the pin entry point minimizes noise-induced shutdowns in high-impedance environments. For complementary devices sharing the same heat sink, isolate Pin 8 with a 1MΩ resistor to prevent thermal runaway during concurrent turn-off events.

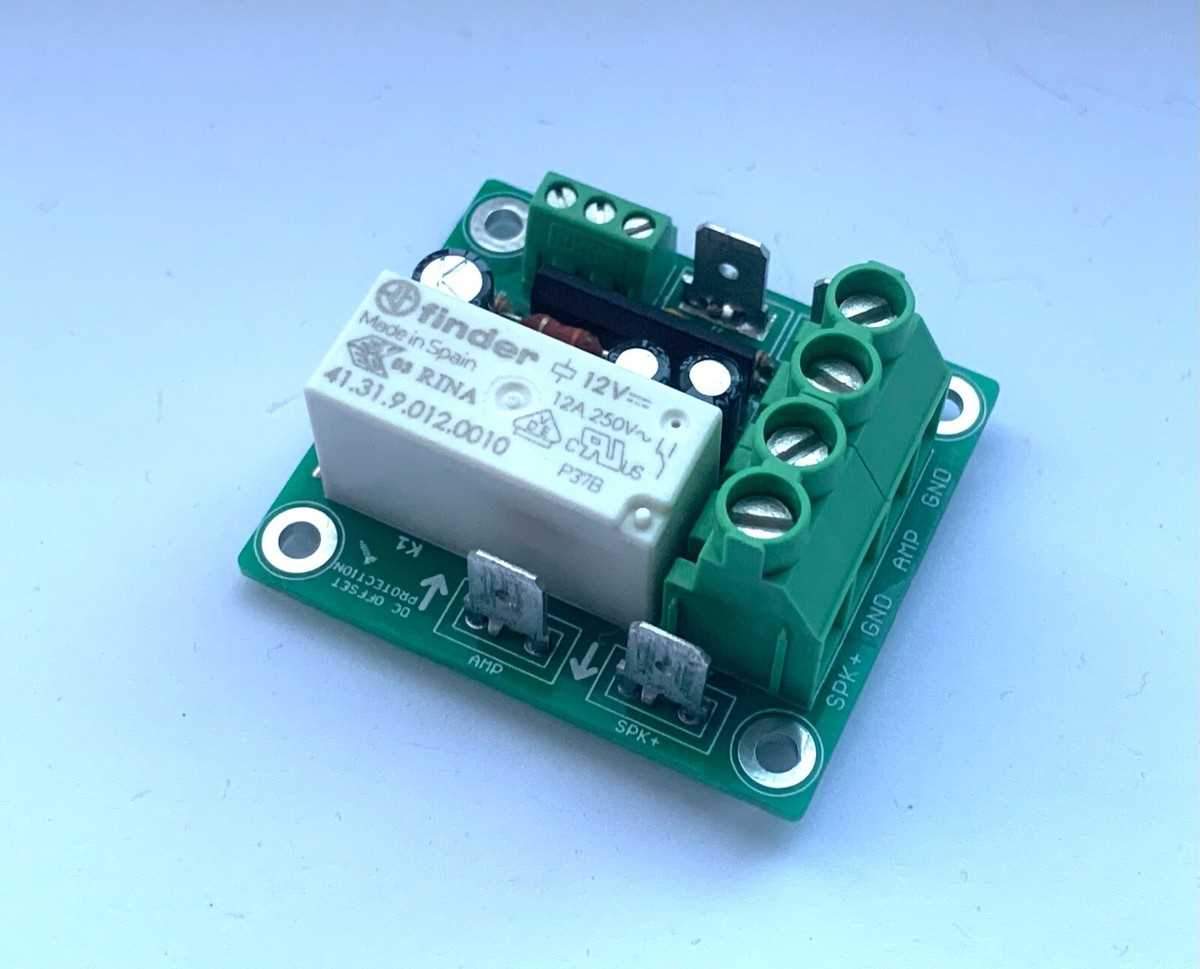

Step-by-Step Assembly of Audio Safety Module
Begin by mounting the protection IC on a perforated board, ensuring pin 1 (marked by a dot or notch) aligns with the schematic’s reference point. Use a 0.8mm drill bit to widen holes for the IC’s leads–standard 1mm spacing may cause misalignment. Secure the chip with a small dab of adhesive on its underside before soldering to prevent movement during reflow. Next, connect the sensing inputs to the speaker terminals via 1N4148 diodes: anode to the amplifier output, cathode to pin 8 of the IC. Add a 10kΩ resistor in parallel with each diode to reduce false triggering from DC offset spikes above ±1.2V.
Integrate these components in sequence:
- Power supply: Bridge a 12V transformer to a full-wave rectifier (4x 1N4007), followed by a 1000µF/25V capacitor for smoothing. Regulate voltage to 9V with a 7809 if input exceeds 15V.
- Delay network: Connect a 47µF electrolytic capacitor between pin 6 and ground, pairing it with a 1MΩ resistor to set a 4-second turn-on delay.
- Relay driver: Link pin 5 to a 2N2222 transistor base via a 1kΩ resistor; the emitter goes to ground, collector to a 12V relay coil (e.g., Omron G5V-1). Place a flyback diode (1N4007) across the coil, cathode to +12V.
- LED indicators: Wire a red LED (with a 470Ω series resistor) from pin 7 to +9V for fault status, and a green LED across the relay contacts to confirm normal operation.
Pierce the board with a 1.2mm bit at relay contact points to accommodate 18AWG wire; solder directly to avoid intermittent connections under load. Verify all polarities before powering up–reverse voltage on the electrolytic capacitors will rupture them instantly. Test the assembly by applying a 1.5V DC signal to the speaker inputs; the relay should disengage within 50ms, cutting output to the speakers.
Key Resistance and Capacitance Parameters for Overcurrent Sensing in Protection Modules
Optimal threshold activation requires a 47kΩ resistor (Rth) paired with a 2.2µF detection capacitor (Cd). These values ensure a 200ms response window at 1.2A overload, balancing speed and false-trigger immunity. Deviations beyond ±10% risk either premature trips or excessive delay, particularly under transient inrush conditions like motor startup or capacitive load switching.
For sensitivity adjustment, replace the feedback resistor (Rf) with values between 10kΩ–100kΩ. Lower resistance (low-power ( where nuisance tripping isn’t critical. Conversely, 82kΩ–100kΩ dampens response for high-current (>20A) applications like server PSUs, where brief surges must be disregarded. Pair Rf with a 0.1µF compensation cap to stabilize the comparator stage.
Timing Constants and Hysteresis
The 180kΩ hysteresis resistor (Rh) prevents output chatter during marginal overloads. With Rh at 180kΩ, the trip point shifts by ~15%, creating a clean release threshold. Halving Rh to 91kΩ increases hysteresis to ~25%, useful for noisy environments (e.g., brushless motor drives), but risks delayed recovery post-fault. Always verify Rh’s tolerance (±5%)–excessive deviation erodes safety margins.
Delay capacitors (Cd) must use X7R dielectric for temperature stability. A 1µF cap introduces ~80ms delay, while 4.7µF extends it to ~350ms. For fast-blow requirements (e.g., lithium battery protection), combine 1µF Cd with a 1kΩ output resistor to accelerate MOSFET gate discharge. Avoid electrolytics–their leakage current skews timing, especially at high temperatures.
Thermal and Load Interactions
Thermal derating curves show the detection chip’s sensitivity drifts ~0.3%/°C above 85°C. To compensate, reduce Rth by 5kΩ per 20°C ambient increase. For instance, at 105°C, target 33kΩ for consistent 1.2A tripping. In high-impedance loads (
Test with a 1kHz 10% duty-cycle pulse train simulating real-world transients. If the module fails to trip within 5 cycles, increase Cd by 0.5µF increments until consistent behavior is achieved. Document final values alongside bench validation–production tolerances (±20% on passive components) demand derating for worst-case scenarios.
Fault Output Handling and Reset Logic in Protective Relay Schematics
Integrate a dual-threshold comparator for fault detection with hysteresis to prevent false triggering from transient noise. Use a 74HC14 Schmitt trigger inverter between the comparator output and the latch input to ensure clean edge transitions–configure hysteresis at 15% of reference voltage (Vref) to reject ±50mV spikes. Connect the latch (74HC74) to a watchdog timer (NE555 in monostable mode) set for 10ms pulse width; this guarantees a controlled reset even if the fault persists. Route the fault signal through an optocoupler (PC817) with a 1kΩ series resistor to isolate the microcontroller from high-voltage transients–specify a CTR of ≥50% at 5mA forward current.
| Component | Parameter | Value |
|---|---|---|
| Schmitt trigger (74HC14) | Hysteresis (min) | 0.3V @ 5V supply |
| Optocoupler (PC817) | Isolation voltage | 5kV (rms) |
| Watchdog timer (NE555) | Timing capacitor | 100nF ±5% |
| Latch (74HC74) | Setup time | 20ns @ 25°C |
Configure the latch’s asynchronous clear pin with a RC network (10kΩ + 1µF) to enforce a 10ms debounce delay after power-up–this prevents spurious resets during supply stabilization. Implement a manual override switch (push-button, debounced with 1µF capacitor) to allow forced reset without cycling power. Pull the latch’s data input high via 10kΩ resistor to ensure default fault-free operation; connect its Q̄ output to a MOSFET (IRLML6401) sinking the fault LED current–limit LED current to 5mA using a 680Ω series resistor for 3.3V logic levels.
