How to Read and Design an Op-Amp Schematic for Circuit Applications

Select an active component with a differential input pair and single-ended output to ensure high-gain stability. Prioritize models with a common-mode rejection ratio (CMRR) above 90 dB and open-loop gain exceeding 100 dB for low-frequency applications. For example, the LM358 offers adequate performance for general-purpose tasks, while the OPA2188 excels in high-precision measurements with input bias currents below 50 pA.

Configure the feedback network using 1% tolerance resistors to maintain linearity. Use a non-inverting configuration for impedance-sensitive inputs, pairing a 10 kΩ resistor at the input with a 100 kΩ feedback resistor to achieve a gain of 11 V/V. For inverting setups, ensure the feedback resistor is at least 10× the source impedance to minimize loading errors. Capacitors in parallel with feedback resistors (C_f ≈ 10–100 pF) suppress high-frequency noise without compromising bandwidth.

Avoid ground loops by star-point grounding near the power supply pins. Decouple the supply rails with 10 µF tantalum capacitors in parallel with 0.1 µF ceramic capacitors to filter low and high-frequency transients, respectively. For dual-supply designs, maintain symmetry within 5% between positive and negative rails to prevent offset drift. Test stability by injecting a 1 kHz sine wave; phase margin should exceed 45° at unity gain.

Optimize input protection with Schottky diodes (e.g., BAT54) clamping the inputs to the rails ±0.3 V to prevent latch-up during transient overvoltages. For high-speed applications, reduce parasitic capacitance by keeping trace lengths under 2 cm and using surface-mount components exclusively. Verify slew rate with a 5 V_pp 100 kHz square wave; rise/fall times should remain under 1 µs for standard models like the TL072.

Key Components of Precision Gain Blocks

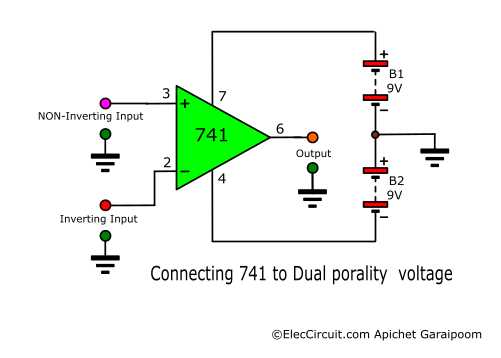

Start with a dual-supply configuration for symmetrical signal handling–typical voltage rails at ±15V or ±12V ensure minimal distortion in bipolar inputs. Ground the non-inverting input through a resistor matching the impedance of your sensor or preceding stage to reduce offset currents.

Use a feedback network with 1% tolerance resistors for stable gain calculation: Rf/Rin defines closed-loop magnification. For example, 10kΩ Rin and 100kΩ Rf yield 11x gain–verify with a simulation before prototyping to spot phase margin issues in high-frequency applications.

Bypass capacitors (0.1μF ceramic) at each power pin to ground prevent high-frequency noise from coupling into sensitive nodes. Place them within 2mm of the IC pins to avoid parasitic inductance–long traces can negate filtering effects.

Add a small capacitor (10–100pF) across the feedback resistor to compensate for parasitic pole effects, particularly in circuits amplifying signals above 10kHz. This prevents overshoot and ringing while maintaining a clean edge in square-wave responses.

For unity-gain buffers, short the output directly to the inverting input but include a 20–50Ω isolation resistor in series with the output to prevent instability when driving capacitive loads like coaxial cables. Test with a 1nF load to confirm stability margins.

Thermal considerations dictate copper pour areas under the IC–allocate at least 50mm² of 2oz copper on both top and bottom layers for devices dissipating over 1W. Avoid narrow traces on high-current paths, as voltage drops can exceed tolerance limits in precision designs.

Validate the circuit with a known reference: apply a 0.5Vpp 1kHz sine wave and measure output distortion with an FFT analyzer. Total harmonic distortion should remain below 0.01% for medical-grade instrumentation–higher values indicate poor grounding or component mismatches.

Critical Parts of Analog Signal Boosters in Circuit Layouts

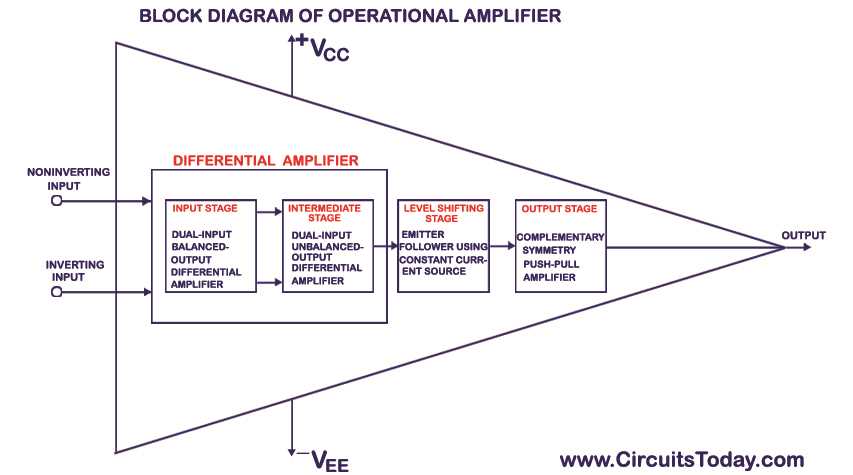

Begin with the differential input stage–its precision resistors (typically 10 kΩ–1 MΩ) define gain accuracy and noise rejection. Use a matched transistor pair (e.g., NPN 2N3904) for symmetrical signal handling, ensuring 20 nH) triggers parasitic ringing at frequencies above 1 MHz.

Core Elements and Their Schematic Roles

Component	Value/Type	Placement Rule	Failure Impact
Input resistors	10 kΩ–1 MΩ, 1% tolerance	Directly adjacent to inverting/non-inverting pins	Gain error >5%, CMRR drop by 3 dB
Feedback network	Resistor + capacitor (e.g., 100 kΩ || 10 pF)	Closes loop at output pin,	Phase margin
Power decoupling	1–10 µF tantalum + 0.1 µF ceramic	Parallel,	Supply noise coupling >10 mV pk-pk
Output stage	Push-pull transistors (e.g., complementary MOSFETs)	Separate traces for high/low sides, 1 oz copper	Crossover distortion >0.5%, THD rise

Ground the noninverting input via a dedicated star point; shared grounds cause >20 mV offset at 1 kHz. For rail-to-rail variants, add 1 kΩ series resistors to protection diodes to limit fault currents to

Step-by-Step Guide to Drawing a Basic Solid-State Gain Block Layout

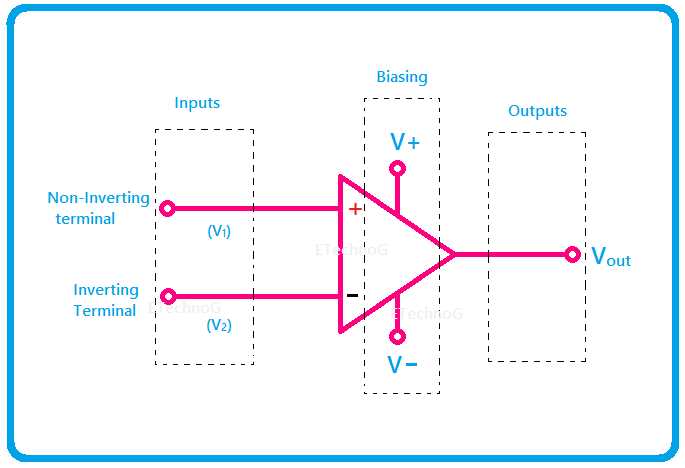

Sketch the inverting input on the left side as a single line intersecting the symbol’s body at a 45-degree angle, labeling it Vin-. Place the non-inverting input (Vin+) symmetrically on the opposite side, ensuring both inputs are equidistant from the centerline. Use a triangle with its apex pointing right for the main body–standard conventions position power pins at the top (+VCC) and bottom (-VEE). Keep pin spacing consistent: 0.2 inches for through-hole, 0.1 inches for SMD pads where traces will later attach.

Critical Connections and Annotations

• Draw the output node at the triangle’s tip, extending it 0.3 inches rightward for clarity. Add a feedback resistor (Rf) between this node and the inverting input, using dashed lines if virtual ground simulation is needed.
• Annotate component values directly above traces. For a unity-gain buffer, use Rf = 0Ω; for a 10× gain, set Rf = 90kΩ and Rin = 10kΩ. Include a 0.1μF decoupling capacitor
• Highlight the offset-null pins (if present) with thinner 0.3pt lines; these require 10kΩ trimpots in precision circuits. Avoid crossing signal paths–reroute power lines above the symbol if necessary.

Scan the draft for symmetry: inputs should mirror each other about the vertical axis, and the output must align horizontally with the triangle’s center. Print the layout at 1:1 scale on 100 gsm paper, then probe connections with a multimeter’s continuity mode to catch unintended bridges. For CAD tools, export as DXF with layer assignments–red for signals, blue for power, and green for feedback loops–to prevent fabrication errors.

1. Verify pin numbering against the datasheet–common errors include transposing +VCC and -VEE. Test the network by applying a 1kHz sine wave at 50mV_pp to Vin+ while probing Vout; expect phase inversion only at the inverting terminal.
2. Finalize by adding a ground reference symbol below the symbol–use three short horizontal lines narrowing downward. Save versions at each revision: v1_initial, v2_power, v3_feedback, to track incremental fixes.

Common Feedback Networks and Their Impact on Gain Calculation

Use non-inverting configurations with resistive feedback to achieve precise closed-loop gain. For a basic voltage divider feedback (R1 in series with R2 to ground), gain stabilizes at A_cl = 1 + (R2/R1). Keep R1 below 10kΩ to minimize noise while avoiding loading effects. Values too high increase sensitivity to parasitic capacitance, distorting frequency response.

Inverting setups require careful resistor matching. The gain formula A_cl = -Rf/Rin assumes ideal conditions, but real-world tolerances (±1% or worse) introduce errors. For ±5% accuracy, use 0.1% tolerance resistors or trimmer pots. Capacitive feedback (C in parallel with Rf) creates frequency-dependent gain, useful for active filters, but calculate corner frequency f_c = 1/(2πRfC) to avoid instability.

Critical Design Considerations

• Input impedance: Non-inverting inputs see high impedance (~Rin || Rf), while inverting inputs appear as Rin. For signals with impedance >1kΩ, buffer inputs with a voltage follower or increase Rin.
• Output loading: Ensure Rf + Rload > 2kΩ; lower values distort gain linearity. Use I_out_max = V_out_max / (Rf + Rload) to verify current compliance.
• Thermal drift: Metal-film resistors (TCR 200 ppm/°C) for DC-accurate designs.

T-network feedback (R1-R2-R3) replaces a single large Rf with smaller resistors, reducing noise and board area. Calculate effective feedback resistance: Rf_eff = R1 + R2 + (R1*R2/R3). This topology suits high-gain applications (>100×) where single resistors would exceed E96 series values or introduce layout parasitics.

Frequency-compensated networks combine resistors and capacitors. A lead-lag network (Rf with Cf in parallel) improves phase margin for unity-gain stable ICs. Set Cf = 1/(2π*Rf*GBW) where GBW is the gain-bandwidth product (e.g., 1MHz for general-purpose types). For TI’s OPA2188 (GBW=2MHz), Cf=8pF with Rf=10kΩ optimizes response.

1. For discrete-time applications (e.g., sample-and-hold), replace resistive feedback with switched-capacitor networks. Charge transfer via clocks yields gain A_cl = -C1/C2. Clock feedthrough and charge injection errors scale with capacitor size–use poly-poly or MIM caps >1pF for 0.1% precision.
2. In transimpedance stages (current-to-voltage conversion), feedback resistance Rf sets sensitivity. Combine with a small Cf (Cf = 0.5*sqrt(C_in/Rf) where C_in is diode + trace capacitance.
3. Differential feedback networks (two Rf/Rin pairs) reject common-mode signals but halve noise gain. Verify matching with ΔA/A = (ΔR1/R1) + (ΔR2/R2); mismatches >0.5% degrade CMRR below 60dB.
