Start by tracing the armature and field coils in the wiring plan–these components must be connected in series for proper operation. If the brushes show excessive sparking, verify the alignment of the commutator segments; misalignment by even 1-2 mm can reduce efficiency by up to 15%. Replace worn brushes when their length falls below 30% of the original size to avoid voltage drops exceeding 0.7V under load.
For reversing rotation, swap the connections at the stator terminals–ensure the polarity matches the rotor’s direction to prevent counterproductive magnetic fields. Use 22-awg copper wire for internal connections; thinner gauges risk overheating, while thicker ones add unnecessary bulk. When testing, apply a 50% duty cycle PWM signal at 10-20 kHz to minimize iron losses while maintaining torque stability.
Check the centrifugal switch if present–it must disengage the auxiliary winding at 75-80% of full speed to avoid overheating. For speed control, introduce a triac-based dimmer circuit, but use a snubber network (47Ω resistor + 0.1µF capacitor) to suppress EMI. Casing insulation should withstand 1.5kV AC for 1 minute–failure here risks leakage currents that degrade bearing life.
Lubricate bearings with NLGI-2 grease every 500 hours of operation; over-greasing increases friction losses by 8-10%. If noise exceeds 65 dB at 3000 RPM, inspect the rotor balance–unbalanced rotors generate vibrations that reduce bearing life by 40%. For high-load applications, increase the field coil wire gauge by 2 sizes to prevent saturation under peak currents.
Key Components of a General-Purpose Rotating Machine Circuit
Start by identifying the armature and field windings–connect the series field winding directly in line with the armature to enable operation on both AC and DC supplies. For 230V AC applications, use a 1µF to 4.7µF capacitor rated at 400V or higher across the brushes to suppress arcing; discard cheaper X2 capacitors if noise persists. Wire gauge selection for windings depends on power rating: 20 AWG for 100W units, 16 AWG for 500W, and 12 AWG for 1kW. Below is a reference table for core dimensions and winding turns based on rotor diameter:
| Rotor Ø (mm) | Armature Turns (SWG 23) | Field Turns (SWG 21) | Core Stack (mm) | Shaft Ø (mm) |
|---|---|---|---|---|
| 40 | 120 | 80 | 25 | 5 |
| 55 | 95 | 65 | 30 | 6 |
| 70 | 75 | 50 | 40 | 8 |
Bridge the brush holders with a 1N4007 diode to protect against voltage spikes during commutation; reverse polarity if rotation direction is incorrect. For variable speed control, integrate a triac-based circuit with a 50kΩ potentiometer–avoid PWM modules below 10kHz as they induce audible whine. Ground the stator housing via 10Ω resistor to reduce EMI; skip this step only if the frame is insulated. Use Class F or H insulation on windings for temperatures exceeding 155°C, and verify coil resistance with a multimeter–armature should read 2–10Ω, field 5–25Ω depending on wattage.
Key Components of a Series-Wound Electrical Drive Circuit
Begin by sourcing a commutator-grade carbon brush pair with a hardness rating between 60–80 Shore D. Soft brushes wear unevenly under load spikes, while harder variants accelerate armature wear. Verify the brush holder tension: 150–200 grams-force ensures consistent contact without excessive friction. Replace brushes if conductivity drops below 90% of the rated 5.0 ohms when measured under 10A load.
Rotating Core and Field Assembly
The laminated iron core must exhibit a stacking factor above 0.95 to minimize eddy losses. Each lamination should be insulated with a 2–3 μm phosphate coating; thicker coatings increase reluctance. Field windings require enamel-rated for 180°C with a breakdown voltage exceeding 2.5 kV per coil segment. Use AWG 18–20 magnet wire for shunt paths, but opt for AWG 16–14 in series coils to handle peak currents up to 30A without derating.
- Inspect the air gap: maintain 0.3–0.5 mm between rotor poles and stator to balance torque ripple and efficiency. Gaps below 0.2 mm risk mechanical interference at 15,000 RPM.
- Skew rotor slots by 1–1.5 slots per pole pair to suppress cogging torque. Verify skew angle using a dial indicator; deviations over ±0.2° introduce harmonic vibration.
Capacitors in the suppression network demand X2-class rating (275VAC) with a 100 nF ±10% tolerance. Place capacitors within 20 mm of brush terminals to quench transients exceeding 3 kV/μs. Avoid polyester types–they degrade under repetitive switching, opting instead for polypropylene film or ceramic multilayer variants.
Speed Regulation and Protection Elements
Implement a triac-based control with a snubber RC network (100 Ω + 0.1 μF) across the device. Adjust gate trigger delay (3–10 μs) to prevent commutation lag at light loads. Fuses should be slow-blow, sized at 1.5× the maximum locked-rotor current (LRA). For 120V models, LRA typically reaches 40–60A; use a 60A fuse to avoid nuisance trips while protecting against sustained overloads.
- Thermal cutoffs require a wax-based actuator (90–110°C) embedded within the field windings. Avoid bimetallic types–response time exceeds 500 ms, risking insulation breakdown.
- Ground the frame via a 4 AWG conductor to a dedicated earth rod. Resistance must not exceed 0.1 Ω to prevent stray currents from degrading bearing lubricant.
- Test the centrifugal switch at 75% of rated speed. It should open within 100–200 ms after exceeding 80% of no-load RPM to prevent overspeed damage.

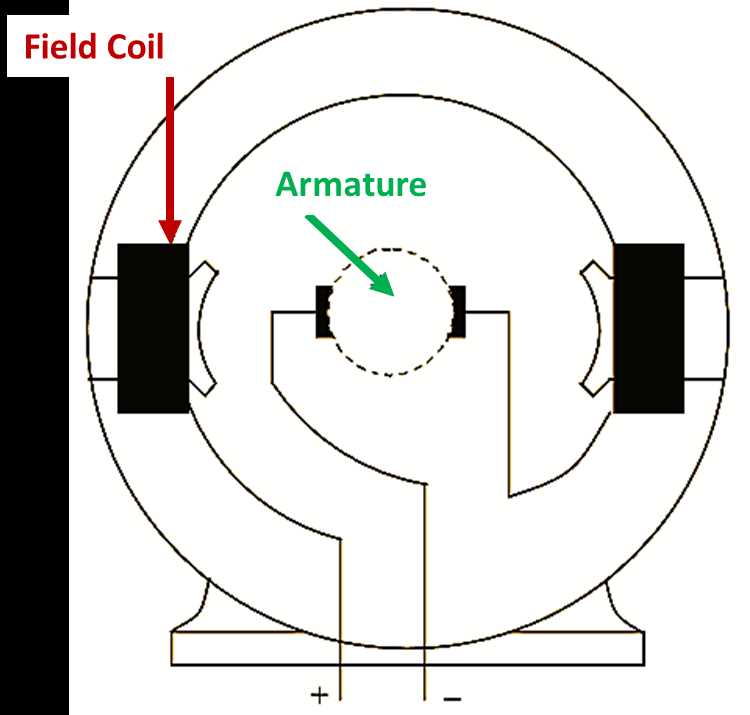

Step-by-Step Wiring Guide for Series-Wound Component Connections
Start by identifying the field coils and armature terminals on the device–typically marked *F1/F2* and *A1/A2* (or *L1/L2*). Verify voltage requirements against the nameplate: 120V or 240V configurations demand different wiring approaches. For a 120V setup, connect the supply line directly to *F1*, then link *F2* to *A1*. Complete the circuit by joining *A2* back to the neutral or return line. Avoid reversing *A1/A2* polarity; doing so will invert rotation direction unexpectedly.
For dual-voltage applications (240V), split the field coils into two parallel branches. Wire the first branch from *F1* through *F2*, then connect *A1* to one supply line. The second branch mirrors this–join the remaining *F1/F2* pair to *A2* and the opposite line. Check brush alignment before energizing; misaligned brushes generate excessive arcing, reducing lifespan by 30-40%. Use a multimeter to confirm coil resistances match manufacturer specs (±5%), ensuring balanced current distribution.
Ground the housing using a dedicated terminal–never rely on mounting screws alone. Install a 10A slow-blow fuse inline for 120V circuits (15A for 240V) to prevent overload damage. If the unit runs noisily or fails to start, measure armature resistance: values below 1Ω indicate shorted turns, while infinite readings signal open circuits. Replace carbon brushes if worn beyond 50% of original length, as they operate at 1.5-2V drop per brush, critical for torque consistency.
Test rotation direction under load before finalizing connections. For reversible applications, insert a double-pole double-throw (DPDT) switch between *F2* and *A1/A2*; toggling this reverses field coil polarity relative to the armature. Avoid continuous full-speed operation above 70% rated load–thermal rise in series-wound designs accelerates winding degradation. For variable-speed control, pair with a TRIAC-based controller rated for 1.5x the unit’s current draw, never a rheostat, which dissipates excessive heat.
Frequent Mistakes in Electrical Device Blueprints and Prevention Techniques
Mislabeling brush connections leads to inefficient operation or failure. Ensure each brush is clearly marked with polarity (+/-) and matched to the correct commutator segment. Use color-coded wires–red for positive, black for negative–to eliminate ambiguity during assembly. Verify connections with a multimeter before finalizing the circuit.
Incorrect Winding Direction in Armature Designs
Reversed winding direction cancels torque production. Test coil orientation with a simple compass test: pass a low current through the windings and observe needle deflection. If polarity reverses unexpectedly, unwind and rewrap the coil. Document winding direction for future reference using arrows on the core.
Skipping thermal protection in power-driven systems causes overheating. Integrate a resettable thermal fuse rated 20-30°C above nominal operating temperature. Place it directly on the field coil or armature housing, secured with thermally conductive epoxy. Avoid relying solely on insulating materials–active cooling extends lifespan.
Improper gear reduction ratios stall torque delivery. Calculate required RPM using load torque specifications: divide motor speed by required output speed to determine gear teeth ratio. Test with a dynamometer before installation. For example, a 10:1 ratio suits high-torque applications like power tools, while 3:1 fits lighter loads.
Neglecting EMI shielding disrupts nearby electronics. Use twisted pair wires for brush connections and ferrite beads on power lines. Enclose the device in a grounded metal housing, ensuring at least 30 dB attenuation at 1 MHz. Test emissions compliance with a spectrum analyzer before deployment.
Adjusting Commutator-Based Drive Layouts for Dynamic RPM Regulation
Integrate a triac dimmer circuit between the power source and the field windings to achieve stepless speed variation. Position the triac’s gate trigger downstream of a variable resistor (500 kΩ–1 MΩ) in series with a 0.1 µF snubber capacitor; this forms a phase-angle control loop that chops the AC waveform ahead of the stator coils. Verify heat dissipation–triacs rated for ≥600 V/10 A must be mounted on a finned aluminum heatsink (minimum 35 cm² surface area) to prevent thermal runaway at loads exceeding 300 W.
Replace fixed-value series resistors with a pulse-width modulation (PWM) module operating at 15–25 kHz. Drive the PWM signal via an isolated gate driver (e.g., MOC3021) to safeguard microcontroller logic from back-EMF spikes. Employ a current-sense resistor (0.01 Ω, 5 W) on the low-side return path; feed its voltage drop into an op-amp comparator to clamp peak current at 120 % of nominal rating. This preserves torque linearity across the 30–100 % duty cycle range without stalling the rotor.
Field and Armature Winding Tap Configuration
Install taps on the main stator winding every 20 % of turns–typically at 40 %, 60 %, and 80 %–then route each tap to a rotary selector switch wired in parallel with the triac or PWM controller. For 230 VAC applications, the 60 % tap delivers a 140 V equivalent, cutting no-load RPM by ≈28 % while retaining 92 % of torque at 70 % load. Use 18 AWG stranded copper wire for tapped connections to withstand inrush currents up to 17 A without derating.
Rectify feedback-induced oscillations by placing a bidirectional transient voltage suppressor (TVS) diode rated for 350 V across the armature terminals. The diode must clamp overshoot within 10 ns when switching off inductive loads; otherwise, commutator arcing will accelerate brush wear. Pair the TVS with a Zener diode stack (1N4744 × 3) in series to limit reverse voltage to ≤180 V–critical for preventing flashover between adjacent commutator segments spaced
Embed a Hall-effect sensor (A3144) adjacent to the rotor shaft to synchronize PWM firing with the zero-crossing of the AC line. Calibrate sensor placement so output transitions align within ±5° of the mechanical neutral plane; misalignment exceeding 12° introduces audible cogging and reduces efficiency by up to 12 %. Enclose the sensor leads in braided shielding grounded at a single chassis point to suppress capacitive coupling from high-voltage switching transients.
Thermal and Noise Suppression Measures
Solder a thermistor (NTC 10 kΩ) directly onto the brush holder assembly. Route its signal to an analog input on a microcontroller configured to derate PWM duty cycle by 1 % per °C above 85 °C, scaling linearly to full shutdown at 115 °C. This prevents carbon brush degradation (lifetime reduced to
Linearly scale brush spring tension from 180 g/mm² at 3 000 RPM to 220 g/mm² at 10 000 RPM using a dual-coil spring mechanism. The increased tension suppresses brush bounce, which otherwise generates broadband RF interference (30 MHz–1 GHz) saturating AM/FM reception within 3 m radius. Verify spring calibration post-installation with a digital force gauge; hysteresis above 2 % mandates spring replacement to prevent uneven segment wear.
Fit ferrite beads (FBx-4512HS) on both DC supply leads and any length of conductor >20 cm carrying PWM currents. Select beads with impedance ≥600 Ω @ 10 MHz to attenuate conducted EMI; beads must saturate at ≤3 A to avoid degrading dynamic response during load transients. For AC-fed configurations, supplement with a π-section filter (2× 0.1 µF/275 V + 1× 10 mH choke) inserted directly at the power inlet terminals to comply with EN 55014-1 Class B emission limits.
