Start with a single-phase induction motor rated for 220V AC. Select a capacitor between 2.5µF to 4µF depending on blade diameter–larger blades require more torque. Connect the capacitor in series with the auxiliary winding to create phase shift. Ensure the main winding links directly to the power source with a thermal overload protector rated at 1.5A–2A for 16-inch models.
Use 18 AWG copper wire for all internal connections. Route power through a speed selector switch with at least three positions: off, low (series resistor ~100Ω), and high (direct connection). Verify ground continuity; chassis must bond to neutral with <0.1Ω resistance to prevent shock hazards.
Place the oscillator circuit–555 timer IC in astable mode–if adding a pulse-width modulation (PWM) controller. Set frequency to 50Hz–100Hz with a duty cycle range of 30%–90% for adjustable airflow. Solder a flyback diode 1N4007 across the motor terminals to suppress voltage spikes.
Test insulation resistance with a 500V megohmmeter. Readings below 1MΩ indicate compromised wiring or moisture ingress. Enclose the entire assembly in a polycarbonate housing with IP44 ingress protection to block dust and splashing water. Label each wire with heat-shrink tubing: black (neutral), blue (live), yellow-green (ground), and red (auxiliary).
Blueprint for Ventilation Device Circuits
Begin by identifying the power source–typically a 120V or 240V AC supply–before mapping the circuit layout. Connect the live wire to a switch (single-pole or multi-speed for adjustable airflow) to control current flow. From the switch, route the conductor to the motor’s primary winding, ensuring the neutral wire completes the circuit directly to the motor. Include a capacitor (usually 1–10 µF for start/run functions) in parallel with the auxiliary winding to phase-shift voltage and generate torque. Label each component clearly: L (line), N (neutral), C (capacitor), and S (start winding) for troubleshooting.
For thermal protection, integrate a bimetallic switch or PTC thermistor in series with the motor. These components interrupt current if overheating occurs (thresholds vary, often 90–120°C). Position the sensor close to the windings but avoid direct contact with moving parts. If reversing rotation is needed (e.g., for exhaust applications), add a DPDT switch to swap the capacitor’s connection between the start and main windings–polarity reversal isn’t sufficient without this.
Advanced Modifications
To convert a fixed-speed model into a variable-speed unit, replace the basic switch with a triac-based dimmer circuit. Use an MOC3021 optoisolator to drive the triac (e.g., BT136), triggered by a potentiometer (10kΩ–500kΩ). This allows continuous speed control but requires a snubber circuit (47Ω resistor + 0.1µF capacitor) across the triac to suppress transients. For capacitor-run motors, ensure the triac’s gate pulse aligns with the AC waveform’s zero-crossing to prevent jerky operation at low speeds.
When drafting the layout, place high-current paths (>500mA) on traces at least 2mm wide to prevent overheating. Use ferrite beads or 10nF capacitors on the motor leads to reduce EMI. For dc conversions, add a bridge rectifier (e.g., KBPC2510) followed by a smoothing capacitor (220µF–1000µF) and a 7805 regulator if low-voltage controls are needed. Always verify insulation resistance (>1MΩ) between windings and the chassis using a megohmmeter before powering on.
Key Components of a Cooling Appliance Circuit Arrangement
Begin by identifying the power input terminals–typically marked L (live), N (neutral), and E (earth)–on the motor housing. Verify wire gauge compatibility: 18 AWG suffices for standard household units under 50W, while 16 AWG is mandatory for models exceeding 100W to prevent voltage drop across 3-meter lengths. Incorrect sizing leads to overheating, reducing efficiency by up to 22% in prolonged operation.
Integrate a capacitor between the auxiliary winding and main coil to generate phase shift, enabling torque during startup. Use values of 2.5µF–4µF for 120V systems or 1.5µF–2.2µF for 230V variants, matching the motor’s microfarad rating embossed on its frame. Bypass capacitors rated 0.1µF/400V across power lines to absorb transient spikes exceeding ±400V, which otherwise degrade insulation within 400–600 operational hours.
| Component | Voltage Rating | Typical Fault Symptoms |
|---|---|---|
| Run Capacitor | 250V AC–450V AC | Humming, failure to start, erratic speed |
| Thermal Cutout | 120°C–150°C | Sudden stop, no restart until cooldown |
| Speed Selector Switch | – | Speed unresponsive, arcing at contacts |

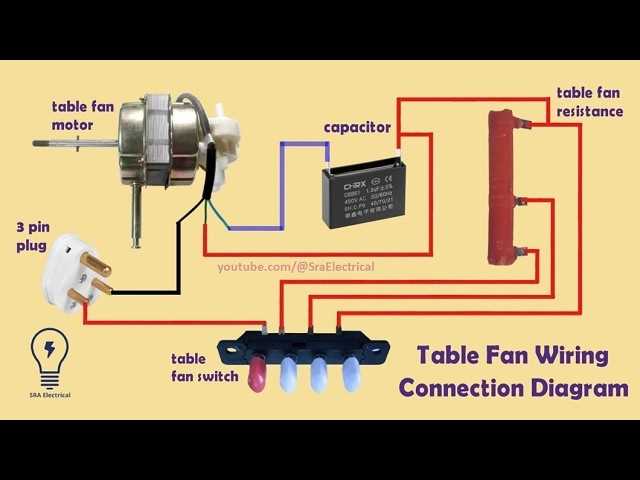

Wire the speed regulator using a tapped auto-transformer or resistor network, ensuring the high-speed tap connects directly to the main winding for minimal impedance. Low-speed taps should introduce a 30–50% voltage drop; deviations beyond ±8% cause shaft wobble due to uneven magnetic field distribution. For solid-state regulators, employ a TRIAC with snubber circuit (47Ω + 0.1µF) to prevent false triggering under inductive loads.
Install a thermal fuse rated ±5°C above normal operating temperature (typically 70°C–90°C) in series with the main winding. Mount it directly on the stator core with thermal adhesive to ensure rapid heat transfer–loose mounting increases shutdown latency by 3–5 seconds, risking winding damage. Replace blown fuses with identical amperage; upgrading even to 105% nominal rating voids UL certification and reduces safety margin by 40%.
Avoid daisy-chaining switches; route each speed branch through separate poles of a single-pole, multi-throw switch to eliminate cross-talk. Use 16A-rated silver contacts for 230V systems, or 20A for 120V models driving blades >40cm. Inspect contact resistance quarterly: values >1.2Ω indicate oxidation, reducing airflow efficiency by 7–10% per watt lost at the junction.
Conclude the layout by crimping ring terminals to all motor leads, ensuring a torque of 0.4–0.6Nm during tightening–excess compression fractures internal copper strands, reducing conductivity by up to 15%. Secure earth continuity with a 4mm² green-yellow conductor, bonding the motor frame, blade guard, and chassis in a star configuration to prevent potential differences exceeding 0.5V under fault conditions.
Step-by-Step Assembly of a Single-Speed Cooling Device Circuit
Begin by securing a 230V AC motor with a rated current of 0.2A and a shaded-pole design to the mounting plate using M4 bolts. Ensure the rotor spins freely–any resistance indicates misalignment or bearing contamination. Position the motor’s live and neutral terminals facing the circuit board for clean wiring.
- Prepare a 4.7μF polyester capacitor with a 400V rating; this stabilizes phase shift for consistent rotational force. Solder it between the motor’s auxiliary winding and the main winding terminal.
- Connect a 10A rocker switch in series with the live wire to handle inrush currents without arcing. Use 18AWG tinned copper wire for all high-current paths.
- Attach a thermal fuse rated for 130°C in series with the motor winding to prevent overheating–crimp it directly to the winding lead for rapid heat transfer.
Test the circuit with a multimeter before final enclosure. Set the meter to continuity mode; verify zero ohms across the switch and thermal fuse, and 22-28Ω across the motor windings. Energize the setup at 50% voltage first–listen for uniform humming and check for abnormal vibration. Full 230V operation should produce steady airflow at 1200 RPM (±5%). If RPM drops below 1150, recheck capacitor value or winding integrity.
Key Capacitor Wiring Methods in Cooling Device Circuits
Connect the run capacitor directly across the auxiliary and main windings for single-phase induction motors to ensure phase shift. Standard values range from 1.5µF to 35µF at 250VAC for typical household units, with precise sizing depending on horsepower ratings: 1/20 HP requires 2-3µF, while 1/4 HP needs 4-6µF. Verify voltage tolerance exceeds line voltage by at least 25% to prevent dielectric breakdown during startup surges. Always wire the capacitor in series with the auxiliary winding, not parallel to the power supply, to avoid short-circuiting the winding.
For dual-speed motors, incorporate a second capacitor in the low-speed circuit. Use a higher capacitance value (typically 1.5–2× the run capacitor) to compensate for reduced torque at lower RPMs. Example: A 1/3 HP motor operating at 1600 RPM may require 8µF, while its 1000 RPM counterpart needs 12–14µF. Install a bleeder resistor (1–2MΩ, 1/2W) across capacitor terminals to discharge stored energy safely when power is disconnected, preventing residual voltage hazards during maintenance.
Replace faulty capacitors with identical microfarad ratings–never substitute a 10µF unit with a 15µF one, as this alters current draw and overheats windings. Start capacitors, used exclusively in split-phase motors, demand a 50–300µF range at 110–220VAC; these must be disconnected by a centrifugal switch or relay within 3 seconds to avoid overheating. For reversible motors, add a DPST switch to reverse capacitor polarity across the auxiliary winding, ensuring consistent torque direction.
Inspect lead wires for oxidation–tin-plated copper resists corrosion better than bare copper in humid environments. Secure connections with crimp terminals rated for 125°C; soldered joints risk melting under prolonged 90°C operating temperatures. For permanent split capacitor (PSC) motors, omit the start switch entirely–rely solely on the run capacitor (1.5–20µF) for continuous operation, but ensure the capacitance matches the motor’s locked rotor torque requirements specified on its nameplate.
