For a dual-rate blower requiring 120V AC input, use a three-wire setup: line (hot), neutral, and low-speed tap. Connect the line wire to the common terminal, neutral to the opposite end of the winding, and the low-speed tap to an intermediate point on the stator coil. This arrangement reduces rotational force by approximately 30-40% while maintaining torque stability. Ensure the low-speed tap wire gauge matches the primary conductors–typically 16 AWG for 5A loads–to prevent voltage drop.
Capacitor selection differs between rates: a 5-7.5 µF unit suits low-speed operation, while 10-15 µF is required for high output. Mount the capacitor within 30 cm of the blower housing to minimize inductive losses. If the assembly exhibits excessive hum or fails to start on low, verify the capacitor’s microfarad rating and test for phase imbalance using a multimeter (expected: <5% difference between windings).
High-rate connections demand split-phase wiring. Route the line wire to both the common terminal and a dedicated high-speed terminal, leaving the low-speed tap disconnected. For systems with automatic switches, integrate a double-pole relay (240V coil, 10A contacts) to isolate the low-speed circuit during high-load cycles. Always secure wire nuts with heat-shrink tubing or liquid electrical tape to prevent corrosion in humid environments.
Thermal protection is non-negotiable. Install a snap-action bimetallic switch (rated for 115°C opening temperature) in series with the line wire, ensuring it’s embedded in the stator winding’s hottest zone. If the blower cycles erratically, check for oxidized relay contacts or a faulty switch–clean contacts with a fiberglass pen, never sandpaper. For 240V installations, double the wire gauge to 14 AWG and use a two-pole breaker to handle the increased current draw (up to 3.5A on high).
Grounding is critical. Attach a green 14 AWG wire from the blower’s metal frame to the system ground bus. On older units with aluminium coil leads, apply deoxidizing compound to connections to prevent galvanic corrosion. If backfeeding occurs (evident by unexpected startup), reverse-check the relay wiring–ensure the neutral wire isn’t mistakenly routed through the switch.
Dual-Rate Air Circulator Electrical Layout Guide

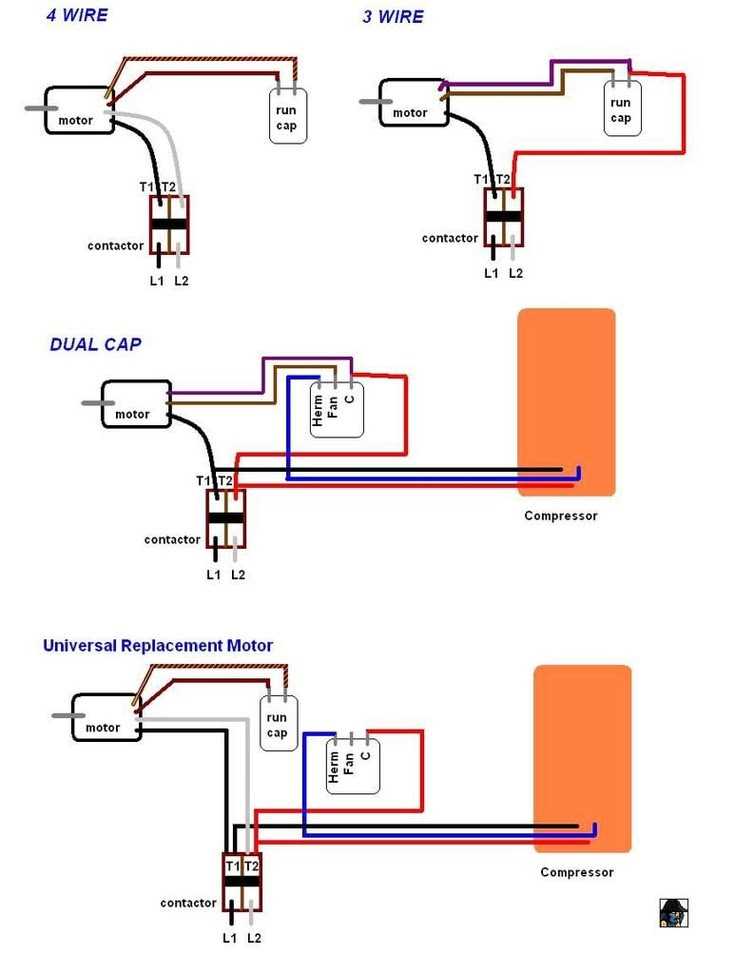

Begin by identifying the capacitor terminals on your device–these are typically marked with labels like “C” and “HERM” or color-coded leads (black, brown, or grey). Connect the common wire (usually white or blue) to the capacitor’s “C” terminal first, as incorrect sequencing can damage the windings. Most residential units use a 4-wire configuration: common, low output, high output, and ground. Verify the schema in the manufacturer’s manual against your model’s series number, as regional regulations may alter wire gauge or connector types.
For single-phase systems, observe the following polarity rules:
- Low winding (thicker wire): Connect to the yellow or red lead from the run capacitor.
- High winding (thinner wire): Attach to the purple or orange lead, ensuring it aligns with the capacitor’s higher microfarad rating (e.g., 5μF for low, 7.5μF for high).
- Ground: Secure to the chassis via a green or bare copper wire, torque to 12-15 inch-pounds to prevent vibration loosening.
Skip any “auxiliary” terminals unless your setup includes a secondary start relay–these are rare in modern condensers but common in older heat pumps.
Test continuity with a multimeter before energizing: probe between the common and each winding; expect 2-10 ohms for the low coil and 10-30 ohms for the high. A reading outside these ranges indicates a short or open circuit. For reversible rotation models, swap the low and high connections at the capacitor–never reverse the line voltage input, as this can overload the bearings within minutes.
Three-phase units require a different approach:
- Label each phase lead (L1, L2, L3) with tape before disassembly.
- Connect the primary winding to L1/L2 for base output; add L3 to the tertiary tap for elevated performance.
- Use a phase monitor relay if overheating exceeds 90°C–these relays disconnect at 5% voltage imbalance.
Avoid jumpering neutral to ground; this creates a ground loop, tripping GFCI breakers in humid environments.
Common pitfalls include:
- Mixing wire gauges–use 14 AWG for currents under 15A, 12 AWG for 15-20A.
- Ignoring ambient temperature derating: reduce amperage by 4% per 10°F above 104°F.
- Overlooking terminal block torque specs: most snap-fit connectors require 7-9 lb-in, while screw terminals need 15-18 lb-in.
If the circuit hums but doesn’t start, check the start capacitor–swap it with a 20% higher μF rating temporarily to confirm failure. Permanent replacements must match the original ±10% tolerance.
Finalize by securing all connections with heat-shrink tubing (minimum 2:1 shrink ratio) or liquid electrical tape; avoid standard vinyl tape–it degrades under UV exposure in 12-18 months. For outdoor installations, route wires through a waterproof conduit with a drip loop at least 6 inches below the entry point. Verify operation at both rates before closing the panel: low should draw 30-50% less current than high, with a duty cycle not exceeding 70% to prevent thermal shutdown.
Identifying the Correct Leads for Dual-Velocity Circuit Hookups
Start by locating the appliance’s technical plate–typically riveted to the housing near the stator or on the rear casing. This plate lists critical specs including lead color codes for each operational stage, voltage tolerances, and amperage ratings. If the plate is missing or illegible, inspect the internal wiring harness: high-velocity lines usually terminate in a thicker gauge conductor or a red/black sleeve, while lower-velocity lines tend toward blue, yellow, or white with thinner insulation.
Use a multimeter set to continuity mode to trace the windings. Disconnect the appliance from power and test between each pair of leads. High-velocity circuits typically register 30–50% lower resistance than low-velocity circuits–this measurable drop confirms the correct winding. Record readings in a three-column table:
| Lead Pair | Resistance (Ohms) | Presumed Circuit |
|---|---|---|
| Red–Black | 12.4 | Primary |
| Blue–Yellow | 21.7 | Secondary |
If resistance values deviate more than ±10% from manufacturer specs, inspect the windings for signs of scorching, oxidation, or brittle insulation–these defects can skew readings and necessitate coil replacement. Always cross-reference measured values with the original schematics, as some models invert the labeling conventions.
When labels are absent or ambiguous, rely on terminal connectors. High-velocity circuits often use spade lugs or bullet connectors, whereas lower-stage lines terminate in pins or push-in sockets. If both sets appear identical, apply 12V DC momentarily to each circuit while monitoring rotational force–primary stages will generate noticeably stronger torque.
Avoid relying solely on wire colors: manufacturers frequently switch coding schemes across production runs. Instead, mark confirmed leads with heat-shrink tubing or UV-resistant cable ties immediately after identification. Labeling prevents miswiring during subsequent maintenance or when integrating additional components like capacitors or relays.
Common Pitfalls in Misidentification
Overlooking thermal cutouts embedded within the winding assembly confuses continuity tests; these devices temporarily open the circuit even when undamaged. Probe both sides of the suspected cutout separately. Additionally, capacitive-start models exhibit erratic resistance swings–measure three times and average the readings to isolate consistent values.
When integrating into control panels, ensure isolation between stages by routing high-velocity cables away from sensitive electronics. Twist low-velocity lines around ferrite beads if interference disrupts adjacent sensors or variable-frequency drives. Document all steps: a sketch of physical lead positions alongside verification data streamlines future troubleshooting.
Dual-Rate Cooling Device Circuit Assembly Guide
Begin by identifying the three primary conductor terminals on the rotary mechanism: the common (C), low-torque (L), and high-torque (H) contacts. Label each terminal with heat-resistant adhesive markers to prevent misconnection. Verify the capacitor’s specifications–typically 4–10 µF for 110–120V systems or 2–5 µF for 220–240V–using a multimeter to confirm its capacitance before proceeding.
Attach the line (hot) wire from the power source to the common terminal using a 14–16 AWG crimp connector or solder joint, ensuring insulation resistance exceeds 1 MΩ. Connect the capacitor’s lead to the high-torque terminal, securing it with a ring terminal and torque-limiting screwdriver (max 1.5 Nm) to avoid overtightening. The low-torque wire remains separate–route it directly to the controller or switch.
For reversible models, identify the auxiliary winding terminals (often denoted as T1, T2 or U, V). Splice the capacitor between the high-torque terminal and T1/T2 using 18 AWG stranded copper wire, twisting strands clockwise to minimize inductance. Insulate all joints with heat-shrink tubing (polyolefin, 3:1 ratio) and apply dielectric grease to prevent oxidation.
Install a double-pole single-throw (DPST) switch if manual rate selection is required. Wire the low-torque contact to one pole and the high-torque contact to the second pole, using the common terminal as the feed. For automatic control, integrate a current-sensing relay (e.g., Omron G3NA) with a 0.5A trip point to toggle between rates based on load.
Test the assembly with a non-contact voltage detector before energizing. Measure inrush current (≤2.5× rated amps) and no-load speed (400–800 RPM low, 1000–1500 RPM high) using a tachometer. If oscillations occur, increase capacitor size incrementally (max +2 µF) or add a snubber circuit (0.1 µF + 100Ω) across the winding to dampen resonance.
