For precise engine timing adjustments, connect the primary pulse input (usually marked *PUL+) to the trigger coil’s positive terminal–ensure polarity matches the stator’s wiring harness to avoid misfires. The ground reference (*GND) must attach to a clean chassis point, preferably a dedicated bolt near the ignition module, to prevent voltage interference. Avoid splicing this line into existing loom grounds, as shared circuits can introduce noise.
Link the power feed (*DC+) directly to a 12V source with a minimum 5A fuse–battery voltage fluctuations above 15V risk overheating the control unit. If the system includes a kill switch, wire it in series with the ignition line (*IGN), but bypass capacitor filters if signal delay causes starting hesitation. Verify trigger voltage with an oscilloscope: a clean 50–200V AC waveform at idle confirms proper pulse generation.
Locate the advance curve inputs (if present) carefully–these adjust timing based on RPM via vacuum or analog signals. Swapping these lines may result in pinging at high loads or sluggish acceleration. For dual-spark configurations, cross-reference the secondary output (*COIL+) with coil specifications: most aftermarket units require resistance between 2.5–4.0Ω to prevent transistor burnout. Test continuity on all terminals before final assembly; a fractured trace inside the module often mimics wiring failure.
Install transient suppression diodes across inductive loads (e.g., relay coils) to protect sensitive circuits from voltage spikes. If tuning via potentiometers (where available), start with conservative settings–aggressive advance curves can overheat pistons. Document all connections in a schematic; color-code discrepancies between OEM and aftermarket harnesses to avoid diagnostic errors later.
Understanding the 8-Contact Electronic Timing Unit Connection Guide
Start by identifying the power input terminal–typically marked with a red wire–for the main 12V supply from the battery. Connect this first, ensuring a secure crimp or solder joint to prevent voltage drops or intermittent failures. A loose connection here will cause erratic spark delivery, leading to misfires even under optimal conditions.
Locate the ground reference point, usually a black or brown wire, and attach it directly to the engine block or frame using a dedicated bolt. Avoid daisy-chaining grounds through multiple components; a single, clean path to the negative terminal prevents noise interference and voltage spikes in the control module.
The trigger signal input, often yellow or white, must link to the stator’s pickup coil. Measure the coil’s resistance–typically 200–500 ohms–and confirm it matches the manufacturer’s specifications. A mismatch indicates a faulty coil, which will disrupt timing synchronization and damage the processing unit.
For four-cylinder engines, two trigger wires may require connection: one for the rising edge and another for the falling edge of the pulse. Use a multimeter in AC voltage mode to verify signal strength; readings below 0.5V at idle suggest a weak stator or incorrect alignment, necessitating adjustment or replacement.
Key Signal Flow for Engine Control
Route the ignition output wires (commonly blue or green) to the corresponding spark plug leads. For wasted-spark systems, pair cylinders 1-4 and 2-3; verify correct pairing by checking the firing order in the service manual. Cross-wiring will result in reverse rotation or severe backfire.
If the system includes a tachometer output (usually pink or purple), connect it to the instrument cluster’s input. Some aftermarket clusters require an inline resistor (500–1000 ohms) to prevent signal distortion. Omitting this risks damaging the cluster’s circuitry due to excessive voltage.
For models with rev-limiter functionality, the dedicated wire (often orange) connects to a calibration resistor or potentiometer. Adjust the resistor value based on the desired cutoff RPM–typically 500–1200 ohms for 8,000–12,000 RPM limits. Incorrect calibration can lead to engine damage from over-revving.
Always fuse the main power line with an appropriate rating (3–5A for most units) within 150mm of the battery terminal. Skipping this step risks fire in the event of a short circuit. After assembly, perform a bench test using a 12V power supply and LED probes to confirm signal flow before final installation.

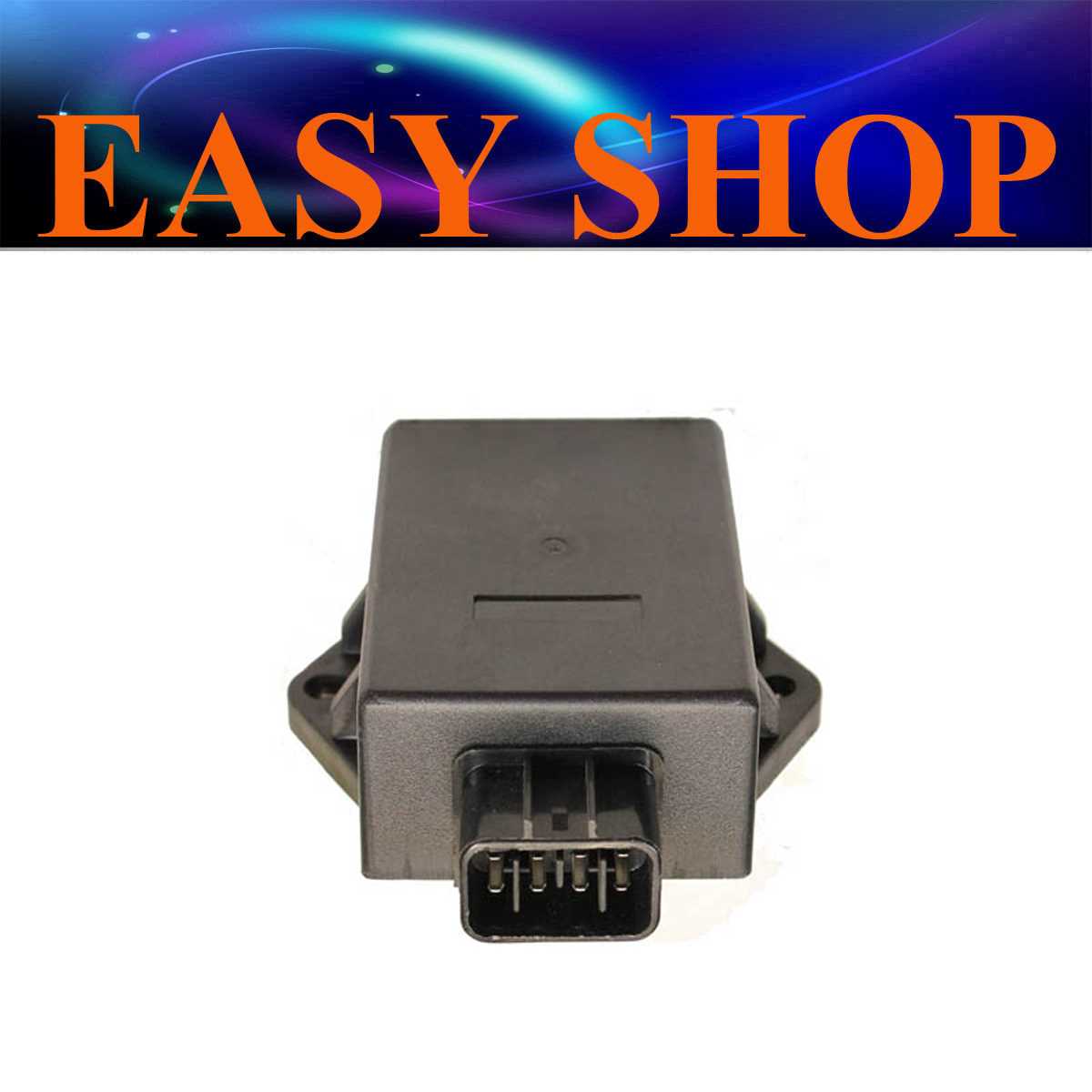

Identifying the Connections on a Standard 8-Port Capacitor Discharge Module
Begin by locating the power input terminal–usually marked with a “+” symbol–that connects directly to the battery’s positive lead. This terminal is often positioned at the first or last slot on the housing, depending on the manufacturer’s layout. Verify the voltage rating (commonly 12V or 6V) before attaching any wires, as mismatched power can damage the unit or misfire the spark. If the module lacks clear labeling, use a multimeter in DC mode to confirm polarity; trace the red cable from the battery to its corresponding contact.
Next, identify the trigger coil input, which typically occupies the second or third connector. This port picks up a low-voltage pulse from the stator or pulse generator, signaling the module when to discharge stored energy. The wire leading to this terminal is usually thinner than others, often shielded or colored blue/green to distinguish it from power lines. Some systems integrate a ground reference here, so check for a paired negative terminal adjacent to it–this simplifies the circuit by eliminating a separate chassis return.
The ignition coil output occupies one of the central slots, frequently paired with a secondary ground connection. This terminal carries the high-energy discharge to the primary side of the coil, where it steps up to tens of thousands of volts. Wires here are thicker, often red or black, and may include an inline resistor to suppress radio interference. Match this output to the coil’s low-tension terminal–confusing it with battery power risks immediate coil burnout.
Remaining ports handle auxiliary functions: a kill-switch input (often black or yellow), an engine temperature sensor lead (if equipped), and sometimes a tachometer signal output. The kill-switch port interrupts the circuit when grounded, a safety feature mandatory on road-legal vehicles. Temperature sensors, if present, require a specific voltage; consult service manuals to avoid miswiring, which can lead to eratic performance or false errors. Label each wire with masking tape during disassembly to prevent cross-connection during reassembly.
Step-by-Step Power Source, Pulse Generator, and Safety Cutoff Linkages
Identify the stator’s alternating current terminals–typically marked with yellow or white leads–then route them directly to the control module’s input connectors. Confirm polarity by referencing the manufacturer’s voltage specs (commonly 50–150V AC at idle, rising under load); reverse linkage risks burning the pulse generator or weakening spark intensity. Splice an inline fuse (3–5A) between the stator’s positive leg and the module to prevent overheating if the engine stalls or the rotor locks. For single-coil configurations, attach the coil’s primary terminal (often red) to the module’s designated output post, ensuring the return path (usually black) grounds to the engine case within 12 inches of the control box to reduce resistance-induced misfires.
Integrating the Emergency Cutoff
Locate the grounded side of the kill switch–normally open–and connect it via a green or bare wire to the module’s dedicated cutoff terminal or coil’s secondary ground leg. Test continuity with a multimeter before finalizing; resistance above 0.5 ohms indicates corrosion or loose crimps, requiring sanding or soldering. Route the wire away from rotating components and heat sources, securing with nylon ties every 6 inches. Verify functionality by engaging the switch mid-acceleration–engine should stall within 50 milliseconds to prevent flywheel damage.
Standard Wire Color Assignments for Capacitor Discharge Systems
Always confirm the matching color scheme with the manufacturer’s datasheet before connecting, but these conventions apply to most aftermarket and OEM setups: black wires carry chassis ground, red delivers battery positive, and white or yellow supplies the pulse sensor signal.
| Color | Typical Function | Voltage Behavior |
|---|---|---|
| Black | Ground | 0 V steady |
| Red | Battery feed | 12 V DC |
| White / Yellow | Pickup sensor input | 0–5 V AC pulse |
| Blue | Tachometer output | Switched 0–12 V DC |
| Green | Kill switch return | Open or grounded |
Swap tracers vary–striped blue-yellow may link to an auxiliary rev-limiter module, while a solid orange rarely feeds coil negative and deserves multimeter verification under 1 kΩ to avoid destructive feedback loops.
Secure solder joints with adhesive-lined heat-shrink tubing; even minor corrosion on connector pins above 50 mΩ can distort trigger waveforms and cause misfire patterns indistinguishable from faulty coils.
Troubleshooting No-Spark Problems via Schematic Analysis
Begin by isolating the exciter coil connection path on the electrical layout. Verify continuity between the stator’s exciter output and the control module’s input terminal. Resistance should measure between 50–300 ohms; readings outside this range indicate coil failure or broken conductors.
Examine the triggering sensor (e.g., pickup coil or Hall-effect device) for correct alignment and spacing. On the schematic, trace its wiring back to the processor unit. A misaligned sensor often produces erratic or absent pulses, disrupting the timing sequence. Use a multimeter in AC mode to confirm signal output (typically 0.5–5V) during cranking.
- Check the kill switch circuit for accidental grounding. The layout will show a normally open contact that closes to ground when activated. If miswired, it creates a false ground, inhibiting spark generation.
- Inspect the power supply line from the battery to the control unit. Voltage at the module’s input should match battery voltage (12–14V). Drops below 9V prevent proper operation, often caused by corroded terminals or undersized wiring.
Assess the ground reference path–a common failure point. The schematic should depict multiple ground points converging at the engine block or chassis. Use a continuity test between the module’s ground terminal and a verified chassis ground. Resistance above 0.5 ohms indicates corrosion or loose connections.
Signal Verification Steps
Locate the high-voltage output stage on the schematic. With the engine off, disconnect the spark plug lead and measure resistance from the output terminal to ground (typically 5–15 kOhms). Lower readings suggest a shorted ignition coil; open circuits require coil replacement. Reconnect the lead and perform a spark test by grounding the plug body–absence of spark necessitates further diagnostics.
- Test the triggering signal during cranking. Connect an oscilloscope or inductive probe to the sensor’s output line. The waveform should display sharp, consistent pulses. Irregular patterns point to sensor wear or flywheel damage.
- Verify the processor unit’s output to the ignition module. Using a logic probe, confirm pulse signals at the module’s input terminal. Missing pulses indicate internal module failure or damaged wiring between components.
Review the schematic for auxiliary components like diodes or resistors in the voltage regulation path. A failed diode can allow reverse voltage spikes, damaging the module. Desolder and test each diode in-circuit with a multimeter set to diode mode; expect forward bias readings of 0.5–0.7V.
If all pathways test functional, replace the ignition module. Schematics show a minimal component count, but internal failures (e.g., cracked solder joints, degraded capacitors) remain invisible without substitution. Document voltage and resistance readings at each step to isolate intermittent faults during reassembly.
