Begin by locating the main breaker panel–typically mounted near the entry door or under a bed frame in most recreational units. Identify the 30-amp inlet (common for single-AC setups) or 50-amp (for dual-AC models) before tracing cables back to the distribution box. Label each line: black (hot), white (neutral), green (ground), and red (120V secondary hot in 50-amp systems). Verify labels with a multimeter set to AC voltage; readings should match 120V between hot and neutral, 0V between neutral and ground, and 120V or 240V between hots in 50-amp circuits.
Replace stock 12-gauge wiring with 10-gauge copper for runs exceeding 10 feet to refrigerators or air conditioners–voltage drop can reach 3% over 15 feet, enough to trigger appliance overheating. Install a 20-amp breaker for outlets and a dedicated 30-amp breaker for high-load devices. Avoid daisy-chaining more than four outlets per circuit; split circuits into separate 15- or 20-amp breakers for kitchen, bathroom, and living areas to prevent overload trips.
Connect LED lighting circuits directly to the 12V fuse block, bypassing the inverter unless using 120V bulbs. Use twist-on wire connectors rated for 600V and seal them with heat-shrink tubing to prevent corrosion from road vibration. Ground all metal frames, appliance chassis, and exterior light fixtures to a single ground bus bar mounted on the frame rail–this prevents stray voltage and RF interference. Test ground continuity with a megohmmeter; readings above 0.5 ohms indicate loose connections.
Upgrade to a 1800W pure sine wave inverter if running sensitive electronics like CPAP machines or laptops–modified sine wave models can damage motor capacitors over time. Wire the inverter output to a sub-panel with a transfer switch to isolate circuits during shore power use. Position the inverter within 5 feet of the battery bank to minimize DC voltage drop; use 2/0 gauge welding cable for 12V runs to handle peak loads above 150 amps.
Isolate the propane detector circuit from other 12V loads–propane detectors require uninterrupted power and can drain batteries if wired to shared fuses. Wire a separate 12V circuit with a diode to prevent backfeed from solar charge controllers. Place the detector at floor level, at least 18 inches from walls, to ensure accurate gas detection. Test monthly by temporarily disconnecting power; the detector should emit three beeps within 30 seconds of power restoration.
Recreational Vehicle Electrical Blueprint Essentials
Always connect the 12V deep-cycle battery to the converter using 6-gauge copper cables, ensuring terminal clamps are corrosion-resistant (tin-plated). Route cables through a rigid conduit from the battery box to the power distribution panel, securing them every 18 inches with UV-resistant zip ties to prevent chafing.
Label each circuit breaker and fuse with its corresponding appliance or outlet. Use the following color-coding for consistency:
- Black: Hot (120V AC)
- Red: Hot (12V DC positive)
- White: Neutral (120V AC) / Negative (12V DC)
- Green: Ground
- Blue: Auxiliary or dedicated circuits (e.g., inverter, slide-outs)
Grounding System Requirements
Install a 6-foot copper grounding rod at least 8 feet from the vehicle’s frame, connected via an 8-gauge bare copper wire. Bond the rod to the chassis using a star washer and locknut, torqued to 25 ft-lbs. Verify resistance with a multimeter–values above 5 ohms require additional bonding points.
For surge protection, integrate a 50-amp RV-specific suppressor between the shore power inlet and the main panel. Mount it vertically, with the grounding wire (minimum 10-gauge) running directly to the chassis. Avoid daisy-chaining suppressors; a single unit handles most transient spikes.
Test polarity using a plug-in tester before energizing any circuit. Reverse polarity trips a downstream GFCI outlet–correct by swapping the hot and neutral wires at the inlet or adapter. For 12V systems, check voltage drop under load: 0.5V or less across a 20-foot run of 10-gauge wire indicates proper sizing.
Basic Components of a Mobile Home Electrical System
Install a converter/charger rated for at least 40-60 amps to handle both battery charging and 12V DC distribution. Ensure it includes a multi-stage charging profile (bulk, absorption, float) to prevent battery sulfation and extend lifespan. Models with built-in transfer switches simplify shore power transitions, eliminating manual switching errors. Check voltage output under load–drop below 13.2V indicates insufficient capacity for modern RV appliances.
The 12V fuse panel should be positioned within 18 inches of the battery to minimize voltage drop. Use ANL or Class T fuses for circuits drawing over 50 amps, such as electric stabilizers or high-demand inverters. Label every fuse with amperage and connected device; a color-coded system (e.g., red for critical circuits, yellow for non-essential) speeds troubleshooting. Replace blown fuses with exact ratings–never use higher amperage as a temporary fix.
Key Power Storage Specifications
| Battery Type | Capacity Range | Depth of Discharge | Cycle Life (50% DoD) | Voltage Stability |
|---|---|---|---|---|
| Flooded Lead-Acid | 80-220 Ah | 50% | 200-300 | Moderate (12.2-12.7V) |
| AGM | 75-300 Ah | 80% | 400-700 | High (12.8-13.0V) |
| Lithium Iron Phosphate | 60-400 Ah | 90% | 2000-5000 | Excellent (13.2-13.6V) |
Size the inverter based on peak AC load–not continuous draw. A 2000W unit handles most microwaves (1200W) and small coffee makers (1000W) simultaneously, provided the battery bank delivers 150-200 amps at 12V. Pure sine wave models prevent damage to sensitive electronics like laptops and CPAP machines. Mount inverters vertically in well-ventilated areas to avoid overheating; thermal shutdown occurs at 140°F (60°C).
Use 10 AWG copper wire for 12V lighting circuits, but step up to 6 AWG for circuits over 30 feet to reduce voltage drop below 3%. Twisted pairs reduce EMI in signal wires (e.g., tank sensors). Secure all wiring with nylon straps spaced every 18 inches–never use metal clamps on insulated wires. Test insulation resistance with a megohmmeter after installation; values below 1 MΩ indicate fault risks.
Installing a 7-Pin Connector: A Precise Guide
Begin by confirming the tow vehicle’s existing harness matches the standard RV plug layout. Locate the factory harness behind the rear bumper–most modern SUVs and trucks include a pre-wired socket. If absent, install a universal adapter kit (e.g., Curt 56070) following the manufacturer’s pin assignments.
Strip 1/4 inch of insulation from each of the seven color-coded leads. Braided ground (white) requires soldering to a secure chassis point or an existing bolt; ensure no corrosion exists at the connection. For auxiliary circuits (blue, yellow, green, brown, red), use crimp connectors rated for 16-14 AWG to prevent loose fits.
Pin Configuration (Standard SAE J560):
- White: Ground (minimum 10 AWG, fused at 30A)
- Brown: Running lights (3A max)
- Yellow: Left turn/brake (15A fuse)
- Green: Right turn/brake (15A fuse)
- Blue: Electric brakes (20A breaker)
- Red: 12V auxiliary/backup (10A fuse)
- Black: Battery charge (40A fuse, 8 AWG minimum)
Route cables through a protective sleeve (spiral wrap or split loom) to avoid chafing against sharp edges. Secure with zip ties every 12 inches; avoid stretching or tension on leads. Test continuity with a multimeter before finalizing connections–resistance should read below 0.5 ohms across all circuits.
Final Assembly Checklist
Attach the plug housing to the chassis bracket, ensuring the spring-loaded door operates freely. Coat terminals with dielectric grease to prevent oxidation. Verify function with a test light: activate each circuit individually (brake controller, lights, hazards) while observing voltage at the plug’s pins.

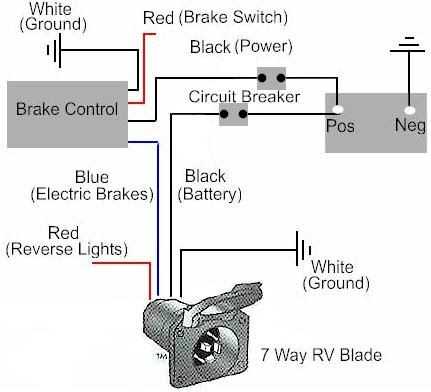

For aftermarket brake controllers, mount the unit within 18 inches of the vehicle’s brake pedal switch. Connect the blue lead to the controller’s output terminal; the red lead should link to a switched 12V source (e.g., ignition wire). Adjust gain settings after installation–start at 50% and fine-tune during a test drive.
Seal all exposed wire splices with heat-shrink tubing or waterproof butt connectors. Recheck torque on chassis ground bolts; loose connections cause intermittent failures. Store spare fuses (matching amperage) and a 7-pin tester in the glove box for diagnostics.
Diagnosing and Fixing Electrical Problems in Mobile Living Units
Inspect the 12V fuse box first–locate it near the battery compartment or beneath the front seats. Use a multimeter to check each fuse: set it to continuity mode and place probes on both fuse terminals. A reading below 0.5 ohms confirms the fuse is intact; no reading means replacement is needed. Carry spares rated for 5A, 10A, 15A, and 20A to match common configurations.
Examine all connections at the battery, converter, and distribution panel for corrosion. Disconnect terminals, scrub with a wire brush, and apply dielectric grease before reattaching. Corrosion appears as white, green, or blue powder–this resistance reduces voltage to appliances by 0.2V–0.5V per corroded terminal, enough to disrupt sensitive electronics.
Look for frayed, pinched, or melted cables along walls, under floors, and near hitch areas. Rodents often chew through insulation, especially near entry points. Use heat-shrink tubing to repair minor damage; for severe cases, cut and splice new 10-gauge wire (red/black for positive/negative) with crimp connectors and solder for durability.
Test the converter by measuring DC output at the distribution panel with a multimeter. With a 120VAC supply connected, the converter should deliver 13.2V–14.4VDC. Readings below 12.8V indicate a faulty converter or improper charging. Check the AC inlet fuse (typically 15A) and inspect the converter’s cooling fan for obstructions–overheating causes premature failure.
Verify ground integrity by tracing the main negative cable from the battery to the chassis. Clean the grounding point with sandpaper, ensure it’s free of paint or rust, and tighten the bolt securely. Poor grounding causes dimming lights (especially LED), intermittent power loss, or phantom switch activations–symptoms often misattributed to battery failure.
Check brake and turn signal circuits by accessing the seven-way plug near the hitch. Use a test light or multimeter set to DC voltage: plug into the vehicle side, turn on signals, and probe each pin. Pins 1 (ground) and 7 (auxiliary) should read 12V; pins 2–6 should flash 12V when corresponding signals are activated. No voltage suggests a bad bulb, severed cable, or faulty relay in the tow vehicle.
For intermittent faults, wiggle cables at connectors while observing power fluctuations. Start at the battery and work toward appliances, focusing on areas exposed to vibration (e.g., near doors, storage compartments). Use zip ties to secure loose runs–chafing against metal edges causes shorts. Replace any zip ties that show wear or brittleness.
Create a baseline voltage log to track performance over time. Measure with a multimeter at key points (battery, converter, outlets) during different conditions: engine off, engine running, and under load. Record readings weekly; a drop greater than 0.3V per week indicates parasitic drain or battery deterioration. Use this data to isolate issues before they strand you–preventative logging catches 80% of electrical failures before they occur.
