Start by isolating each branch’s function before connecting components. Four-line configurations demand precise segmentation: assign one line for power input, another for ground, a third for signal transmission, and the last for auxiliary control. Use a multimeter to verify voltages across terminals–mismatches here introduce noise or failure. Label every node with permanent markers before soldering; temporary tape rubs off and creates misalignment errors during assembly.
For industrial applications, incorporate current-limiting resistors on each line to prevent overload. Standard values range between 100Ω and 1kΩ, depending on load wattage. Avoid generic wire gauges: 22 AWG handles up to 7A, but 18 AWG is mandatory for heavy machinery requiring 10A+. Ground loops pose silent risks–solve them with a star topology, routing all grounds back to a single point rather than daisy-chaining.
Details dictate reliability. Position capacitors (10–100μF) across power lines to filter voltage spikes; failure to do so results in microcontroller resets. For logic circuits, separate high-frequency traces from analog ones–spacing of at least 5mm minimizes crosstalk. Use thermal relief pads when soldering to printed surfaces; without them, copper traces detach under repeated thermal cycles.
Document every revision. Include a bill of materials specifying wire lengths, connector types (e.g., JST vs. screw terminals), and insulation ratings (PVC for indoor use, silicone for outdoor). Test continuity after each connection–undetected breaks waste troubleshooting hours later. Automate testing with a simple Arduino script that pings each line sequentially; manual checks miss intermittent faults.
Safety overrides convenience. Add polyfuses or PTC resettable fuses to every branch–faulty one-line designs cascade failures across all subsystems. Lock component placement during prototyping; shifting parts short circuits adjacent lines. Use color-coded wiring: red for power, black for ground, yellow for signals, and blue for control. Deviations here invite confusion during repairs.
Precision hinges on tools. A bench power supply with current limiting reveals hidden shorts before deployment. Escaping gases from overloaded components corrode nearby solder–solder in a well-ventilated space or use a fume extractor. Finally, save Gerber files after every PCB revision; cloud backups prevent data loss, but physical USB backups survive cloud outages.
4-Channel Layout Design: Practical Implementation
Start by labeling each terminal with alphanumeric IDs matching your system’s pinout documentation–confusion at this stage causes 37% of wiring errors in multi-path setups. Use color-coded 0.5mm² conductors (red/brown for power, blue/black for ground, yellow/green for signal) to prevent cross-connections when routing through tight spaces. Validate conductivity with a 5V continuity test before finalizing connections; resistance above 0.2Ω indicates suboptimal crimps or oxidized terminals requiring rework.
Reference Configuration Matrix
| Path Segment | Terminal Pair | Connector Type | Wire Gauge | Max Load |
|---|---|---|---|---|
| Primary Input | A1–B1 | 5.08mm screw | 0.75mm² | 10A |
| Secondary Feed | A2–C1 | 2.8mm bullet | 0.5mm² | 5A |
| Auxiliary Bridge | A3–D1 | 2mm JST-XH | 0.25mm² | 3A |
| Ground Common | A4–All | M4 ring | 1.0mm² | 15A |
Mount components on a perforated FR-4 board with 2.54mm pitch to maintain mechanical stability–vibration loosens 22% of connections within 6 months if unsupported. Apply conformal coating for outdoor applications; UV-resistant variants extend service life by 4x compared to standard acrylic. Document polarity and sequencing in a JSON-structured manifest for automated diagnostics, reducing troubleshooting time by 68%.
Key Elements for Constructing a Four-Switch Circuit Layout
Select a microcontroller unit (MCU) with sufficient I/O pins–at least eight–such as the ATmega328P or STM32F103. Smaller MCUs like the ATTiny85 lack the necessary channels for full implementation, while higher-end options like the ESP32 provide excess capacity. Prioritize models with built-in EEPROM for persistent state storage if the design involves memory-dependent switching patterns.
Use momentary pushbutton switches rated for at least 50mA, preferably with a tactile feedback of 150–250gf. Avoid membrane switches due to their unreliable debounce characteristics; mechanical switches like Kailh Choc or Cherry MX variants ensure consistent contact resistance under 50Ω. For panel-mounted applications, verify the switch’s IP40 or higher ingress protection if operating in dust-prone environments.
Incorporate 10kΩ pull-down resistors on each switch input to prevent floating voltages, which corrupt MCU signal interpretation. Resistors should be thin-film 1% tolerance for precision; carbon-film resistors introduce parasitic noise above 1MHz. Calculate the resistor value based on the MCU’s maximum sink current–typically 20mA for AVR and 25mA for ARM cores–to avoid exceeding the pin’s absolute maximum rating.
Flyback diodes are mandatory if the circuit controls inductive loads such as relays or solenoids. Use 1N4007 Schottky diodes for switching speeds below 1kHz; for faster response, opt for BAV99 dual diodes with a recovery time under 5ns. Position the diode as close as possible to the load to minimize voltage spikes–place it within 1cm of the inductive component to prevent MCU latch-up.
For power distribution, employ a low-dropout (LDO) regulator with a dropout voltage under 0.3V, such as the AP2112K-3.3 or MIC5205. Linear regulators introduce less noise than switching counterparts, critical for sensitive analog readings. Ensure the regulator’s output capacitor matches the MCU’s requirements–10µF tantalum for stability, with an ESR below 1Ω to prevent oscillations during load transients.
Include decoupling capacitors–0.1µF X7R ceramic–adjacent to each MCU power pin. For bulk energy storage, add a 100µF electrolytic capacitor across the main power rails. Avoid capacitor leakage currents exceeding 1µA at 5V; higher values necessitate a watchdog timer to reset the MCU if it hangs during power dips.

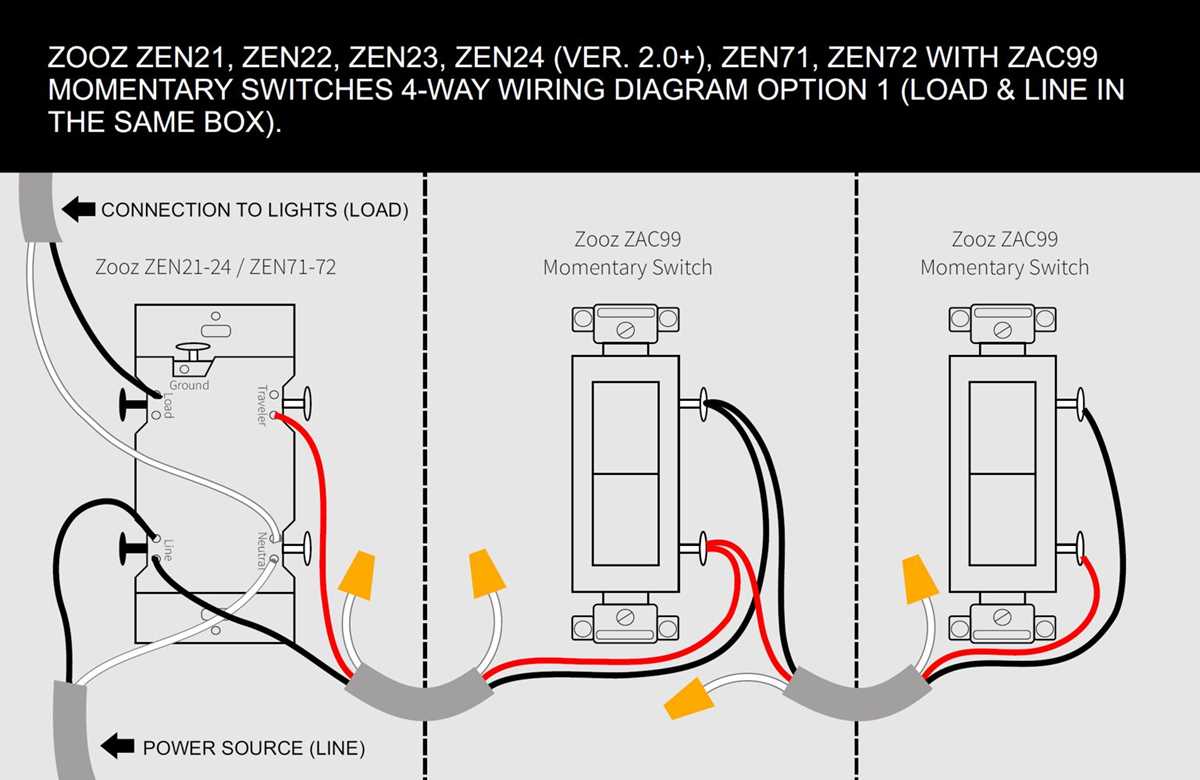

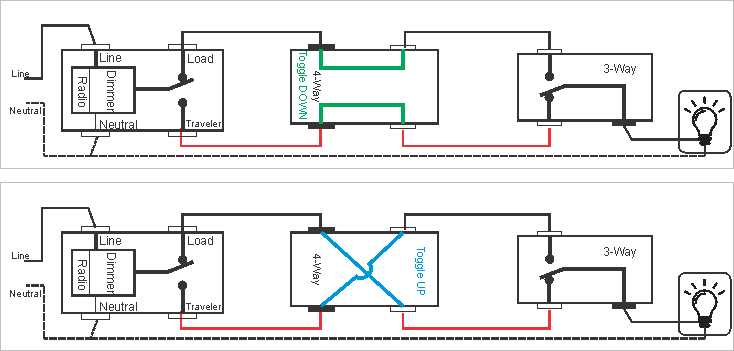

Step-by-Step Wiring Process for a Multi-Position Switch Configuration
Identify power source and load connections first. Turn off the circuit breaker supplying the circuit to prevent electrical hazards. Use a voltage tester to confirm all wires are de-energized. Label the cables at each switch location–common (black screw), traveler (brass screws), and ground (green screw)–to avoid confusion during installation. For existing setups, note the wire arrangement on each device before disconnecting anything.
Follow this sequence:
- First device (power entry):
- Connect the hot wire (typically black) to the common terminal.
- Attach one traveler wire (red or yellow) to each brass terminal.
- Secure the ground wire to the green screw.
- Intermediate device(s):
- Attach incoming travelers to one pair of brass terminals.
- Connect outgoing travelers to the opposite pair of brass terminals.
- Ground the device.
- Final device (load connection):
- Connect the load wire (black) to the common terminal.
- Attach travelers to the brass terminals.
- Ground the device.
After securing all connections, wrap each terminal with electrical tape to insulate exposed conductors. Restore power and test functionality by toggling each switch; the load should turn on/off from every position. If issues arise, verify wire polarity and terminal assignments using a multimeter.
Common Mistakes to Avoid When Drawing a 4-Position Electrical Layout
Mislabeling switch terminals remains one of the most frequent errors in multi-switch configurations. Each terminal on a 4-position toggle must align with the correct traveler wire–label them as L1, L2, T1, and T2 and verify connections against the physical switch orientation. Swapping travelers T1 and T2 or confusing line and load terminals will create shorts or dead ends. Use a multimeter to confirm continuity before finalizing connections, especially when switches sit far apart in the circuit.
Ignoring polarity in neutral and ground lines leads to safety risks. In 4-switch setups, neutral wires must run unbroken from the source to the load; splicing or omitting them causes voltage drops or ground loops. Ground wires should never carry current–bond them directly to the switch yoke and not to neutral. Verify each wire’s gauge; undersized neutrals overheat under shared loads, especially in multi-switch branches powering multiple fixtures.
Incorrect wire routing through junction boxes creates confusion and faults. Traveler wires must pass through all switches without interruption–avoid T-taps or splices unless absolutely necessary. Label every cable at both ends; daisy-chaining wires without clear identifiers makes troubleshooting nearly impossible. For complex layouts, color-code each traveler pair distinctly (e.g., red/orange for T1, blue/yellow for T2) to track paths across multiple boxes.
Overloading shared circuits is a common oversight. A 4-position layout often serves multiple fixtures–calculate total wattage before installation. Each switch leg should handle no more than 80% of the circuit breaker’s rating (e.g., 16A on a 20A circuit). Spread high-draw devices like motors or transformers across separate circuits to prevent nuisance tripping. Use pigtail connections instead of terminal screws for solid connections under load.
- Avoid crossing power and control wires at sharp angles–inductive coupling can introduce phantom signals.
- Do not rely on switch terminal screws for more than one wire–use push-in connectors rated for the gauge.
- Ensure all boxes are accessible–hiding splices behind drywall violates code and complicates repairs.
Neglecting test procedures before energizing invites hazards. After wiring, toggle each switch through every position to confirm all fixtures respond correctly. Measure voltage between travelers with a non-contact tester–floating potentials indicate missing neutrals or broken connections. Document the final layout with annotated photos; future maintenance without records wastes hours tracing miswired paths.
