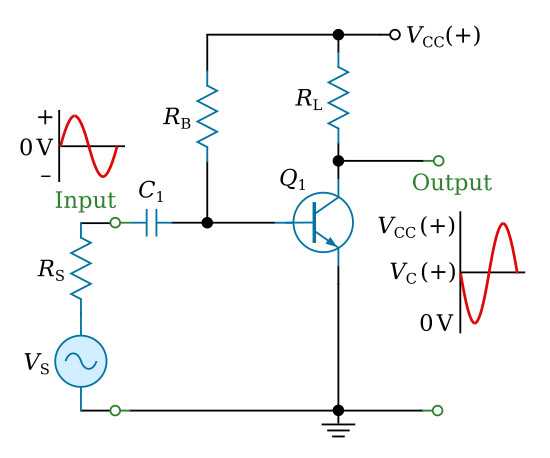

Start with a common-emitter setup if you need maximum voltage gain. Bias the semiconductor device at roughly 40-50% of its maximum collector current to ensure linearity while preventing thermal runaway. A 2N3904 or BC547 works for most audio applications–collector loads between 1kΩ and 4.7kΩ provide a good balance between output swing and stability.
Add a 100nF coupling capacitor at the input if driving from a high-impedance source like a guitar pickup or condenser mic. For low-frequency signals, increase this to 1µF or more. The emitter resistor should be bypassed with a capacitor sized to roll off below 20Hz–typically 100µF to 470µF–to preserve gain at audible frequencies.
Stabilize the operating point with a voltage divider on the base. Use resistor values that draw 5-10 times the base current to minimize loading effects. For a 9V supply, a pair of 22kΩ and 10kΩ resistors sets a reliable bias. Avoid values under 5kΩ–they’ll sap current from the stage and reduce headroom.
To minimize distortion, keep the collector-to-emitter voltage above 1V under full signal swing. Simulate or breadboard the stage first–adjust the emitter resistor if clipping occurs before the expected output level. For RF applications, reduce stray capacitance by mounting components compactly and using grounded shielding between stages.
Pair this stage with a Darlington configuration if higher current gain is needed. Two chained devices multiply beta–useful for driving low-impedance loads like 8Ω speakers. However, bandwidth narrows due to increased Miller capacitance–use a cascode arrangement instead if wideband performance is critical.
For differential signals, swap the single-ended stage for a long-tailed pair. A tail resistor of 10kΩ provides good common-mode rejection while allowing enough gain. Balance the collector loads within 5% to maintain symmetry, or distortion will rise sharply at high input levels.
Designing a Solid-State Gain Stage: Key Schematic Elements
Start with a low-noise biasing arrangement to minimize inherent noise in the signal path. A common approach involves a voltage divider network coupled with an emitter resistor for thermal stabilization. For a small-signal pre-gain stage, use a 10 kΩ resistor from the base to the supply and a 1 kΩ resistor to ground, ensuring a quiescent current of ~1 mA. This setup balances input impedance and distortion levels.
Select coupling capacitors based on the lowest frequency of interest. For audio applications, 1 µF non-polarized capacitors at the input and output will suffice for frequencies down to 20 Hz. Calculate cutoff points using f = 1/(2πRC), where R is the load impedance. Avoid electrolytic types unless necessary–film capacitors reduce microphonic effects and distortion.
- Use a 100 µF electrolytic bypass capacitor across the power rails to suppress high-frequency noise.
- Place a 0.1 µF ceramic capacitor near the active component’s power pin for decoupling.
- Include a 10 kΩ potentiometer in the feedback loop for adjustable gain without altering DC bias.

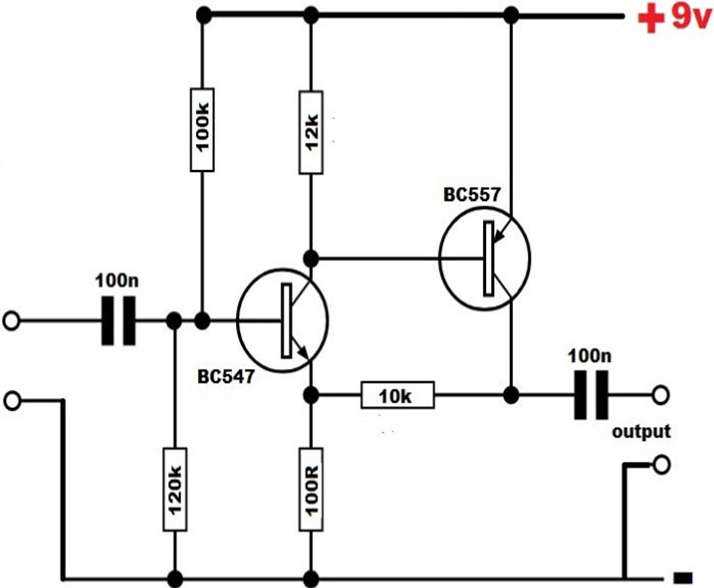

For discrete designs, prefer a Darlington pair or Sziklai configuration over a single active device when driving low-impedance loads. The Sziklai setup improves linearity and reduces output impedance. For example, pair a 2N3904 with a 2N3906, setting the emitter resistor to 100 Ω for a class-A operation with ~50 mW output into an 8 Ω load.
Ensure the schematic includes a output current-limiting resistor to protect against short circuits. A 10 Ω resistor in series with the output terminal prevents damage during accidental shorts. For higher power stages, replace it with a fusible resistor rated at twice the expected current.
Verify the schematic’s thermal stability by calculating the bias point drift. Use the formula ΔV_BE ≈ -2 mV/°C for silicon-based devices. A properly designed stage should maintain quiescent current within ±5% across a 20–50°C temperature range. If drift exceeds this, add a temperature-compensating diode or thermistor to the bias network.
- Test the schematic with a sine wave input at 1 kHz and monitor THD+N.
- Measure rise time to ensure bandwidth matches expectations (e.g., 20 kHz for audio).
- Check for oscillations using an oscilloscope–add a 100 pF Miller compensation capacitor if needed.
Key Parts for Constructing a Fundamental Signal Booster
Select a three-terminal semiconductor device with a current gain (hFE) between 100 and 300–such as the 2N3904 for small-signal applications or the TIP31C for higher power handling. Pair it with a pair of resistors: one between 100Ω and 1kΩ for the emitter (RE), and another between 10kΩ and 100kΩ for the base bias (RB). This ensures stable operating conditions without thermal runaway. Capacitors (Cin, Cout, CE) should range from 1µF to 100µF, with electrolytic types acceptable for DC blocking and coupling, while low inductance is critical for CE to bypass AC signals effectively.
A power supply delivering 5V to 12V DC is optimal, though most designs tolerate up to 18V if heat dissipation is managed. For prototyping, use a regulated source (e.g., LM7805) to prevent voltage spikes from damaging active components. The table below lists typical values for common configurations:
| Component | Common Range | Purpose |
|---|---|---|
| Emitter Resistor (RE) | 100Ω–1kΩ | Stabilizes current flow |
| Base Resistor (RB) | 10kΩ–100kΩ | Sets bias point |
| Coupling Capacitors (Cin, Cout) | 1µF–100µF | Blocks DC, passes AC |
| Bypass Capacitor (CE) | 10µF–220µF | Improves AC gain |
For input/output connections, use 3.5mm audio jacks or RCA plugs if interfacing with consumer electronics, or binding posts for direct wire attachment. Avoid long unscreened wires on the input side–keep traces short or use shielded cable to reduce noise pickup. A small heatsink may be necessary for higher-power setups, particularly if the active component exceeds 200mW dissipation. Verify component polarity before powering on: reversed electrolytic capacitors or diodes will fail catastrophically.
Test points should include the base, emitter, and collector nodes to measure voltages relative to ground (VB, VE, VC). An ideal VE rests at ~0.7V below VB, while VC should be roughly half the supply voltage for Class A operation. If distortion occurs, adjust RB in 10% increments until the waveform cleans up. For debugging, a 1kΩ resistor in series with the input limits current if the device is misconfigured.

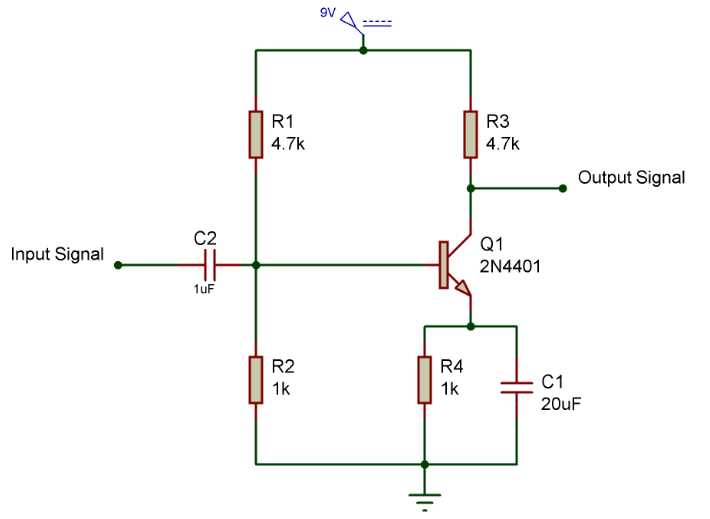

Step-by-Step Assembly of a Common-Emitter Gain Stage
Begin by selecting a low-noise silicon switching device with a current gain (hFE) between 100 and 300 for optimal linearity. Solder the emitter leg directly to a grounded reference plane using a 1μF tantalum capacitor to bypass high-frequency noise–avoid ceramic caps here due to piezoelectric effects. Position input coupling capacitors (0.1μF polyester or polypropylene) within 5mm of the base lead to minimize parasitic inductance; values above 1μF invite phase shifts at low frequencies without improving mid-band response.
Bias Network Configuration
Calculate the base resistor values using VCC / (IC / hFE), where IC targets 1–2mA for small-signal applications. Use a voltage divider with a 10:1 ratio (e.g., 47kΩ and 4.7kΩ) to stabilize the quiescent point; bypass the upper resistor with a 10μF electrolytic capacitor to prevent feedback through the bias network. Verify collector voltage at VCC/2 ±10% before proceeding–deviations exceeding this range indicate incorrect hFE assumptions or faulty components.
Load and Output Coupling: Terminate the collector with a 4.7kΩ resistor for a 9V supply, ensuring the voltage swing remains symmetrical around the quiescent point. Connect the output via a 10μF capacitor to block DC while passing signals down to 20Hz; larger values increase low-end roll-off time constants unnecessarily. Test with a 1kHz sine wave at 10mVpp–distortion below 0.5% confirms proper bias and stray capacitance under 5pF, measurable with an oscilloscope probe set to 10× mode.
Calculating Resistor and Capacitor Values for Target Signal Boost
Determine the required gain first–whether voltage, current, or power–based on input impedance and output load. For common-emitter stages, use the ratio RC/RE as the baseline for small-signal gain. If a bypass capacitor shunts RE, the gain approximates gm × RC, where gm is the device’s transconductance (typically 30–50 mS for small-signal silicon at room temperature).
Aim for RC ≤ 10 kΩ to prevent excessive loading; values above 2 kΩ minimize distortion but increase susceptibility to stray capacitance. For RE, select 50–500 Ω–lower values stabilize DC bias but reduce gain, while higher values risk thermal runaway. Use RE = (VCC – VCE)/IC, where IC is the collector current (0.5–5 mA for low-noise designs).
Coupling capacitors (Cin, Cout) block DC while passing AC; their cutoff frequency fc = 1/(2πRC) must lie below the lowest signal frequency. For audio applications (20 Hz–20 kHz), C ≥ 1/(2π × 20 × R), where R is the driving/source impedance (typically 1–10 kΩ). Electrolytics (1–100 µF) suit high-pass filtering, while ceramics (0.1–10 µF) handle mid-range blocking.
Bypass Capacitor Selection
To bypass RE, calculate CE for a corner frequency fc = 1/(2πRECE). For fc = 10 Hz and RE = 100 Ω, CE ≈ 160 µF. Larger CE extends low-frequency response but slows settling time; avoid exceeding 1000 µF unless thermal stability is verified. Polyester or tantalum capacitors (10–470 µF) reduce ESR-induced distortion compared to aluminum electrolytics.
Inter-stage coupling requires matching the preceding stage’s output impedance (Zout) to the next stage’s input (Zin). For Zout = 5 kΩ and Zin = 10 kΩ, a 10 µF capacitor ensures fc ≤ 3 Hz. Verify with fc = 1/(2π(Zout + Zin)C). High-impedance nodes (e.g., FET gates) need ≤ 1 µF to avoid microphonic noise.
Power supply decoupling capacitors suppress rail noise; place 0.1–1 µF ceramics near the stage, with 10–100 µF electrolytics at the regulator output. For wideband designs (RF to 1 MHz), add a 0.01 µF ceramic in parallel to handle high-frequency transients. Ground returns must share a common node to prevent ground loops; star grounding reduces crosstalk.
Thermal stability dictates RB (base biasing resistor) selection. Use RB = (VCC – VBE)/IB, where IB = IC/hFE. For IC = 2 mA and hFE = 100, RB ≈ 10 kΩ. Lower RB improves stability but increases power consumption. Add a small bypass capacitor (1 nF) across RB to filter noise without affecting DC bias.
Verify stability with load lines: plot VCE = VCC – ICRC and ensure the operating point avoids saturation (VCE ≤ 0.2 V) or cutoff (IC ≤ 0). For class-A operation, set VCE = VCC/2. Distortion drops below 0.1% if the signal swing stays within ±10% of VCE.
