Start with a linear regulator for low-noise applications under 500mA. LM7805 remains the most dependable choice for fixed-voltage outputs, handling input fluctuations up to 35V while maintaining ±2% accuracy. For adjustable outputs, LM317 requires only two external resistors–set R1 between 240Ω and 1.5kΩ, then calculate R2 using Vout = 1.25(1 + R2/R1). Ensure input capacitors (0.33µF) and output capacitors (0.1µF) are placed within 10mm of the IC pins to prevent oscillations.
Switching converters dominate higher-current designs. Buck converters like LT1074 achieve 85% efficiency at 5V/5A with proper inductor selection–use a toroidal core (e.g., T50-26) with 47µH for 100kHz operation. For compact layouts, place the catch diode (Schottky 1N5822) adjacent to the switching node to minimize EMI. Input capacitors must handle ripple current: Iripple = Iload × (Vout/Vin). Failure to meet this requirement causes capacitor failure within hours.
Isolated designs demand flyback topology for safety. TNY268P integrates a 700V MOSFET, eliminating discrete components. For 12V/2W outputs, use a 1:0.1 transformer ratio (e.g., EF16 core) with a 68pF snubber across primary windings to suppress voltage spikes. Ground planes must separate primary and secondary circuits; violation risks 1.5kV surges. Safety capacitors (Y2 class) between input and output grounds are mandatory–omission violates IEC 60950.
Battery-backed systems require precise charging management. LTC4011 handles Li-ion cells at 1A with ±0.5% voltage accuracy. Connect a thermistor (NTC 10kΩ) to the THM pin to enable temperature monitoring; disable charging if below 0°C or above 45°C. For lead-acid batteries, UC3906 manages float voltage (2.25–2.30V/cell) and equalization (2.45V/cell). Place current-sense resistors (≤0.1Ω) adjacent to the IC’s SENSE pin to avoid parasitic inductance errors.
Protection components must be sized for worst-case scenarios. Polyfuses (e.g., 1206L035) react within 10s at 2× rated current–use 150% derating for ambient temperatures above 50°C. TVS diodes (SMBJ series) clamp transients to 1.5× VBR; select breakdown voltage 10% above nominal rails. Foldback current limiting in linear regulators (e.g., LT1083) reduces short-circuit dissipation–ensure heat sinks handle Pdiss = (Vin–Vout) × Ilimit without thermal runaway.
Noise-sensitive circuits need additional filtering. Add pi filters (L-C-L) for RF suppression, with inductors oriented 90° to minimize coupling. Ferrite beads (BLM18PG121SN1L) attenuate 10MHz–1GHz noise by 30dB. For medical-grade applications, isolate analog and digital ground planes at a single star point–resistance between planes must stay below 10mΩ to comply with IEC 60601-1.

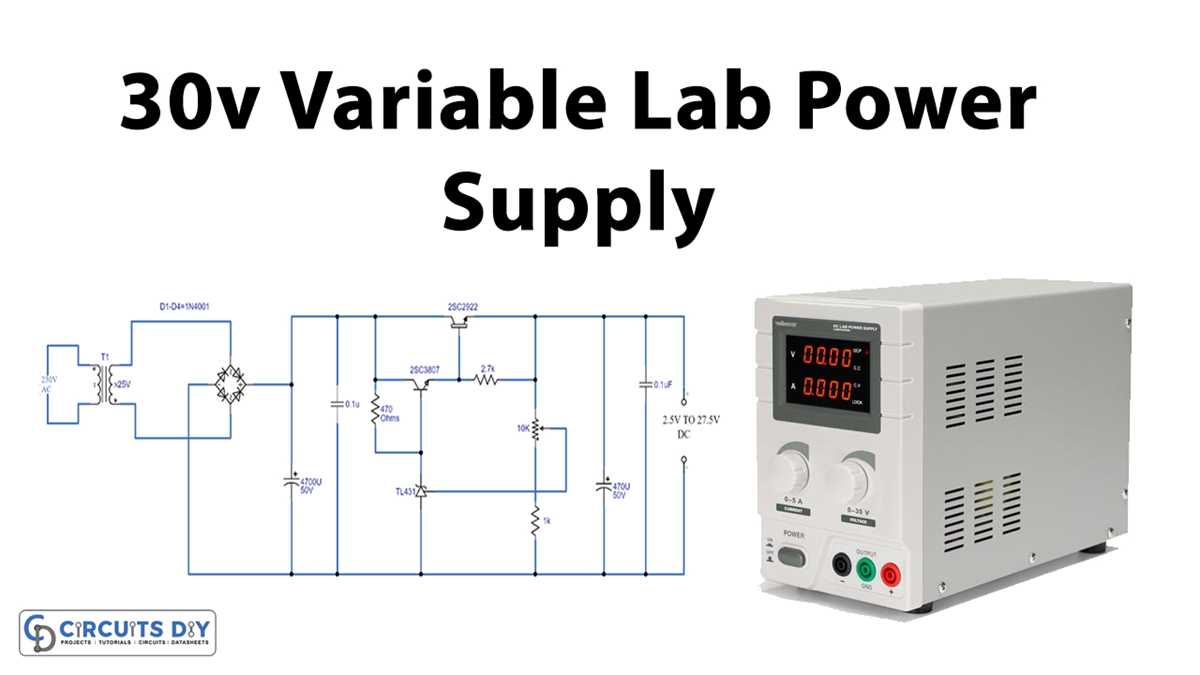

Designing a Reliable Energy Supply Schematic
Start by selecting components rated 20% above expected load to prevent thermal stress. For instance, a 12V output with a 1A requirement needs a transformer capable of 1.2A minimum–this avoids voltage sag under peak demand. Aluminum electrolytic capacitors should exceed 2,200μF per ampere to stabilize ripple; underestimating this leads to audible hum in audio equipment or erratic microcontroller behavior. Always place a 0.1μF ceramic capacitor within 2cm of IC VCC pins–this filters high-frequency noise from switching regulators.
Use a bridge rectifier with a 600V PIV rating even for low-voltage designs. Cheaper diodes with 400V PIV fail when mains spikes exceed 300V. For linear regulators, calculate heatsink size using θJA = (TJ(max) – TA)/PD, where TJ(max) for a 7805 is 125°C and PD is dissipation. A 5W load requires a heatsink with θSA ≤ 20°C/W to keep junction temperature below 100°C.
Switching vs. Linear Supply Trade-offs
Switching supplies achieve 85-92% efficiency but introduce EMI. Use a ferrite bead and 10μH inductor on the input to attenuate 50-500kHz noise. For sensitive RF circuits, add a pi filter (e.g., 1mH inductor + 47μF capacitor) to suppress conducted emissions. Linear supplies, while 50-70% efficient, provide cleaner output–opt for these if noise margins are critical, such as in ADC reference voltages.
For battery-backed designs, include a 0.5Ω series resistor between the battery and charger IC to limit inrush current. Lithium-polymer cells demand a protection circuit with overcharge cut-off at 4.25V and discharge cut-off at 2.5V; bypassing this risks thermal runaway. Always simulate load transients in SPICE–step responses should settle within 1ms to avoid reset brownouts in microcontrollers.
PCB Layout Criticals
Route high-current traces at 2oz/ft² copper thickness for currents above 3A. A 1A trace needs 0.5mm width per amp (at 1oz/ft²) to prevent I²R losses. Ground planes should be contiguous; split planes under switching ICs cause ground loops. Place decoupling capacitors on the same layer as the load, using vias no longer than 1.5mm–longer vias add inductance, degrading transient response.
Test prototypes with an oscilloscope at 10x probe attenuation. A 100MHz scope captures switching artifacts missed by cheaper models. For medical or aerospace applications, add a 1kV common-mode choke to meet EMI standards like FCC Part 15 or DO-160. Document trace impedance if signals exceed 50MHz–miscalculations cause reflections, corrupting high-speed data lines like USB or HDMI.
Selecting Parts for a Reliable DC Energy Unit
Begin with a transformer rated 20-30% above your required output to handle load surges. For a 12V system, opt for a 15V-0-15V center-tapped model to reduce heat dissipation in later stages. Toroidal transformers offer superior efficiency–up to 95%–compared to E-I cores (85-90%) due to lower magnetic leakage.
Use a full-wave bridge rectifier with ultrafast recovery diodes (e.g., 1N5408) for currents up to 3A. For higher loads (5A+), switch to Schottky diodes (e.g., SB560) to minimize forward voltage drop (0.2V vs. 0.7V) and cut losses by 70% at 10A. Bypass capacitors immediately after rectification–calculate 1000µF per ampere of load for ≤1% ripple at 120Hz.
Capacitor Selection for Smoothing
Low-ESR electrolytic capacitors (e.g., Nichicon UHE series) endure 10,000 hours at 105°C. For high-frequency noise suppression, add 0.1µF-1µF ceramic capacitors in parallel–X7R dielectric tolerates ±15% variation across -55°C to +125°C. Avoid Y5V ceramic types; they lose 80% capacitance at 85°C.
Linear regulators (LM7812, LM317) demand input voltage ≥2.5V above output for stable operation. For 12V output, feed 14.5V-15V post-rectification. Thermal resistance (θJA) dictates heatsink size–LM7812 in TO-220 package requires ≤5°C/W heatsink for 1A continuous load. Switching regulators (e.g., LM2596) achieve 90% efficiency but need input capacitors ≥470µF to prevent output overshoot during transient loads.
Inductors in switching supplies must handle peak currents 30% above nominal. For 3A, use a 100µH ferrite core (e.g., Coilcraft SER2918H) rated ≥4A saturation. Measure inductor current with a 0.1Ω shunt resistor; ensure oscilloscope bandwidth ≥50MHz to capture ringing transients. Keep trace lengths short–≥10mm adds 10nH inductance, doubling voltage spikes.
Protection and Feedback
Add a 1A-2A polyfuse (e.g., Littelfuse 1206L) on the input side for fault isolation. Crowbar circuits using SCRs (e.g., MCR100-6) clamp output at 150% of nominal voltage within 2µs. Optoisolators (HCPL-3120) separate feedback loops in high-noise environments–ensure CTR ≥50% to avoid oscillation.
Test stability with a 0.1µF-100µF load step. Compensate feedback networks (R3 = 1kΩ, C1 = 10nF) to achieve ≥45° phase margin at crossover frequency (typically 1kHz-10kHz). For digital loads, add a 10µF tantalum capacitor at the point of load to absorb current spikes >1A/µs.

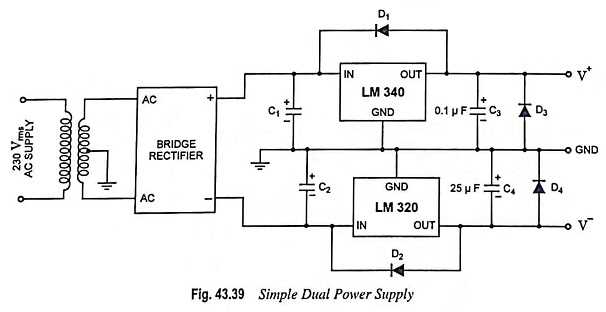

Step-by-Step Wiring of a Transformer-Based AC to DC Converter
Select a transformer with a secondary voltage rating 1.5 times the desired DC output. For a 12V DC supply, use a transformer outputting 18V AC. Verify the transformer’s current capacity matches the load requirements–oversizing by 20% prevents overheating. Connect the primary side directly to the AC mains, ensuring correct voltage compatibility (e.g., 120V/230V). Label all wires before splicing to avoid polarity errors.

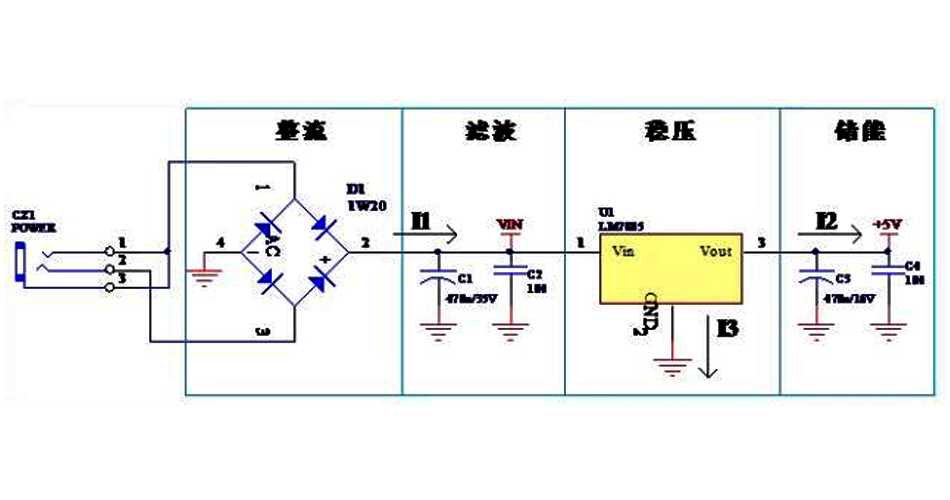

Attach a bridge rectifier to the transformer’s secondary terminals. Use a modular bridge (e.g., KBPC3510) for currents above 3A or discrete diodes (1N4007) for lower loads. Secure connections with solder or crimp terminals rated for 1.5× the expected current. Test continuity after soldering–resistance should be under 0.5Ω. If using discrete diodes, arrange them in a full-wave configuration with two diodes per AC leg.
| Component | Specifications | Notes |
|---|---|---|
| Transformer | 18V AC, 2A | 12V DC target, 20% current margin |
| Bridge Rectifier | KBPC3510 (100V, 35A) | Overkill for 2A; ensures longevity |
| Filter Capacitor | 2200µF, 25V | Low ESR, radial lead |
| Voltage Regulator | LM7812 | TO-220 package with heatsink |
Add a smoothing capacitor across the rectifier’s output. Choose a value using the formula C = I_load / (2 × f × V_ripple), where f is the mains frequency (50/60Hz) and V_ripple is the acceptable ripple voltage (e.g., 0.5V). For a 2A load at 60Hz, a 2200µF capacitor reduces ripple to ~0.7V. Polarize electrolytic capacitors correctly–reverse voltage destroys them instantly.
Insert a linear regulator (e.g., LM78XX) to stabilize the output. Mount the regulator on a heatsink if the load exceeds 0.5A. Calculate heatsink size using θJA = (TJ_max – TA) / (V_in × I_load), where TJ_max is 125°C, TA is 25°C, and V_in is the capacitor voltage (e.g., ~22V). A 10°C/W heatsink suffices for a 12V, 1A output. Verify output voltage with a multimeter–adjust regulator input voltage if overshoot exceeds 0.2V.
Add protection components last. Place a 100nF ceramic capacitor across the output to suppress high-frequency noise. Install a 1A fuse in series with the transformer primary for short-circuit safety. Use MOVs (e.g., V130LA20A) across the AC input if mains surges are common. Test under load for 30 minutes–thermal paste on the regulator limits drift to
