Start by isolating the target DNA fragment using restriction enzymes–select types matching recognition sequences near your gene of interest. EcoRI and BamHI work reliably for blunt and sticky ends, respectively, but verify compatibility with your vector. Misalignment risks inefficiency or frame shifts during ligation.
Choose a plasmid backbone optimized for your host organism. pBR322 and pUC19 offer high copy numbers in E. coli, but adjust antibiotic resistance markers if using alternative strains like Bacillus subtilis. Confirm origin of replication compatibility to prevent low yield.
Calculate ligation ratios precisely. A 1:3 molar ratio of insert to vector minimizes self-ligation, though 1:1 suffices for high-concentration preparations. Use T4 DNA ligase in excess (1–2 Weiss units) and incubate at 16°C for 16 hours–shorter durations reduce colony formation by up to 60%.
Heat-shock transformation outperforms electroporation for most lab-standard protocols. Prepare E. coli competent cells with CaCl₂ at 0°C; thaw on ice immediately before use. Plate on selective agar containing ampicillin (50–100 μg/mL) or kanamycin (30–50 μg/mL) to suppress non-transformants.
Screen colonies via PCR or blue-white selection if using lacZ-compatible vectors. Primer pairs should flank the insertion site; extend annealing time to 45 seconds for fragments >1 kb. Gel electrophoresis resolves ambiguities–target bands should align with predicted insert size, accounting for vector backbone.
Scale up cultures in LB broth supplemented with the same antibiotic. Harvest plasmid DNA via alkaline lysis; expect yields of 3–5 μg per mL of overnight culture. Verify sequence integrity with Sanger sequencing–focus on junctions and open reading frames to rule out mutations.

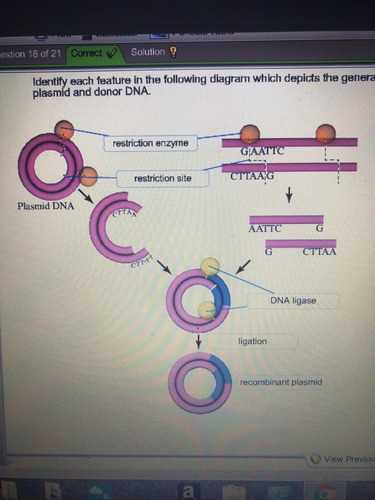

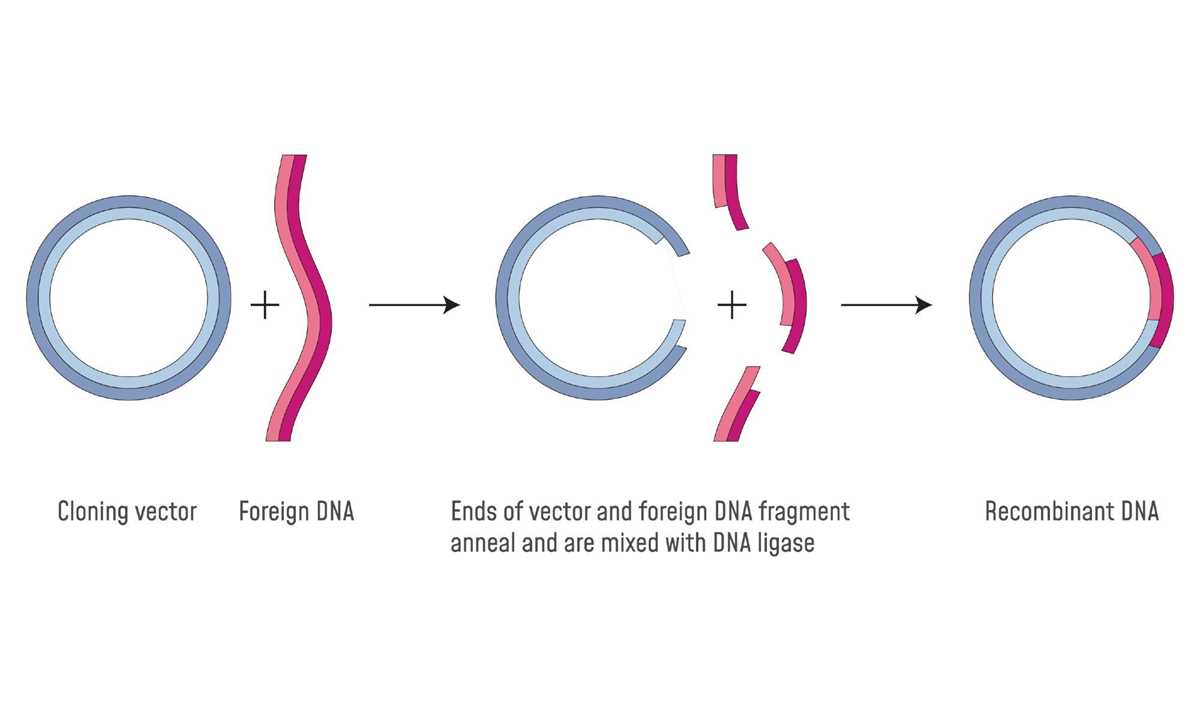

Visual Representation of Recombinant DNA Assembly
Select restriction enzymes with non-complementary overhangs (EcoRI and BamHI) to prevent re-ligation of vector fragments. Below demonstrates optimal pairing for directional insertion:
| Enzyme | Recognition Site | Cut Type | Optimal Reaction Temp (°C) |
|---|---|---|---|
| EcoRI | GAATTC | 5’ overhang (4 bases) | 37 |
| BamHI | GGATCC | 5’ overhang (4 bases) | 30–37 |
| SmaI | CCCGGG | Blunt ends | 25 |
Use alkaline phosphatase treatment on linearized plasmid vectors to remove 5’ phosphate groups before ligation. This reduces vector self-circularization by >90% when combined with 1:3 molar ratio of insert to vector DNA. Heat-inactivate enzymes for 20 minutes at 65°C–prolonged exposure degrades cohesive ends.
Critical Post-Ligation Verification
Plate transformed E. coli on media containing X-gal (40 μg/mL) and IPTG (0.1 mM). Blue colonies typically signal empty vectors, while white colonies (100–200 bp upstream/downstream of insertion site–expected amplicon size increases by length of cloned fragment. Sequence-positive clones with ≥99.5% accuracy prior to functional assays.
Critical Tools and Reagents for DNA Replication Workflows
Select a high-copy plasmid vector with a multiple cloning site (MCS) containing at least six unique restriction sites–pUC19 or pET-28a(+) offer robust options. Ensure the host strain (E. coli DH5α or BL21(DE3)) is competent with transformation efficiencies above 108 CFU/µg DNA for reliable uptake.
Isolate genetic material using silica-based spin columns with binding capacities exceeding 20 µg DNA. Prefer kits with guanidinium thiocyanate lysis buffers to inhibit nucleases; verify purity ratios (A260/A280 ≥ 1.8) before proceeding. Purify plasmids via agarose gel electrophoresis (0.8–1.2%) in TAE buffer (40 mM Tris-acetate, 1 mM EDTA) at 100 V for 30–45 minutes.
Digest DNA with Type II restriction endonucleases–BamHI (5’-GGATCC-3’) and EcoRI (5’-GAATTC-3’) generate sticky ends ideal for ligation. Use 1–2 units enzyme per µg DNA in 1X CutSmart buffer (New England Biolabs) at 37°C for 1–2 hours. Heat-inactivate at 65°C for 20 minutes or purify fragments immediately with magnetic beads (e.g., Agencourt AMPure XP, 1.8X volume ratio).
Ligate inserts into vectors with T4 DNA ligase (400 units/µL) in a 3:1 molar ratio (insert:vector) at room temperature for 1 hour or overnight at 16°C. Include a vector-only control to quantify background recircularization. Transform 5–10 µL ligation reaction into 50 µL competent cells via heat shock (42°C for 30 seconds) or electroporation (1.8 kV, 25 µF, 200 Ω in 0.2 cm cuvettes).
Plate transformed cells on LB agar containing selective antibiotics–ampicillin (100 µg/mL), kanamycin (50 µg/mL), or chloramphenicol (25 µg/mL)–supplemented with X-gal (40 µg/mL) and IPTG (0.5 mM) for blue-white screening if using lacZ-based vectors. Incubate at 37°C for 12–16 hours; pick 5–10 white colonies per construct for colony PCR (Taq polymerase, 30 cycles: 95°C/30 s, 55°C/30 s, 72°C/1 min/kb).
Confirm clones via Sanger sequencing using universal primers (e.g., M13 forward/reverse) or custom-designed oligos targeting internal sequences. Prefer BigDye Terminator v3.1 chemistry with capillary electrophoresis (e.g., ABI 3730xl); analyze chromatograms in FinchTV or SnapGene for mismatches.
Scale up cultures in LB broth with antibiotic selection–harvest cells at OD600 0.6–0.8 via centrifugation (4,000 × g, 10 minutes, 4°C). Extract plasmid DNA using alkaline lysis (Qiagen miniprep kits) or commercial alternatives with lysis buffers containing SDS (1% w/v) and sodium hydroxide (200 mM). Elute in 50 µL nuclease-free water or TE buffer (10 mM Tris-HCl, 1 mM EDTA, pH 8.0); store at −20°C or proceed directly to downstream applications.
Precision Workflow for Integrating DNA Sequences into Plasmid Carriers
Digest both the target sequence and circular bacterial carrier with identical restriction endonucleases–pair EcoRI with BamHI for staggered cuts yielding complementary overhangs. Verify fragment sizes via agarose gel electrophoresis using a 1% gel with 1× TAE buffer at 90V for 45 minutes while comparing lanes to a 1kb DNA ladder. Extract bands promptly under UV light using sterile scalpels, minimizing exposure to prevent thymine dimerization.
Ligation Parameters for Optimal Recombinant Formation
Purify excised fragments with silica-based spin columns, eluting in 30μl nuclease-free water. Measure concentrations via NanoDrop, targeting a 3:1 molar ratio of insert to vector. Combine components in a 10μl reaction with 1μl T4 DNA ligase (400U/μl) and 1μl 10× ligation buffer, incubating at 16°C for 16 hours–alternatively, use a rapid protocol at 25°C for 10 minutes with enzyme concentration doubled. Transform immediately into chemically competent E. coli DH5α cells via heat shock at 42°C for 45 seconds, followed by 2-minute ice recovery.
Plate transformed cells on LB agar containing 100μg/ml ampicillin, X-gal (40μg/ml), and IPTG (0.5mM) for blue-white screening. Incubate inverted plates at 37°C for 16 hours, then select 3-5 white colonies per construct. Confirm successful integration via colony PCR using vector-specific primers flanking the insertion site, with elongation times adjusted to target length plus 300bp buffer. Sequence validated clones using Sanger method, aligning reads against reference sequences in SnapGene or Benchling for single-nucleotide resolution.
Strategies for Identifying and Validating Recombinant Constructs
Choose antibiotic resistance markers tailored to host strain sensitivity. Ampicillin (100 μg/ml), kanamycin (50 μg/ml), and chloramphenicol (25–35 μg/ml) demand precise titration–over-concentration masks false positives, yet suboptimal levels permit satellite colonies. Include negative controls on every selective plate; absence of growth confirms repression specificity. For dual-selection vectors, pair β-lactamase with tetracycline resistance–cross-contamination risks drop below 0.5% when both antibiotics are applied sequentially.
Blue-White Screening Optimization
- Prepare X-gal stock (20 mg/ml in DMSO); store at −20°C protected from light. Use 40 μl per 90 mm plate–excess substrate causes non-recombinant colonies to appear faint blue, complicating visual identification.
- Adjust IPTG concentration (0.1–0.5 mM) based on promoter strength; lacZα fragments cloned under T7 promoters require 0.2 mM, while weaker promoters need 0.4 mM.
- Incubate plates at 37°C for 16–18 hours; shorter incubation yields pale colonies, while longer durations promote satellite colony formation around recombinant clones.
- Harvest white colonies within 24 hours; background reversion rates climb from 2% at day 1 to 12% by day 3.
Employ colony PCR with insert-flanking primers to eliminate false negatives. Design primers with 60°C annealing temperature, 20 bp overlap, and GC clamp–mispriming drops by 70% compared to relaxed parameters. Amplify 1 μl of resuspended colony in 20 μl reactions: initial denaturation (5 min, 98°C), 25 cycles (10 s 98°C, 20 s 60°C, 60 s 72°C), final extension (5 min, 72°C). Visualize products on 1.5% agarose gels stained with ethidium bromide (0.5 μg/ml)–absence of parental vector band (150–300 bp) signals successful insertion.
- Sequence-validate clones using Sanger chemistry with BigDye Terminator v3.1. Dilute template DNA to 100–150 ng/μl; lower concentrations enhance premature termination artifacts.
- Trim primer sequences and low-quality bases (Q
- Align reads to reference using BLASTn (target 98–100% identity for 200+ bp spans). Isolate mismatches to plasmid backbone if parental vector contamination exceeds 3%; repeat transformation if off-target integration is detected.
- Store confirmed constructs at −80°C in 20% glycerol; viability drops below 90% after three freeze-thaw cycles.
