Begin by locating the master cylinder in your vehicle’s hydraulic control layout–typically positioned near the driver’s firewall. Verify its dual-reservoir design: one chamber supplies pressure to the front wheel assemblies, the other to the rear. Cross-connecting lines between these chambers signal a fail-safe redundancy; if a leak occurs in one branch, the other maintains operational resistance. Replace any corroded lines within 24 months, particularly those exposed to road salts or extreme humidity. Always use SAE-rated brake-grade hoses–standard rubber degrades under repetitive 1,500–2,200 psi pulses, risking sudden pressure loss.
Measure fluid displacement before modifying any portion of the layout. A standard passenger vehicle requires 5–7 ml of fluid per full pedal stroke; performance setups may demand up to 12 ml. Calculate the volume needed by multiplying piston area by travel distance (front calipers often use 57 mm² pistons with 2.3 mm travel). Insufficient displacement causes spongy feedback, while excess volume leads to premature pad contact. Install a proportioning valve for rear-wheel bias–locate it between the master cylinder and rear assemblies to prevent lock-up during 0.8g deceleration.
Inspect electrical components if your vehicle integrates anti-lock modules. Wheel sensors must report rotational data within ±2% accuracy at speeds below 8 km/h. Check wiring harnesses for abrasions near suspension components–exposed copper strands create intermittent errors. Replace any cracked ABS modulator connectors immediately; moisture intrusion triggers false activation, depleting the hydraulic accumulator in under 30 seconds. For vehicles equipped with electronic stability control, ensure the yaw sensor alignment remains precise to within 0.5 degrees–misalignment falsely activates corrective braking, degrading tire life by up to 40%.
When routing hydraulic lines, maintain a minimum 12 cm clearance from exhaust manifolds and rotating shafts. Use coated steel tubing for engine bay runs; flexible synthetic lines (PTFE core) withstand temperatures up to 260°C but degrade above 300°C. Secure lines every 30 cm using cushion clamps–vibration-induced fatigue cracks form at unsecured bends. Test every joint with a vacuum gauge: a 10-second hold at -70 kPa confirms seal integrity. Failures typically occur at flare fittings–replace crush washers during each disconnection to prevent slow leaks.

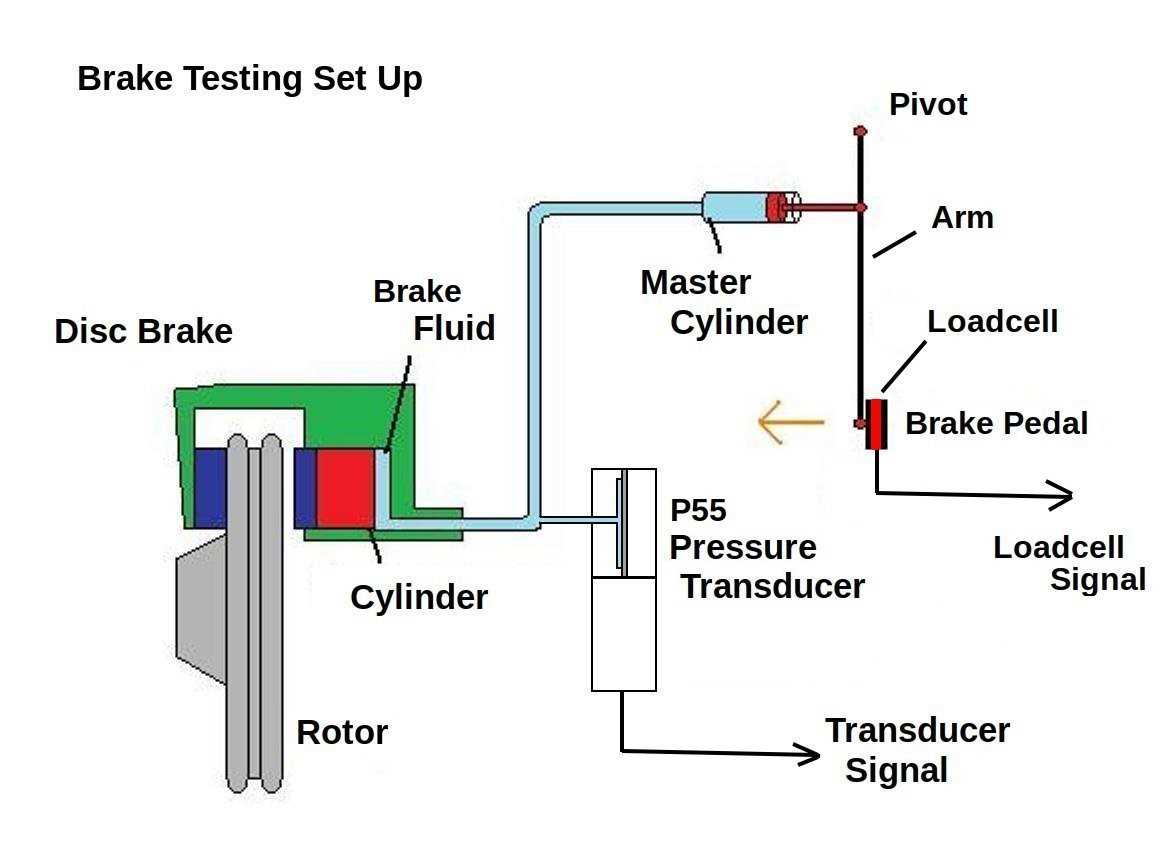

Validate the entire layout under pressure. Apply 180 bar (2,600 psi) and monitor for fluid weeping at connections; visible mist indicates a defective seal. For 4WD systems, verify the differential lock engagement–incorrect pressure distribution in locked mode overloads rear assemblies. Log pedal effort ratios: a 7:1 mechanical advantage should yield 20–25 kg of force at the master cylinder pushrod. Deviations greater than 10% suggest worn seals or misaligned pedal geometry.
Understanding Hydraulic Stopping System Layouts
Start by verifying the master cylinder’s reservoir labels–primary and secondary chambers must match their corresponding lines to avoid cross-contamination. A dual-split scheme (front/rear) demands color-coded tubing: red for rear, green or blue for front. Replace damaged hoses if outer sheathing shows cracks deeper than 0.5 mm or if inner linings bulge under 30 psi pressure; RMA-approved components resist swelling up to 150°C. Ensure bleed screws sit at the highest point of calipers or wheel cylinders; torque them to 8–10 Nm to prevent stripping.
Key Configuration Checks
- Differential valves (proportioning or metering) must be set to manufacturer specs–typically 3.5:1 for rear bias on vehicles over 1,800 kg. Deviations beyond ±0.3:1 cause premature pad wear or rear lockup.
- Pressure switches (if present) trigger at 400–600 psi; test with a gauge at wheel ends to confirm signal integrity before ABS module pairing.
- Vacuum boosters require a 18–22 inHg check; leaks below 15 inHg reduce assist force by 40%, increasing pedal effort disproportionately.
- Brake lines near exhaust manifolds must use stainless steel; copper-nickel alternatives corrode at 1.2 mm/year in high-sulfur environments.
For vehicles with diagonal separation, observe line routing along the frame rail’s inside edge–avoid contact with sway bars or suspension travel zones. Diagram sequencing should reflect real-world layout: master cylinder → junction block → flexible hose → caliper. Use flare-nut wrenches (8–12 mm) exclusively on brass fittings to prevent rounding; torque to 20–25 Nm. After installation, pressurize the system to 1,000 psi and hold for 45 seconds–drops exceeding 50 psi indicate internal leaks requiring seal replacement.
Core Elements of a Hydraulic Stopping System Layout
Begin by identifying the master cylinder–its dual-chamber design separates front and rear pressure channels, preventing total failure. Use a tandem master cylinder with a 17–22 mm bore for passenger vehicles; commercial applications demand 25 mm or larger. Confirm reservoir capacity meets manufacturer specs–low fluid triggers spongy pedal feel, while overfilling risks seal damage under thermal expansion. Install a proportioning valve for rear bias adjustment: a 60/40 split works for most sedans, while 70/30 suits heavier trucks to prevent premature rear lockup.
Critical Auxiliary Parts
Integrate a vacuum booster with a 7–10:1 assist ratio–test for 20–25 inHg at the intake manifold for proper operation. Fit residual pressure valves at caliper outlets to maintain 2–10 psi in lines, preventing air ingestion after pedal release. Choose tubes and hoses with burst pressures exceeding 3,000 psi; corrosion-resistant nickel-copper alloys outperform rubber in high-heat zones. For ABS-equipped layouts, insert wheel-speed sensors with 200–2,500 pulses per revolution, mounted within 1 mm of reluctor rings to avoid signal dropout during hard stops.
How to Read and Interpret Hydraulic Stop System Symbols
Start by locating the master cylinder representation–typically a rectangle with two diagonal lines splitting it vertically. The left chamber corresponds to the front wheels, the right to the rear, unless specified otherwise in legends.
Follow pipelines from each chamber to their respective calipers or drums. Solid lines indicate fluid paths under pressure, while dashed variants denote return lines or vented sections. Look closely for intersections where lines merge; these points often include valves or proportioning devices.
Identify pressure-regulating components: circles with internal arrows mark restrictors, while rectangles with a single diagonal line signify quick-release valves. Smaller circles enclosing a diagonal denote metering valves, critical in adjusting force distribution between axle pairs.
Observe symbols adjacent to wheel cylinders: a triangle with a dotted outline represents a brake warning switch, triggered when disparities between hydraulic channels exceed predefined thresholds. Nearby squares with horizontal bars inside illustrate anti-lock sensors; if present, these interact with modulation units depicted as clusters of interconnected rectangles.

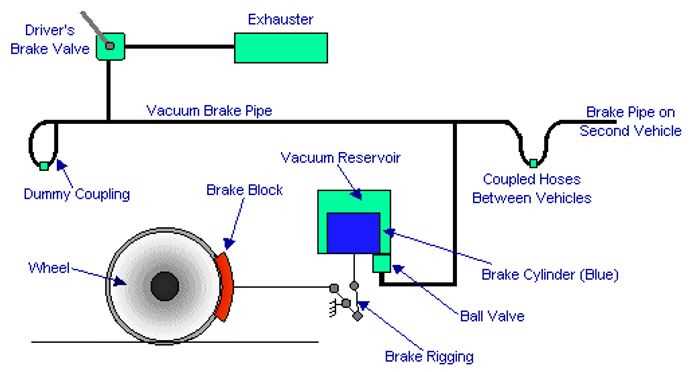

Note directional flow by tracing arrows along fluid conduits–these usually align with pedal application sequences. Cross-reference these movements with secondary diagrams outlining vacuum-assist mechanisms, which appear as elongated ovals connected to master assemblies.

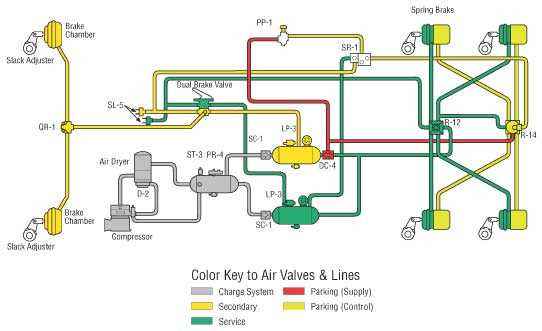

Decode color-coded markings where available: red often highlights primary high-pressure conduits, blue for low-pressure returns, and yellow for electrical connections tied to sensors or solenoids. Such shading simplifies identification amid multiple overlapping routes.
Compare schematic annotations with manufacturer-specific key codes–some brands invert rear axle prioritization, labeling rear circuits left despite conventional left-front/right-rear splits. Double-check these deviations before proceeding with servicing steps.
Prioritize components tagged with asterisks or bold outlines; these denote safety-critical elements requiring verified seals, calibrated spring tensions, or proprietary fluids incompatible with generic substitutes.
Common Hydraulic Line Setups for Passenger Cars
Opt for a diagonal split setup in most modern sedans and hatchbacks. This configuration pairs the front-right wheel with the rear-left and vice versa, ensuring at least 50% stopping power remains if one channel fails. Passenger cars under 1.8 tons typically benefit from this approach, as it balances redundancy with cost efficiency. Verify manufacturer specifications–some compact models may use a modified diagonal split with load-sensing valves to prevent premature rear lockup.
Front-rear split systems suit heavier vehicles like SUVs or performance models weighing over 2 tons. The master cylinder directs fluid to separate front and rear channels, allowing individual bleed procedures. This setup requires precise brake proportioning valves; without them, rear wheels may lock under aggressive deceleration. Regularly test valve function by measuring fluid pressure at each outlet port–values should align within 5% of OEM targets.
Key Setup Variations by Vehicle Type
| Vehicle Type | Recommended Setup | Critical Considerations |
|---|---|---|
| Subcompact (under 1.2T) | Diagonal split | Check rear line diameter–some OEMs use 3/16” (4.76mm) to reduce weight |
| Midsize (1.2–1.8T) | Diagonal split with ABS | Inspect modulator pump–failed units often cause uneven pedal feel |
| SUV/Truck (over 2T) | Front-rear split | Proportioning valve adjustment range should be 30–70% of front bias |

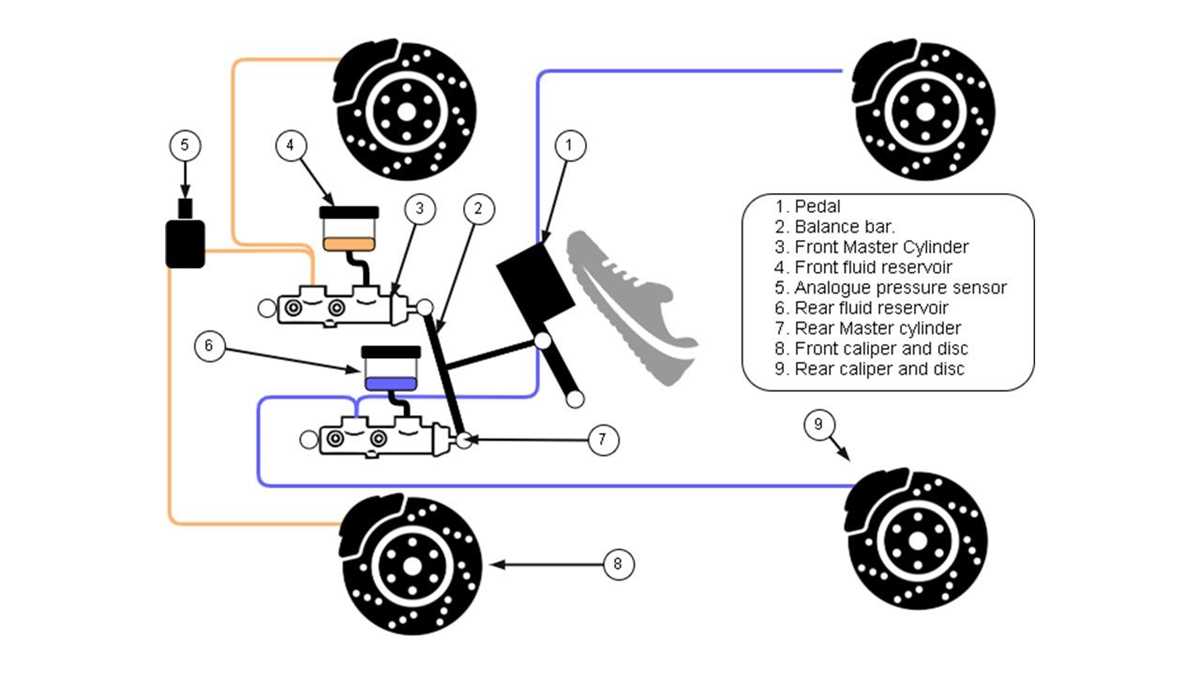

Performance-oriented vehicles often employ a dual-master-cylinder layout. The primary cylinder handles standard operation, while the secondary engages under high demand–common in cars with brake-by-wire systems. Replace both cylinders as a pair if pedal travel exceeds 15% of specifications, even if only one unit fails diagnostics. For retrofits, ensure pushrod length matches the vacuum booster’s input shaft; misalignment by more than 0.5mm risks incomplete piston return, causing drag.
