Begin by selecting a regulated DC adapter with adjustable voltage (3–12V) and current limiting (1–3A). Fixed outputs risk overheating or damaging tools–opt for models with fine-tuning knobs and short-circuit protection. Verify compatibility with 18–20 AWG silicone-coated cables; thinner wires introduce resistance, dropping voltage under load.
Route the main feed from the adapter’s barrel jack to a waterproof inline fuse holder rated slightly above your device’s peak draw (e.g., 2A fuse for 1.5A max current). Avoid generic blade fuses–use slow-blow ceramic types to handle transient spikes during startup. Twist the positive and ground leads tightly (4–5 turns per inch) to reduce EMI, then crimp with gold-plated 4mm ring terminals for corrosion resistance.
Ground the system directly to the chassis via a star-point configuration–never daisy-chain grounds. Use a 1mm² (16 AWG) copper busbar as a central node, bonding the adapter’s negative terminal, the tool’s casing, and an external earth ground (if available) with M4 bolts and lock washers. Test continuity with a multimeter (
Avoid cheap foot switches with exposed contacts. Install a momentary rocker or pedal with rated contacts (10A min), wiring it in series with the positive lead. For high-cycle use, add a flyback diode (1N4007) across the switch to suppress voltage spikes. Seal all connections with heat-shrink tubing (2:1 ratio) over adhesive-lined rings to prevent moisture ingress–standard electrical tape fails under vibration.
Label every conductor with color-coded heat-shrink sleeves:
- Red: positive input
- Black: negative input
- White: switched positive (to tool)
- Green/Yellow: chassis/earth ground
Measure voltage at the tool’s terminals at full load–expect ≤5% drop from the adapter’s output. If readings exceed this, double-check crimps, verify fuse ratings, and replace any corroded or under-sized wires immediately.
Connecting Your Ink Equipment: Circuit Layout Guide
Start by selecting a regulated DC adapter rated between 5V and 12V, ensuring it matches the voltage requirements of your device’s foot pedal or coil machine. A 1A current capacity is typically sufficient for most setups, but check your equipment’s manual for exact specifications. Use stranded copper wire (18–22 AWG) for flexibility and durability under frequent movement.
Grounding is critical to prevent noise interference and ensure stable operation. Connect the negative (-) terminal of the adapter directly to a common ground point on your machine’s frame or a dedicated grounding post. For pedal-controlled systems, splice the ground wire into the pedal’s circuit–this creates a single return path for current, reducing signal disruption.
For two-machine setups, use a dual-output adapter or a splitter with isolated outputs to avoid cross-talk. Below is a reference for wire color coding and terminal connections:
| Component | Wire Color | Terminal Connection | Notes |
|---|---|---|---|
| Adapter positive (+) | Red | Machine drive input | Avoid daisy-chaining multiple devices |
| Adapter negative (-) | Black | Ground bus or frame | Solder joints for longevity |
| Foot pedal input | Green or custom | Adapter positive (+) | Install a 1N4007 diode to prevent reverse current |
Fuse protection is non-negotiable. Install a 1A–2A fuse in-line with the positive wire near the adapter’s output. This prevents overheating or short circuits from damaging your equipment. For modular setups, use a fuse block with separate fuses for each connected device to isolate faults.
Shielded cables minimize electromagnetic interference (EMI) in rotary devices. Wrap the primary wires in braided shielding and connect it to ground at both ends–this is especially useful in environments with fluorescent lighting or other EMI sources. For pedal-controlled rotary machines, a 100nF capacitor across the switch contacts smooths voltage spikes.
Polarity verification is the final step. Use a multimeter to confirm 0V between ground and the negative terminal, and full adapter voltage between positive and ground. Reverse polarity can permanently damage electronic components, so double-check connections before powering on. If using a switch-mode regulator, add a 10μF electrolytic capacitor across the output terminals to stabilize voltage under load.
For humid environments, apply dielectric grease to connectors to prevent corrosion. Inspect wire insulation regularly for cracks–exposed conductors pose both electrical hazards and contamination risks. Store cables coiled loosely to avoid stress fractures, and avoid sharp bends near connectors.
Critical Elements for a Secure Ink Apparatus Energy Source Configuration
Begin by selecting a dedicated voltage regulator with a minimum 3A output rating. Devices operating above 2A ensure consistent current delivery, preventing fluctuations that damage equipment or skin. Cheap alternatives without overload protection risk short circuits–opt for units with built-in thermal cutoff and transient voltage suppression.
Fuse placement is non-negotiable. Position a 250V, 2A slow-blow fuse between the primary switch and transformer input. This interrupt path halts catastrophic failure before it propagates to the output stage. Use a fuse holder rated for 20% higher than the expected current to avoid premature tripping during normal operation.
- High-quality silicone-insulated cables (minimum 18 AWG) for all connections–copper conductivity exceeds aluminum by 60%, reducing resistive losses.
- Twist wires carrying opposing currents to cancel electromagnetic interference, critical for stable mechanical performance.
- Gold-plated connectors resist corrosion better than tin or nickel, ensuring signal integrity over repeated cycles.
Grounding demands a direct path to the chassis via a 6 AWG bare copper wire. Never daisy-chain grounds–each device must terminate independently to prevent ground loops. Verify continuity with a multimeter; resistance should read ≤0.1Ω. Isolate the neutral line completely–mixing it with ground violates safety standards and invites lethal hazards.
Capacitors stabilize output under dynamic loads. Install a 1000μF electrolytic capacitor across the terminals of motor-driven tools to smooth voltage dips during startup. Pair it with a 0.1μF ceramic capacitor to filter high-frequency noise. Keep leads under 5mm–longer traces introduce inductance, negating the benefit. Test with an oscilloscope; ripple should not exceed 50mV peak-to-peak.

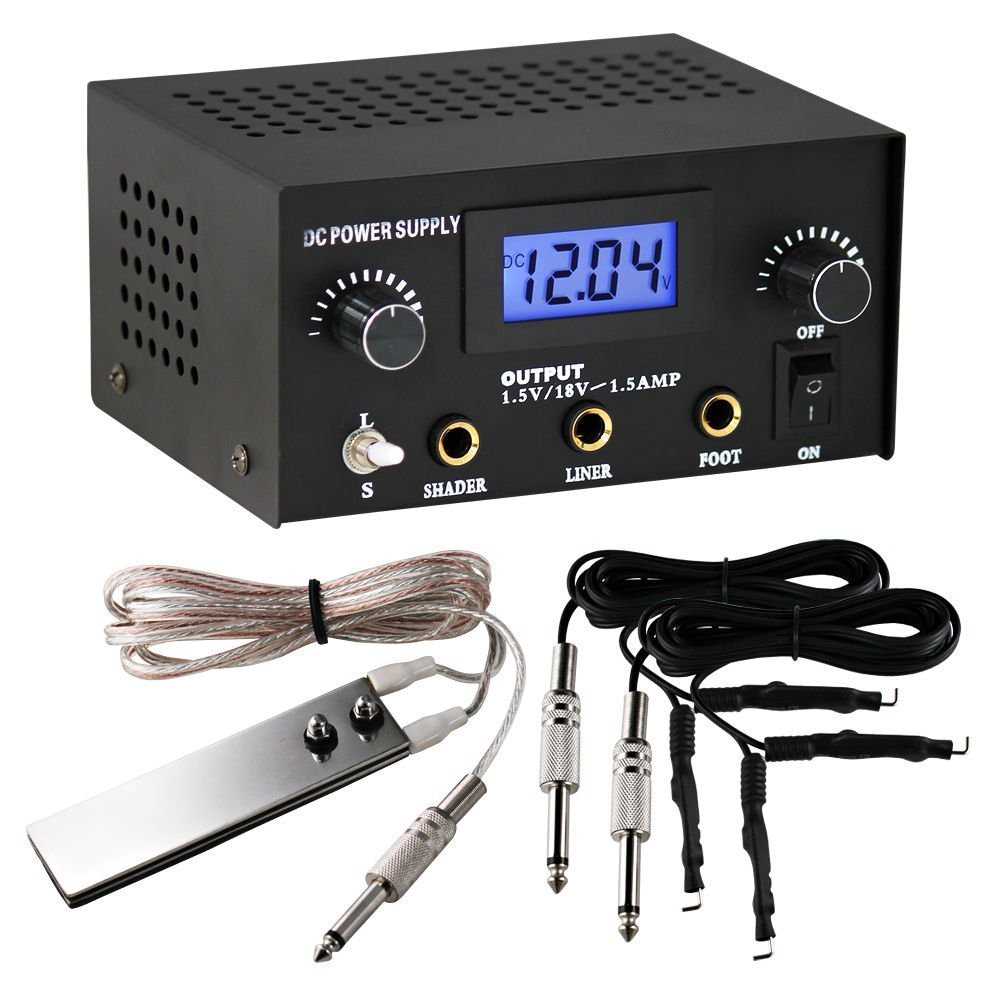

Step-by-Step Circuit Layout for Clip Cord and Footswitch Integration
Begin by identifying the output terminals on your control unit–the positive (+) and negative (-) ports marked for accessory connections. Use 18-gauge silicone-coated wire for the clip cord link, ensuring flexibility and resistance to heat buildup during prolonged use. Strip 5mm of insulation from both ends of the wire, then crimp ring terminals onto each for secure attachment. The first ring connects to the control unit’s positive terminal, while the opposite end attaches to the clip cord’s male plug, confirming polarity with a multimeter set to continuity mode.
For the footswitch, select a momentary SPST (single-pole, single-throw) switch rated for 10A at 250VAC to handle brief but frequent current spikes. Run a single 16-gauge stranded wire from the control unit’s negative terminal to one lug of the footswitch. From the second lug, extend another wire back to the machine’s ground input. Solder all connections to prevent loosening under vibration, applying heat-shrink tubing to insulate joints and prevent short circuits. Avoid twisting wires, as this can weaken conductivity over time.

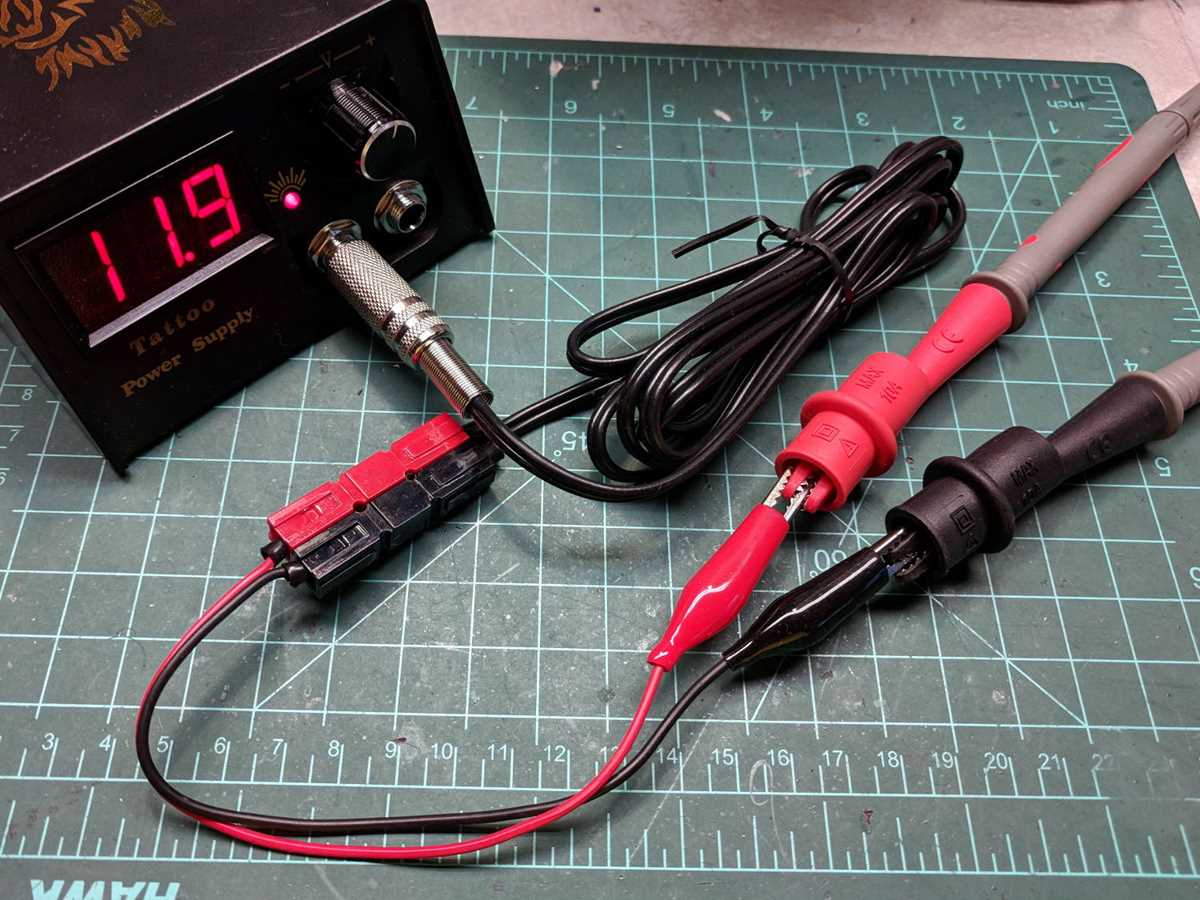

Test the circuit before final assembly: plug in the clip cord and depress the footswitch while measuring voltage at the machine’s contact point. A stable 7–12VDC reading confirms correct polarity and switch functionality. If voltage fluctuates, recheck connections for cold solder joints or reversed wires. For added safety, install a 1A fuse inline with the positive lead to protect against sudden surges, particularly if the equipment lacks built-in overcurrent protection.
Troubleshooting Common Errors
If the footswitch fails to engage, inspect the switch’s internal contacts for corrosion or misalignment. Clean with isopropyl alcohol if debris is present, or replace the switch if resistance exceeds 2 ohms when depressed. For the clip cord, verify the male plug’s internal spring tension–weak contact pressure can cause intermittent operation. Replace prongs showing wear or oxidation, as these components are prone to failure after 1,000+ cycles.
Ground loops–often mistaken for equipment failure–introduce hum or erratic behavior. To diagnose, disconnect the footswitch and clip cord one at a time while observing noise levels. If the issue persists, isolate the control unit’s chassis from the machine’s frame using a 0.1μF capacitor across the ground wire and neutral terminal. This bypasses high-frequency interference without affecting DC performance.
Label all wires with heat-resistant sleeves or colored tape to simplify future repairs. For dual-machine setups, replicate this layout separately for each unit, avoiding shared ground paths that can create cross-talk. Keep wire runs as short as possible (
Selecting the Optimal Wire Thickness for Ink Machine Electrical Systems
Use 18 AWG copper wire for standard ink devices drawing 2–5 amps. This gauge handles currents safely without excessive voltage drop–critical for consistent needle speed and minimal heat buildup. For setups exceeding 6 amps, switch to 16 AWG to prevent resistance-related performance loss. Measure your device’s current draw with a multimeter first; assumptions lead to overheating or premature component failure.
Prioritize stranded wire over solid core. Stranded flexes more reliably, reducing fatigue at connection points and resisting vibration-induced breakage. Insulation type matters: silicone-jacketed wire withstands repeated flexing and resists oils/inks better than PVC. Avoid cheap alternatives–cracked insulation creates short-circuit risks. Verify ampacity charts for your specific environment (e.g., higher ambient temps require thicker insulation).
Key Factors Influencing Gauge Selection
- Length of run: Every additional foot increases resistance. For runs over 10 feet, bump up one gauge size (e.g., 18 AWG → 16 AWG) even if current draw stays the same.
- Duty cycle: Devices running >30 minutes continuously need thicker wire. A 10 amp device operating for 45 minutes demands 14 AWG, not 16 AWG.
- Material: Copper-clad aluminum (CCA) wires are 30% less conductive than pure copper. Never use CCA for currents above 3 amps.
- Termination method: Crimped terminals should match wire gauge precisely. Loose fits increase resistance; overly tight crimps damage strands.
