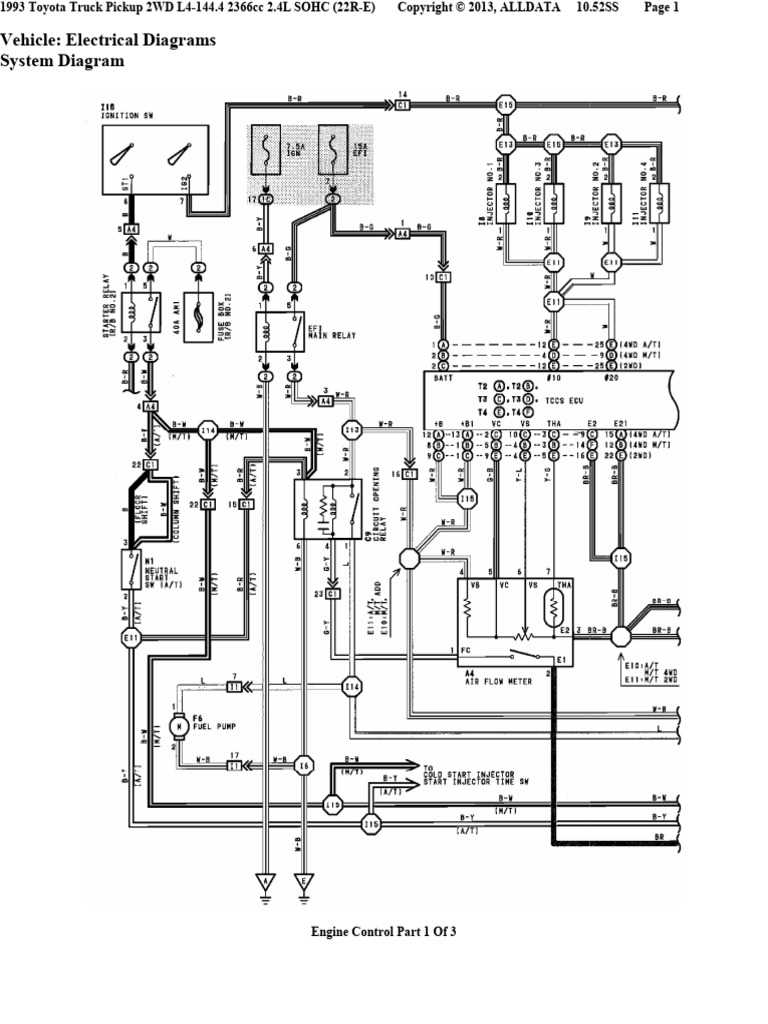

Start by locating the main harness connector near the firewall–terminal E7 handles critical sensor inputs. Use a multimeter to verify 4.5–5.5V on the IAT (Intake Air Temperature) and THW (Coolant Temperature) pins before proceeding. Failure to confirm reference voltage here will mislead diagnostics downstream. The VC (5V reference) wire, typically white with a red stripe, splits into three branches: one feeds the TPS (Throttle Position Sensor), another the MAP (Manifold Absolute Pressure) sensor, and the last supports the VAF (Volume Air Flow) meter on early models. Cross-reference this with the ECU pinout for your specific year; pre-1990 models route the MAP signal through ECU pin 22, while later revisions switch to pin 100.
Trace the ignition system wiring next. The IGT (Ignition Trigger) signal originates at the ECU (pin 1) and travels through a black with yellow stripe wire to the ignition coil. Verify 0.8–1.2Ω resistance across the coil’s primary winding; readings outside this range indicate internal shorting. The IGF (Ignition Feedback) wire, black with white stripe, returns a 5V pulse to the ECU after each spark. If this feedback loop fails, the ECU will default to a hard-cut fuel mode, shutting off injectors within 1.5 seconds. Bypass the ignition module by jumpering the IGT and IGF wires temporarily to isolate coil or module failures.
Fuel system diagnostics require isolating the two primary injectors (cylinders 1/3) and two secondary injectors (cylinders 2/4). Each pair shares a blue stripe wire for power and a unique ground trigger: green with black stripe for cylinders 1/3 and green with yellow stripe for 2/4. Probe the injector driver circuits at the ECU (pins #10 and #20 for primary, #11 and #21 for secondary) with an oscilloscope–healthy waveforms show a sharp 12V drop for 3–5ms at idle. Extended pulse widths signal vacuum leaks or faulty MAP readings. For 1988–1995 models, check the cold-start injector (yellow wire) separately; it receives 12V constant from the starter relay and a purple striped ground trigger from the coolant temperature switch.
Ground paths dictate sensor accuracy. The engine block stud (near the oil dipstick) distributes grounds for the alternator, knock sensor, and ECU. Remove the 10mm bolt, clean the mating surfaces with 120-grit sandpaper, and torque to 18–22 ft-lbs. A 0.1Ω or higher reading between this stud and battery negative confirms corrosion. The main ECU ground (black wire, pin #E1) links directly to the firewall–test for resistance here. Avoid relying on chassis grounds; corrosion in the kick panel or front fender wells causes intermittent stalling under load.
Final validation requires a smoke test for harness integrity. Disconnect the ECU, plug in a test harness, and apply 3.5 psi through the MAP vacuum port or throttle body. Leaks exceeding 0.5 psi/min reveal cracked vacuum lines or faulty PCV valves. Pay special attention to the braided stainless steel line between the fuel rail and fuel pressure regulator–split seams here mimic lean codes (e.g., OBD-I code 21). Replace the entire assembly if pinhole leaks are detected; patching with epoxy fails under long-term pressure cycles.
Understanding Toyota’s 4-Cylinder Electrical Layout: A Hands-On Reference
Start troubleshooting by locating the main fuse block under the dashboard, driver’s side. Remove the lower panel retainer clips–three 10mm bolts–and lift the panel to expose the harness connections. Pin 1G on the ECU connector (white, 22-pin) should register 12V ignition signal when the key is turned to ON but the starter not engaged. If voltage drops below 11.5V, inspect the ignition relay (fuse #15, 15A) and trace back to the ignition switch terminal IG2.
Here’s a quick voltage reference table for critical sensor and actuator pins at idle (750 RPM, 90°C coolant temp):
| Component | Connector Color | Pin | Expected Voltage (DC) | Notes |
|---|---|---|---|---|
| Throttle Position Sensor | Gray | VC | 4.8–5.2V | Reference voltage |
| Coolant Temp Sensor | Brown | 2 | 0.5–1.2V | Varies with temp |
| Oxygen Sensor | Black | HT | 0.1–0.9V | Switching above 1500 RPM |
| Fuel Injector | Black/Orange | + | Pulse width ~2.5–4.0 ms | Scope required |
| Idle Air Control Valve | Green/White | B | Hybrid square wave ~100–200 Hz | Duty cycle 20–40% |
When verifying ground circuits, probe the engine block mounting points. The ECU ground strap–two braided wires bolted to the intake manifold–should never exceed 50 mV across the connection. Clean mating surfaces with 400-grit sandpaper and 7% phosphoric acid gel if corrosion is present. Re-torque to 12 ft-lb.
Solenoid and Relay Pinouts
AC compressor clutch relay (fuse #13, 10A) outputs 12V on terminal 85 when engaged. Trace the blue/black wire back to ECU pin 3E–if missing, check the pressure switch on the accumulator (low-pressure cutoff at 25 psi). The EVAP solenoid, triggered via ECU pin 3K, pulses at 10 Hz with 50% duty cycle during warm-up. A failed solenoid will cause code 31.
For injector resistance testing, unplug the harness connector. At 20°C, each injector should measure 13.8 ± 0.6 Ω across the two pins. Replace any injector reading below 12 Ω or above 15 Ω. Label harness connectors before disconnecting–use paper tags and zip ties to prevent mis-mating during reassembly.
Mapping Critical Connector Segments in Toyota’s 2.4L Fuel-Injected Systems
Locate the main ECU plug (black, 22-pin) beneath the dash near the fuse panel–this is the primary nerve center for the injection sequence. Verify pin assignments against the factory service manual: pins 1-4 control the ignition coil, 5-8 handle fuel pump activation, while 9-12 manage the oxygen sensor feedback loop. Any corrosion on these contacts will disrupt timing and fuel delivery.
Trace the injector harness (grey loom with four 2-pin connectors) from the rail to the ECU–each line powers a specific cylinder. Label them sequentially (1-4) to avoid cross-wiring:
- #1 (front) connects to ECU pin 17
- #2 (second) to pin 18
- #3 (third) to pin 33
- #4 (rear) wraps to pin 34
Misalignment here causes rough idle or cylinder misfires.
The throttle position sensor (TPS) harness splits into three wires–red (5V reference), blue (signal), and black (ground). Test continuity from the TPS plug to ECU pins 22 (signal) and 104 (ground). A failed ground here mimics accelerator pedal lag.

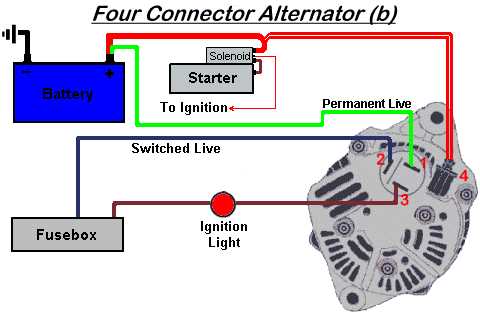

Inspect the alternator’s dual connectors:
- White/black (voltage regulator) → ECU pin 49
- Yellow/black (charge indicator) → fuse box terminal 10A IGN
Voltage drop below 13.8V under load suggests a compromised regulator circuit.
Distributor pickups require shielding–check the two-prong plug (black/white and red/white) for shorts to the ignition coil body. Resistance should read 120-240Ω between pins; deviations indicate a faulty pickup or moisture ingress.
Ground straps (bare copper) link the cylinder head to the firewall–confirm zero resistance on all three paths:
- Front (near thermostat housing)
- Mid (intake manifold rear)
- Rear (bell housing bolt)
Any resistance over 0.5Ω triggers intermittent electrical gremlins.
Step-by-Step OEM Harness Color Codes and Pinout Decoding
Begin by locating the main power distribution block under the vehicle’s hood–this is where the primary harness splits into injector, sensor, and ignition feeds. The Toyota beige connector (often labeled “E5” or “E7” in service manuals) carries critical signals: IGT (ignition timing) uses a blue/white stripe, IGF (ignition confirmation) a black/white stripe, and E1 (ground reference) a solid brown. Verify these against the ECU’s pinout table before splicing; a single swapped wire can trigger a P0351-P0354 misfire code or permanent ECU damage.
For the fuel injector circuit, note the sequence: Cylinder 1 (yellow/blue), 2 (yellow/black), 3 (blue/black), 4 (red/black). These wires terminate at the injector resistor pack (if equipped) or directly to the ECU on later models. The resistor pack’s input/output pairs demand 12-14 ohms; trace each wire back to its origin using a multimeter in continuity mode. If resistance exceeds specifications, inspect for corroded pins at the ECU or degraded insulation near the exhaust manifold.
Sensor grounds (like those for the coolant temp sender or O2 sensor) share a common black/white wire that routes to the intake manifold’s grounding stud. Disconnect the battery before probing; a floating ground can skew readings by ±0.3V. The MAP sensor uses a white/red stripe for signal output–apply 5V from a stable power supply to test response curves without risking ECU feedback loops.
Solving Ignition System Faults in Toyota’s 4-Cylinder Models
Check the ignition coil connections first if the vehicle misfires consistently. Loose or corroded terminals between the coil pack and distributor cap often disrupt spark delivery. Use a multimeter to verify resistance across primary and secondary windings–primary should read 0.7–1.0 ohms, secondary between 10–15 kilohms. If values deviate, replace the coil immediately; aftermarket units may fail prematurely under sustained high temperatures.
Inspect the distributor rotor and cap for carbon tracking, especially along the internal electrode paths. Even minor burns reduce voltage transfer, leading to weak spark or cylinder dropout. Clean surfaces with electrical contact cleaner, not sandpaper–abrasives create microscopic pits that worsen corrosion. Rotate the rotor while observing the contact points; excessive play indicates worn bushings requiring distributor replacement.
Voltage drops across the ignition switch and starter relay paths typically cause intermittent starting issues. Probe each segment of the circuit with the ignition on: expected readings should stay above 11.5 volts between battery positive, ignition switch output, and starter solenoid input. Values below 0.5 volts across connectors suggest poor contacts–remove oxidation with a wire brush or replace faulty connectors entirely.
Test the ignition control module mounted on the distributor if timing remains erratic despite correct static adjustments. Backprobe the trigger signal wire (black with yellow stripe) while cranking; a consistent 5-volt square wave confirms functional output. Static timing marks on harmonic balancers shift due to rubber deterioration–use a timing light to compare crankshaft position sensor readings against factory specifications (±2 degrees at idle).
