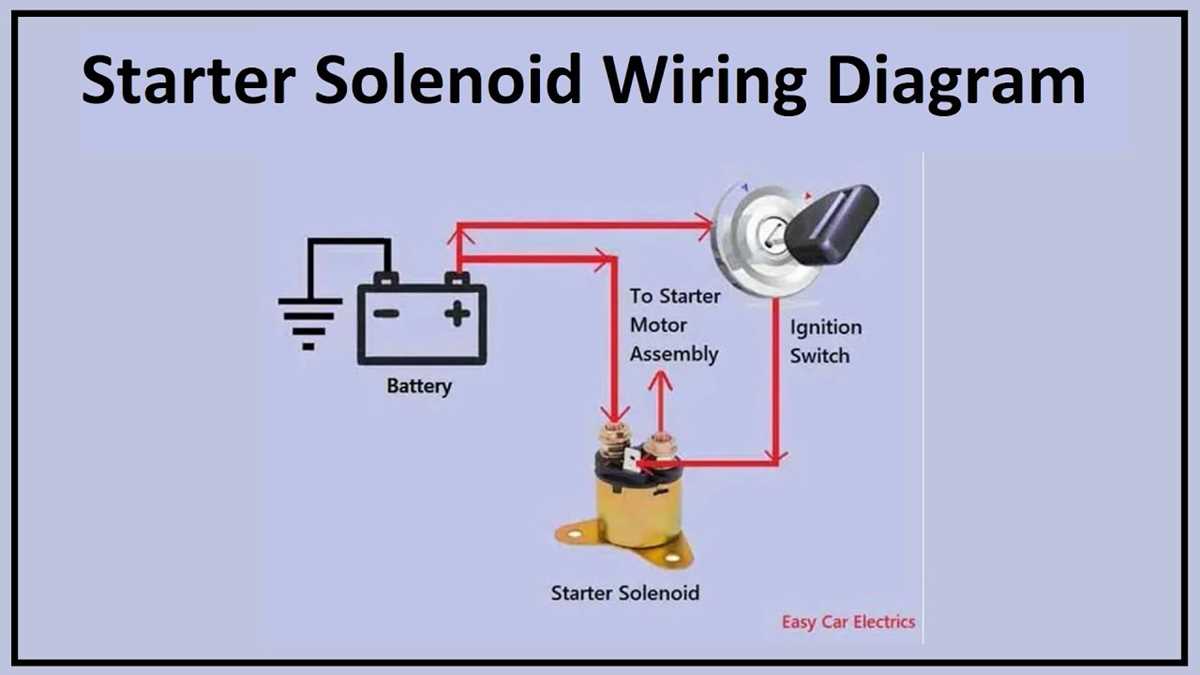

Begin by locating the relay near the engine’s power system–most models position it adjacent to the battery or ignition module. Verify the terminal labels: B+ (battery positive), S (switch), M (motor), and ground. If markings are missing, use a multimeter (set to continuity) to trace the connections. The B+ terminal links directly to the power source’s positive post, while S accepts the ignition signal from the key switch or start button. The M terminal routes power to the engine’s cranking mechanism, and the ground attaches to the chassis or engine block.
Use 10-gauge wire for high-current paths (B+ to M) to prevent voltage drop under load. For control circuits (key switch to S), 16-gauge wire suffices. Secure all connections with crimp terminals and heat-shrink tubing–avoid solder alone; vibration from operation can fracture joints. Test the relay’s operation with a 12V test light: apply power to B+ and ground, then briefly touch S. A functioning relay will click, and the test light at M should illuminate.
Common failure points include corroded terminals and frayed wires at stress points near the engine. Clean oxidation with a wire brush and dielectric grease before reassembly. If the relay clicks but the engine won’t crank, check the M terminal voltage under load–readings below 10V indicate a weak battery or undersized wire. For push-button starts, ensure the S circuit is not bypassing any safety interlocks, such as seat switches or brake sensors, which prevent unintended operation.
For aftermarket replacements, match the relay’s amperage rating–typical garden machines use relays rated for 30–50A. Avoid universal relays without a built-in diode; they risk damaging sensitive electronics from voltage spikes when the motor disengages. If the relay overheats during prolonged cranking, upgrade to a heavy-duty model with a higher duty cycle, or inspect the engine’s mechanical conditions (e.g., hydro-locked cylinders) to reduce load.
Understanding Activation Circuit Layouts on Garden Equipment
Start by locating the ignition system’s relay on the engine block–typically a small cylindrical or rectangular component with two heavy-gauge terminals and two thinner connectors. The thick cables (often 6-8 AWG) carry high-current power from the battery to the cranking mechanism, while the smaller wires (usually 14-18 AWG) handle the control signal from the ignition switch. Label each connection before disconnecting: the input side links directly to the power source (marked “B” or “+”), and the output (marked “M” or “S”) feeds the engine’s flywheel engagement coil. A multimeter set to continuity mode should confirm zero resistance between these two heavy terminals when the relay is activated–any reading above 0.5 ohms indicates internal corrosion or wear.
The trigger circuit begins at the key switch, where a momentary 12V pulse signals the relay to close its contacts. Trace the wire from the switch’s “start” terminal (often colored red with a purple stripe or yellow) to the relay’s small control post–typically marked “S” for “switch” or “50” on OEM schematics. Check for voltage here while cranking; a healthy signal drops below 0.2V once the relay engages. Ground-side control posts (marked “I” or “85”) must connect to the chassis or engine block–verify this with a test light, ensuring it illuminates when probing both the post and bare metal. If the light fails, inspect for frayed insulation, loose ring terminals, or paint obstructing contact.
Common failure points include pitted relay contacts and overheated control wires. Replace any relay exhibiting visible arcing on the contact surfaces–symptoms include a single-click sound when the key is turned, followed by silence. For aftermarket upgrades, use a relay with a 30A continuous/75A peak rating minimum; premium models (e.g., Cole Hersee 24054) feature sealed contacts resistant to moisture and dust. Always route the heavy-gauge output cable away from moving parts–secure it with zip ties at 6-inch intervals–and avoid sharp edges to prevent chafing. A dielectric grease coating on all terminals prevents oxidation in humid environments.
Final diagnostic steps: With the engine off, disconnect the battery and use a jumper wire to bridge the relay’s heavy terminals. If the flywheel spins freely, the relay is operational, and the issue lies in the trigger circuit or switch. Measure voltage drop across the control circuit during cranking–acceptable values range from 0.1-0.3V. Exceeding 0.5V suggests excessive resistance from corroded connectors, undersized wires, or a failing ignition switch. For permanent repairs, solder all splices and apply heat-shrink tubing; crimp connectors degrade over time, leading to intermittent starting failures.
Locating the Power Relay Connection Points on Your Garden Machine

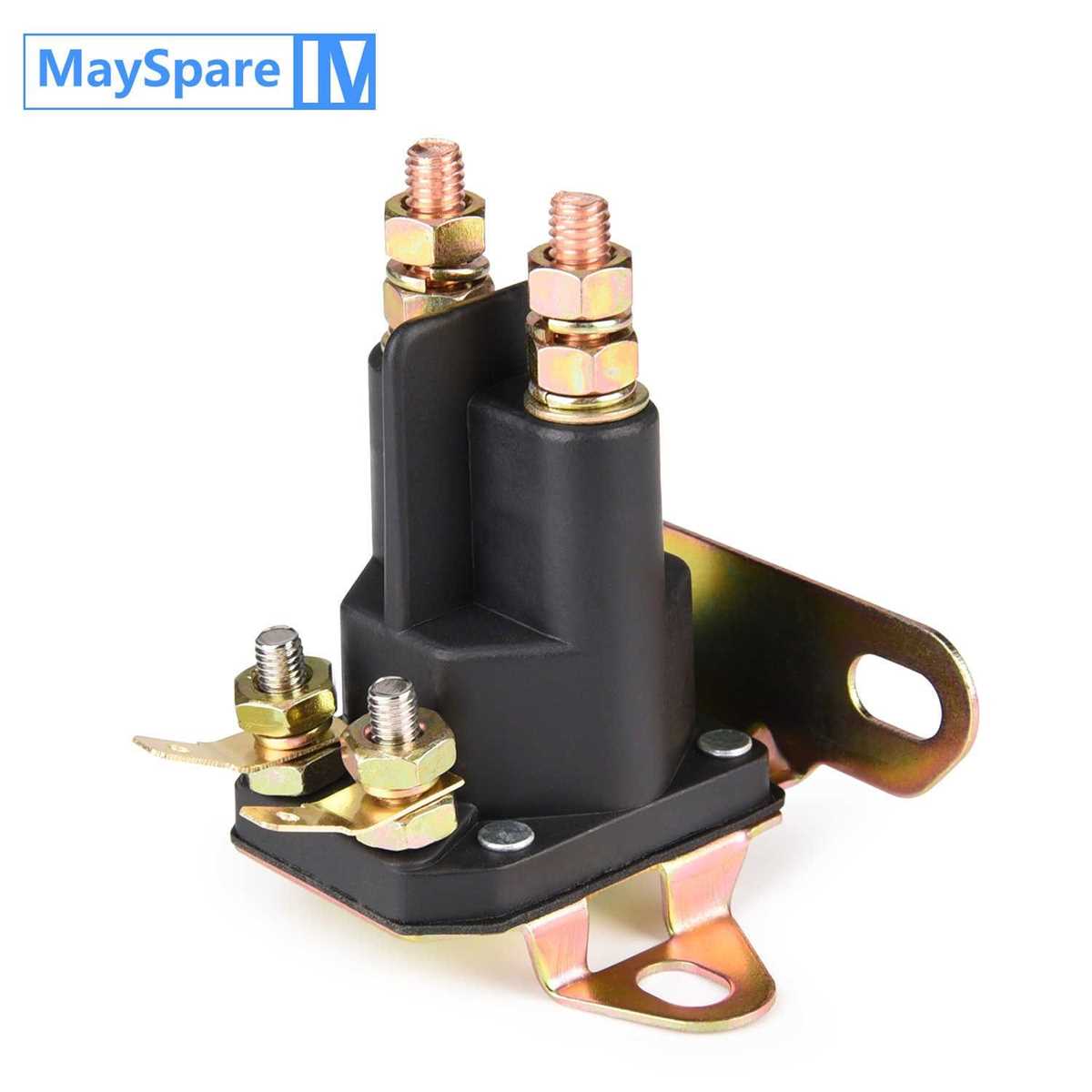

Begin by inspecting the cylindrical or rectangular component mounted near the engine’s electrical system. The two larger posts–typically 5/16″ or 3/8″ in diameter–are bolted directly through the casing. These serve as the main current pathways: one attaches to the battery’s positive lead, the other routes voltage to the cranking motor. Smaller terminals, usually marked with letters or numbers, handle auxiliary functions–look for a spade-style connector labeled “S” (signal) and “I” (ignition), though some models use “B” or “M” instead.
Trace the heavy-gauge cable from the battery’s positive clamp; it must terminate at one of the larger posts. If corrosion obscures identification, clean the area with a wire brush and apply a multimeter set to DC voltage. Have an assistant turn the engine switch while you probe–voltage spike on a single smaller terminal confirms the control circuit. The remaining large post should show battery voltage when the switch engages, verifying it feeds the direct drive mechanism. Reverse polarity here risks immediate damage.
Common Terminal Arrangements Across Brands
Briggs & Stratton units often position the control post between the two power lugs, clearly labeled “S.” Kohler relays place the activation terminal adjacent to a protective plastic cover, sometimes marked “50.” Honda models may use a combination of studs and blade connectors, requiring careful observation of wire routing–white or yellow leads typically signal the auxiliary circuit. Toro and John Deere frequently employ dual small terminals: one for signal input, the other for bypassing safety interlocks during operation.
If markings wear off, note the wire colors: red thick cables always connect to power, while thinner yellow, purple, or black leads–sometimes with green stripes–designate the trigger circuit. Avoid guessing: incorrect attachment can prevent engagement or drain the battery overnight. If uncertain, consult the service manual by model number, usually stamped on a metal tag beneath the engine shroud.
After confirming the correct posts, secure connections with lock washers and apply dielectric grease to prevent oxidation. Re-test by briefly activating the engine switch–listen for a distinct click from the relay, indicating proper function. No response suggests a faulty unit or fractured wire, necessitating a continuity check on each lead all the way back to the control switch or battery.
How to Trace the Electrical Path from Power Source to Relay Switch
Disconnect the positive terminal of the power cell first. Attach a multimeter set to continuity mode or a low-voltage DC setting (12V range) to the disconnected cable end and the relay’s input post. If the meter shows zero resistance or emits a tone, the path is intact; if not, inspect the cable for breaks or corrosion.
Locate the main fuse between the power cell and relay switch–usually a 20-30 amp inline fuse in a plastic or glass holder clipped to the frame. Visually confirm the fuse element is unbroken; if melted, replace it with an identical rating. Skip this step only if your setup lacks a fuse, though this is rare in modern units.
Examine the connection points at the relay switch. Two large posts (often copper or brass) handle high current: one from the power cell, the other leading to the actuation mechanism. Clean both posts with a wire brush to remove oxidation, then tighten bolts to 8-10 Nm torque. Loose connections create voltage drops that mimic faulty cables.
Testing the Control Circuit Path
Identify the smaller relay switch posts–they carry the control signal. One connects to the ignition key or start button; the other links to ground. Use a multimeter to measure voltage at the control input post while engaging the ignition: a reading near 12V confirms signal arrival. Absence of voltage means tracing back to the ignition switch or broken conductor.
Trace the conductor from the ignition switch to the relay switch. Most setups use a thin red or purple cable, often bundled with other leads. Separate it carefully; frayed insulation here causes intermittent faults. If the cable runs through a grommet or frame hole, check for pinched sections that may short to ground.
Ground faults account for over 40% of relay switch failures. Attach a multimeter probe to the relay’s ground post and the other to a clean metal point on the frame. A reading above 0.5 ohms indicates a corroded or loose ground connection. Sand the frame contact point and retighten screws to restore proper grounding.
Final Verification and Safety Checks
Reconnect the power cell terminal and engage the ignition. Listen for a distinct click from the relay switch–no click suggests a faulty unit or broken control circuit. Measure voltage across the high-current posts: 12V+ indicates readiness. If voltage exists but the mechanism doesn’t activate, replace the relay switch with an OEM-spec component.
Reinstall all covers and test the full sequence under load. If the system engages smoothly, monitor the relay switch temperature after 30 seconds–excessive heat (above 60°C) signals undersized cables or internal relay failure. Document each step for future troubleshooting; traced conductors rarely fail in the same location twice.
