Locate the main harness connector near the steering stem–this is where the primary power feeds split into the ignition feeds. Pin 1 (red/white) carries the permanent live wire from the battery, while Pin 4 (black/yellow) routes the switched output to the coils. Cut tracing errors by disconnecting the battery first and using a multimeter to confirm continuity through each segment.
Identify the two interlock circuits. The neutral safety switch (green wire) and the clutch lever switch (green/white) must both close ground for the starter relay to energize. Test each switch separately with the key in the “ON” position–resistance below 1Ω verifies proper operation. Check that the ground splice near the frame bracket shows zero volts relative to the negative terminal.
Avoid splicing the pink wire (ECU trigger) directly. This thin-gauge circuit carries only milliamp-level current and is sensitive to voltage drop. Use a dedicated diode (1N4007) to isolate the kill switch input if adding auxiliary accessories. The starter relay itself mounts under the seat panel; verify the 12V coil input on Pin 30 (yellow/red) when the starter button is pressed.
For precise color-coded reference, cross-check wires against the service manual’s harness layout (Page 8-12). Frayed insulation near the headstock requires immediate repair–wrap each segment with adhesive-lined shrink tubing graded for 150°C heat resistance. Label every connection with heat-shrink tags to prevent miswiring during reassembly.
Electrical Circuit Guide for Sport Bike Handlebar Control Unit
Begin by locating the main connector cluster beneath the instrument panel. The factory harness on the 249 cc model features a black six-pin plug labeled “A” and a gray four-pin plug labeled “B”. Trace the red wire with a thin white stripe (terminal A3) directly back to the battery positive terminal–this serves as the primary power feed during “ON” and “START” positions. Confirm continuity with a multimeter set to 20V DC; readings should stabilize at 12.6V with the engine off.
- Pin A1 (black/yellow) – chassis ground, verify resistance <0.5Ω to frame.
- Pin B2 (green/red) – starter solenoid trigger; absent voltage here indicates relay failure.
- Pin A6 (yellow/green) – feeds ECU; interrupting this line disables fuel injection.
Disconnect the negative battery cable before working on the handlebar assembly to prevent accidental short-circuits. The left switch housing contains three positions: “LOCK,” “OFF,” and rotational detents for “ON” and “START.” Each detent corresponds to a distinct path inside the switch–use a wiring diagram cross-reference to match colors against the manufacturer’s service manual (KLE007B1 section 16).
Test the “LOCK” position by engaging the steering lock mechanism; the pink wire (terminal A4) should deliver 0V, while the brown wire (terminal A5) must show battery voltage–failure suggests corroded contacts or a faulty lock cylinder. Apply dielectric grease to each terminal after inspection to prevent oxidation.
- Remove the right fairing lower panel with a T25 Torx driver; set aside screws in magnetic tray.
- Follow the purple wire (terminal B1) to the ignition relay; tap into this line with a 10A fused jumper to bypass faulty switch contacts temporarily.
- Replace switch assembly if pins exhibit melted plastic–common aftermarket failure.
Solder all repair connections using 60/40 rosin-core wire; avoid crimp connectors in high-vibration zones. Heat-shrink tubing (minimum 3:1 ratio) prevents future moisture ingress. After reassembly, cycle the key through each position ten times while monitoring voltage drop across critical paths–expect ≤0.2V loss at peak current draw.
Store spare OEM part #27011-1243 in a climate-controlled drawer; aftermarket replicas often lack proper plating, leading to premature failure under 115°C thermal cycling common during summer riding conditions.
Finding the Key Circuit Connector on the Sport Bike Model
Begin by removing the right-side fairing panel–two 10 mm bolts secure it beneath the seat rail and a single 8 mm fastener near the radiator shroud. Once detached, the main wiring harness becomes visible; trace the thickest black conduit back toward the steering stem. The mating plug is a 6-pin white receptacle, mounted directly to the frame bracket roughly 150 mm aft of the instrument cluster.
Unplug the connector by pressing the tab on its underside–do not pull on the wires. Inspect the plug’s terminals against this pinout:
| Pin | Color | Function |
|---|---|---|
| 1 | Black/White | Ground |
| 2 | Green/Red | Accessory relay trigger |
| 3 | Brown/Yellow | Ignition feed |
| 4 | Black | Lock solenoid |
| 5 | Light Green | ECU signal |
| 6 | Yellow/Red | Power input from battery |
Reattach any loose connectors by aligning the keyed notch on the plug with the corresponding slot on the socket. Apply dielectric grease to the terminals before reconnecting to prevent corrosion. If the tab is broken, secure the plug with a zip-tie routed through the mounting hole on the bracket.
For verification, probe Pin 6 with a multimeter set to DC voltage while turning the key to the ON position–expected reading is battery voltage (12-14 V). If voltage is absent, check the main fuse (15 A) inside the fuse box located under the left side cover.

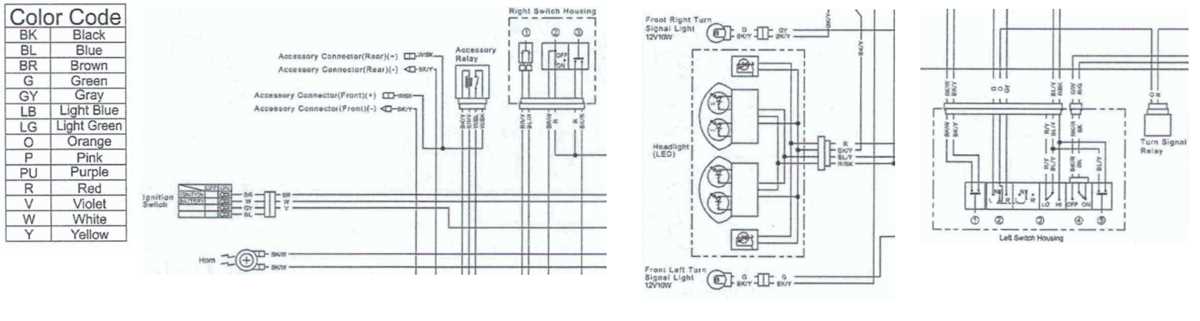

Decoding Connector Hues for Electrical System Troubleshooting
Locate the black wire with yellow stripe (B/Y) as the main power feed from the battery–verify its 12V reading at the harness connector with a multimeter before proceeding. This conductor splits into two branches: one routes to the starter relay and must show continuity only when the key activates the crank position, while the other delivers constant power to accessories like the instrument cluster and should maintain voltage regardless of ignition state.
The red wire with white stripe (R/W) acts as the ignition-controlled power source–expect it to energize only when the key moves past the “ON” position. Use a test light to confirm its behavior matches this pattern; intermittent voltage here often indicates a faulty contact or corroded terminal in the key assembly. Blue wires with colored tracers govern specific circuits: the solid blue (B) feeds the headlight high beam, while the blue with yellow stripe (B/Y) controls the taillight–both should illuminate when the system engages their respective switches.
Ground connections use solid black (B) or black with green stripe (B/G) wires terminating at chassis points near the frame or engine block–ensure zero resistance between these points and the battery negative terminal. White with red stripe (W/R) carries turn signal and hazard flasher functions; its pulse should synchronize with indicator activation. For fuel injection models, the gray wire with red stripe (G/R) connects to the fuel pump relay and must show a brief 2-3 second voltage spike upon initial key rotation, confirming proper pump priming.
Step-by-Step Guide to Testing Key Cylinder Circuit Continuity
Disconnect the battery terminals before handling any electrical components. Use a multimeter set to ohms (Ω) to check resistance across the connector pins. Identify the power input, ground, and accessory leads by referencing the service manual for pin assignments–misidentifying these will skew results.
Attach the multimeter probes to the corresponding pins. For the main power lead, expect near-zero resistance when the starter is engaged. If readings exceed 0.5Ω, inspect the internal contacts for oxidation or wear. Clean corroded terminals with electrical contact cleaner and a small wire brush–sandpaper or abrasive tools can damage plating.
- Turn the key to the “ON” position: verify continuity between the battery feed and accessory output.
- Rotate to “START”: confirm the starter solenoid circuit completes without interruption.
- Return to “LOCK”: check for infinite resistance (open circuit) between all active leads.
Repeat tests with the key removed. The immobilizer circuit should remain closed; if not, the anti-theft module may require reset or replacement. For intermittent faults, lightly tap the cylinder housing while monitoring the multimeter–fluctuating readings indicate internal spring or wafer failure.
Troubleshooting Common Failures
If continuity persists in the “OFF” position, the wafer assembly is likely shorted. Replace the cylinder rather than attempting repairs–aftermarket units often lack OEM plating durability. For bikes stored outdoors, apply dielectric grease to connector pins to prevent moisture ingress, a leading cause of erratic readings.
Compare new readings against baseline values from the manual. Deviations greater than 10% typically require component replacement. Secure all connectors with dielectric-safe zip ties to prevent vibration-induced faults in high-vibration areas like handlebars.
Emergency Engine Start: Hotwiring a Bike Without the Key
Locate the starter relay under the seat or fairings–usually a small black box with two thick wires (red/battery, yellow/start) and two thin wires (green/ground, blue or white/signal). Disconnect the relay and use a screwdriver to bridge the battery terminal and start terminal. Hold until the motor turns over. This bypasses all security and signals, so use only when stranded and no other options exist.
For a cleaner temporary fix, trace the signal wire from the relay back to the handlebar cluster connector–typically a 6-pin plug with red, black, green, blue, and two others. Unplug it, strip the blue wire, and splice it directly to the red wire with a jumper or paperclip. The bike will start with the kill switch in the “run” position and no key required. Remove the splice immediately after use to restore security.
Critical Safety Checks Before Attempting
Park on firm, flat ground at least 10 feet from traffic or flammable materials. Engage the kickstand fully–most models cut spark if the stand is up during a no-key start. Verify the gear is in neutral; attempting this in gear with the clutch engaged risks sudden lurching. Keep body parts, clothing, and tools clear of the chain and exhaust.
After bridging circuits, check for erratic dash lights or fuel pump noises–these indicate incomplete connections. If the engine cranks but won’t fire, recheck the relay terminals; corrosion or loose connections prevent current flow. Do not hold the bridge for more than 5 seconds to avoid overheating the relay or draining the battery. Carry a multimeter–testing for 12V at the relay confirms power before jumpering.
Restore original wiring as soon as possible. Leaving permanent bypasses invites theft and voids insurance coverage. Zip-tie all connections securely to prevent shorts from vibration. Pack a small backup key in your wallet or under the seat–this method is a last resort, not a daily shortcut.
