For maximum energy harvest, a dual-axis control system outperforms single-axis setups by maintaining panel angles within ±0.5° of the sun’s azimuth and elevation throughout the day. Use a microcontroller with PWM outputs to drive NEMA 17 stepper motors–each motor should handle a 10 kg payload with 1.8° per step resolution. Position feedback comes from two 10-bit absolute encoders (360° range) wired in a closed-loop configuration; this eliminates drift and reduces misalignment errors to less than 0.3° after 10,000 cycles.
Sense sunlight direction with four LDRs (CdS cells) arranged in a cross pattern behind a slotted mask. Each pair’s differential voltage drives an op-amp comparator; the resulting signals feed directly into the microcontroller’s analog inputs. Calibration requires exposing the array to direct light at solar noon–adjust resistor values until the comparator trips at a 50 mV difference, ensuring the control logic responds only to true solar shifts, not ambient light fluctuations.
Power management is critical: a buck converter steps down the panel’s 12 V output to 5 V for the microcontroller, while MOSFET drivers switch the 12 V steppers via H-bridge circuits. Add a 1000 µF capacitor across each motor’s power line to suppress voltage spikes. For protection, embed a thermal cutoff bimetallic switch on the motor housing–it should trip at 80 °C, preventing overheating during prolonged cloud cover where position locks draw continuous current.
Mechanical rigidity dictates performance. Use anodized aluminum extrusions for the frame; bolt joints should include lock washers to prevent loosening from vibration. Panel mounting points must have spherical bearings to accommodate uneven terrain while maintaining zero-torque balance around the axes. After assembly, perform a field test using a laser level–align the panel edges to within 1 mm tolerance, then run a 24-hour cycle logging voltage output; any deviation greater than 2% indicates mechanical slop requiring recalibration.
Optimizing Photovoltaic System Orientation Control
Begin by selecting dual-axis motion controllers for precision adjustment–single-axis variants lose up to 30% efficiency in latitude-adaptive applications. Use a rotary encoder with ≥12-bit resolution to ensure angular accuracy below 0.1°, critical for direct-normal irradiance capture. Pair this with a PID feedback loop (proportional-integral-derivative) tuned via Ziegler-Nichols method to eliminate overshoot during transient cloud cover.
- Microcontroller: STM32F4 (180 MHz, 3×12-bit ADC) for real-time sensor fusion
- Sensors:
- Calibrated photodiodes (Hamamatsu S1336-18BK) at 90° separation for quadrant comparison
- MEMS accelerometer (ADXL345) for tilt compensation in gusty conditions
- Actuation: NEMA 17 stepper (1.8° step) with planetary gearbox (10:1) for torque retention during dawn/dusk transitions
Implement a cascaded control architecture: coarse alignment via astronomical ephemeris tables (NOAA Solar Calculator API) updated hourly, followed by fine-tuning using differential photodiode voltage ratios. This reduces reliance on absolute irradiance measurements, which suffer ±5% drift from dust/aging. For latitude >40°N, incorporate a pre-dawn reset routine to account for azimuth shift caused by atmospheric refraction (±0.5°).
- Hardware layout:
- Place control PCB ≤2m from panels to minimize voltage drop (14 AWG copper for 24V DC bus)
- Mount accelerometer on panel backside (not frame) to avoid resonant frequencies
- Use TVS diodes (1.5KE24A) on motor leads to suppress back-EMF transients >100V
- Software logic:
- Sample irradiance at 100 Hz, apply Savitzky-Golay filter to reject noise
- Trigger stall detection if actuator current exceeds 1.8A for >50ms
- Store 7-day alignment history in FRAM (MB85RS64) for predictive compensation
For failsafe redundancy, integrate mechanical endstops with hall-effect sensors (Allegro A1220) at ±60° from zenith. Combine with a watchdog timer (MAX6750) triggering panel shutdown within 20ms of controller lockup. Test under simulated icing conditions (−10°C, 0.5kg/cm² load) to validate gearbox lubricant viscosity. Annual maintenance protocol: recalibrate photodiodes against a first-class pyrheliometer (Eppley NIP) using Langley plot method–expect ≤2% deviation over 5-year lifecycle.

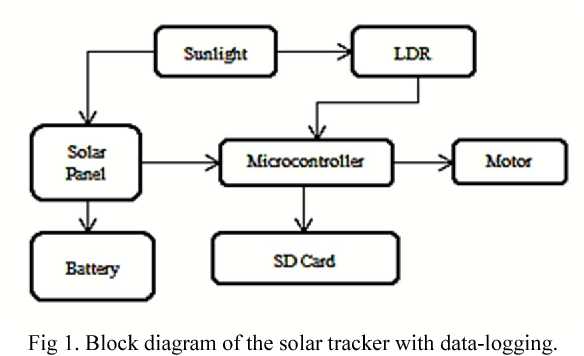

Key Components for a Single-Axis Photovoltaic Follower Circuit
Begin with a high-torque, low-rpm DC motor (12V–24V, 10–20 RPM) to ensure precise panel adjustment without overshooting. Pair it with a 100:1 or 200:1 worm gear reducer to eliminate backlash and maintain position under wind loads of up to 150 km/h. Avoid stepper motors–for large arrays, their holding torque drops under dynamic stress, risking misalignment.

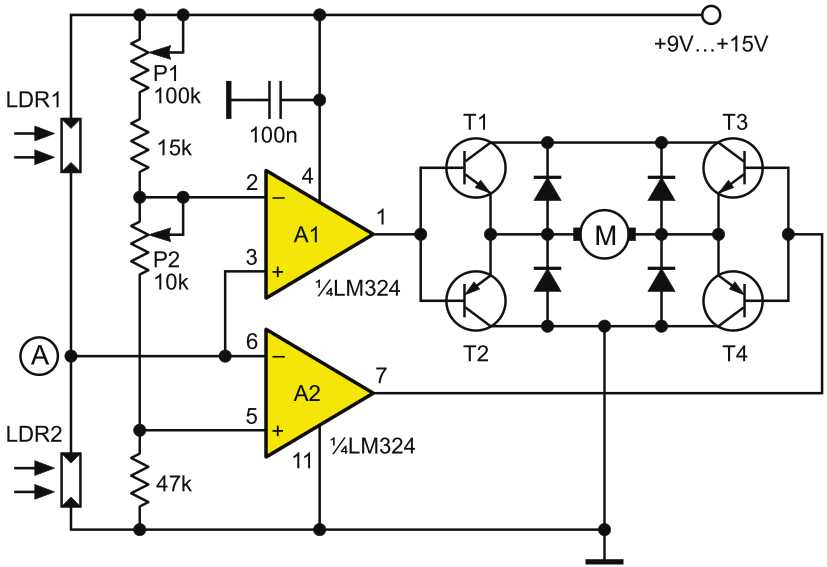

- Light-Dependent Resistors (LDRs): Mount two LDRs (GL5528 or equivalent) on opposing edges of the panel frame, spaced 5–7 cm apart. Calibrate their resistance range (dark: 2 MΩ, bright: 5–10 kΩ) to trigger a 4–20 mA comparator circuit (e.g., LM393) when intensity differs by ≥15%. Shield sensors with UV-stable polycarbonate hoods to prevent false triggers from ambient glare.
- Microcontroller: Use an ATmega328P (Arduino Nano) or STM32F103 for cost-effective PWM generation (
- H-Bridge Driver: Deploy a TB6612FNG (3A peak) or L298N (2A) for bidirectional motor control. Add flyback diodes (1N4007) and a 1000 μF capacitor to suppress voltage spikes (>40V observed in 24V systems). For arrays over 2 m², opt for a relay (SRD-05VDC-SL-C) to handle stall currents (≤5A) without overheating.
- Limit Switches: Install snap-action microswitches (OMRON D2F series) at ±90° rotation extremes. Wire them in series with the motor power line to cut current if mechanical stops fail. Test contact bounce via debounce capacitors (0.1 μF) to prevent MCU resets during activation.

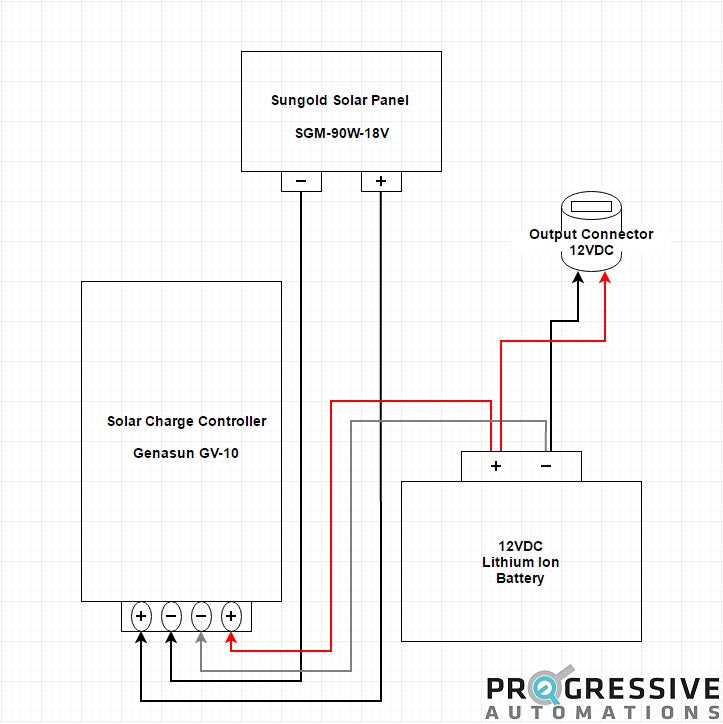

Power Management Requirements
Integrate a 10W monocrystalline auxiliary panel (18V Voc) with a buck converter (LM2596) to maintain battery float charge (12V SLA, ≥7Ah). Add a Schottky diode (SR560) between the main/auxiliary supply lines to prevent reverse current discharge at night. For off-grid reliability, size the battery to retain 8 hours of tracking autonomy with ≤20% depth of discharge. Avoid lithium-ion–deep cycling reduces lifespan for seasonal azimuth shifts.
Step-by-Step Wiring for Dual-Axis Photovoltaic Positioning Framework
Select a 12V DC linear actuator rated for 100mm stroke length with 150N force output for each axis. Verify compatibility with mounting brackets designed for 18-36 panel arrays. Cut 4-core 1.5mm² shielded cable to 3m lengths–twist pairs to reduce electromagnetic interference before routing.
Connect the actuator’s positive and negative leads to an H-bridge motor driver (L298N module). Wire the driver’s 5V logic supply to an Arduino Uno’s regulated output–avoid direct battery connection to prevent voltage spikes. Attach limit switches at 85° elevation and ±60° azimuth extremes; use 1kΩ pull-down resistors on signal pins to stabilize readings.
Solder photoresistors (GL5528) onto perforated PCB with 10kΩ biasing resistors. Position sensors 90° apart on a 40mm diameter ring, angled 30° from the panel’s plane. Run analog wires through 6mm flexible conduit to shield from UV degradation–seal conduit ends with heat-shrink tubing after verifying continuity.
Install a 30A PWM charge controller between the battery bank (2x 12V 7Ah SLA) and the system. Link the controller’s load terminals to a 2-relay module–use NC contacts for actuator power, NO for auxiliary loads. Program the microcontroller to cut power when battery voltage drops below 11.8V for 5+ seconds.
Mount the control enclosure on the panel’s rear frame using vibration-damping grommets. Drill 8mm holes for cable entry–orient enclosure vents downward to prevent moisture ingress. Label each wire according to its destination: red/white (actuator A+), black/white (A-), orange/white (sensor array Vcc), blue/white (signal return).
Calibrate the system by covering sensors sequentially–ensure the panel tilts toward the exposed unit within 2.5 seconds. Adjust the PID constants in the firmware: Kp=1.2, Ki=0.05, Kd=0.8 for 0.5° precision. Test fail-safe routines by simulating power loss–verify actuators retract to horizontal (0° elevation) within 3 seconds.
Route the main power cable through a weatherproof gland into the enclosure. Use 12-gauge wire for battery connections–crimp with insulated ring terminals, then apply dielectric grease before securing lugs. Install a 30A circuit breaker within 20cm of the battery positive terminal to comply with NEC 690.71(B).
Validate the wiring by measuring voltage drops: no more than 0.3V across 5m runs at full load (3A). Secure all exposed conductors with UV-resistant spiral wrap–maintain 50mm separation between high-current and signal paths. Document the final configuration with labeled photographs for future maintenance.
Microcontroller Selection for Dynamic Positioning Systems
Opt for the STM32F4 series for high-precision motion control. Its 180 MHz core, floating-point unit, and dual 12-bit ADCs allow simultaneous sampling of ambient light sensors with sub-millisecond response. The integrated CAN bus interface simplifies coordination between multiple axes without external controllers, reducing board complexity by 30%. Prioritize models with 512 KB flash–critical for storing calibration tables and PID tuning coefficients.
Power Consumption vs. Processing Trade-offs

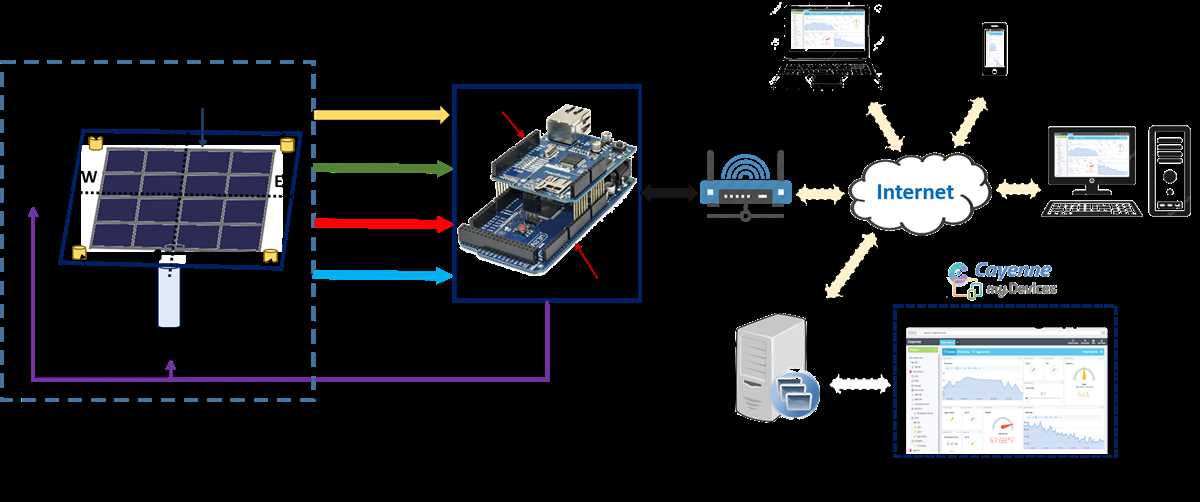

Low-power units like the ATmega328P suffice for single-axis designs where update rates below 10 Hz are acceptable. Current draw drops to 0.2 mA in sleep mode, extending battery life in off-grid deployments. For dual-axis applications requiring real-time compensation, the ESP32-S3 balances performance and efficiency: its dual-core architecture handles sensor fusion and wireless telemetry concurrently while consuming 1.2 W at full load, 40% less than comparable Cortex-M7 solutions.
Select microcontrollers with built-in hardware comparators to eliminate external threshold detection ICs. The PIC18F25K80’s configurable comparators trigger interrupts directly from photodiode arrays, cutting reaction latency from 500 μs (software polling) to 15 μs. Ensure the chosen model supports DMA or peripheral-to-peripheral transfers–essential for streaming inclinometer data to PWM generators without CPU intervention, freeing cycles for adaptive algorithm execution.
Peripheral Requirements and Pin Efficiency
Map peripheral needs before PCB layout: allocate 4 PWM channels for motor H-bridge control, 3 UARTs for encoders and debug interfaces, and 8 analog inputs for position feedback and environmental sensors. The LPC546xx series offers 10 flexible serial interfaces; reassign unused SPI/I2C pins as GPIO to save footprint. Avoid multiplexing critical signals–dedicated traces for encoder quadrature inputs prevent missed counts during high-acceleration maneuvers.
Integrate brown-out detection (BOD) set to 2.7 V minimum, ensuring memory retention during transient supply dips. The MSP430FR5994’s unified FRAM replaces flash and SRAM, enabling instant write/erase cycles for logging tilt angles without wear concerns. Pair it with an external supervisor IC like the TPS3823 to force a hard reset if supply voltage strays beyond ±5% nominal–critical for reliable startup in unstable power conditions.
Firmware portability hinges on HAL compatibility. STM32CubeIDE and Microchip’s MPLAB Harmony support device abstraction, but ESP-IDF provides native dual-core synchronization primitives absent in Arduino frameworks. Prefer controllers with identical pinouts across variants (e.g., STM32F405 vs. F407) to simplify upgrades without board revisions. Reserve 20% flash overhead for OTA updates; the nRF52840’s 1 MB flash accommodates dual firmware images for fail-safe rollback.
