For a reliable 5-volt direct current output from a standard household mains supply, use a transformer-based step-down approach combined with a bridge rectifier and linear regulator. This method ensures stable performance with minimal electromagnetic interference. Start with a 9V-12V AC output transformer–smaller transformers (under 10W) work well for low-power applications like USB chargers or embedded systems. Avoid capacitor-only solutions; they lack isolation and pose safety risks.
After stepping down the voltage, employ a full-wave bridge rectifier made of four 1N4007 diodes to convert AC into pulsating DC. Follow this with a 1000µF smoothing capacitor (minimum 16V rating) to reduce ripple voltage below 100mV. For regulation, use an LM7805 linear voltage stabilizer–its built-in thermal shutdown protects against overheating. Add a 0.1µF ceramic capacitor near the LM7805’s output to improve transient response.
Thermal management is critical: mount the regulator on a small heatsink (10-15°C/W) if the load exceeds 200mA. For safer operation, include a 1A fuse on the primary side of the transformer. Insulate all high-voltage connections with shrink tubing or plastic enclosures. Test the output with a multimeter under load–expected results should show 4.9V-5.1V with less than 50mV ripple.
Building a High-Efficiency Mains Voltage Reducer for Low-Power Devices
For a stable 5V output from a 230V AC source, use a flyback transformer (e.g., EE16 or EFD15 core) with a turns ratio of ~24:1. Wind the primary (input) side with 120 turns of 0.3mm enameled copper wire, ensuring insulation between layers with polyester tape. The secondary (output) side requires 5 turns of 0.8mm wire to handle currents up to 2A. Add a 1N4007 diode for half-wave rectification or a UF4007 for faster switching (reverse recovery time
Critical Component Selection
| Component | Specification | Rationale |
|---|---|---|
| Input capacitor (X2 class) | 0.1µF/275VAC | Suppresses line noise; must meet IEC 60384-14 for safety |
| Switching transistor | MJE13003 (NPN) | Handles 400V, 1.5A; alternatives: ST13003 or KSC5027 |
| Feedback control IC | TL431 or KA431 | Precision shunt regulator (±1% tolerance); adjusts output via optocoupler (e.g., PC817) |
| Snubber network | 22Ω + 220pF in series | Clamps voltage spikes from transformer leakage inductance (typical |
Optimize efficiency by minimizing trace lengths on the PCB–keep the path from the diode to the smoothing capacitor under 30mm. For thermal management, mount the MJE13003 on a TO-220 heatsink if ambient temperatures exceed 40°C or load surpasses 700mA. Test under load with an oscilloscope: check for ringing at switching nodes (target ≤20% overshoot). If adjusting output voltage, modify the feedback resistor network (e.g., 10kΩ + 5kΩ trimmer) to achieve ±0.2V accuracy. For applications requiring galvanic isolation, use a 1:1 auxiliary winding on the transformer to power the TL431 via an additional 1N4148 diode.

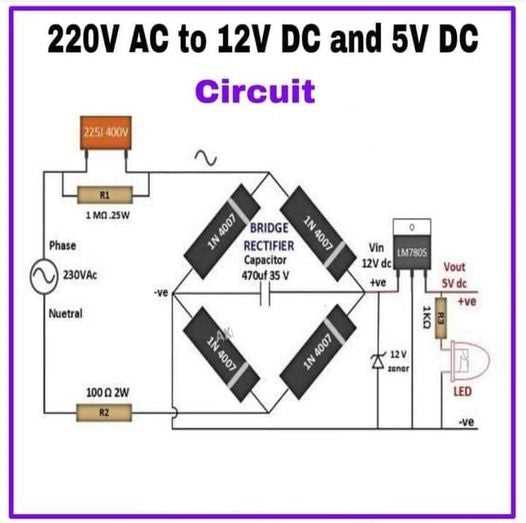

Key Components for an Electrical Step-Down Power Supply
Begin with a high-voltage capacitor rated for at least 400V to handle mains input safely. A 2.2µF to 4.7µF X2-class capacitor reduces AC voltage while filtering transients. Ensure it meets IEC 60384-14 standards to prevent failure under spikes.
Use a bridge rectifier with a minimum 600V reverse voltage rating. Models like GBU4J or KBPC2510 handle 1A to 3A current, converting AC to pulsating DC efficiently. Verify forward voltage drop–typically 1V per diode–to minimize power loss.
Add a smoothing capacitor (220µF to 1000µF, 25V+) after rectification to stabilize voltage. Low ESR types improve regulation under load. Calculate ripple voltage: Vripple = Iload / (2 × f × C), where f is mains frequency (50/60Hz).
Voltage Regulation Core
Select a linear regulator (e.g., 7805) for simplicity, delivering 5V ±0.2V with 1A output. For higher efficiency, use an LM2575 or MP2315 buck switching module–these reduce heat and size. Pair switchers with 10µH inductors (saturation current >2A) and Schottky diodes (e.g., 1N5822) for fast recovery.
Thermal management requires a heatsink for linear regulators. For 1W dissipation, use a 20°C/W heatsink. Switching modules need less cooling but demand precise PCB layout–keep high-current paths short to avoid EMI.
Protection and Stability
Integrate a 1A fuse in the AC input path to prevent overcurrent. For transient suppression, add a varistor (MOV) like VDR-14D471K, clamping spikes above 250V. Include a 1µF ceramic capacitor across the output for high-frequency noise reduction.
Optocouplers (e.g., PC817) isolate feedback in isolated designs. For non-isolated supplies, a 10kΩ resistor on the regulator’s adjust pin fine-tunes output. Test load regulation: ΔVout should be
Finalize with PCB traces sized for current: 2mm width per 1A for 1oz copper. Place input capacitors within 2cm of the rectifier and output capacitors near the regulator to minimize inductance. Verify creepage distances on mains-connected components–≥8mm for 240VAC compliance.
Step-by-Step Assembly of the Transformer-Based Power Adapter
Select a toroidal or EI-core transformer with a 6-9V AC secondary winding to match the required 5V DC output. Verify the transformer’s current rating exceeds the load by at least 30%–for a 1A output, use a 1.3A or higher transformer. Mount it securely on the chassis, ensuring no metallic contact with other components to prevent short circuits. Connect the primary leads to an input fuse (1A for household 120-240V mains) and an on/off switch rated for the same voltage.
Solder a bridge rectifier (KBPC2510 or equivalent) to the transformer’s secondary terminals, observing polarity. The negative DC output should feed into a 1000μF–2200μF electrolytic capacitor with a 16V or higher voltage rating; place this as close as possible to the rectifier to minimize ripple. Add a 1N4007 diode in series with the capacitor’s positive lead if reverse polarity protection is needed for sensitive downstream electronics.
Attach a 7805 linear voltage regulator to the smoothed DC output, securing it to a heatsink if the load exceeds 0.5A. For better stability, solder a 0.33μF ceramic capacitor between the regulator’s input and ground, and a 0.1μF capacitor at the output. Wire the output terminals to a terminal block or USB socket, ensuring the ground reference matches the transformer’s case if applicable.
Test the assembly with a multimeter: verify the regulator’s input sits at 7V–12V DC and the output stabilizes at 5V ±0.2V under full load. If voltage fluctuates, add a 470μF bulk capacitor after the bridge rectifier or replace the 7805 with a LM2576 switch-mode IC for higher efficiency in low-power designs.
Voltage Regulation Techniques Using Linear Regulators
For stable 5V output from a linear regulator, select an LM7805 or LP2950 based on current demands–7805 handles up to 1A with 7V dropout, while LP2950 sustains 100mA at just 0.38V dropout. Place a 100nF ceramic capacitor within 2cm of the input pin and a 22µF tantalum cap at the output to suppress high-frequency noise and prevent oscillations, especially under dynamic loads. Thermal considerations dictate heatsink requirements: a TO-220 package (e.g., 7805) dissipates P = (Vin – Vout) × Iload; for 12V input and 500mA load, expect 3.5W dissipation–attach a 10°C/W heatsink minimum.
Low-dropout (LDO) regulators like TLV702 or AP2112 improve efficiency when input voltage nears the target–TLV702 operates with output capacitance with ESR < 1Ω. For adjustable variants (e.g., LM317), set output via Vout = 1.25V × (1 + R2/R1), where R1=240Ω and R2=1kΩ yields ~6.5V; add a 10µF electrolytic cap on ADJ pin to enhance ripple rejection by 15dB. Avoid paralleling linear regulators without current-sharing circuitry–mismatched quiescent currents will unbalance load distribution; instead, use a single high-current device (e.g., LT1083 for 7.5A) or employ an active load-sharing IC like TPS2411.
Designing a Switch-Mode Power Supply for Compact Solutions
Prioritize a high-frequency switching regulator like the LM2596 or TPS54331 for space-constrained designs, as they shrink transformer size while maintaining efficiency above 85%. Choose inductors with saturation currents at least 30% higher than the peak load to prevent core saturation under transient spikes.
Implement a flyback topology for isolation in applications under 10W, using a coupled inductor with a turns ratio of 1:100 (primary to secondary) to step down voltage while meeting safety creepage requirements. For non-isolated needs, a buck converter like the MP2307 reduces bill-of-materials (BOM) cost by 40% compared to flyback designs.
- Use ceramic capacitors (X7R, 10µF) on input/output to handle ripple currents up to 2A without derating. Electrolytic capacitors degrade efficiency by 5% in high-temperature environments.
- Select a Schottky diode (1N5822) with a reverse voltage rating 1.5x the input to avoid avalanche breakdown during turn-off.
- Include a snubber circuit (RC network: 1kΩ + 0.1µF) across the MOSFET drain-source to dampen voltage spikes exceeding 50V.
Thermal management dictates reliability in compact enclosures. Mount the switching IC on a 1oz copper pad with vias to a ground plane, ensuring thermal resistance stays below 30°C/W. For surface-mount MOSFETs, use DFN or QFN packages with exposed pads soldered directly to the PCB to dissipate 1.5W without heatsinks.
Noise suppression requires a two-stage approach:
- Place a ferrite bead (600Ω at 100MHz) in series with the output to filter high-frequency switching harmonics.
- Add a π-filter (two 10µF capacitors + 1mH inductor) for low-frequency ripple below 1kHz, critical for analog sensors or RF modules.
Avoid ground loops by separating high-current paths from signal grounds with a star topology.
For input protection, fuse the AC line with a 250V/1A slow-blow fuse and include a varistor (S14K14) to clamp transients above 400V. Undervoltage lockout (UVLO) set at 85V prevents erratic operation during brownouts, using a comparator with 100mV hysteresis.
PCB layout rules for switching supplies:
- Keep high-current loops (<1cm²) tight to minimize EMI.
- Route feedback traces (remote sensing) away from switching nodes to avoid noise coupling.
- Use 4-layer boards with dedicated ground/power planes to reduce impedance and improve thermal distribution.
Test prototypes with an oscilloscope to verify switching node waveforms (rise/fall times <20ns) and output ripple (<50mV pp).
Optimize for manufacturability by selecting ICs with integrated MOSFETs (LT8610) to reduce assembly steps. For custom magnetics, specify core materials like 3F3 or N87 ferrite for better thermal performance than powdered iron in frequencies above 200kHz. End-of-line testing should include load regulation checks at 10%, 50%, and 100% of rated current to ensure dropout does not exceed 2%.
