Start by prioritizing clarity over complexity. A well-designed electrical layout communicates function instantly–the fewer lines and symbols, the better. Focus on the core components: power sources, conductors, and output devices. Label every element with concise identifiers like Vcc for voltage supply or GND for ground. Avoid decorative flourishes; each mark must serve a purpose.
Use standardized symbols for consistency. A resistor should appear as a zigzag line, a capacitor as two parallel lines, and a transistor as intersecting lines with an arrow. Deviations confuse interpretation. Group related components logically–keep input circuits on one side and outputs on the opposite edge. This separation prevents visual clutter and speeds up troubleshooting.
Indicate signal flow with directional arrows. Mark voltage levels near power rails and critical junctions. For example, a 5V rail feeding a microcontroller should be clearly labeled to avoid misconnections. Test points should be highlighted in contrasting colors or bold circles to distinguish them from functional paths.
Limit crossovers to reduce ambiguity. If unavoidable, use short breaks in one line to show separation. Apply thicker strokes for primary connections and thinner ones for secondary or control signals. This visual hierarchy guides the eye to the most important pathways first.
Include a legend for non-standard symbols. Even common notations like SW for switches or LED for diodes benefit from brief descriptors. Omit decorative boxes or borders–they add no functional value and distract from the data.
Simulate the circuit before finalizing. Software tools can verify logic and current paths. Highlight potential bottlenecks, such as voltage drops across long traces or excessive current through small resistors. Adjust the layout to mitigate these issues upfront.
Understanding Basic Visual Plans: Core Insights
Start by identifying the primary components in a visual layout–every line, symbol, or label must correspond to a physical element, such as resistors, connectors, or power sources. Sketch these first, ensuring each part occupies its own distinct space to prevent overlap and confusion. Use standardized symbols (IEC 60617 or ANSI Y32.2) to maintain consistency; deviations risk misinterpretation, especially in collaborative projects.
Prioritize clarity over detail. A clutter-free drawing should convey function without requiring annotations. For instance, a circle with a plus sign universally represents a battery, while a jagged line denotes resistance. If additional context is needed, place labels outside the main flow, not within critical pathways, to avoid obscuring connections.
Ground all circuits explicitly. Omitting a ground reference invites errors in simulation or physical builds, as floating nodes can lead to unexpected behavior. Mark grounding points with a downward-pointing triangle or a horizontal line under components to signal common return paths. Verify all grounds connect to a single reference point for stability.
Separate power and signal lines visually. Use thicker strokes for power rails (5V, 12V) and thinner lines for data or control signals. Color coding accelerates comprehension: red for positive voltage, black/blue for neutral or ground, and distinct hues for different signal types. Maintain this scheme uniformly to avoid ambiguity.
Key Practices for Error-Free Interpretations
Validate connections before finalizing. Trace each path manually–start from the power source, follow through components, and confirm return to ground. Missing a single link breaks the entire setup. Tools like continuity tests in multimeters help verify physical builds against the layout.
Limit crossings to unavoidable cases. Every intersecting line introduces potential for misreading. Offset crossovers with small semicircles (“bridges”) to indicate non-connected wires, or reroute paths entirely. If crossings are necessary, keep them perpendicular to reduce confusion.
Annotate non-standard elements. Custom symbols or unconventional configurations require brief notes adjacent to the item. For example, clarify if a triangle represents a custom sensor rather than a standard transistor. Include component values (e.g., “10kΩ”) directly on the layout, using legible font sizes (>8pt) to ensure readability across printouts or screens.
Test the layout with a peer unfamiliar with the project. Their ability to interpret the drawing accurately reveals gaps in clarity. Revise elements they misread or struggle to follow, then repeat until the representation stands alone without verbal explanation.
How to Interpret Core Symbols in Electrical Blueprints
Begin by identifying the power source symbols. A battery is represented by two parallel lines: one longer (positive) and one shorter (negative). A DC voltage source uses a circle with a plus and minus inside, while AC sources show a sine wave inside a circle. Check polarity markings–misreading these can damage components.
Resistors appear as zigzag lines or rectangles with “R” labels. Their key detail: resistance values (ohms, kΩ, MΩ) noted beside them. Fixed resistors have straight lines; variable types include an arrow cutting across the zigzag. Look for tolerance bands (e.g., ±5%) if color codes are present.
Capacitors come in two main types:
- Polarized: curved plate (negative) and straight plate (positive), often marked “+”. Electrolytic types require correct orientation.
- Non-polarized: two identical parallel lines. Values like “10μF” or “0.1nF” are critical.
Transistors use three-terminal layouts. Bipolar junction (BJT) symbols show an arrow on the emitter–pointing outward for NPN, inward for PNP. Field-effect transistors (FETs) use a line with perpendicular connections. Check the datasheet for pinout: emitter/base/collector (BJT) or gate/source/drain (FET).
Diodes appear as triangles pointing to a line. The triangle’s tip is the anode; the line is the cathode. Light-emitting diodes (LEDs) add two small arrows outside the shape. Ensure correct current direction–reverse polarity prevents conduction.
Ground symbols vary by type:
- Chassis ground: three horizontal lines, decreasing in size.
- Earth ground: a downward triangle with a line.
- Signal ground: a simple line or “GND” label.
Verify connections–mixing ground types can cause noise or shorts.
Switches show disconnected lines for open states and connected lines for closed. Push-buttons use a round dot; toggle switches add a lever. Labels like “SPST” (single-pole, single-throw) indicate configuration–confirm against the circuit’s needs.
Integrated circuits (ICs) display as rectangles with numbered pins. Pin 1 is often marked with a dot or notch. Cross-reference the pinout with the datasheet–miswiring can destroy the chip. Common ICs include voltage regulators (e.g., 7805) and microcontrollers (e.g., ATmega328).

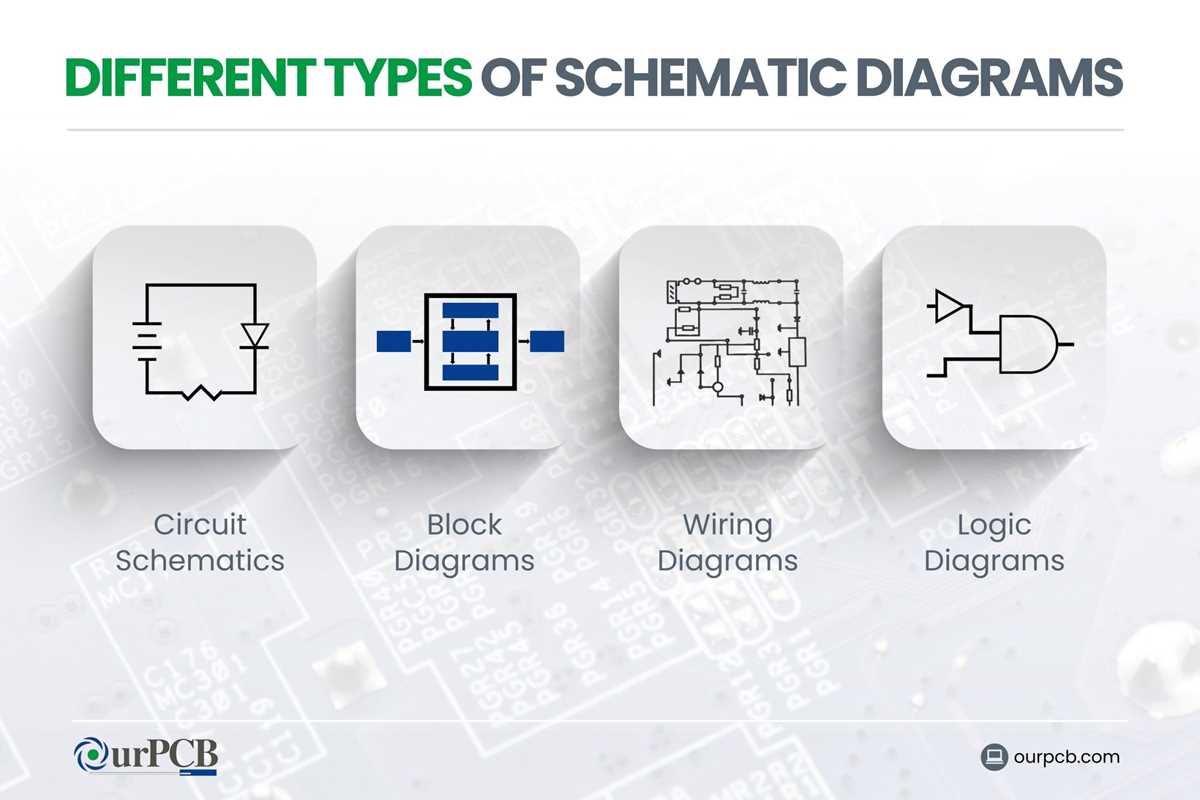

Key Differences Between Circuit Blueprints and Connection Maps
Use circuit blueprints to expose the logical flow of components without spatial accuracy–ideal for troubleshooting design flaws before physical assembly. Connection maps, by contrast, prioritize exact pin layouts, wire routes, and terminal locations, making them indispensable during on-site installation or repair. Select blueprints for initial conceptual validation and maps for fieldwork precision.
Blueprints abstract resistors, capacitors, and ICs as labeled blocks or symbols linked by logical lines, omitting exact distances or bends. Maps spell out every centimeter of cable, connector housing, and crimped terminal, ensuring installers avoid mismatched lengths or pinouts. Always match blueprint symbols to a legend–maps demand literal adherence to color codes, gauge, and shielding details.
Circuit blueprints often ignore power rails and ground symbols unless critical to function; maps highlight every auxiliary lead, fuse holder, and junction box. When routing high-current feeds–such as 48 VDC for PoE switches–verify map annotations for ferrule IDs, torque specs, and conduit fill ratios. Blueprints serve concept validation; maps enforce safety compliance.
Switching regulators and buck converters appear as idealized blocks on blueprints–real-world losses, thermal pads, and heatsink mounting holes emerge only on connection maps. For dense SMD layouts, blueprints list footprint codes (e.g., 0402), while maps cross-reference vendor part numbers to land pattern drawings. Confirm board thickness, pad plating, and stencil apertures directly from map details.
Ground loops frequently vanish on blueprints yet plague real-world prototypes–maps trace star grounds, chassis bonds, and shield drain wires back to the common point. When auditing EMI-prone designs, blueprints outline filter placement philosophy; maps mandate exact clip spacing, braid coverage, and shield pigtail lengths measured in millimeters.
Microcontroller pinouts debut as row-column arrays on blueprints–actual signal integrity hinges on map-specified differential pairs, guard traces, and impedance-matched vias. Examine connector pinouts: blueprints merge TX+/TX– under one label; maps assign discrete pads with polarity markers and PCB keep-out zones.
During firmware bring-up, blueprints show ideal SPI/I2C bus topology–maps reveal stub lengths, termination schemes, and trace impedance discontinuities causing signal reflections. Tooling holes, fiducials, and optical alignment targets appear solely on connection maps, guiding assembly robots and AOI machines. Validate layer stack-ups against Gerber files–blueprints generalize; maps enforce manufacturing tolerances.
