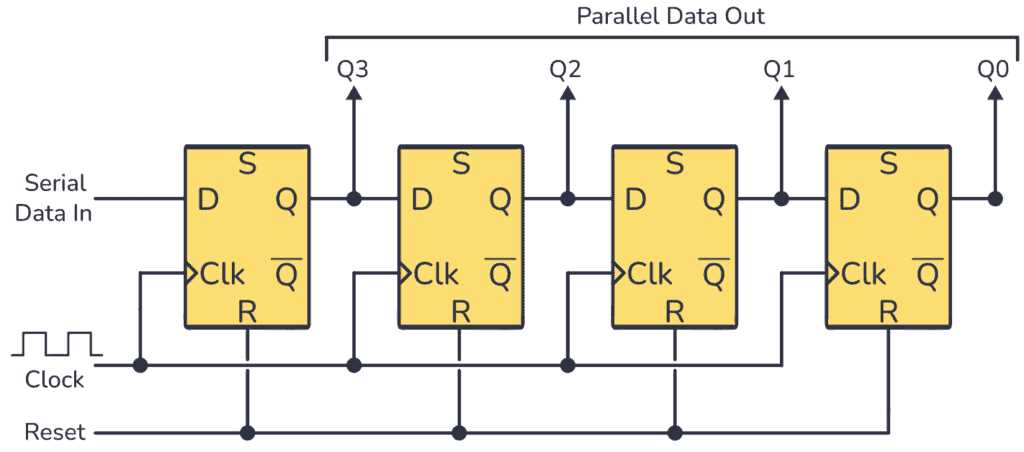

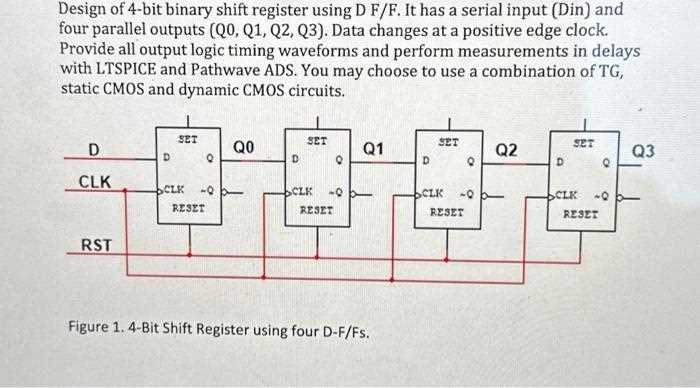

Begin with a cascade of four edge-triggered D-type flip-flops, each configured to propagate data on a rising clock edge. Connect the Q output of the first stage directly to the D input of the second, repeating this pattern for subsequent stages. Ensure the serial input feeds the first flip-flop’s D port, while the final stage’s Q output serves as the parallel output. Power each flip-flop’s VCC pin to a stable 5V source, grounding all GND pins to a common reference.
For asynchronous reset functionality, wire a push-button or logic low signal to the clear (CLR) pins of all flip-flops. A 10kΩ pull-up resistor on each CLR pin prevents floating states during normal operation. Clock pulses should originate from a debounced switch or a 555 timer circuit generating a 1Hz–10kHz square wave to ensure reliable signal propagation.
Optimize trace routing by minimizing crossovers between clock lines and data paths, reducing signal degradation. Use 0.1μF decoupling capacitors near each flip-flop’s power pins to suppress voltage spikes. If incorporating LEDs for output validation, limit current with 330Ω series resistors to avoid overloading the stages.
Alternative configurations: Replace D-type elements with JK flip-flops for toggling behavior, though this complicates the schema by requiring additional AND gates for load control. For bidirectional operation, add a multiplexer at each stage’s input to select between shift-left or shift-right modes, toggled by an external select signal.
Designing a Sequential 4-Stage Data Propagation Module
Assemble the storage stages using negative-edge-triggered D-type flip-flops, ensuring each outputs Q and Q̅ maintain complementary logic during transitions. Supply a common clock signal with a recommended frequency of 1 MHz and a duty cycle between 45%–55% to prevent metastability. Route the serial input directly to the first stage’s D pin, then chain Q to the subsequent stage’s D pin for cascading data flow.
Incorporate a reset line tied to an active-low asynchronous clear pin on all stages; pull-up this line with a 4.7 kΩ resistor to VCC (5 V) for stable initialization. Test reset functionality by toggling the line while monitoring all outputs–each Q should transition to 0 within 20 ns of the falling edge. Use a pull-down resistor on the serial input to prevent floating voltages when no source is connected.
| Component | Quantity | Recommended Model | Voltage Rating |
|---|---|---|---|
| Flip-flop IC | 1 | 74LS175 | 4.75–5.25 V |
| Ceramic capacitor | 4 | 0.1 µF | ≥16 V |
| Pull-up resistor | 1 | 4.7 kΩ | 0.25 W |
| Pull-down resistor | 1 | 10 kΩ | 0.25 W |
Attach decoupling capacitors (0.1 µF) between VCC and ground near each stage to suppress transient noise; position the capacitors within 1 cm of the IC leads. Route ground connections via a star topology to a common point on the prototype board, minimizing ground loops. Verify power stability by measuring VCC ripple with an oscilloscope–target pp.
Design the load path using a 330 Ω series resistor on each Q output to drive LEDs for visual confirmation; ensure the LED’s forward voltage drop (typically 1.8–3.3 V) does not exceed the flip-flop’s logic-high output. For parallel data extraction, add 4:1 multiplexers (e.g., 74HC153) with address lines configured to sample specific stages without disrupting propagation.
Simulate propagation delay using SPICE-compatible models of the chosen IC; expect a typical delay of 12–15 ns per stage under nominal conditions. If delays exceed 25 ns, reduce capacitive loading on Q outputs or switch to a faster logic family (e.g., 74AC175). Avoid capacitive loads >10 pF on any stage output to preserve signal integrity.
Implement a serial output at the final stage’s Q pin for daisy-chaining additional modules; buffer this output with a 220 Ω resistor if driving cables longer than 15 cm. Test cascading by clocking known patterns (e.g., 1010) through multiple modules–verify all stages echo the pattern without distortion or phase shifts.
Document clock skew by probing each flip-flop’s CLK pin; skew should remain
Choosing Optimal Latching Elements for a Four-Stage Sequential Storage Device
Prioritize D-type latches when assembling a four-position sequential data holder. Their single-input configuration eliminates racing conditions common in JK or SR variants, streamlining propagation delays to under 15 nanoseconds for standard 74LS74 components. Transition times remain consistent across all stages, preventing skew that degrades parallel extraction reliability.
Timing Constraints and Power Trade-offs
For low-power applications, 74HC175 quad D-type latches reduce current draw to 20 microamperes per unit while maintaining clock-to-output delays under 30 nanoseconds. High-speed designs benefit from 74ACT series, though their 45 milliampere consumption per device demands heat dissipation planning. Edge-triggered variants prevent false transitions during asynchronous loading, critical when cascading multiple storage blocks.
Master-slave configurations within some latch families introduce metastability risks at frequencies above 20 megahertz. Verify setup-hold times using manufacturer datasheets–typically 5 nanoseconds for 74LS parts–to ensure stable serial feed without clock overlap violations. TTL-compatible CMOS devices operate safely at 5 volts, but mixed-signal systems require level shifters when interfacing with 3.3-volt controllers.
Pin Configuration and Board Layout
Compact 16-pin SOIC packages reduce trace lengths, minimizing capacitance-induced signal degradation. Position clock lines centrally to equalize propagation paths across all four positions. Ground plane separation prevents cross-talk between adjacent data paths, especially when handling frequencies exceeding 10 megahertz. Include decoupling capacitors (0.1 microfarads) within 5 millimeters of each latch’s power pin to suppress voltage spikes.
For bidirectional functionality, incorporate tri-state outputs using 74LS244 buffers. This enables simultaneous writing and reading without contention, though it increases component count by 30%. Always simulate load conditions–each output typically drives 10 standard TTL loads–before finalizing PCB traces to avoid signal integrity failures during simultaneous stage transitions.
Wiring Serial Input to Parallel Output in a 4-Slot Data Sequencer
Connect the serial data line directly to the first data holder’s input pin, typically labeled DS (data serial) or SER. Verify the component’s datasheet–some variants require an active-high signal, while others need a pull-down resistor (10 kΩ) to prevent floating states during clock transitions. A 74HC164, for example, expects data on the rising edge of the clock pulse, so align timing accordingly.
Power the logic array with a stable 5V supply to avoid erratic behavior; decoupling capacitors (0.1 µF) near the VCC and GND pins are mandatory. Use a single-pole switch or a debounced button for manual data entry–ensure bounce is filtered with a simple RC network (10 kΩ resistor + 1 µF capacitor) or a Schmitt-trigger inverter if precision is critical.
Clock Signal Synchronization
- Generate a clean square wave with a 555 timer or a microcontroller (2–10 kHz range for reliable propagation).
- Avoid sharp edges–add a 100 Ω series resistor to the clock line to reduce ringing.
- For automatic cycling, chain the clock to the last output via an inverter to create a self-resetting loop.
Route the four parallel outputs (Q0–Q3) to LEDs or downstream logic gates. Use 220 Ω current-limiting resistors for LEDs to prevent excessive sink current, which can distort signal integrity. If interfacing with CMOS logic, ensure output levels swing fully to VCC and GND–partial swings may cause metastability in subsequent stages.
Troubleshooting Signal Path Errors
- Probe each slot’s output with a logic analyzer or oscilloscope–data should appear sequentially on the next rising edge.
- If outputs remain static, verify the clock signal isn’t muted by a floating enable pin (common on 74HC595 variants).
- Check ground loops; separate analog and digital grounds if noise persists.
- For intermittent failures, swap the sequencer IC–thermal stress or ESD damage can degrade performance.
To cascade multiple sequencers, wire the last slot’s output (Q3) to the next array’s serial input. Add a 1 kΩ resistor between the connected lines to prevent bus contention during simultaneous switching. For bidirectional data flow, incorporate a multiplexer (e.g., 74HC157) to toggle between serial in and parallel load modes.
Clock Signal Integration for Reliable Data Shifting
Synchronize the timing pulse with a minimum frequency of 1 MHz for 4-storage-element designs to prevent metastability in edge-triggered stages. Use a dedicated oscillator with a tolerance below ±50 ppm to avoid phase drift during sequential propagation. Pair the source with a Schmitt trigger inverter to eliminate noise-induced glitches before the signal reaches any synchronous node.
Isolate the clock line from high-current paths using guard rings or poly resistors with resistance values between 50–200 ohms. Route the conductor on the lowest metal layer available to reduce capacitive coupling to adjacent traces. Apply a constant-width policy of at least 5 µm for the entire run to maintain impedance consistency and minimize reflections exceeding 10% of the logic swing.
- Ground the unused output of the oscillator through a 0.1 µF capacitor placed no more than 2 mm from the device pin.
- Terminate any unterminated stubs longer than 15 mm with a series resistor of 22–47 ohms to dampen ringing.
- Verify signal integrity by ensuring rise and fall times stay below 2 ns under worst-case load conditions.
When cascading multiple storage stages, insert a small series resistor (10–33 ohms) on each timing line between stages. This decouples reflections from the downstream load and prevents false triggering during simultaneous transitions. Keep the resistor value low enough so the RC delay introduced remains below 10% of the shortest bit-time.
For dual-phase timing schemes, alternate the active edges of the main pulse by at least 20 ns between adjacent storage elements. This staggered approach reduces peak current draw by 40% and avoids voltage droop that could corrupt stored values. Document the edge sequence in the netlist to facilitate automated timing closure checks.
- Measure the skew between any two timing lines with an oscilloscope; target ≤300 ps differential across the entire chain.
- Simulate the timing network with a 5 pF load per stage to account for package parasitics.
- Add a pull-down resistor (10 kΩ) on all asynchronous reset inputs to prevent floating nodes during power-up.
Implement a power-on reset circuit that holds the storage elements in a known state for at least 10 µs after the last timing edge stabilizes. Use a low-threshold MOSFET triggered by the same oscillator to ensure uniform release across the entire chain, eliminating race conditions during initialization.
