Construct this sequential illumination system using a CD4017 decade counter paired with a 555 timer IC. The 555 timer generates a clock signal at a frequency determined by R1 (10kΩ), R2 (47kΩ), and C1 (10μF), while the CD4017 decodes the signal to activate outputs sequentially. Ground reset through R3 (1kΩ) ensures stable operation. Power the assembly with a 9V DC source to drive standard 20mA indicators without current-limiting resistors–calculate forward voltage drop (typically 2V per element) for safety.
For compact builds, replace discrete resistors with a SIP resistor network (e.g., 8x1kΩ) to simplify soldering. Use a perfboard layout with a 0.1″ grid for precise component placement. Secure the timer chip in an 8-pin DIP socket to prevent heat damage during soldering. Connect decoupling capacitors (0.1μF ceramic) between the power rails and each IC’s VCC pin to suppress noise from inductive loads.
Adjust timing by swapping C1–lower values (e.g., 1μF) speed transitions, while higher (100μF) slow them. For extended sequences, cascade multiple CD4017s: link the carry-out pin (CO) of the first IC to the clock input (CLK) of the second. Add a 2N2222 transistor to each output for driving higher-current loads (up to 500mA), ensuring base resistors (470Ω) limit current to 10mA.
Test continuity before powering on. Probe the 555’s output pin (3) with a multimeter set to DC voltage range–expect a 5V square wave oscillating at ~1Hz for the given component values. If outputs remain static, verify the 555’s control pin (5) isn’t floating (tie it to ground via 0.1μF capacitor). For debugging, replace C1 with a 10μF electrolytic to slow transitions for visual confirmation.
Building a Sequential Light Animator with Basic Components
Use a 555 timer IC in astable mode to generate clock pulses at 1-10Hz. Connect pin 3 (output) to a 4017 decade counter’s clock input (pin 14). The 4017 will sequentially activate its ten outputs (Q0-Q9) with each pulse, driving individual illuminators via 220Ω resistors. For fewer lights, connect the unused outputs to reset (pin 15) to restart the cycle.
Component Selection and Layout
Position the 555 timer near the power supply for stable reference voltage. Keep capacitor leads under 10mm to minimize noise–use 1µF tantalum for 1Hz or 0.1µF ceramic for 10Hz. Route the 4017’s outputs in straight lines to their respective resistors to avoid crosstalk. Place a 100nF bypass capacitor between Vcc and GND of each IC, no farther than 2cm from the pins.
Choose illuminators with matched forward voltages to ensure uniform brightness. For 5mm types, 20mA max current requires precise resistor values: (Vs – Vf) / 0.02. A 9V supply with 2V Vf lights needs (9-2)/0.02 = 350Ω; round to 330Ω for slight brightness increase. Test each output with a multimeter before attaching emitters to confirm voltage compliance.
For extended sequences, cascade two 4017s by connecting the first’s carry-out (pin 12) to the second’s clock input (pin 14). Add a diode (1N4148) between the carry-out and reset (pin 15) of the first IC to prevent glitches. This expands the cycle to 20 steps without additional logic.
Solder components on perfboard with 2.54mm pitch to match IC lead spacing. Clipping unneeded copper pads reduces stray capacitance. Power the board with a regulated DC source–9V wall adapters often introduce ripple; use a 7809 voltage regulator with 10µF input and output capacitors to smooth fluctuations.
Selecting Optimal Parts for a 5V Sequential Light Effects Board
Begin with low-current 20 mA diffused 3 mm bulbs; their 2.0–2.2 V forward drop pairs directly with 5 V logic outputs. For tighter patterns, opt for 1.8 mm clear bulbs with matched resistors to maintain uniform brightness across eight positions. Resistors should be carbon-film ¼ W types rated ±5%–values calculated using R = (Vcc – Vf)/If avoid generic “220 Ω” approximations that distort timing or dim outer positions.

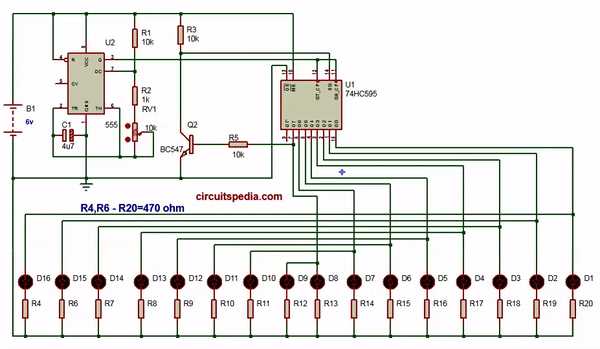

Controller choices narrow to decade counters (CD4017BE) or shift registers (74HC595). CD4017BE demands a clock source–NE555 in astable configuration at 1–5 Hz, tuned via a 10 µF cap and 100 kΩ pot for smooth transitions. 74HC595 consumes fewer pins but requires serial data; counterbalance with parallel load times under 10 ms to prevent visible flicker. Both chips tolerate 5 V directly, but decouple each Vcc pin with 100 nF X7R ceramics, placed within 5 mm of the package to suppress noise-induced double-triggering.
Power Delivery Considerations
USB 2.0 ports deliver 500 mA; total board current must stay below 450 mA after accounting 20 mA per segment and 5 mA leakage in logic. Add P-channel MOSFET IRLML6401 (Vgs(th) = 1 V) on the high-side rail if driving more than 16 segments. Linear regulators LM1117-5.0 drop 1.3 V–ensure input ≥6.3 V, or switch to buck converter TPS62743 set to 5.1 V via 0 Ω feedback resistor for 95% efficiency at 20 mA load.
Clock and Timing Fine-Tuning
- NE555 timing capacitor: polypropylene 6 % tolerance; smaller than 10 µF accelerates cycle, exceeding 47 µF slows it beyond human persistence-of-vision.
- Potentiometer: 10-turn 100 kΩ trimpot (Bourns 3590S) permits ±2 % step resolution; single-turn types drift under thermal expansion.
- Push-button override: momentary SPST switch wired parallel to timing cap discharges it instantly, resetting the sequence without power cycling.
Substitute diffused bulbs with WS2812B addressable strips for independent control, but budget 60 mA per pixel at full brightness–driving 15 pixels exceeds USB limits, necessitating barrel-jack 5.5/2.1 mm connector and external 2 A supply. For noise immunity, route clock traces ≤8 mm alongside return grounds, avoiding sharp 90° bends that reflect edges back into sensitive inputs.
Terminal connections employ 2 mm pitch screw clamps; tighter 1.27 mm headers risk loosening under thermal cycling. Enclosure options–PETG 2 mm thick–transmits 92 % light while blocking >90 % UV that yellows adhesives within 1 200 hours. Ventilation slots sized ≥2 mm prevent condensation buildup above 30 °C ambient, preserving resistor stability within ±1 % over temperature swings.
Step-by-Step Wiring of a 4017 Decade Counter with Illumination Elements
Begin by connecting the power supply to the 4017 chip. Pin 16 (VDD) requires a stable 5V–15V DC input, while Pin 8 (VSS) must link directly to ground. Use a breadboard to avoid soldering errors, ensuring the voltage regulator matches the chip’s tolerance if sourcing from a 9V battery or AC adapter.
Attach a 10μF capacitor between VDD and ground near the chip to filter voltage spikes. A 1kΩ resistor should connect from the clock input (Pin 14) to VDD to stabilize timing. For manual sequencing, wire a pushbutton between Pin 14 and ground–presses will advance the output.
The reset function (Pin 15) demands attention. Tie it to ground via a 10kΩ resistor to prevent false resets. Alternatively, connect a switch here to force the counter back to the first output (Pin 3) when activated.
Output Configuration for Sequential Lighting
Distribute the illumination elements across Pins 3, 2, 4, 7, 10, 1, 5, 6, 9, and 11 (Q0–Q9). Each output drives one element via a current-limiting resistor: calculate resistance using R = (Vsource – Vforward) / Iforward. For 5V and 20mA elements, 150Ω–220Ω resistors work well.
- Q0 (Pin 3) → First element in sequence.
- Q1 (Pin 2) → Second, and so on.
- Skip Carry Out (Pin 12) unless cascading chips.
For fading effects, replace resistors with transistors (e.g., 2N2222) and PWM signals. A 555 timer in astable mode can generate clock pulses, replacing the pushbutton if continuous cycling is desired. Adjust the 555’s resistors/capacitors to control speed–typical values: 1μF capacitor, 10kΩ resistor for ~1Hz pulses.
Troubleshooting and Validation
Verify connections with a multimeter:
- Check power rails for correct voltage (
- Confirm outputs cycle in order by touching each pin’s resistor lead–elements should activate sequentially.
- If erratic, inspect for floating pins: ensure unused outputs (e.g., Q5–Q9) don’t short to nearby traces.
For extended runtime, substitute the power supply with a bench PSU or rechargeable pack. Keep wires short to minimize voltage drop–long runs may require thicker gauge (22AWG+). Encase the chip in a project box if used outdoors to prevent moisture damage.
Calculating Resistor Values for Safe Illumination Current
Select a current-limiting resistor based on the forward voltage (Vf) and desired current (If) of your optoelectronic components. Standard indicators typically require 5–20 mA, while high-brightness variants may need up to 30 mA. Use Ohm’s law: R = (Vs – Vf) / If, where Vs is the supply voltage. For a 5 V source and a 2 V Vf indicator drawing 15 mA, the calculation yields (5 V – 2 V) / 0.015 A = 200 Ω. Choose the nearest standard value above this result, typically 220 Ω, to ensure margin.
Verify maximum power dissipation using P = If² × R. A 220 Ω resistor at 15 mA handles (0.015 A)² × 220 Ω = 49.5 mW, well below standard 0.25 W ratings. For pulsed or multiplexed sequences, derate the resistor’s power rating by at least 50% to account for thermal cycling. Components with tight tolerances (±1% or better) reduce risk of exceeding the target current, particularly in sensitive RGB arrays.
Adjust values for series-connected emitters. Two identical diodes with 2 V Vf each in a 5 V loop require R = (5 V – 4 V) / 0.015 A = 66.6 Ω, rounded to 68 Ω. Parallel branches demand separate resistors to prevent current hogging; never assume uniform Vf across batches. Measure actual Vf under operating conditions–datasheet values represent typical, not guaranteed, performance.
Temperature derating is critical for outdoor or high-ambient designs. A 5 mA increase in current for every 10 °C rise compounds over time, accelerating degradation. Use a NTC thermistor in feedback loops for adaptive compensation, scaling resistance dynamically. Carbon film resistors offer stable performance under 100 °C, while metal film variants resist drift above 125 °C.
For constant-current drivers, bypass resistors with a small capacitor (10–100 nF) to suppress transients during switching. PWM dimming introduces harmonics; select capacitors with low ESR and place them physically close to the resistor’s leads. Avoid ceramic types below 4.7 µF in noise-sensitive applications–their microphonic effects can induce flicker.
Document each resistor’s purpose and tolerance in build logs. A 220 Ω, 1%, metal film resistor marked “Ch1 red” prevents cross-wiring errors during maintenance or scaling. Test assemblies under worst-case supply voltage (e.g., 5.25 V for a 5 V rail) to confirm margins. Overlook this step, and seemingly robust designs fail within weeks.
