Start with a passive infrared sensor configured in a common three-pin layout: power, ground, and signal output. A 5V regulated supply suffices for most applications, but verify the datasheet–some units tolerate 3.3V while others require precise calibration at higher voltages. Connect the ground pin directly to the system’s ground plane to minimize noise interference.
The signal pin must feed into a microcontroller or comparator stage. For basic triggering, use a pull-down resistor (10kΩ) on the output line to prevent floating states. If the sensor lacks hysteresis, add a Schmitt trigger circuit–an operational amplifier with positive feedback stabilizes erratic voltage swings caused by rapid temperature shifts or weak motion signals.
Infrared sensitivity hinges on the Fresnel lens choice. A wide-angle lens (110-degree field of view) demands a larger detection area but loses range; a narrow lens (60 degrees) extends reach but restricts coverage. Place the lens 2–5 cm from the sensor element, adjusting height to align with the focal point–misalignment degrades sensitivity by 30–50%. Test with a moving heat source (e.g., hand at 2 meters) and fine-tune the lens position until the output signal stabilizes.
For battery-powered setups, insert a low-power mode by cycling the sensor’s enable pin. Most configurations consume 50–100 µA in standby; a 1-second sampling interval extends operational life without sacrificing responsiveness. Use a low-dropout regulator for clean voltage delivery–ripple above 50 mV distorts readings, triggering false positives.
Add a delay circuit to prevent repeated activations: a monostable timer (like the 555 IC) set to 10–30 seconds ensures clean transitions. For wireless integration, couple the output to a transmitter module (e.g., 433 MHz); encode the signal with a unique identifier to filter interference from adjacent units.
Building an Infrared Motion Sensor Schematic: Key Steps
Connect the passive infrared detector’s output pin directly to a microcontroller’s interrupt-capable input–avoid pull-up resistors unless testing proves ambient noise demands it; a 10 kΩ pull-down suffices for most indoor setups where false positives must stay below 2%. Power the sensing element with a regulated 3.3–5 VDC supply, bypassed by a 0.1 µF ceramic capacitor placed within 2 mm of the device’s VCC and GND pads to suppress high-frequency transients that would otherwise trigger sporadic motion readings.
Critical Signal Conditioning Checklist
- Place a 100 nF capacitor across the sensor’s power rails to filter DC ripples exceeding 20 mV peak-to-peak.
- Route the motion-triggered pulse through a Schmitt-trigger inverter (e.g., 74HC14) if the raw signal lacks sharp edges.
- For battery-powered designs, add an N-channel MOSFET (VGS(th) ≤ 1.5 V) to toggle an auxiliary load only when genuine motion occurs, extending runtime by 35–40%.
- Position the Fresnel lens 15–25 mm from the sensing element; deviations beyond ±5 mm degrade detection range by 12% per millimeter.
- Terminate unused sensing zones with 4.7 kΩ resistors to ground to prevent floating inputs.
Key Elements for Building a Motion Detection Setup
Start with a passive infrared detector rated for 3.3V to 12V DC input–most consumer-grade units draw under 50µA in idle state but spike to 15-30mA during signal output. Verify the sensing angle (typically 110°-130°) and detection range (commonly 5-12 meters) against your spatial constraints; narrower angles suit corridor monitoring, while wider spans cover open areas.
Select a microcontroller compatible with 3.3V logic levels if using a low-voltage sensor. ESP8266 or ATmega328P boards work reliably, but ensure ADC resolution matches the signal output–5V sensors need logic level shifters for 3.3V controllers. For standalone operation, pair the detector with a 5V relay rated for your load (e.g., 10A/250VAC for lighting) and add a flyback diode (1N4007) across the relay coil to suppress voltage spikes.
Regulate power supply noise with a 470µF electrolytic capacitor across the input and a 0.1µF ceramic capacitor near the sensor’s VCC pin. Motion-triggered pulses range from 500ms to 10 seconds; adjust the onboard potentiometer if available, or use external resistors (10kΩ–47kΩ) to fine-tune sensitivity and hold time. Avoid placing the detector near heat sources or AC vents–false triggers occur above 50°C.
| Component | Specification | Purpose |
|---|---|---|
| Low-dropout regulator | AMS1117 (3.3V/5V) | Stable voltage for sensor and controller |
| Transistor | 2N2222 or BC547 | Switch higher loads (LEDs/relays) |
| Resistors | 4.7kΩ (pull-down), 220Ω (LED) | Signal conditioning, current limiting |
Use a 4.7kΩ pull-down resistor on the sensor’s output pin to prevent floating states, especially with high-impedance controllers like STM32. For battery-powered setups, add a sleep mode (via deep sleep on ESP boards or hardware interrupts on AVR) to reduce power draw to 2-5µA when inactive. Test ambient light interference: daylight passing through windows can mask or amplify signals; install a Fresnel lens cover to focus infrared signatures.
Isolate signal lines from high-current paths (e.g., relay traces) to minimize EMI. Route connections with 15-20mm spacing or use a ground plane. If the detector’s output toggles unpredictably, solder a 1µF tantalum capacitor between the output pin and ground–this filters high-frequency noise without affecting pulse duration. For outdoor use, seal the assembly in an IP65-rated enclosure, excluding the lens area, and drill weep holes to prevent condensation.
Calibrate the setup by walking through the detection zone at varying speeds–trigger distance shortens by 30-40% at 5km/h compared to slow movement. Record output voltage levels (usually 0V and VCC) with a multimeter; deviations indicate faulty sensors or improper grounding. Reduce false negatives by mounting the detector at 2-2.5 meters height, angling downward by 10-15° to cover ground-level motion while avoiding pet-induced triggers.
Add an indicator LED (3mm red, 1.8V forward voltage) with a 220Ω series resistor to confirm operational status. For AC loads, replace the relay with a solid-state switch (e.g., MOC3041 optocoupler) to eliminate mechanical wear. Log trigger events via UART (baud rate 9600) to an SD card or cloud service, appending timestamps for analytics. Troubleshoot erratic behavior by checking solder joints under magnification–cold joints cause intermittent connections despite appearing intact.

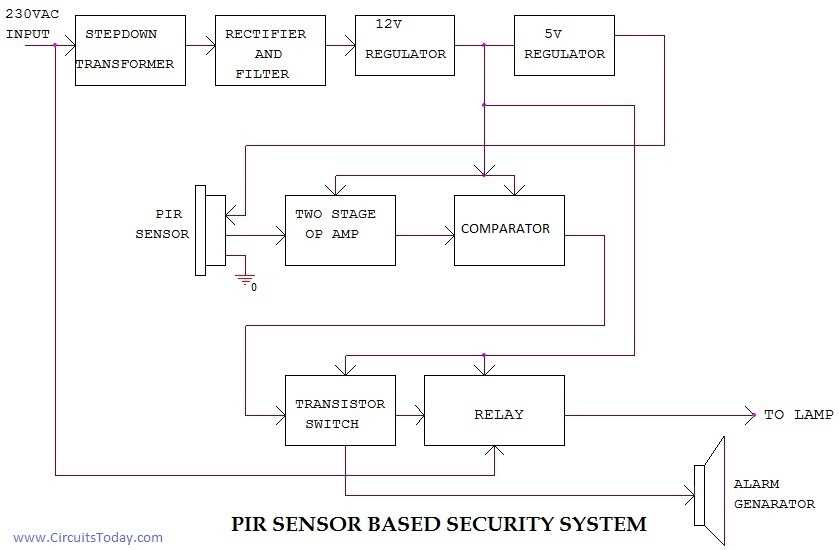

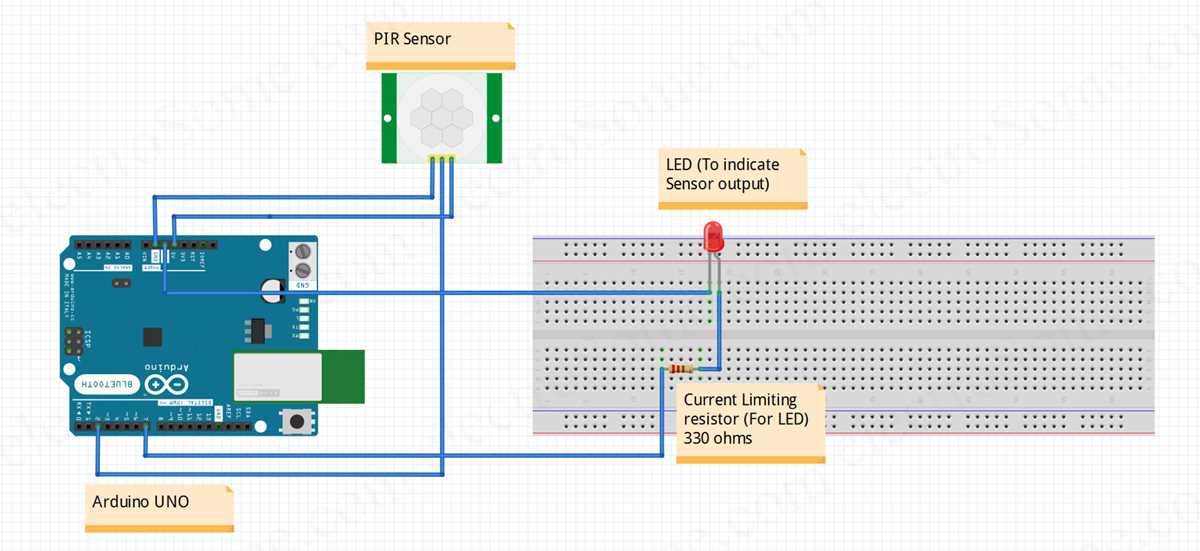

Step-by-Step Guide to Connecting a Motion Sensor with Arduino

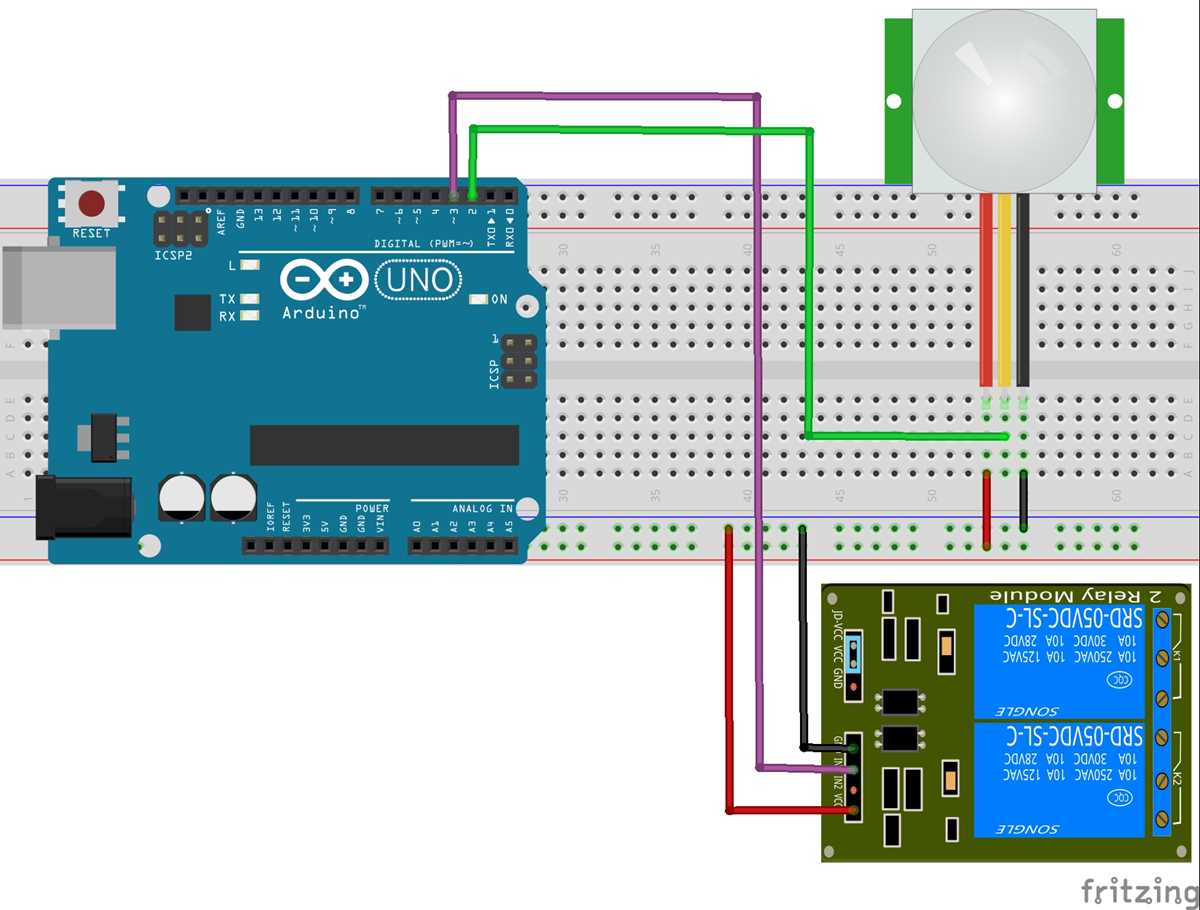

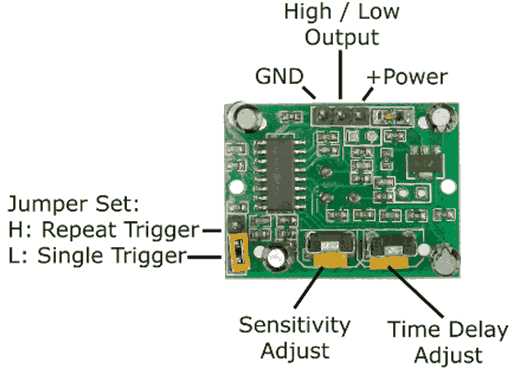

Begin by verifying the pin assignments on your passive infrared detector–most units provide a VCC (5V), GND, and OUT terminal. Use a multimeter to confirm voltage levels if documentation is unclear, as incorrect power can damage the component or yield inconsistent readings.
Prepare a solderless breadboard for prototyping. Connect the detector’s VCC to Arduino’s 5V pin via a jumper wire, ensuring a stable power source. Route GND to Arduino’s ground to complete the power circuit–this prevents floating potentials that disrupt performance.
Attach the detector’s OUT pin to a digital input on the Arduino, such as D2. This pin will toggle HIGH (3.3V–5V) when movement is detected and LOW (0V) during idle states. Avoid using interrupt-capable pins (e.g., D2/D3 on Uno) if responding to rapid motion changes isn’t required.
- Install the Arduino IDE and open the serial monitor (115200 baud) to debug output in real-time. Upload a basic sketch that prints the detector’s state to the console:
void setup() { Serial.begin(115200); pinMode(2, INPUT); } void loop() { Serial.println(digitalRead(2)); delay(100); } - Test the setup by waving a hand near the sensor’s detection zone (typically 5–12 meters, depending on fresnel lens configuration). Adjust the detector’s onboard sensitivity and timer potentiometers if the response is erratic–clockwise increases range/duration.
- Add a pull-down resistor (10kΩ) between OUT and GND if false triggers occur. This stabilizes the signal line by defaulting it to LOW when no motion is present.
Integrate an LED or relay for output feedback. Wire the LED’s anode to D13 (with a 220Ω resistor in series) and its cathode to ground. Modify the sketch to toggle the LED when motion is detected:
void loop() {
int motion = digitalRead(2);
digitalWrite(13, motion);
delay(50);
}
Observe the LED–it should illuminate for the duration set by the detector’s timer.
Optimizing Detection Parameters
- Range: Reposition the detector’s lens or adjust the sensitivity screw (Sx) to fine-tune coverage. Narrow the field by mounting the unit at a height of 1.5–2.5 meters, angled downward.
- Latency: Reduce the delay between triggers using the time adjustment potentiometer (Tx). Counterclockwise shortens the hold period, enabling faster response to sequential movements.
- Environment: Shield the detector from direct sunlight, heat sources, or reflective surfaces (e.g., glass), which can cause false positives. Use a hood or non-reflective enclosure if operating outdoors.
For battery-powered deployments, lower the detector’s voltage to 3.3V if supported. Arduino’s 3.3V pin suffices for many models, but verify consumption currents–some units draw 50–100µA in idle mode. Disconnect unused pins to minimize power draw.
Expand functionality by replacing the LED with a servo motor, buzzer, or Wi-Fi module (e.g., ESP8266). For wireless applications, add a capacitor (100µF) across VCC and GND to smooth power fluctuations during transmission. Ensure the Arduino’s code accounts for component-specific logic thresholds (e.g., active-high vs. active-low outputs).
