Start with a fused main power feed directly from the battery bank to a central distribution panel. Use AWG 4/0 gauge cable for primary connections on a 12V system to prevent voltage drop–critical for distances exceeding 6 meters. Route all conductors through marine-grade tinned copper wire (IEC 60228 Class 5 or UL 1426) to resist corrosion in humid environments.
Separate circuits into dedicated buses: one for navigation lights (ANSI/ABYC A-16), another for bilge pumps (ABYC H-22), and a third for accessories. Each circuit must include a 10-25% derated circuit breaker based on wire ampacity–never rely on fuses alone. Place breakers within 18 inches of the battery terminal to meet ABYC E-11 standards.
Ground all metallic components to a common bonding system using #8 AWG green/yellow striped wire. Connect the engine block, metal fuel tanks, and shaft to a single zinc anode bus to prevent galvanic corrosion. Avoid chassis grounding on fiberglass hulls–use a dedicated ground plate submerged below the waterline for a low-resistance path.
Label every terminal with heat-shrink tubing or engraved tags. Color-code secondary circuits: red for positive, black for negative, yellow for navigation, and orange for bilge systems. Keep runs at least 30 cm from fuel lines and bundle cables with UV-resistant nylon ties spaced every 15 cm.
Install a battery isolator or automatic charging relay (ACR) between house and starting batteries. Use 1/0 AWG cable for the isolator connection to handle charging currents. Verify all connections with a multimeter set to 200Ω–readings above 1Ω indicate corrosion or loose terminals.
Marine Electrical Setup Guide for Small Vessels
Use tinned copper cable rated for at least 1.5 mm² for all circuits handling up to 20 amps; this prevents corrosion in humid environments. Label every conductor at both ends with heat-shrink tags showing circuit name and voltage–red for 12 VDC positive, yellow for switched positive, black for ground, and blue for negative returns.
- Battery to fuse block: 12 AWG (3 mm²) minimum, with a 50 A ANL fuse within 7 inches of the battery post.
- Fuse block to accessory: match fuse amperage to device draw (e.g., 5 A for navigation lights, 20 A for bilge pump) using ATO/ATC blade fuses.
- Ground bus bar: mount near battery, connect with 4 AWG (20 mm²) cable to engine block or dedicated underwater metal plate at least 4 × 6 inches.
Position the main distribution panel no farther than 3 feet from the battery to reduce voltage drop; use a six-way block with separate circuits for lights, pumps, radios, and instruments. Test each circuit with a multimeter set to 20 VDC range–expect 12.6 V at rest and 14.2–14.4 V during charging.
Route cables above bilge water lines in conduit or loom; secure every 12 inches with stainless-steel clamps to prevent chafing. Avoid sharp bends–minimum radius equals eight times cable diameter–and seal all entry points into console or hull with waterproof strain relief connectors (IP67 rated).
- Trace each path with a continuity tester before energizing.
- Power devices only after verifying ground connection continuity (-0.1 Ω maximum).
- Install a battery disconnect switch (minimum 250 A rating) between positive battery terminal and fuse block, accessible within 24 inches of the helm.
Include a two-stage LED indicator light: green for power available, red for high-temperature warning (mount sensor on fuse block). Add a voltmeter with 0–16 V range to monitor charging system performance; place it within 30-degree viewing angle of the operator’s primary position.
Selecting the Optimal Conductor Size for Marine Electrical Systems
For 12V circuits carrying up to 10A over 3 meters, use 16 AWG tinned copper cable. This gauge handles voltage drop under 3% while maintaining flexibility for tight installs. Marine-grade insulation (minimum 600V-rated XLPE or PVC) resists saltwater corrosion and prevents chafe against fiberglass edges. Verify the conductor’s strands–minimum 19 strands per wire–for vibration resistance in high-motion environments.
Current draw dictates minimum gauge requirements. A rule of thumb: multiply the device’s continuous amperage by 1.2 (accounting for startup surges), then reference ABYC E-11 Table IX. Example: a 60W bilge pump (5A) fed by a 5-meter run requires 12 AWG to stay below 10% voltage drop. Exceeding this threshold shortens motor lifespan by 40% due to overheating armatures. For intermittent loads (e.g., 3-second horn blasts), reduce gauge by one size–but never below 18 AWG except for signal circuits.
- DC circuits: ABYC E-11 mandates height-based derating factors. At 30°C (86°F), 10 AWG carries 30A; at 50°C (122°F), capacity drops to 22A.
- AC circuits: Use 12 AWG for 20A branches, regardless of length, to meet NEC 555.12 requirements.
- Corrosion protection: Specify tinned copper over bare wire; it extends service life from 5 to 15 years in saltwater exposure.
Voltage drop calculations must include terminal resistance. A 1/4″ ring terminal adds 0.002Ω; a corroded 10AWG butt splice adds 0.08Ω. Total circuit resistance = (wire length × 0.004Ω/m) + connectors. For 12V systems, divide acceptable drop (typically 0.36V) by this total to confirm gauge adequacy. Ignore this step, and a 5A LED panel dims to 60% brightness over 4 meters with 16 AWG.
Environmental factors override theoretical calculations. In engine compartments, derate ampacity by 25% (ABYC E-11 Table XI). A 8 AWG cable rated for 40A at 30°C drops to 30A near exhaust manifolds. Fix this by upsizing to 6 AWG or rerouting 15cm away from heat sources. For submerged pumps, switch to 10 AWG even if calculations suggest 12 AWG–water cooling increases conductivity transiently, risking insulation failure.
- Measure actual run length, not straight-line distance. Add 15% for routing around ribs and bulkheads.
- Test voltage at the load after installation. If drop exceeds 5%, reroute with thicker cable or parallel runs.
- Label both ends of every conductor with heat-shrink markers showing circuit function and fuse rating (e.g., “BILGE_PUMP_5A”).
Circuit protection must match cable capability. A 20A fuse paired with 14 AWG wire guarantees the conductor melts before catching fire. Never exceed 125% of the cable’s rated ampacity for continuous loads (e.g., refrigerators). For short-term loads (≤3 minutes), fuse at 150%. Use Class T fuses for 8 AWG and thicker to protect against 1,000A+ faults common in lithium battery failures.
Pre-assembled marine cable kits (e.g., Ancor “tinned dual” series) eliminate gauge selection errors but require verification. Check the jacket print: “MTW 600V 105°C” indicates compliance with UL 1426 for marine use. Avoid automotive cable labeled “SAE J1128”–its 30V insulation fails in saltwater within 18 months. For DIY installations, strip no more than 4mm of insulation per terminal to prevent water wicking; seal connections with adhesive-lined heat shrink tubing rated for -40°C to 110°C.

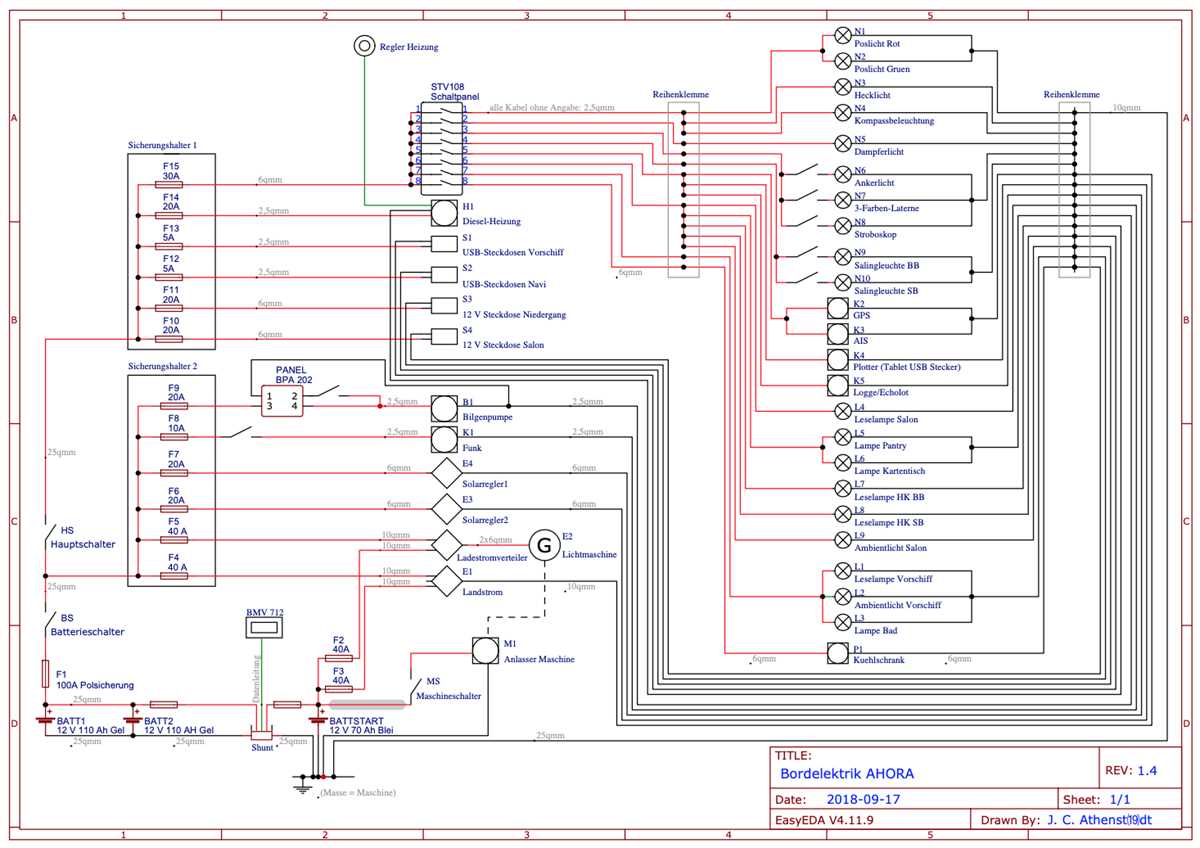

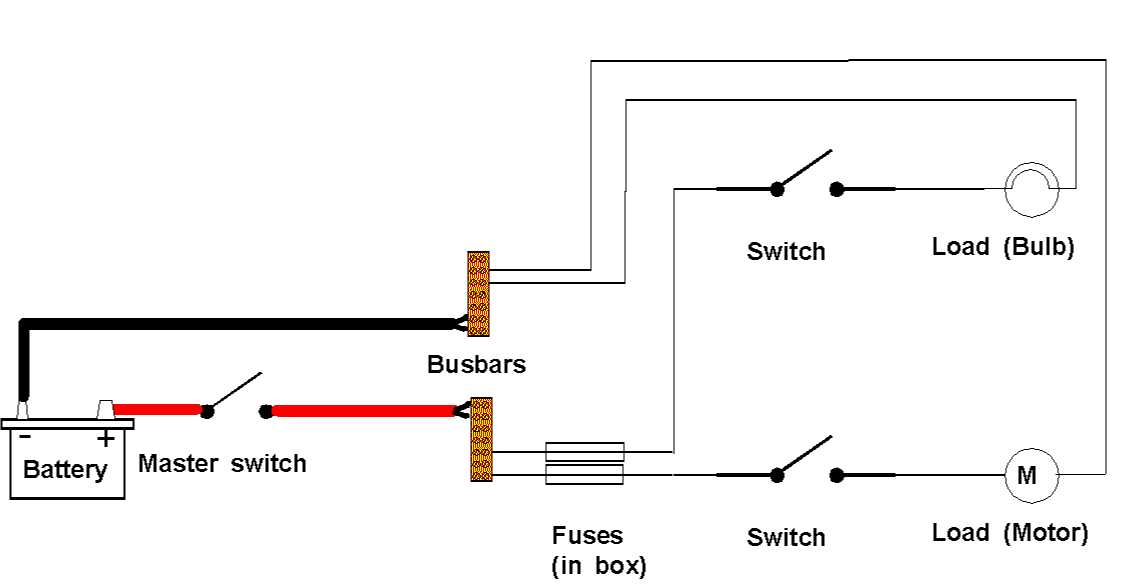

Step-by-Step Guide to Hooking Up Your Vessel’s Power Source and Isolation Switch
Begin by selecting a marine-grade battery rated for deep-cycle use with a minimum 100Ah capacity and AGM or lithium chemistry–avoid flooded types unless ventilation is ensured. Position the unit within 2 meters of the main isolator to minimize voltage drop, securing it with non-conductive brackets bolted directly to the hull or a reinforced mounting plate. Use tinned copper cables sized at 6 AWG (16 mm²) for 12V systems or 2/0 AWG (70 mm²) for 24V, stripping 12mm of insulation at each end and crimping with hydraulic connectors before heat-shrinking. Route cables through conduit or loomed sleeving where they pass near sharp edges, bilges, or moving parts, keeping them at least 15cm above bilge water lines. Connect the positive terminal first, ensuring the isolator is in the “OFF” position, then attach the negative lead to a dedicated grounding busbar bolted to the engine block or a clean, bare metal surface of the hull.
Install the main isolator–a rotary or lever-style model rated for continuous duty at 250A or higher–within arm’s reach of the helm, ideally on a non-corroding panel with a clear “ON/OFF” label. Link the battery’s positive cable to the switch’s common terminal, then run a second 6 AWG cable from the switch’s output to the primary distribution busbar, which should be fused within 7 inches (18cm) of the battery using a Class T fuse (e.g., 200A for 12V, 150A for 24V). For dual batteries, wire them in parallel (12V) or series (24V) before the isolator, adding a 100A bus link fuse between units if using AGM. Test the setup with a multimeter: verify 12.6V–12.8V at the battery (resting) and less than 0.2V drop across the isolator when switched on. Label all cables with heat-shrink tubing marked in solvent-resistant ink (e.g., “MAIN POS,” “NEG GND”) and apply dielectric grease to terminal connections to prevent corrosion.
Correct Installation of Running and Riding Lights
Match the light’s rated voltage to the vessel’s electrical system–12V for most recreational craft, 24V for larger workboats. Use marine-grade tinned-copper wire sized according to the distance: 16 AWG for runs under 15 ft, 14 AWG for 15–30 ft, 12 AWG beyond 30 ft. Strip ½ inch of insulation, twist strands clockwise, crimp with heat-shrink terminals, and seal each connection with adhesive-lined polyolefin tubing to resist saltwater intrusion. Route cables inside conduit or beneath decks, maintaining a minimum 2-inch clearance from fuel lines and exhaust manifolds; secure every 18 inches with non-metallic clamps.
Switch and Fuse Placement
Install a double-pole circuit breaker or fuse within 7 inches of the power source–30A for navigation lights, 15A for the riding light. Use a waterproof rocker switch rated for at least 20A, mounted above the splash zone. Label every switch clearly: “Port/Stbd Running” and “Riding Light.” For vessels over 20 meters, add a second fused circuit feeding an independent bulb or LED cluster to comply with COLREGs redundancy requirements.
