Start by selecting a CMOS or CCD sensor with a resolution matching your project’s needs–3MP is sufficient for most embedded vision systems, while 8MP+ is required for high-definition applications. Pair it with an FPGA or microcontroller (e.g., STM32, ESP32, or Raspberry Pi Pico) to handle data processing; FPGAs excel in real-time image processing due to their parallel computing capabilities. Ensure the sensor’s output format (MIPI CSI-2, parallel, or LVDS) aligns with your processor’s input interface–MIPI CSI-2 is standard for compact designs, while parallel interfaces simplify debugging.
Power management demands attention: sensors often require multiple voltage rails (e.g., 1.2V for core, 1.8V for I/O, 2.8V for analog). Use LDOs or buck converters with low dropout and noise specs (battery management IC (e.g., Texas Instruments’ BQ25120) to handle charging and load regulation. Separate analog and digital grounds to minimize interference, and place decoupling capacitors (0.1µF and 10µF) near the sensor’s power pins.

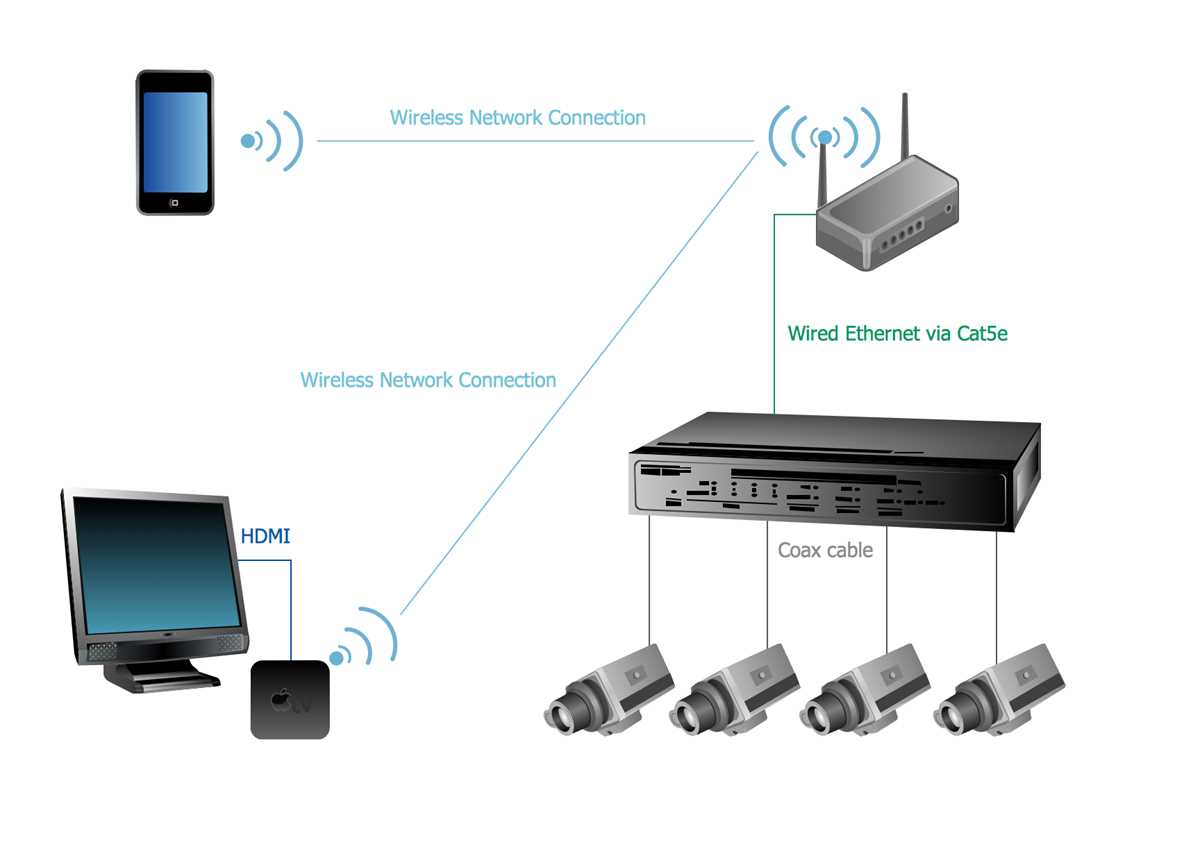

Data transmission is critical: if using an onboard storage solution, opt for eMMC or microSD with UHS-I speeds (104MB/s) for 4K video. For wired setups, USB 3.2 Gen 1 (5Gbps) supports uncompressed 1080p at 60fps, while Gigabit Ethernet accommodates higher bandwidths. Wireless options like Wi-Fi 6 (802.11ax) or LoRa require additional encoding (H.264/H.265) to compress data before transmission–cortex-M4/M7 MCUs can handle this with hardware acceleration.
Don’t overlook peripheral components: a precision oscillator (e.g., 24MHz ±10ppm) ensures stable sensor timing, while EEPROM or flash memory stores calibration data (e.g., lens distortion coefficients). For autofocus, implement a voice coil motor (VCM) driver (e.g., AMS AS5311) with closed-loop control. Test signal integrity with a high-speed oscilloscope (1GHz bandwidth) to detect ringing or crosstalk in clock/data lines–termination resistors (33Ω–50Ω) may be needed for high-frequency traces.
Debugging tools are non-negotiable: add test points for SPI/I2C interfaces to configure registers and validate sensor initialization. A JTAG or SWD header allows firmware updates and real-time debugging. For thermal management, use a thin-layer copper pour (2oz) on inner PCB layers to dissipate heat from the sensor and processor, which can exceed 50°C in prolonged operation.

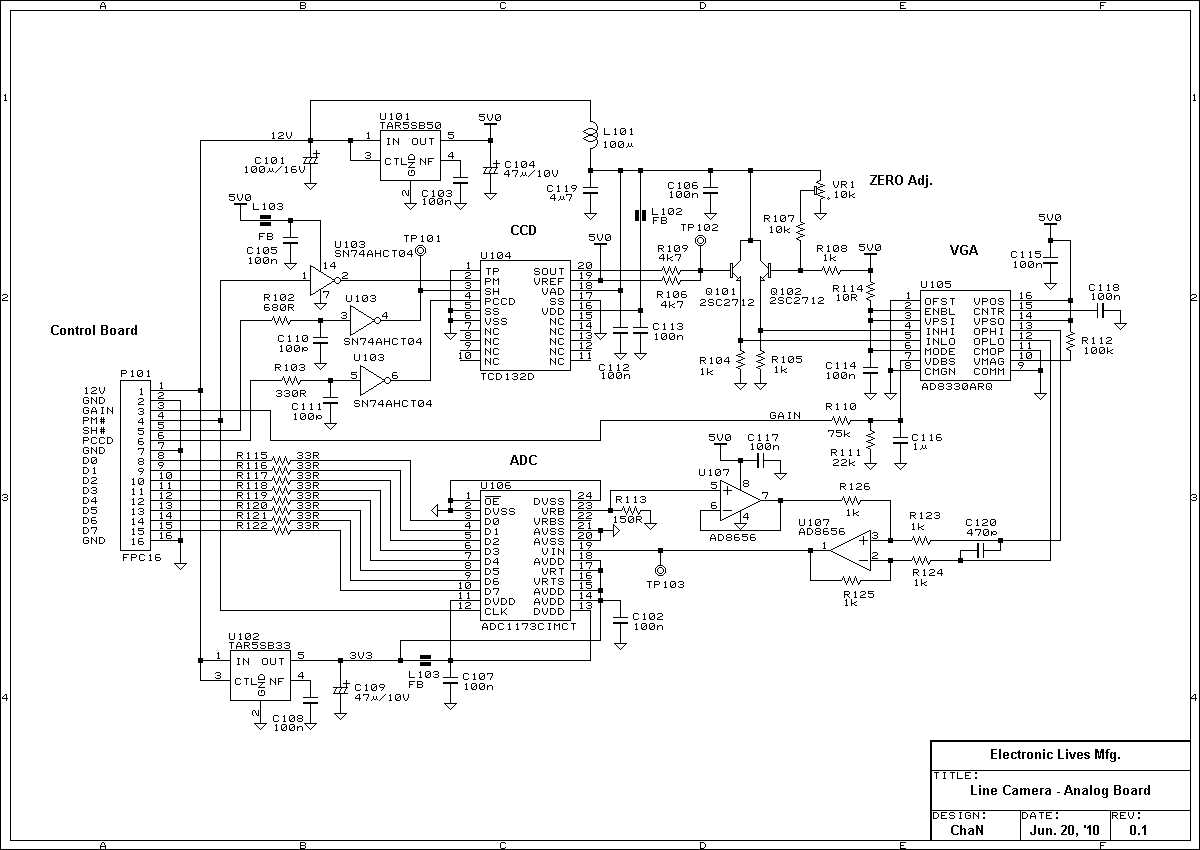

Key Components of a Visual Sensor Electronic Blueprint
Begin with a power management section – use an AP3012 or similar low-dropout regulator to supply 3.3V from a lithium-ion battery. This block must include a 10µF ceramic capacitor on the input and a 22µF tantalum capacitor on the output to stabilize voltage under transient loads. Ensure the regulator’s quiescent current stays below 50µA to extend operational life in portable systems.
Integrate an OV7670 or MT9D111 imaging module via a parallel interface, connecting the 8 data lines (D0–D7) directly to a microcontroller’s GPIO pins. Use a 47Ω series resistor on each data line to reduce signal reflections. Clock the sensor at 24 MHz with a dedicated crystal oscillator, and route the PWDN and RESET lines through 1kΩ pull-up resistors to prevent floating states. For synchronization, link the HREF and VSYNC pins to interrupt-capable MCU inputs, ensuring edge-triggered responses.
Add an SPI flash chip like the W25Q128JV to store firmware and calibration data; connect the chip-select line via a 10kΩ pull-up resistor to VCC. Route the SCK, MOSI, and MISO lines through impedance-controlled traces, keeping lengths under 50 mm to minimize signal degradation. Include a 100nF decoupling capacitor near the flash’s VCC pin. For noise suppression, shield analog signals (e.g., power supplies) from digital ones using a ground plane split with a single-point star connection at the voltage regulator.
Core Elements of a Fundamental Imaging Device Wiring Layout
Begin by integrating a target sensor, the primary light-sensitive chip responsible for converting optical input into electrical signals. Choose a model with at least 5MP resolution for balanced clarity and power consumption–common options include 1/2.8″ or 1/3″ formats. Ensure compatibility with the device’s microcontroller by verifying the sensor’s interface (e.g., MIPI CSI-2 or parallel 8/10-bit) and operating voltage (typically 1.2V–3.3V). Add a decoupling capacitor (0.1µF) as close as possible to the sensor’s power pins to suppress high-frequency noise.
- Image signal processor (ISP): Select an ISP that supports essential preprocessing: demosaicing, noise reduction, and automatic exposure/gain control. For low-cost builds, opt for integrated MCUs with built-in ISPs (e.g., NXP i.MX 8M or Raspberry Pi RP2040). Avoid overloading the ISP–streamline pipelines by disabling unused features like HDR or facial recognition unless required.
- Voltage regulators: Use low-dropout (LDO) regulators for stable power delivery. A 3.3V LDO (e.g., AMS1117) for the sensor and a 1.8V/1.2V buck converter (e.g., TPS62743) for core logic minimize thermal dissipation. Include ferrite beads on power lines to block EMI from motors or wireless modules.
- Lens assembly: Pair the sensor with a fixed-focus lens (f/2.0–f/2.8) optimized for the target focal length (e.g., 2.1mm for wide-angle). Ensure optical alignment by securing the lens with UV-curable adhesive–misalignment causes vignetting or focus drift. For adjustable setups, add an I2C-controlled motorized lens driver (e.g., DW9714) with closed-loop feedback.
Data transmission: Prioritize bandwidth efficiency by compressing output streams. Use MJPEG for simplicity (frame-by-frame JPEG encoding) or H.264 for reduced file sizes–both require minimal processing power. For high-speed applications, implement a serializer/deserializer (SerDes) pair (e.g., TI DS90UB9xx) to convert parallel sensor data into a single differential pair for long-distance transmission. Terminate differential pairs with 100Ω resistors to prevent signal reflection. Store configurations in non-volatile memory (e.g., SPI NOR flash) and load them on boot to avoid recalibration delays.
Step-by-Step Guide to Sketching a CMOS Imaging Chip Layout
Begin by marking the photosensitive array zone–typically a grid of 2–5 µm pixels, with monochrome sensors requiring uniform spacing and color variants (Bayer pattern) needing precise red, green, and blue sub-cell alignment. Use a 0.1 mm grid for photodiode placement; deviations exceeding 0.5 µm disrupt quantum efficiency. Power rails (VDD at 3.3V, VSS at 0V) should flank the array edges, ensuring ≤0.2 Ω resistance per mm trace width. Label每 layer–metal-3 for column buses, poly-1 for row selectors–adhering to 180 nm or 90 nm CMOS foundry rules for your node.
| Component | Dimensions (µm) | Voltage Range | Material Stack |
|---|---|---|---|
| Photodiode | 3.2×3.2 (active) | 0–0.6V | P-epi/N-well/P-sub |
| ADC (10-bit) | 45×200 | 1.2–3.3V | MIM cap + polysilicon |
| Row Driver | 15×800 | 0–1.8V | Low-Vt NMOS |
Route analog signals first: keep reset transistor (Mrst) traces ≤2 mm from the photodiode, minimizing parasitic capacitance. Implement correlated double sampling (CDS) amplifiers within 500 µm of each column output; stray inductance >100 pH creates settling delays. For digital blocks, cluster I²C/SPI controllers near the chip periphery (≤2 mm from bond pads) to reduce EMI. Validate parasitic extraction with foundry-specific R-C models for your metal pitch–35 nm nodes demand ≤10 aF/µm² coupling capacitance for reliable operation at 120 fps.
Powering Imaging Device Modules: Step-by-Step Integration
Identify the operational voltage range of your module–typically 3.3V, 5V, or 12V–printed on its datasheet or silk-screened near the input pins. Use a regulated switching power adapter with ±5% tolerance to prevent voltage spikes; linear regulators (e.g., LM7805) introduce unnecessary heat and drop voltage below critical thresholds for noise-sensitive components. Connect the adapter’s positive terminal to the module’s power pad–marked VCC or VDD–using 22-24 AWG silicone-coated wire to minimize resistive loss. Ground the negative terminal to a dedicated ground plane or bus bar; avoid daisy-chaining grounds to analog and digital sections to prevent interference loops. For modules exceeding 500mA consumption, add a 100µF low-ESR tantalum capacitor in parallel with the input to stabilize transient loads during high-speed data bursts.
Test continuity with a multimeter set to diode mode between the adapter’s output and the module’s power pin before applying voltage. Power up and measure the actual voltage at the input pads; discrepancies above 0.2V indicate poor connections, undersized wires, or adapter faults. For battery-operated setups, use a 3.7V LiPo with a 5V boost converter (e.g., MT3608) and add a 1A Schottky diode in series to block reverse current during discharge. Isolate power lines for optics sensors, processors, and peripherals using ferrite beads (e.g., BLM18PG221SN1) rated for 100MHz-1GHz to suppress high-frequency noise from switching regulators.
Resolving Faults in Imaging Device Electrical Pathways
Check voltage stability at connection points before diagnosing intermittent failures. Use a multimeter to measure input/output levels at power supply nodes, signal processors, and ground pins. Tolerances should match the datasheet: ±5% for VCC (typically 3.3V or 5V), ±2% for reference voltages. A drop below 3.0V on a 3.3V line often causes sensor initialization errors. If readings fluctuate more than 50mV within 10ms, inspect for loose connectors, oxidized pads, or undersized traces (aim for ≥15mil width for 1A loads). Replace damaged cables with identical gauge wire–mismatches introduce resistance, distorting signals.
Signal Integrity and Noise Mitigation
Shield high-speed data lanes with grounded copper pours if crosstalk corrupts output. Keep I2C/SPI traces under 50mm when routing without termination resistors–add 47Ω series resistors for lines exceeding 100mm. For LVDS pairs, maintain equal length (±0.5mm) and avoid 90° bends; use 45° angles or curves. If the feed exhibits random pixel noise, verify ground loops: tie all ground planes to a single star point at the power input. Add 100nF decoupling capacitors within 5mm of each power pin–omitting these causes voltage spikes during data bursts. Replace ceramic caps with tantalum if ESR below 0.1Ω is critical.
