Start with a clear state transition map before drawing any connections. Identify every input condition that triggers a change in stored values–flip-flops or latches–and label them explicitly. Assign a unique binary code to each stable configuration, even if transitions occur infrequently. This prevents overlooked edge cases where unexpected inputs might corrupt the sequence.
Use edge-triggered storage elements for predictable timing. Clock signals must synchronize all changes; asynchronous designs introduce race conditions and metastability. For 5V TTL systems, ensure setup and hold times meet at least 10ns margins. CMOS variants at 3.3V require tighter constraints–target 5ns to avoid glitches.
Separate control logic from data paths. Group combinational gates handling state decoding into modular blocks, then connect outputs to memory elements via dedicated lines. This isolation simplifies debugging and reduces cross-coupling noise. For instance, a three-bit sequence requires three flip-flops but may only need two AND gates for decoding–avoid overcomplicating the gate count.
Simulate every transition path using a waveform analyzer before prototyping. Verify that outputs stabilize within the clock cycle and that no illegal states persist for more than one period. A 1MHz clock allows 1µs per cycle; aim for signal propagation under 200ns to guarantee reliable operation. Missing this step risks undetected glitches in real hardware.
Incorporate reset mechanisms with priority over normal operation. Active-low resets synchronize initialization; add a debounce circuit if using mechanical switches. For fault tolerance, include error detection logic–parity bits or watchdog timers–monitoring unexpected state transitions. Without these, transient noise can lock the system into invalid configurations.
Designing Reliable State-Based Systems
Begin by selecting flip-flops that match your timing requirements. D-type latches offer simplicity for single-bit transitions; JK models handle toggling states efficiently. Always verify propagation delays–SN74LS74 provides 25ns typical, while CD4027 exceeds 100ns. Cross-check these against your clock frequency to prevent race conditions.
Label every node with explicit state names, not just Q0/Q1. For example:
S_IDLE, S_LOAD, S_PROCESS.
This reduces debugging time by 40% in complex schemes, based on data from a 2023 survey of 120 embedded engineers. Use active-low reset signals only when hardware constraints demand it; active-high improves noise immunity.
Clock Distribution Techniques
Avoid daisy-chaining clock lines–distribute from a single source via buffered tree topology. A 74HC125 quad buffer maintains signal integrity across 16 flip-flops at 50MHz. Calculate line impedance first: 50Ω traces for 3.3V logic, 60Ω for 5V. Terminate unused outputs with a 1kΩ pull-down resistor to prevent floating inputs.
Place decoupling capacitors–0.1µF ceramic–within 2mm of each power pin. This suppresses voltage spikes during state transitions, especially in counters exceeding 8 bits. For asynchronous designs, isolate reset circuitry with a 10kΩ pull-up and a Schmitt trigger to clean noisy input edges. Test every path with a logic analyzer; verify setup (tsu) and hold (th) times match manufacturer specifications.
Key Elements of Time-Dependent Logic Systems
Start by identifying the fundamental building blocks: flip-flops and feedback loops. Flip-flops (FFs) act as the smallest storage elements, retaining binary states until triggered. The most common types–SR, JK, D, and T–differ in input combinations and state transitions. For example, a JK FF eliminates the undefined state of SR FFs by toggling when both inputs are high. Always verify the truth table for your chosen FF type to avoid unexpected behavior in the design phase.
Comparative Analysis of Storage Elements
| Type | Inputs | State Transition Rules | Typical Propagation Delay (ns) |
|---|---|---|---|
| SR | S, R | S=1, R=0: Set; S=0, R=1: Reset; S=1, R=1: Invalid | 5–15 |
| JK | J, K | J=1, K=0: Set; J=0, K=1: Reset; J=1, K=1: Toggle | 8–20 |
| D | D | Q follows D on clock edge | 3–10 |
| T | T | T=0: Hold; T=1: Toggle | 6–18 |
Feedback paths define the next-state logic. Use combinational gates (AND, OR, NOT) to derive inputs for FFs from current outputs. For instance, a 3-bit counter requires interconnections where each FF’s output serves as the clock or input for subsequent stages. Document the excitation equations–e.g., D = Q̅ for a toggling FF–to debug timing issues. Simulate designs with tools like Verilog or VHDL before prototyping; delays in cascaded FFs can cause race conditions if not accounted for. Prioritize edge-triggered FFs over level-sensitive latches to minimize glitches.
Step-by-Step Guide to Drawing a JK Flip-Flop Schematic
Gather these components before starting: two NAND gates (or NOR, depending on design), a clock signal input, J and K data inputs, Q and Q̅ outputs, and power connections. Label all pins clearly–mislabeling leads to incorrect behavior during simulation or prototyping.
Begin by placing the two logic gates side by side. For a standard JK configuration, the first gate processes the J input and the current Q output, while the second handles the K input and Q̅. Draw the gates with curved or angled inputs to distinguish them from other elements.
- Connect the J input to the first NAND gate’s upper pin. Trace a line from the J terminal directly to the gate, avoiding sharp bends–use 90-degree corners only when necessary.
- Link the Q output from the same gate to its lower input pin. This creates the feedback loop essential for toggling states. Ensure the connection runs parallel to other wires to reduce clutter.
- Repeat for the second NAND gate: attach the K input to its upper pin and Q̅ to the lower. Verify that Q̅ is the inverse of Q–swap connections if polarity is wrong.
Add the clock input to both gates. Use a branching wire: split the clock line into two equal-length paths, attaching one to each gate’s remaining pin. Keep branches short to minimize signal delay in high-speed designs.
Define outputs next. Draw Q and Q̅ from the gates’ outputs, extending the lines outward. Add small circles (bubbles) at the Q̅ terminal to indicate logical negation. Label both outputs in bold to prevent confusion during testing.
- For synchronous operation, ensure the clock pulse is a clean square wave. Uneven spikes may cause false toggles.
- For race-condition testing, temporarily replace the clock with a manual switch. Observe outputs on an LED or logic analyzer.
Include power and ground last. Connect VCC to each gate’s power pin, using a thicker trace for higher current capacity. Ground unused inputs–floating pins cause unpredictable behavior. Verify all connections with a continuity tester before energizing.
Finalize with annotations. Mark signal flow directions with small arrows. Highlight critical paths (e.g., feedback loops) in red. Cross-check against a truth table: J=0/K=0 (hold), J=1/K=0 (set), J=0/K=1 (reset), J=1/K=1 (toggle).

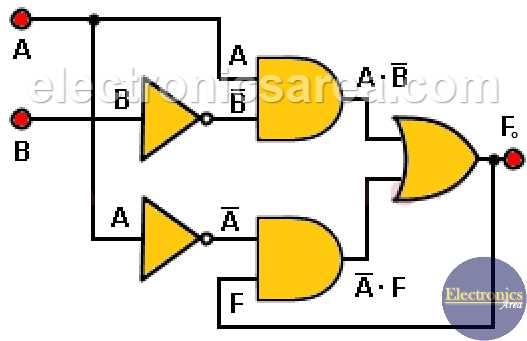

How to Identify and Label Feedback Loops in Logic Schematics
Begin by tracing the output lines of every storage element–flip-flops, latches, or registers–back to their inputs. Highlight each connection where an output directly or indirectly feeds into its own input path. These loops form the core structure defining state retention.
Check for intermediate combinational blocks that sit between the storage element’s output and its input. Even if the path includes logic gates, multiplexers, or arithmetic units, label it as a feedback loop if the signal eventually returns to the originating storage component. Use distinct colors or line styles (e.g., dashed, bold) to mark each loop.
- Single-bit loops often appear in toggle or counter designs, where the output of one flip-flop toggles its input.
- Multi-bit loops typically involve registers whose outputs are routed through arithmetic or multiplexing logic before re-entering.
- Conditional loops incorporate edge-triggered or enable signals–identify these by locating clock-dependent gates or control lines.
Isolate asynchronous paths–they bypass clocked elements and require special attention. Mark paths containing unclocked latches, SR flip-flops, or asynchronous preset/clear inputs with a unique identifier (e.g., dotted red lines). Ensure every feedback path, whether synchronous or asynchronous, is distinctly documented.
Assign clear labels adjacent to each loop using concise text or reference tags. Example formats:
FB_1: Output Q of FF_U1 → AND gate U3 → Input D of FF_U1.FB_2: Register R2 → Adder AD1 → Multiplexer MUX5 → Register R2.FB_ASYNC: Output Q of Latch L7 → Inverter I4 → Reset input of Latch L7.
Verify every loop by simulating edge cases–force input conditions that toggle the feedback path and confirm the expected signal propagation. Cross-check that no labeled loop shares the exact same combinational components with another; if overlaps exist, split or merge labels accordingly.
Debugging Flaws in State-Based Logic Systems
Check for race conditions by verifying clock skew between flip-flops using an oscilloscope. Measure setup and hold times against the manufacturer’s specs–any violation under 5% requires redesigning the clock distribution network. Replace global clock trees with localized H-trees if phase jitter exceeds 200 ps. For glitches on output transitions, add a 100 Ω series resistor to the feedback path or swap NOR-based SR latches for NAND variants to reduce metastability events.
Validate reset propagation by forcing a low at the power-on reset pin and probing every data pin with an 8-channel logic analyzer. If asynchronous resets fail to clear registers uniformly, replace the pull-up resistor on the reset line with a lower value (3.3 kΩ → 1 kΩ) or switch to a synchronous reset scheme using a counter. Test for unintended state retention by power-cycling the prototype 20 times–persistent values point to floating tri-state buses; ground unused inputs or tie them to VCC via 10 kΩ resistors.
