Start troubleshooting by locating the power input terminals–typically marked L1/L2 for 230V models or L for 120V single-phase variants. Verify the voltage across these points with a multimeter set to AC mode; readings should be within ±5% of the rated supply. If absent, check the circuit breaker for tripping–most thermal-magnetic breakers reset manually but require a 30-second cooldown before reactivation.
Identify the compressor relay contacts (normally open, 3-pole) and confirm coil voltage matches the control board’s output (usually 24VAC). Use an ohmmeter to test continuity across the coil; infinite resistance indicates a failed relay requiring replacement. For dual-capacitor configurations, measure microfarads on the start/run components–deviation beyond 10% signals degradation. Replace capacitors only with identical voltage and capacity ratings to prevent motor damage.
Trace the low-voltage thermostat wiring (R, Y, G, C terminals) back to the control module. Short R to Y to simulate cooling demand–if the unit fails to engage, inspect the board for burnt traces or swollen capacitors. For smart thermostats, ensure the C-wire (common) has a stable 24VAC reference; floating potential causes erratic cycling. Ambient sensors (NTC type) should read 10kΩ at 25°C–drift outside 2kΩ–50kΩ range mandates sensor replacement.
High-voltage connections demand insulation resistance testing: disconnect the unit, set a megohmmeter to 500VDC, and measure between phases and ground. Readings below 1MΩ indicate compromised insulation, risking short circuits. Torque terminal screws to manufacturer specs (typically 12–15 in-lbs for copper; 20–25 in-lbs for aluminum) to prevent arcing. For variable-speed models, confirm the inverter board’s DC bus voltage (310–350VDC) before proceeding–fluctuations suggest faulty rectification or smoothing capacitors.
Label all disconnected wires before servicing to avoid cross-wiring during reassembly. Photograph the original configuration as a reference. Use only stranded copper wire (min. 14 AWG for 15A circuits; 12 AWG for 20A) with insulation rated for 75°C or higher. Never splice wires inside the unit–use crimp connectors and heat-shrink tubing for permanent repairs. After repairs, run a test cycle and monitor current draw with a clamp meter: compressors should stabilize at 4–6A per ton (e.g., 12–18A for a 3-ton unit).
Understanding HVAC Unit Electrical Schematics
Begin by locating the main power terminal block inside the outdoor compressor housing. Most units integrate a labeled terminal strip with markings L1, L2, and C. Connect the hot wires (typically black and red) to L1 and L2, ensuring a direct link to the circuit breaker without splices. The common wire (often white or blue) attaches to C, completing the 240V loop. Verify voltage between terminals with a multimeter–readings should align with the unit’s specification plate (e.g., 208V or 230V).
Split-system heat pumps feature a reversing valve solenoid wired separately from the compressor. The solenoid coil (usually marked O or B) connects via a dedicated wire to the indoor thermostat’s changeover terminal. If the system lacks a heat pump, disregard this connection. For dual-fuel configurations, the gas valve relay replaces the solenoid; wire it directly to the W terminal on the control board, bypassing the thermostat’s heating logic during emergency heat modes.
Capacitors–start and run–must match the unit’s microfarad rating (e.g., 35/5 µF). Wire the start capacitor in series with the compressor’s auxiliary winding, then bridge the run capacitor between the main and auxiliary windings. A failed capacitor often mimics compressor issues; test with an analog multimeter in ohms mode (needle should swing then return to zero). If replacing, discharge stored energy first using a 20kΩ resistor across terminals for 30 seconds to prevent arc flash.
Thermostat wiring follows standard color coding but varies by manufacturer. For basic cooling, route R (red, power), G (green, fan), Y (yellow, cooling), and C (common) wires from the indoor unit to the outdoor control board. Smart thermostats require an additional O/B wire for heat pump reversal. Label all wires before disconnecting; miswiring the Y terminal to G can engage the fan continuously instead of the compressor, risking evaporator coil freeze.
Low-voltage control circuits (24V) power safety switches and relays. The high-pressure switch (closes at ~350 PSI) and low-pressure switch (opens at ~50 PSI) connect in series with the contactor coil. Tripped switches stop the compressor; reset only after diagnosing the root cause (e.g., refrigerant leak, blocked condenser). Wire the thermal overload protector in line with the compressor’s windings–a faulty protector may require replacing the entire compressor if internal.
Final steps include securing all wire nuts with heat-shrink tubing or liquid electrical tape and anchoring loose wires with zip ties to prevent vibration-induced wear. Recheck connections against the unit’s original schematic (often affixed inside the access panel). Energize the circuit and monitor for proper cycling; unusual humming or rapid click sequences indicate wiring faults or failed components. For units with ECM motors, verify the module’s 5V reference signal–deviations require recalibration or module replacement.
Key Elements in HVAC Cooling Unit Electrical Blueprints
Begin by locating the compressor contactor, typically marked with “C” or “COMP” on schematics. This relay activates the primary cooling cycle and requires a direct 240V supply from the disconnect switch. Verify its coil operates on 230V or 24V–matching the control board output–to prevent improper engagement. Cross-reference the contactor’s terminals against the legend: L1/L2 for line input, T1/T2 for compressor load.
Trace the start capacitor (often labeled “SC” or “HRC”) connected in series with the compressor’s auxiliary winding. Check capacitance values–typically 30-50µF for residential units–against the manufacturer’s specifications. A failed capacitor alters current phase, causing hard starts or overheating; use a multimeter set to capacitance mode for testing. Ensure the capacitor’s run terminal connects to the compressor’s “C” post via a thermal overload protector.
Control Board and Safety Interlocks

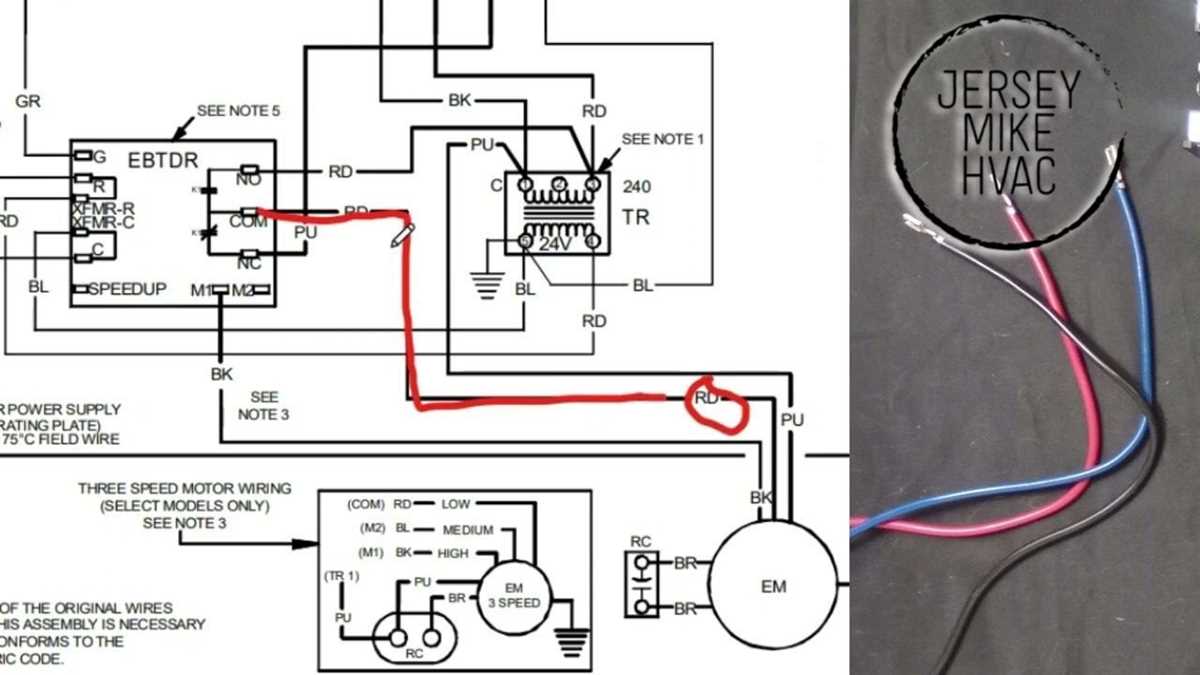

Identify the low-voltage control circuit originating from the transformer secondary, usually 24V. Follow the thermostat wires (R, Y, G) leading into the control module, with R supplying power, Y calling for cooling, and G activating the fan. The board’s relays must toggle cleanly–test continuity across contacts while energized. Faulty relays cause intermittent operation; replace if resistance exceeds 1Ω when engaged.
The pressure switches (high/low) serve as critical safety cutoffs. The high-pressure switch (often labeled “HP”) interrupts power if refrigerant pressure exceeds 400 PSI, while the low-pressure switch (“LP”) trips below 50 PSI. Locate these inline with the contactor coil–test by manually depressurizing the system to confirm tripping. Bypass wiring temporarily only for diagnostics; never operate a unit with faulty switches.
Fan motor connections vary by model but typically include a multi-speed arrangement. The schematic will denote “HI,” “MED,” and “LOW” taps on the motor winding–verify correct pairing with the control board’s fan relay outputs. Miswiring here causes insufficient airflow or motor burnout. Use an ohmmeter to check winding resistance: low-speed tap should read 5-15Ω higher than high-speed to confirm proper spacing.
Auxiliary Components and Grounding
Inspect the defrost board (if applicable) for heat pump configurations, usually marked “DF” or “REV.” This module reverses refrigerant flow during defrost cycles, requiring a separate 24V supply from the main board. Ensure the reversing valve solenoid (often labeled “RV”) receives clean voltage–faulty coils cause incorrect phase operation, leading to inefficient heating/cooling. Test solenoid resistance: 10-20Ω typically indicates a functional coil.
Grounding paths must be clearly marked–follow the green or bare copper wires from all motors and metal components to the unit chassis. Verify bonding screws connect the chassis to the disconnect box’s ground lug. Weak grounding creates stray voltage hazards; measure resistance between chassis and ground–values above 0.5Ω indicate loose or corroded connections requiring immediate service.
Understanding Electrical Schematics for Window Cooling Units
Locate the legend in the lower corner of the schematic–this decodes symbols like squares for compressors, zigzag lines for resistors, and circles for motors. Match each symbol to its labeled component on the unit itself, starting with the largest: the fan assembly. Trace power lines from the terminal block to verify they align with the printed paths; a mismatch often indicates a disconnected or faulty connector.
Identify the color-coded leads first: red for high voltage, blue for neutral, yellow for capacitor connections, and black or white for ground. Use a multimeter (set to continuity) to confirm each wire follows the schematic path without breaks. A broken circuit typically shows infinite resistance; recheck junctions where wires splice or terminate in plugs.
- Begin at the power cord entry–confirm the hot lead (red) routes directly to the first switch or thermal fuse.
- Trace neutral (blue) to the compressor relay before splitting to the fan motor.
- Capacitor wiring (yellow) bridges compressor and fan–ensure both components share this single run.
- Ground (black/white) must bond to the metal chassis at multiple points; missing connections cause erratic operation.
Label each terminal on the schematic with tape flags noting voltage readings taken during operation: 120V at switches, 240V at compressor, 0V at safe ground points. Anomalies below 10% variance signal potential faults like corroded contacts or undersized conductors. Replace any wire showing heat damage or brittle insulation–common failure points occur near control boards.
Reverse-engineer the control logic by following timed delay patterns annotated beside coils and relays. A two-second delay on the compressor start coil prevents short cycling; bypassing this causes premature failure. Verify switch settings against sequence diagrams–incorrect temperature calibration stems from misaligned potentiometer readings. Keep a digital copy of the schematic during tests; mark corrections directly to avoid confusion during reassembly.
