Start with a minimum of two dedicated circuits for appliances: one 20-amp for small devices (blender, toaster) and one 30-amp for high-load equipment (oven, dishwasher). Use 12-gauge copper wire for 20-amp circuits and 10-gauge for 30-amp to prevent overheating. Position outlets no more than 48 inches apart along countertops, ensuring none exceed 20 inches from a corner or edge to comply with NEC 210.52(C)(1).
Install GFCI protection on all receptacles within 6 feet of sinks, including those under countertops near plumbing. For built-in appliances (microwave, fridge), run individual branch circuits to avoid overloading shared lines. Label each breaker clearly–e.g., “Countertop Outlets – North Wall”–using permanent markers or pre-printed tags to simplify troubleshooting.
Route conduit or armored cable (type MC or NM-B) through wall studs at 1.25 inches from edges to prevent drywall screws from piercing insulation. When crossing wooden joints, protect wires with nail plates. For overhead lighting, place junction boxes centered above work zones (islands, prep areas) and use dimmable LED drivers rated for damp locations if near steam.
Test all connections with a multimeter before closing walls: 120V AC ±5% for standard outlets, 240V for heavy appliances. Keep a 6-inch slack loop at each box for future modifications. Document the final layout with dated photos and keep a copy near the main panel–this avoids guesswork during renovations or repairs.
Planning Electrical Layouts for Culinary Spaces
Begin by mapping each appliance’s power requirements on grid paper scaled 1:20. Place GFCI outlets 4–6 feet apart along countertop edges, ensuring no point is more than 24 inches from an outlet. Dedicate separate 20-amp circuits for high-draw devices like refrigerators, microwaves, and dishwashers–never combine them with lighting or small appliance circuits. Label each circuit clearly with its amperage and intended load in permanent marker on the back of the electrical panel door.
Run 12-gauge copper wire for standard outlets and 10-gauge for 20-amp circuits. Conceal cables in EMT conduit or schedule-40 PVC where they pass through walls or ceilings; use flexible metal conduit beneath cabinets or in high-traffic areas to prevent damage. Maintain 18-inch clearance from the floor for horizontal cable runs to comply with NEC 300.4(D). For under-cabinet task lighting, install direct-wire LED strips on a dedicated switch with a dimmer capable of handling 120V/12W per foot.
Position the main service panel within 10 feet of the primary entrance but outside the cooking zone to avoid heat exposure. Distribute load evenly: no single 15-amp circuit should serve more than 8 outlets or 1,440W. Use arc-fault circuit interrupters (AFCI) for all receptacles except those powering refrigeration units, which require GFCI protection only. Mark emergency shut-off locations near the sink and stove with illuminated switches or pull cords.
Ground all metallic fixtures–including range hoods and built-in ovens–with 6-gauge bare copper wire bonded to a 8-foot ground rod. Test continuity with a megohmmeter after installation; resistance should not exceed 25 ohms. For island counters, run wiring beneath the subfloor in rigid conduit, securing it with clamps every 4 feet. Avoid daisy-chaining outlets–each should connect directly to the circuit breaker via its own run.
Verify local code amendments: some jurisdictions mandate AFCI protection for dishwashers or require dedicated circuits for trash compactors. Check voltage drop calculations for runs exceeding 75 feet, compensating with thicker wire if necessary. Document the final plan with a color-coded legend indicating wire gauge, circuit breaker amperage, and outlet types, attaching it to the inside of the panel door for future reference.
Critical Elements for a Residential Culinary Electrical Plan
Start with mapping dedicated circuits for high-load appliances: refrigerators require 20A, ovens and cooktops need 40–50A, and dishwashers demand 15–20A. Group small appliances like blenders, toasters, and coffee makers on a separate 20A circuit to prevent overloads. Avoid combining these with lighting or outlets in adjacent rooms.
Include ground-fault circuit interrupter (GFCI) protection for all receptacles within 1.8 meters of water sources–sinks, countertop edges, and wet bars. Test monthly using the “Test” and “Reset” buttons. Replace any GFCI that fails to trip within 5 milliseconds or doesn’t reset properly.
Position outlets at 30–45cm intervals along countertops, ensuring no point is more than 60cm from a receptacle. Alternate duplex outlets to allow for staggered appliance placement. For islands or peninsulas, install outlets beneath the countertop or in pop-up mechanisms if local codes permit.
Lighting and Control Systems
Layer task, ambient, and accent lighting:
- Undercabinet LEDs (24–36W per meter) for task zones.
- Recessed downlights (9W–15W per fixture) spaced 1.2–1.5 meters apart for general illumination.
- Pendants (40–60W) centered over islands, suspended 75–90cm above surfaces.
Wire each lighting group on its own 15A circuit. Integrate dimmers with compatible drivers for LEDs and halogens; avoid trailing-edge dimmers for CFLs or non-dimmable LEDs.
Dedicate a 20A circuit for a microwave hood combination, ensuring it supports both ventilation (200–300 CFM) and appliance loads. Route this circuit directly to the panel without intermediate connections. For gas ranges, still provide a 120V outlet for ignition and control systems.
Plan for future-proofing: reserve 2–3 spare circuits in the distribution panel for smart appliances, induction cooktops, or electric vehicle chargers. Use #10 AWG copper wire for 30A circuits even if current loads don’t require it to accommodate potential upgrades.
Safety and Compliance Standards
Adhere to local codes on conduit types: NM-B cable for dry areas, THWN-2 in conduit for wet locations. Use weatherproof junction boxes for outdoor-rated refrigerators or freezers. Label all circuits clearly at the panel with:
- Appliance/zone served.
- Wire gauge.
- Circuit breaker rating.
Install arc-fault circuit interrupters (AFCIs) on all non-GFCI circuits to mitigate fire risks from damaged wires. Bond ground and neutral wires only at the main service panel; separate them in subpanels.
For ventilation fans, wire a dedicated 15A circuit if the fan exceeds 30W or includes heaters/lights. Use insulated bushings on cable entries into boxes to prevent wire coating damage. Conduct a final megohmmeter test on all circuits–minimum 1MΩ insulation resistance between conductors and ground.
Creating an Electrical Plan for Culinary Spaces: A Precise Guide

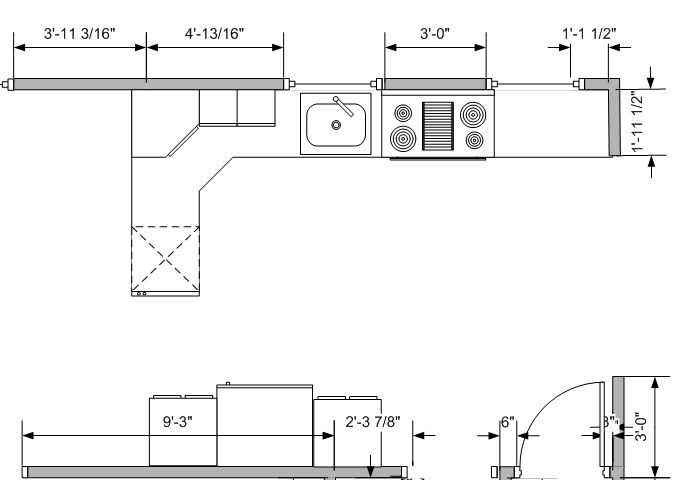

Begin by sketching the room’s footprint on graph paper using a 1:20 scale–each grid square represents 10 cm. Mark fixed elements first: walls, doors, windows, plumbing stacks, and structural columns. Appliance locations follow: refrigeration units (20A circuit), cooking surfaces (50A dedicated line), and dishwashers (15A GFCI). Label each outlet type–standard 120V, split-wired 240V, or USB–with NEC-compliant symbols: circles for receptacles, rectangles for switches. Group circuits by load: small appliances (two 20A circuits for countertop outlets), fixed appliances (individual 20A lines for microwave, blender), and lighting (15A shared circuit). Use colored pencils to differentiate: red for 120V, blue for 240V, green for grounding paths.
Calculate total wattage by summing appliance ratings–refrigerator (800W), range (12,000W), dishwasher (1,200W)–then apply a 25% safety margin. Divide by voltage (120V or 240V) to determine breaker size: 12,000W ÷ 240V = 50A for the cooktop. Route cables in straight lines along joists, avoiding sharp bends and crossing plumbing pipes by at least 2 inches. Specify wire gauge: 12 AWG for 20A circuits, 10 AWG for 30A, 8 AWG for 40A+ loads. Indicate junction boxes with dotted lines, noting their depth (minimum 4″ for 12 AWG). For island circuits, draw a dashed line beneath the floorplan showing conduit runs, marking transition points (e.g., under-cabinet to in-wall).
Verify clearance requirements–outlets 4 feet apart along counters, no more than 2 feet from appliance cords, and 12 inches above countertops. Label each circuit on the plan with its breaker number (e.g., “BR1 – Lighting”). Add a legend: “//” for Romex, “◯” for single-pole switches, “⏚” for grounded outlets. Include a load schedule in the corner: “Circuit A: 15A (600W), Circuit B: 20A (1,600W), Circuit C: 50A (9,600W).” Cross-check with local codes–some jurisdictions require arc-fault breakers for all 15A/20A circuits. Finalize with a redline review, tracing each cable path with a ruler to confirm logic before installation.
Critical Errors in Residential Circuit Installations for Culinary Spaces
Overloading single circuits by connecting multiple high-amperage appliances to the same branch is a primary cause of tripped breakers and fire hazards. Microwaves (12–15A), toasters (8–10A), and espresso machines (10–13A) must never share a 15A or 20A line unless dedicated calculations confirm the combined load remains under 80% of the circuit’s capacity. Use a clamp meter to verify actual draw before finalizing connections, and never rely on appliance nameplate ratings alone–real-world usage often exceeds listed values.
Ignoring ground fault protection near water sources violates NEC 210.8 and creates lethal shock risks. All receptacles within 6 feet of a sink, dishwasher, or wet bar must be GFCI-protected, including those behind garbage disposals and under-cabinet lighting. Test GFCI outlets monthly with the built-in “Test” button and replace immediately if reset fails. Standard breakers offer no protection against ground faults–only GFCI devices cut power within 4–6 milliseconds to prevent electrocution.
Using 14-gauge wire for 20A circuits or mixing wire gauges between outlets on the same branch invites overheating and potential meltdowns. A 20A circuit requires consistent 12-gauge copper throughout, including pigtails and connections at junction boxes. Check wire insulation for nicks or stripped sections–even minor damage reduces current-carrying capacity. Never use backstab connections on outlets; they loosen over time, increasing resistance. Instead, wrap wires clockwise around terminal screws and torque to 12–14 in-lbs for secure, long-term conductivity.
Improperly securing cables in wall cavities and crawl spaces leads to pinched insulation or rodent damage. Maintain a 1.25-inch clearance between NM-B cables and framing edges, and staple within 12 inches of outlet boxes (or every 4.5 feet) per NEC 334.30. Avoid running cables parallel to ducts or pipes–use protective conduit if crossing hot water lines. When fishing wires through insulation, use rigid fiberglass rods to prevent tearing, which can expose conductors and create shorts.
Neglecting to label every circuit at the panel with precise descriptions (e.g., “Island Outlets – 20A #12 Cu” instead of “Kitchen #3”) complicates troubleshooting and future upgrades. Use permanent marker or engraved tags, not paper labels. Record exact locations of junction boxes–even buried ones–on a scaled diagram for electricians or homeowners working later. Failure to document hidden splices or abandoned wires violates NEC 408.3, and can result in code violations during inspections.
