For a two-point control setup, always begin by identifying the common (line or load) terminal on each device–marked in most models with a darker screw or labeled “COM.” Connect the power source (hot wire) to the first controller’s common terminal, then run a traveler wire to the corresponding brass or lighter-colored screws on both units. The second traveler completes the loop between the two devices. Ensure the remaining common terminal on the second unit connects to the fixture’s hot lead. Failure to match travelers correctly results in intermittent operation or dead spots.
Avoid mixing wire gauges–14 AWG stranded copper suffices for 15-amp circuits, while 12 AWG solid is mandatory for 20-amp applications. Use wire nuts rated for the conductor count and twist clockwise before tightening the nut to prevent slippage. Test continuity with a multimeter before energizing: probes on the common and each traveler should show ~0 ohms when the toggles are aligned, indicator lights confirming proper connection.
Non-metallic cable (NM-B) must be secured within 12 inches of device boxes and every 4.5 feet along straight runs–use staples or clamps, not nails or drywall screws. Grounding is non-negotiable: bond all green or bare wires to metal boxes with a pigtail and to plastic boxes via the integral grounding clip. For aluminum wiring retrofits, employ CO/ALR-rated devices and anti-oxidant compound on all connections to prevent corrosion-related voltage drop.
Label travelers clearly–black and red tape or colored sleeves distinguish them from neutrals (white) and grounds. If extending control to a third point, introduce a four-way device between the two three-conductor units, swapping travelers from one pair to the other. Verify the toggle sequence: each flip should reverse the fixture’s state without skipping steps. Use a circuit tester to confirm no hot wires remain energized when all toggles are off–miswired setups risk overload or uncontrolled current paths.
Mastering Multi-Location Control Circuits

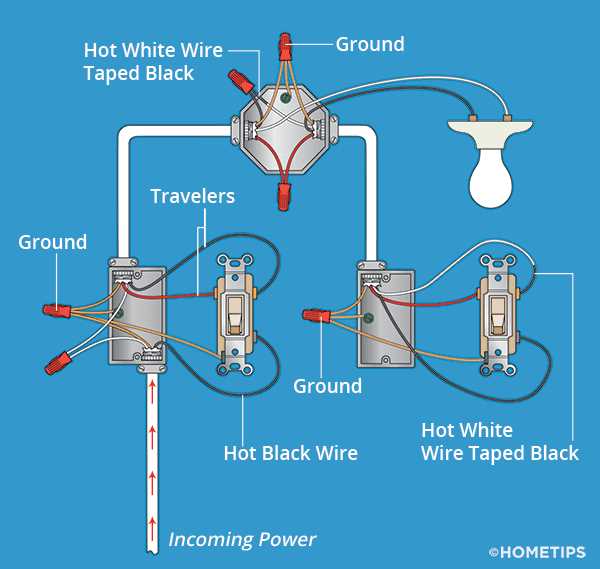

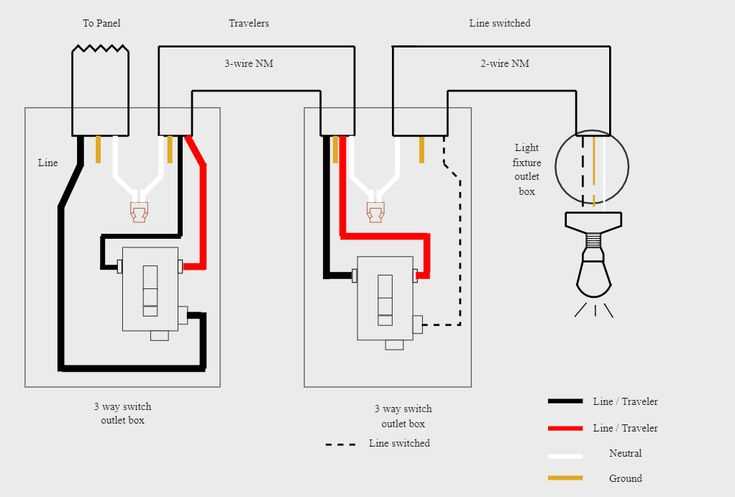

Start with the power source at the first control point. Connect the hot wire (typically black) to the common terminal–marked darker or labeled “COM.” The traveler terminals (often brass or lighter-colored) pair with two wires running to the second control device. Use 14-3 or 12-3 cable with a ground for these connections.
At the second device, attach the incoming travelers to the matching terminals. The common terminal here connects to the load (light fixture). Ground wires must bond to all metal parts and terminate in a green screw or grounding lug. Test continuity before energizing the circuit.
For intermediate fixtures between two control points, splice the neutral wire directly through. Neutrals never connect to control devices–only to the load. Label all wires at each box to avoid confusion during troubleshooting.
Troubleshooting Common Errors
- Flickering lights: Check loose traveler connections or mismatched wire gauges.
- Single-point control only: Verify the common terminal at both ends connects to the correct wire.
- Dead circuit: Confirm the power source breaker is on and test for voltage at the first device.
- Humming load: Replace bulbs or check for excessive traveler resistance.
Use dedicated cable clamps at each junction box–no unused openings. For longer runs, upsize travelers to 12 AWG to reduce voltage drop. Always cap unused wires with wire nuts and electrical tape.
Alternative Configurations
- Power to load first: Reverse the sequence–supply feeds the fixture, then splits to the controls.
- Multiple fixtures: Splice load wires in parallel from the second device’s common terminal.
- Smart controls: Replace one device with a relay module; maintain identical traveler wiring.
Mark polarity on traveler pairs–use colored tape or numbering. Identify the common wire at each end to prevent reversed connections. Wrong polarity causes short cycles or non-operation.
For installations above 20 amps, use heavier-gauge wire and 20-amp devices. Larger loads may require relay-assisted configurations. Always consult local electrical codes for specific requirements on box fill, conductor sizing, and junction box accessibility.
Essential Gear for Installing a Multi-Location Light Control Setup
Begin with a non-contact voltage tester–this device detects live currents without direct contact, critical for safety before handling any connections. Models like the Klein Tools NCVT-3 or Fluke 1AC-A II offer reliable detection down to 50V and include audible alerts for rapid confirmation. Avoid relying solely on visual indicators; prioritize units with both sound and light feedback.
Wire strippers with precision gauge markings streamline the process by removing insulation without damaging conductors. Look for tools with built-in cutting edges, such as the Ideal 45-121, which accommodate 10-20 AWG solid and stranded wires. For armored cables or conduit installations, add a rotary cable cutter to your toolkit–it slices through steel sheathing cleanly without deforming the core.
Junction boxes must support the combined load of all connected fixtures; select deep or oversized models rated for at least 20 cubic inches per conductor. For endpoint mounts, use double-gang boxes to accommodate travelers and common terminals without crowding. Secure all boxes with #10-32 machine screws into studs or joists–standard drywall anchors will fail under repeated mechanical stress.
Traveler conductors should be 14 AWG for 15-amp circuits or 12 AWG for 20-amp applications, protected by THHN/THWN insulation for dry locations or NM-B for residential walls. Grounding requires bare or green-insulated 12 AWG copper, bonded to metal boxes with green grounding screws and pigtailed to terminal screws. For outdoor or damp environments, use UF-B cable and weatherproof cover plates with rubber gaskets.
Termination relies on screw-secured brass connectors–avoid backstab ports, which loosen over time. Ratcheting crimpers (e.g., Paladin 1325) create permanent splices for ground wires, using insulated butt connectors for 14-16 AWG. Label all conductors at both endpoints with heat-shrink tubing or adhesive tags: “Common,” “Traveler 1,” and “Traveler 2” prevent miswiring during maintenance.
Connecting the Primary Control Point to the Electrical Supply
Begin by verifying the circuit breaker for the intended path is off to prevent accidental energization. Use a non-contact voltage tester to confirm no current is present at the feed wires or terminal points.
Identify the incoming hot conductor–typically a black or red wire–from the power feed. Secure this lead to the common terminal on the first control unit, often marked with a darker screw or labeled “COM.” Apply a wire nut if splicing is required, ensuring a tight connection with no exposed copper.
Locate the traveler wires–usually two distinct wires of the same color (red or white with red markings)–and attach them to the remaining brass terminals on the device. These terminals may be positioned side-by-side or marked “T1” and “T2.” Maintain consistent wire color pairing throughout the setup to avoid misconfiguration.
If the configuration includes a neutral path, connect the white wire from the power source to the neutral bus in the junction box. This step is critical for modern devices requiring constant power, such as smart controls or timers. Confirm the neutral is not carrying current by testing it before handling.
Grounding the System
Attach the bare copper or green grounding wire to the green screw on the control unit. If the box is metallic, run an additional ground pigtail from the device to the box itself. Proper grounding prevents potential shock hazards and ensures safety mechanisms function correctly.
Double-check all connections for tightness and isolate each wire with electrical tape or wire nuts. Carefully tuck the leads into the box, avoiding sharp edges that could damage insulation. Restore power and test the setup by toggling the control to confirm proper operation before proceeding to the secondary unit.
For installations with dimmers or variable-speed mechanisms, refer to the manufacturer’s guidelines for specific load requirements. Some setups may need dedicated wiring paths for full compatibility.
Connecting the Messenger Conductors Between Dual Control Points
First, identify the brass-colored terminals on each control device–these are reserved for the messenger conductors. Use 14-gauge solid copper wire for 15-amp circuits or 12-gauge for 20-amp installations, stripping ⅝” of insulation from each end. Route one messenger from the common terminal of the first device to the non-common terminal of the second, and repeat with the second messenger in reverse. Secure connections with a calibrated torque screwdriver set to 12 in-lbs for 14-gauge or 18 in-lbs for 12-gauge to prevent loosening under thermal cycling.
| Load Type | Gauge (AWG) | Minimum Bend Radius | Insulation Color |
|---|---|---|---|
| Standard lighting | 14 | 3x wire diameter | Yellow |
| High-output fixtures | 12 | 4x wire diameter | White (with red stripe) |
| Motorized devices | 10 | 5x wire diameter | Orange |
Test continuity after securing all connections: flip one control device on, verify voltage between the common and traveler terminals on the opposite device with a multimeter set to AC 200V scale–expect 120V. If readings fluctuate, recheck torque values and insulation integrity. For metal junction boxes, attach a grounding pigtail to the box screw and both device grounding terminals using a green wire nut rated for at least three #14 wires. Label both ends of each messenger with heat-shrink tubing marked “T1” and “T2” to simplify future maintenance.
